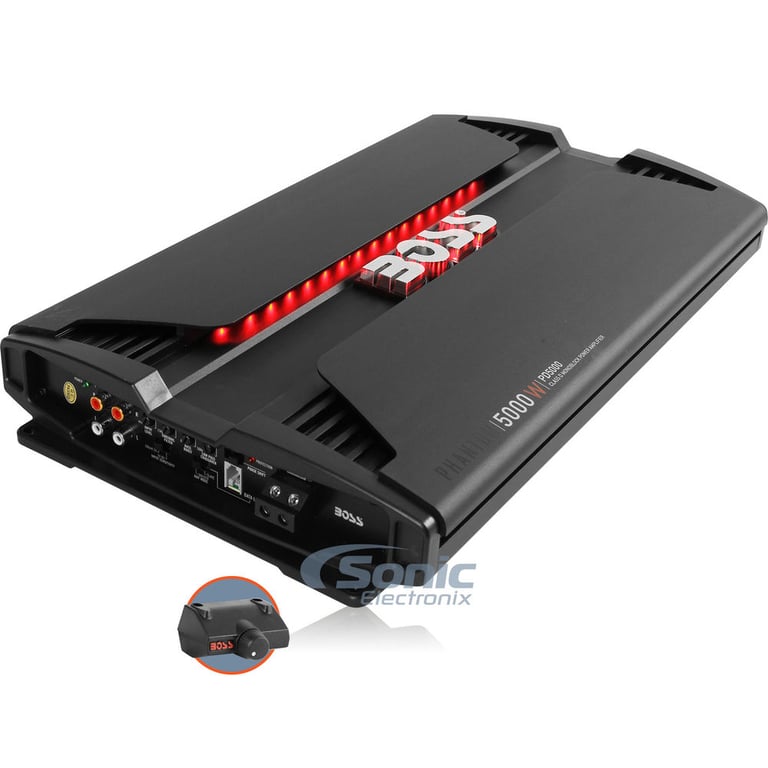

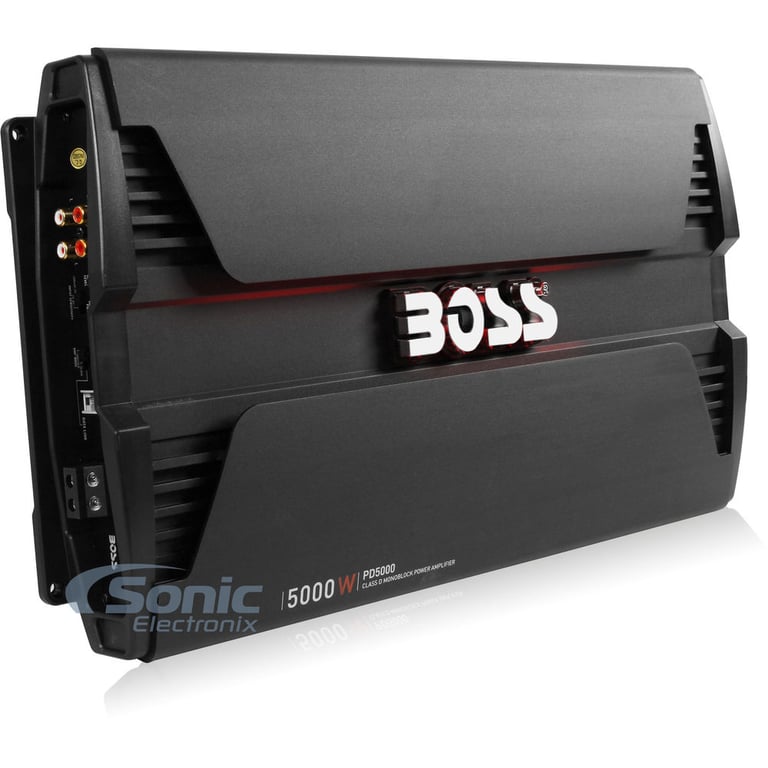

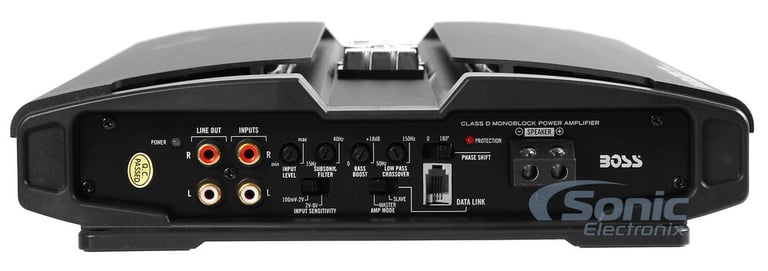

Boss PD5000

5000W Phantom Series Monoblock Class D Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

• RMS: 1250W x 1 @ 4 ohm
• Total Peak Power: 5000W
• Gold-plated RCA low level and high level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 10.31" W x 18.00" L x 2.25" H

Learn more about the pd5000

We apologize

This item has been discontinued


Loading...
82-8705 main

Metra 82-8705 Speaker Adapter Plates

Install 3.5” aftermarket speakers in select 2014-2023 vehicles from Mercedes-Benz

-42.44%

$18.99

List price $32.99

C2-650 main

JL Audio C2-650

200W RMS 6.5" C2 Series 2 Way Component 4-ohm Speakers

21

Product Highlights


• RMS: 1250W x 1 @ 4 ohm
• Total Peak Power: 5000W
• Gold-plated RCA low level and high level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 10.31" W x 18.00" L x 2.25" H

Description


Boss brand icon

Authorized dealer



General Features:

  • Phantom Series Monoblock Class D Amplifier
  • RMS Power Rating:
    • 4 ohm: 1250 watts x 1 chan.
  • Peak Power Rating:
    • 2 ohm: 2500 watts x 1 chan.
    • 1 ohm: 5000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • 1 Ohm stable mono operation

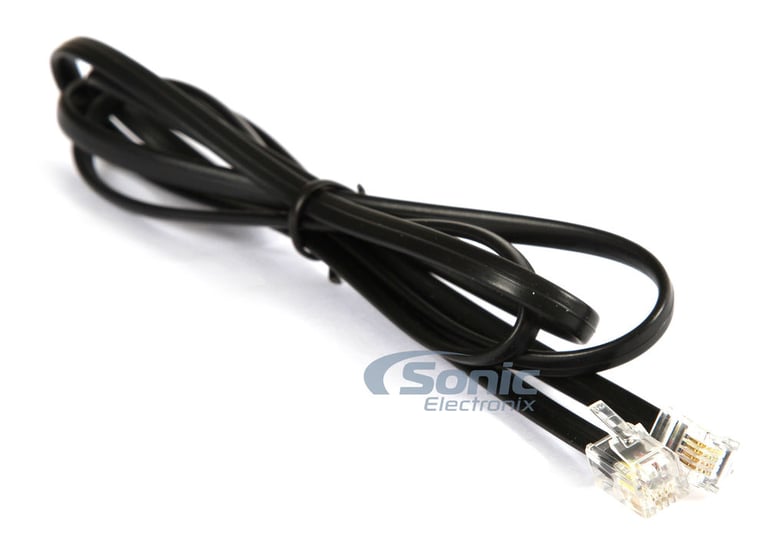

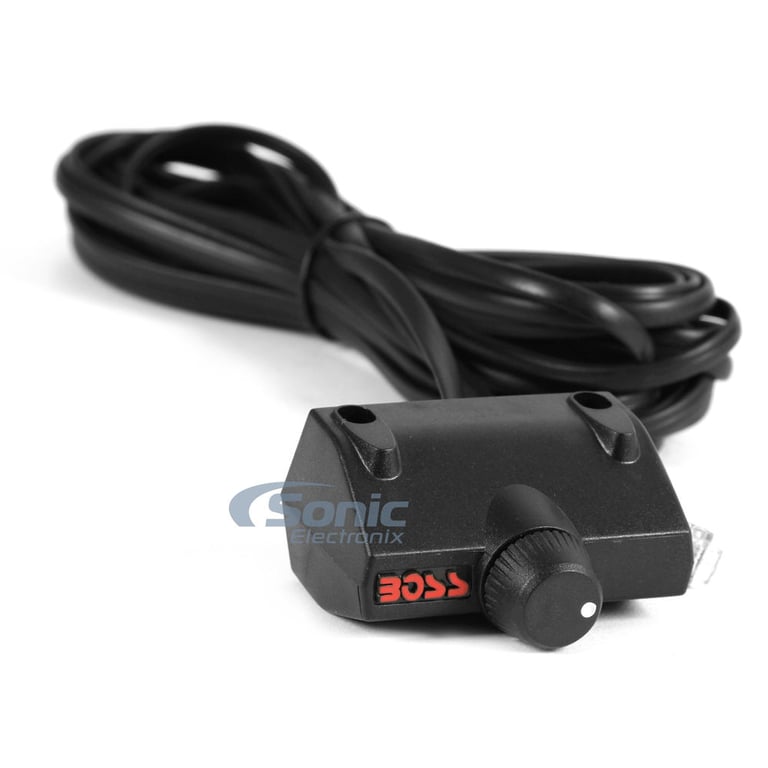

  • Wired remote bass level control included
  • Soft start turn-on
  • Gold-plated RCA low level and high level inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty black anodized heat-sink
  • Input sensitivity: Selectable
    • 2V - 8V
    • 100mV - 2V
  • Frequency Response: 15 - 150 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 100 dB
  • Variable Bass Boost: 0 to +18dB
  • Variable low-pass filter: 50 - 150 Hz
  • Variable subsonic filter: 15 - 40 Hz

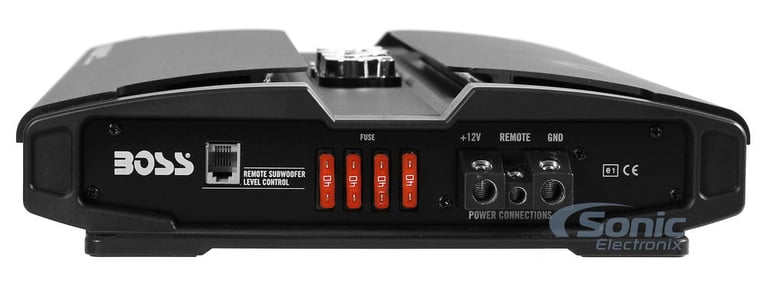

  • Fuse Rating: 40A x 4
  • 4 gauge power and ground wiring minimum is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10.31"W x 18.00"L x 2.25"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

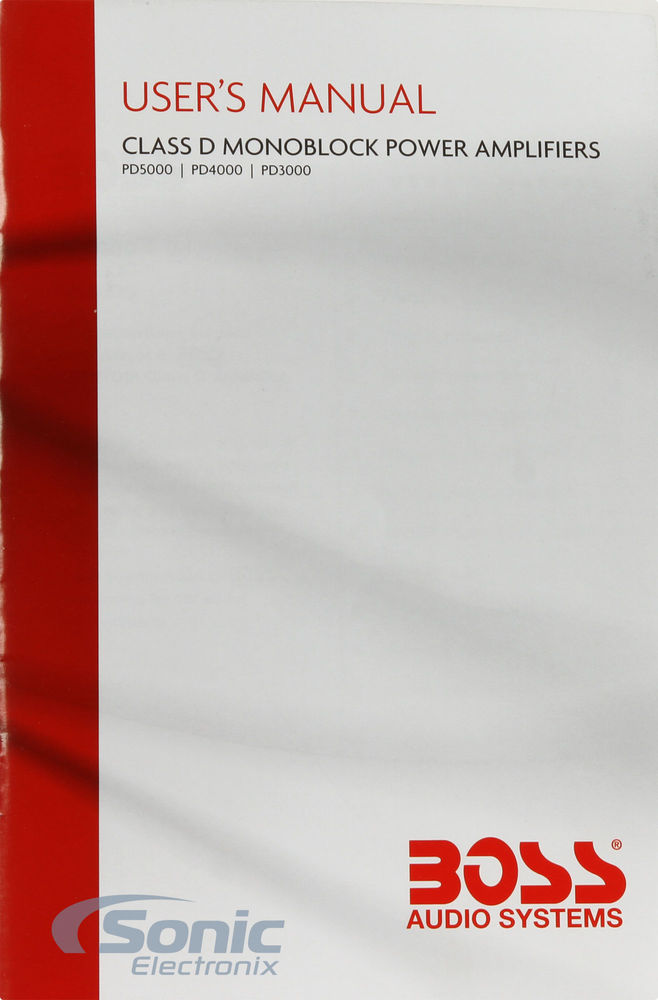

Boss PD5000 owner’s manual


Loading...
VSP8SMBL main

Diamond Audio VSP8SMBL

Mercedes Benz® Specific 8″ Subwoofer Speakers (Left)

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(14)

$199.99

List price $287.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1250 watts x 1 channel
RMS Power @ 2 ohms
Not Specified by Manufacture
RMS Power @ 1 ohm
Not Specified by Manufacturer
Power Specifications - Subwoofer Channel
Peak Power @ 2 ohms
2500 watts x 1 channel
Peak Power @ 1 ohm
5000 watts x 1 channel
Amplifier Specifications
Series
Phantom Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
1250 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.01%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 4
Strappable
Yes
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PD5000

Weight:

13.50lbs

Internal SKU:

pd5000

Internal Product ID:

93802
