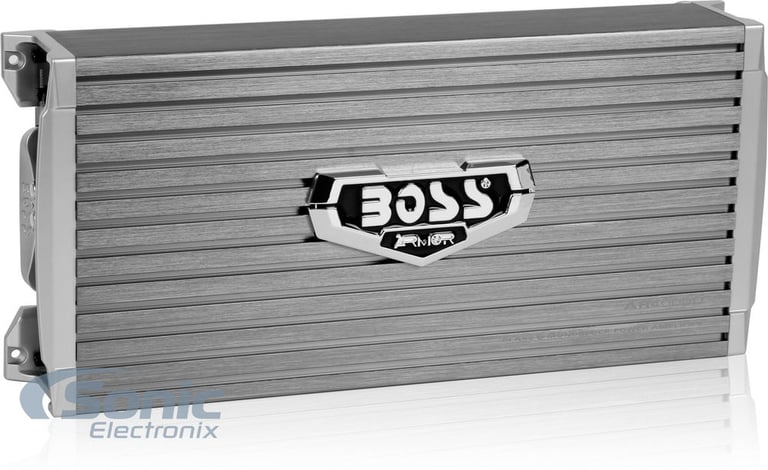

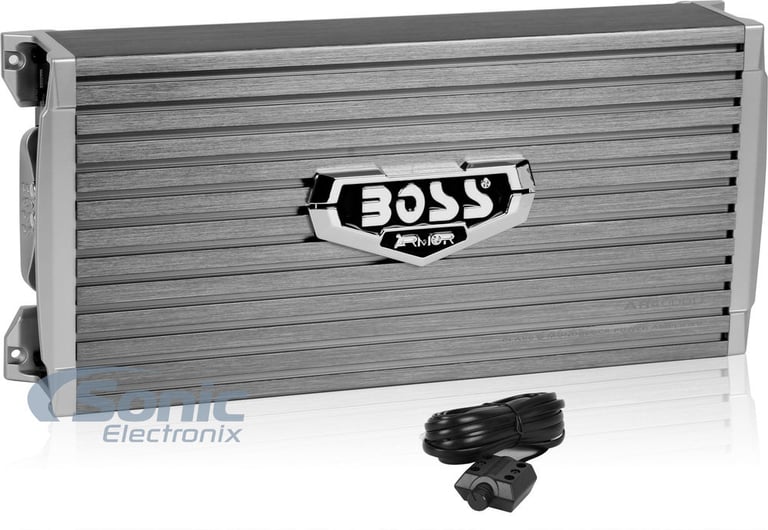

Boss AR4000D | 4000 Watt ARMOR Series Monoblock Amplifier

Boss AR4000D

4000W Max Monoblock ARMOR Series Class-D Car Amplifier

4000W Max Monoblock ARMOR Series Class-D Car Amplifier

• RMS: 1600W x 1 @ 4 ohms
• Peak: 3000W x 1 @ 2 ohms, 4000W x 1 @ 1 ohm
• Strappable Peak: 6000W x 1 @ 2 ohms
• Bass Boost 0-12 dB
• Heavy Duty Aluminum Alloy Heatsink
• Dimensions: 14-1/3"W x 5"D x 2-8/10"H

4.6

(39)
List price $349.95
Save: $171.96

$177.99

In Stock with warranty
Thanks , You Pay:
Order within 14 hrs 47 mins to ship 9/18

FREE delivery: Tue, Sept. 21 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

BUNDLE AND SAVE (2 offers)

You will need an installation kit to install your amp, and the Belva BAK42 is the perfect kit for this amp. Simply click "Add Both to Cart" and receive 15% off the amp kit. This offer cannot be combined with any other coupons or offers.

Boss AR4000D

15% off


Priced separately $212 98

Bundle Savings of $5 25

Total bundle price:

$207 73

While supplies last, get an additional 25% off the Belva 1.0 Farad Capacitor with 4 Gauge Amplifier Wiring Kit. This is a 2000 Watt Max Handling Amp Kit that provides the needed juice, flow and wiring for your new amplifier.

Boss AR4000D

25% off


Priced separately $232 98

Bundle Savings of $13 75

Total bundle price:

$219 23

DESCRIPTION
Boss

Authorized dealer

General Features:

  • Monoblock ARMOR Series Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 750 watts x 1 chan.
    • 2 ohms: 1500 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
    • 2 ohms Strapped Bridged: 6000 watts x 1 chan.
  • Max Power: 4000 watts
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 105 dB
  • Variable low-pass filter (50-150 Hz, 24 dB/octave)
  • Variable subsonic filter (15-40 Hz, 24 dB/octave)
  • Damping factor: 125
  • Frequency response: 15 - 150 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 14-1/3"W x 5"D x 2-8/10"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty


Check out the AR4000D Owner's Manual



FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channels
RMS Power @ 2 ohms
1500 watts x 1 channels
RMS Power @ 1 ohm
3000 watts x 1 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
1500 watts x 1 channels
Peak Power @ 2 ohms
2000 watts x 1 channels
Peak Power @ 1 ohm
4000 watts x 1 channels
Amplifier Specifications
Amplifier Series
Armor (Boss)
Marine Certified
No
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.01%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Yes
Fan Cooled
No
Fuse Rating
40A x 3
Total Fuse Rating
120
Strappable
Yes
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier

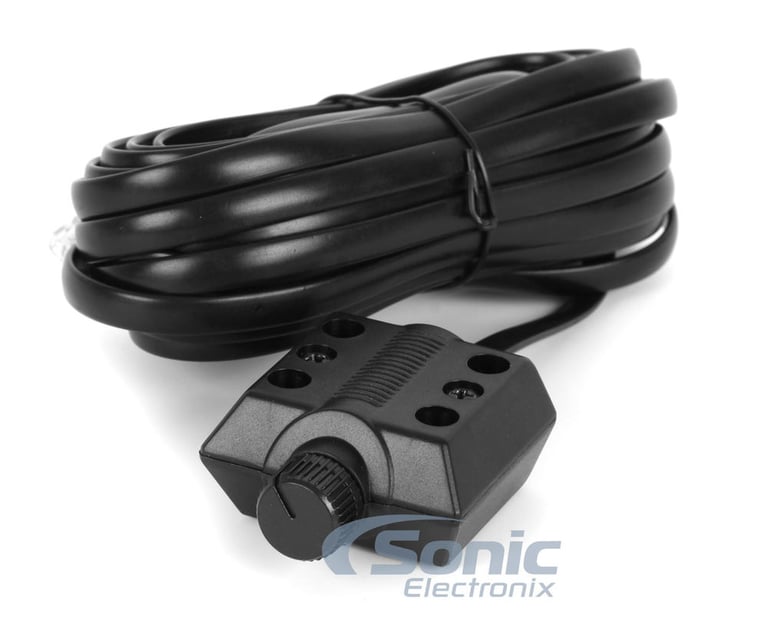

Wired gain knob (wire separate)

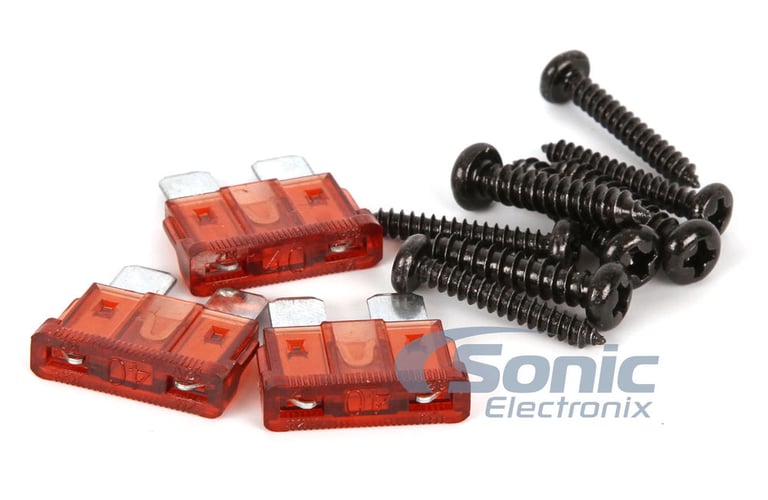

Four spare fuses
Paperwork
User manual
Warranty/Registration card
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer
