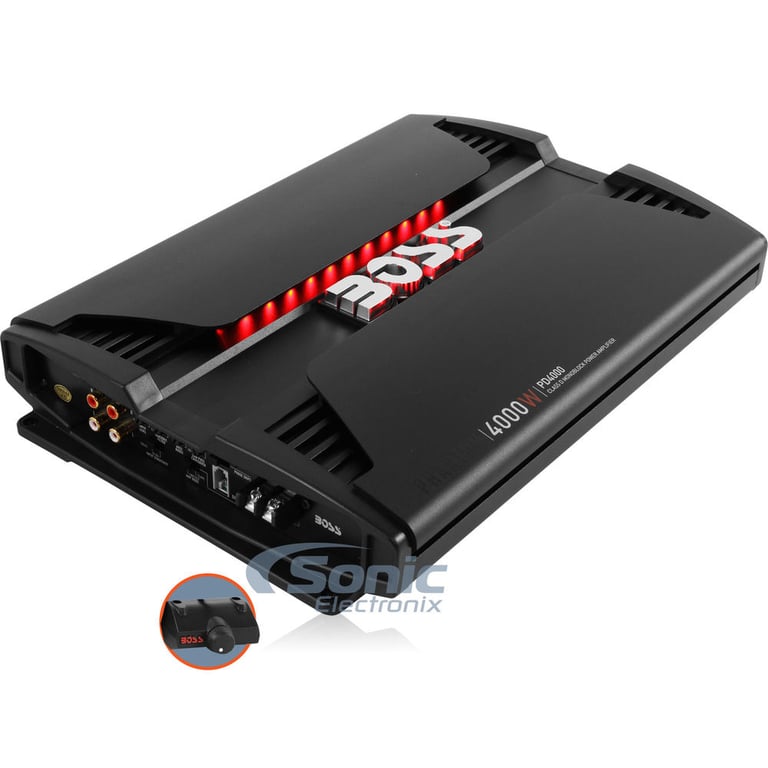

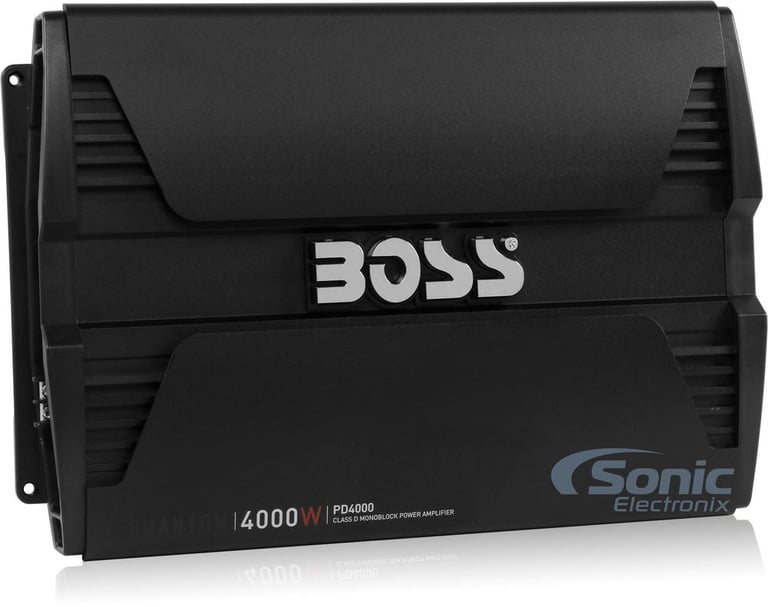

Boss PD4000 4000W Monoblock Phantom Series Class D Amplifier

Boss PD4000

4000W Monoblock Phantom Series Class D Amplifier

4000W Monoblock Phantom Series Class D Amplifier

• RMS: 1000W x 1 @ 4 ohms
• Total Peak Power: 4000W
• Gold-plated RCA low level and high level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 10.31" W x 15.00" L x 2.25" H

List price $249.99
Save: $50.00

$199.99

In Stock with warranty
Thanks , You Pay:
Order within 5 hrs 42 mins to ship today

FREE delivery: Sat, July 31 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Boss

Authorized dealer

General Features:

  • Phantom Series Monoblock Class D Amplifier
  • RMS Power Rating:
    • 4 ohms: 1000 watts x 1 chan.
  • Peak Power Rating:
    • 2 ohms: 2000 watts x 1 chan.
    • 1 ohm: 4000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • 1 Ohm stable mono operation

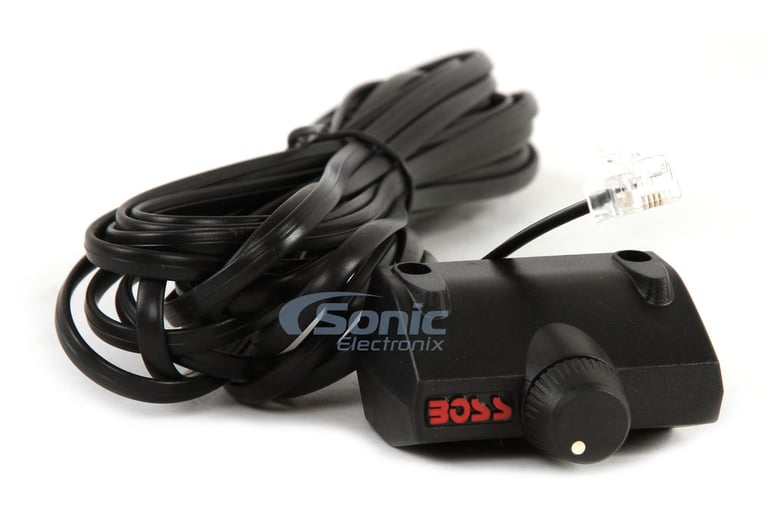

  • Wired remote bass level control included
  • Soft start turn-on

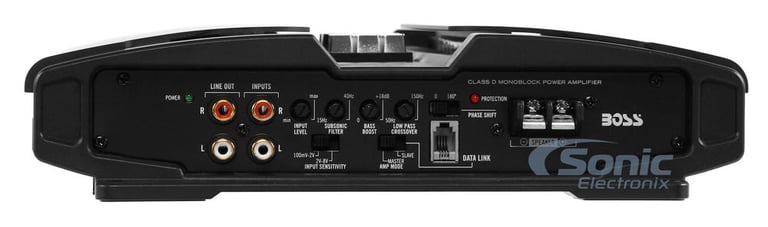

  • Gold-plated RCA low level and high level inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty black anodized heat-sink
  • Input sensitivity: Selectable
    • 2V - 8V
    • 100mV - 2V
  • Frequency Response: 15 - 150 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 100 dB
  • Variable Bass Boost: 0 to +18dB
  • Variable low-pass filter: 50 - 150 Hz
  • Variable subsonic filter: 15 - 40 Hz

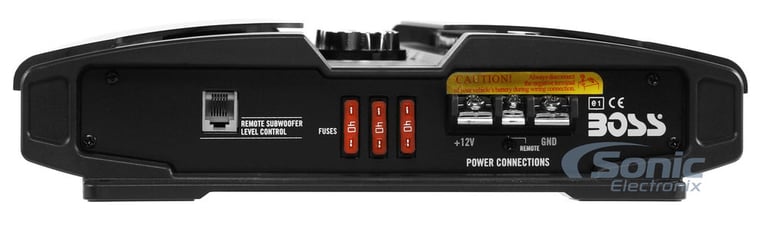

  • Fuse Rating: 40A x 3
  • 4 gauge power and ground wiring minimum is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10.31"W x 15.00"L x 2.25"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Check out the Boss PD4000 Owner's Manual
FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1000 watts x 1 channels
Power Specifications - Subwoofer Channel
Peak Power @ 2 ohms
2000 watts x 1 channels
Peak Power @ 1 ohm
4000 watts x 1 channels
Amplifier Specifications
Amplifier Series
Phantom (Boss)
Marine Certified
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.01%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Bass/Gain Remote
Yes
Fan Cooled
Fuse Rating
40A x 3
Strappable
Yes
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
Hi-Res Certified
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
