See all parts that fit your 1978 Thunderbird

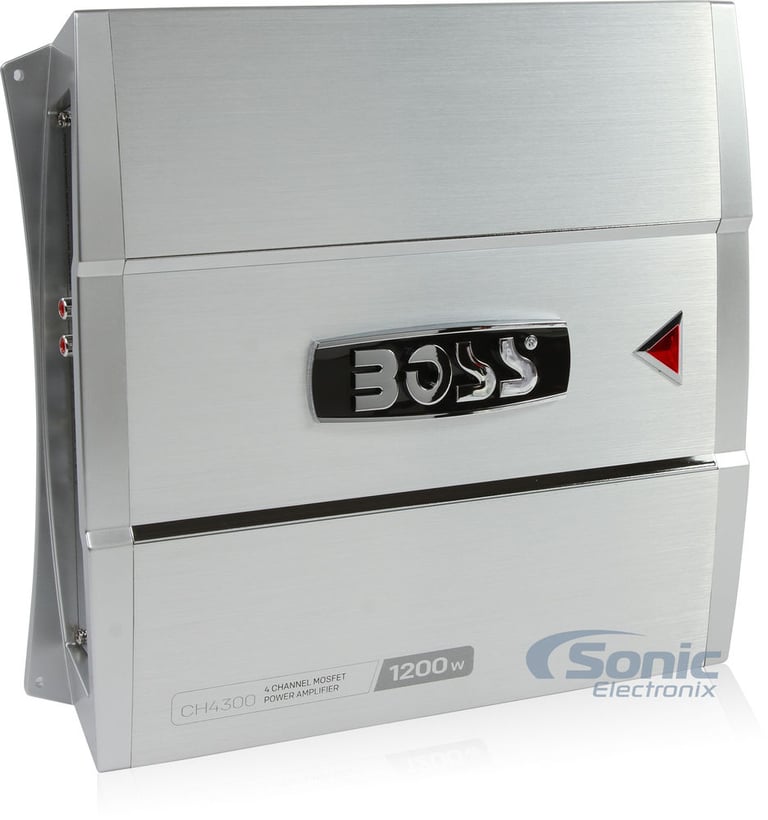

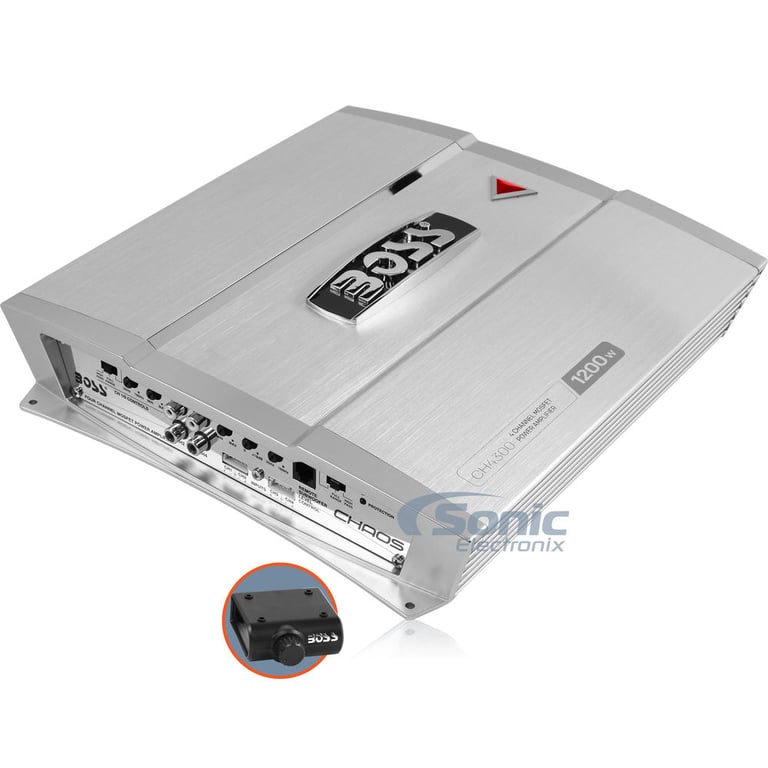

Boss CH4300

1200W 4-Channel Chaos Series Class AB Full Range Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

• RMS: 150W x 4 @ 4 ohm
• Total Peak Power: 1200W
• Nickel-plated RCA low level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)

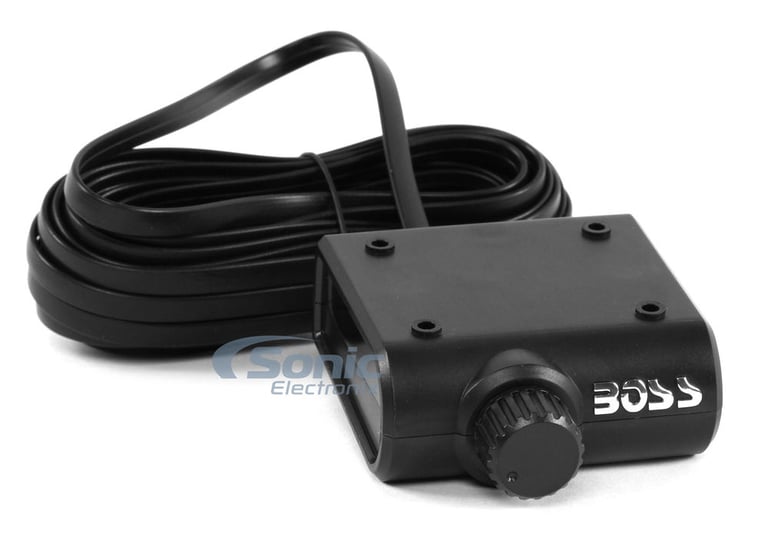

• Wired remote bass level control included
• 11.00" W x 11.98" L x 2.87" H

Learn more about the ch4300

We apologize

This item has been discontinued


Loading...
V465C main

Cerwin-Vega V465C

800W Peak (200W RMS) 6.5" Vega Series 2-Way 4-ohm Component Speaker System

11
-16.67%

$179.99

List price $215.99

Product Highlights


• RMS: 150W x 4 @ 4 ohm
• Total Peak Power: 1200W
• Nickel-plated RCA low level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 11.00" W x 11.98" L x 2.87" H

Description


Boss brand icon

Authorized dealer

General Features:

  • Chaos Series 4-Channel Class AB Full Range Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 chan.
  • Peak Power Rating:
    • 2 ohm: 300 watts x 4 chan.
    • Bridged, 4 ohm: 600 watts x 2
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • Soft start turn-on
  • High Level Inputs
  • Nickel-plated speaker and power terminals
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Silver anodized heat-sink
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): ≤ 0.01%
  • Signal to Noise Ration: 103 dB
  • Variable Bass Boost: 0 to +18 dB
  • Variable low-pass filter: 35 - 160 Hz
  • Fixed high-pass filter: 80 Hz
  • Fuse Rating: 25A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 11.00"W x 11.98"L x 2.87"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty
Check out the Boss CH4300 Owner's Manual

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
Power Specifications - Full Range Channels
Peak Power @ 2 ohms
300 watts x 4 channel
Bridged Peak/Max Power
600 watts x 2 channel
Amplifier Specifications
Series
Chaos EXXtreme II Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
≤ 0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
Fixed 80 Hz
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
103 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CH4300

Weight:

10.10lbs

Internal SKU:

ch4300

Internal Product ID:

93821
