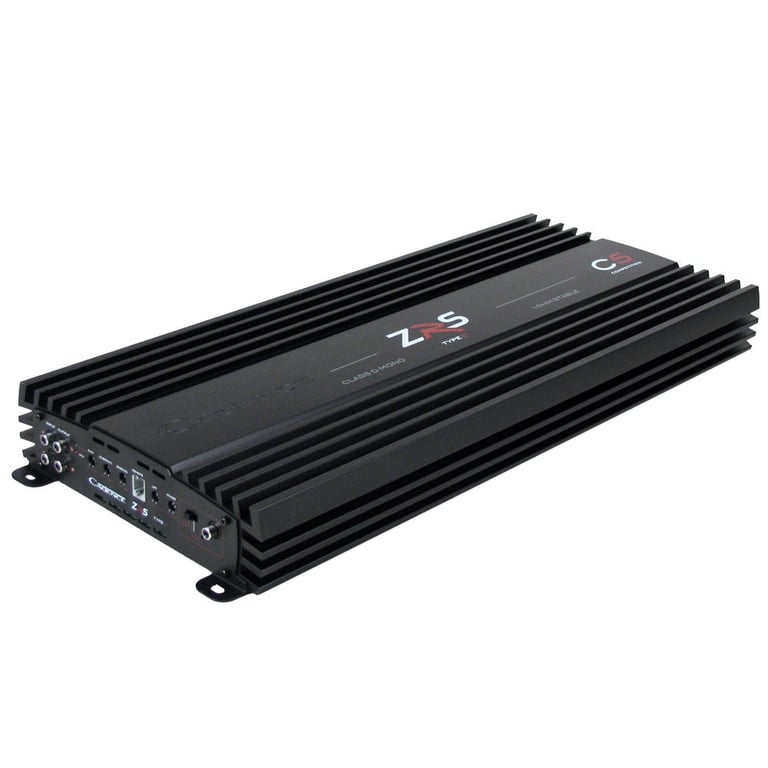

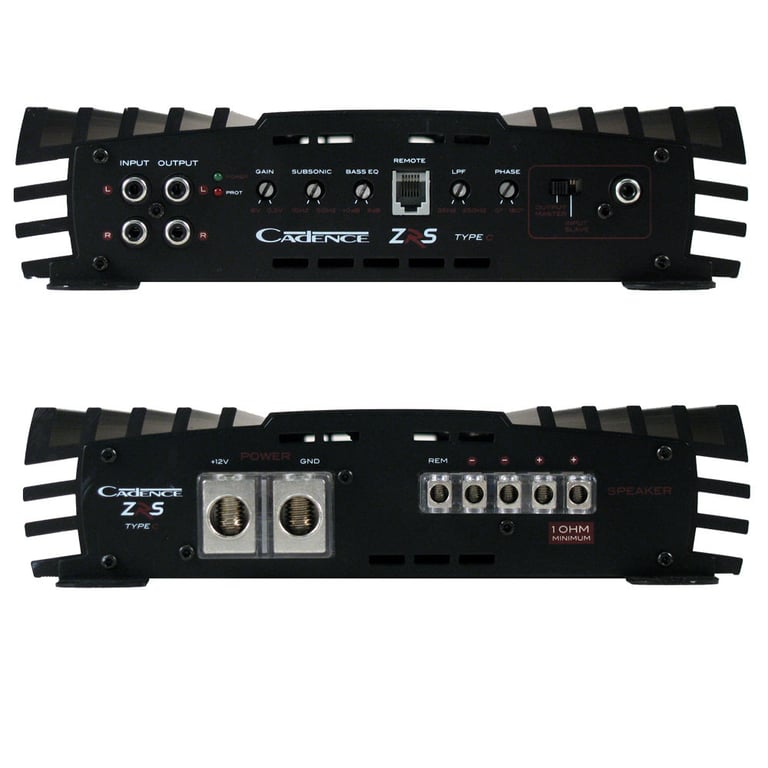

Cadence ZRS C5

10,000W Monoblock ZRS Series Class D Competition Car Amplifier

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• RMS: 1250W x 1 @ 4 ohm, 2500W x 1 @ 2 ohm, 5000W x 1 @ 1 ohm
• Total Peak Power: 10,000
• Twin Amp Bridgeable for 2x Power Output
• 16V Capable Power Supply
• Bipolar Japanese Sanken Outputs
• 9.6"W x 22"L x 2.4"H

Learn more about the zrsc5

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-7502 main

Metra 82-7502

Tweeter Mounting Adapter Plate (for select 2019-2023 3 and CX-30)

1
-43.78%

$8.99

List price $15.99

A275C main

AudioControl A275C

100W RMS 2.75" Altitude Series Component Midrange 4-ohm Car Speakers

1
-28.99%

$49.00

List price $69.00

Product Highlights


• RMS: 1250W x 1 @ 4 ohm, 2500W x 1 @ 2 ohm, 5000W x 1 @ 1 ohm
• Total Peak Power: 10,000
• Twin Amp Bridgeable for 2x Power Output
• 16V Capable Power Supply
• Bipolar Japanese Sanken Outputs
• 9.6"W x 22"L x 2.4"H

Description


Cadence brand icon

Authorized dealer

Amplifier Specifications:

  • ZRS Type C5 Monoblock Class D Power Amplifier
  • RMS Power Rating:
    • 4 ohm: 1250 watts x 1 chan.
    • 2 ohm: 2500 watts x 1 chan.
    • 1 ohm: 5000 watts x 1 chan.
    • Two Amps Bridged, 2 ohm: 10,000 watts x 1
  • Max power output: 10,000 watts x 1 chan.
  • Minimum THD: < 0.01%
  • Frequency Response: 10Hz-500Hz
  • Signal to Noise Ratio: > 100dB
  • Damping Factor: > 100 @ 100Hz
  • Preamp Voltage: 200mV to 9Volt
  • Crossover Slope: 24dB
  • Subsonic Filter: 10Hz - 50Hz
  • Low Pass Crossover: 35Hz-250Hz
  • Bass Equalizer: 0 - 9dB
  • Phase Shift: 0 - 180 Degrees
  • Suggested Inline Fuse: 200 amps x 1 (External)

General Features:

  • High Speed MosFET Power Supply
  • Bipolar Japanese Sanken Outputs
  • 18V Capable Power Supply
  • Copper Rail PCB Architecture
  • 12-24dB Crossover Circuitry
  • Bass Focus with Rumble Control
  • Preamp RCA Output
  • Adjustable Subsonic Filters
  • Adjustable Phase Control
  • Soft Start Mute and Delay
  • Power & Diagnostic LED Indicators
  • Twin Amp Bridgeable for 2x Power Output
  • Master/ Slave Configuration

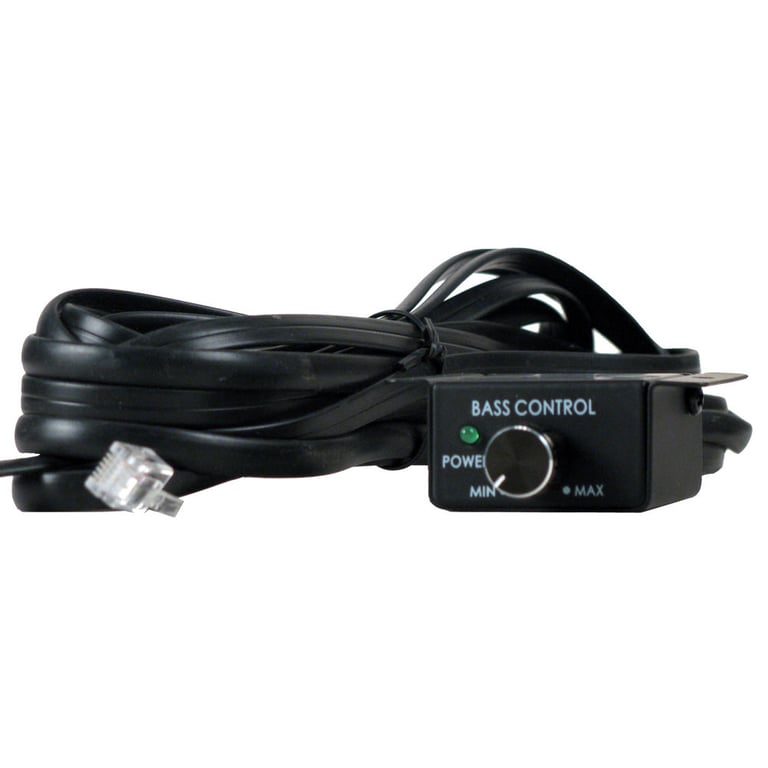

  • Dashboard Bass Remote Control
  • 0 gauge power and ground wiring is recommended for typical installation. For high Power or Competition Installs, Please use 0 Gauge OFC Power Cable. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9.6"W x 22"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99

AP-W81AC main

Deaf Bonce Apocalypse AP-W81AC

1200W Peak (600W RMS) 8" Apocalypse Series 4-ohm Midbass Car Speakers

S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

-17.26%

$239.95

List price $290.00

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1250 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 1 channel
RMS Power @ 1 ohm
5000 watts x 1 channel
Amplifier Specifications
Series
ZRS Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
10000 watts
Total RMS Power Output
5000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
200A Inline Fuse Recommended
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRS C5

Weight:

20.50lbs

Internal SKU:

zrsc5

Internal Product ID:

94135
