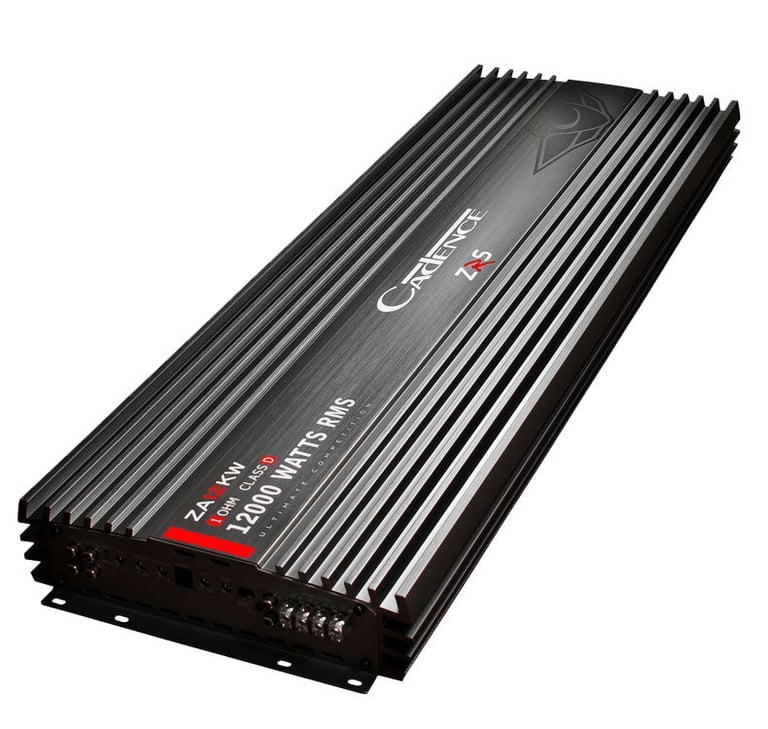

Cadence ZA12KW

24,000W Monoblock ZRS Series Class D Competition Car Amplifier

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• RMS: 3000W x 1 @ 4 ohm, 6000W x 1 @ 2 ohm, 12,000W x 1 @ 1 ohm
• Total Peak Power: 24,000W
• Twin Amp Bridgeable for 2x Power Output
• 18V Capable Power Supply
• Bipolar Japanese Sanken Outputs
• 14"W x 45"L x 5"H

Learn more about the za12kw

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• RMS: 3000W x 1 @ 4 ohm, 6000W x 1 @ 2 ohm, 12,000W x 1 @ 1 ohm
• Total Peak Power: 24,000W
• Twin Amp Bridgeable for 2x Power Output
• 18V Capable Power Supply
• Bipolar Japanese Sanken Outputs
• 14"W x 45"L x 5"H

Description


Cadence brand icon

Authorized dealer

Amplifier Specifications:

  • ZRS Type ZA12KW Monoblock Class D Power Amplifier
  • RMS Power Rating:
    • 4 ohm: 3000 watts x 1 chan.
    • 2 ohm: 6000 watts x 1 chan.
    • 1 ohm: 12,000 watts x 1 chan.
    • Two Amps Bridged, 2 ohm: 24,000 watts x 1
  • Max power output: 24,000 watts x 1 chan.
  • Minimum THD: < 0.01%
  • Frequency Response: 10Hz-500Hz
  • Signal to Noise Ratio: > 100dB
  • Damping Factor: > 100 @ 100Hz
  • Preamp Voltage: 200mV to 9Volt
  • Crossover Slope: 24dB
  • Subsonic Filter: 10Hz - 50Hz
  • Low Pass Crossover: 35Hz-250Hz
  • Bass Equalizer: 0 - 9dB
  • Phase Shift: 0 - 180 Degrees
  • Bass Boost center frequency adjustment range : 45Hz
  • Suggested Inline Fuse: 200 amps x 4 (External)

General Features:

  • High Speed MosFET Power Supply
  • Bipolar Japanese Sanken Outputs
  • 18V Capable Power Supply
  • Copper Rail PCB Architecture
  • 12-24dB Crossover Circuitry
  • Bass Focus with Rumble Control
  • Preamp RCA Output
  • Adjustable Subsonic Filters
  • Adjustable Phase Control
  • Soft Start Mute and Delay
  • Power & Diagnostic LED Indicators
  • Twin Amp Bridgeable for 2x Power Output
  • Master/ Slave Configuration
  • Dashboard Bass Remote Control
  • 0 gauge OFC (Oxygen Free Copper) power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 14"W x 45"L x 5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
3000 watts x 1 channel
RMS Power @ 2 ohms
6000 watts x 1 channel
RMS Power @ 1 ohm
12000 watts x 1 channel
Amplifier Specifications
Series
ZRS Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
24000 watts
Total RMS Power Output
12000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
200A x 4 Inline Fuse Recommended
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZA12KW

Weight:

22.00lbs

Internal SKU:

za12kw

Internal Product ID:

94138
