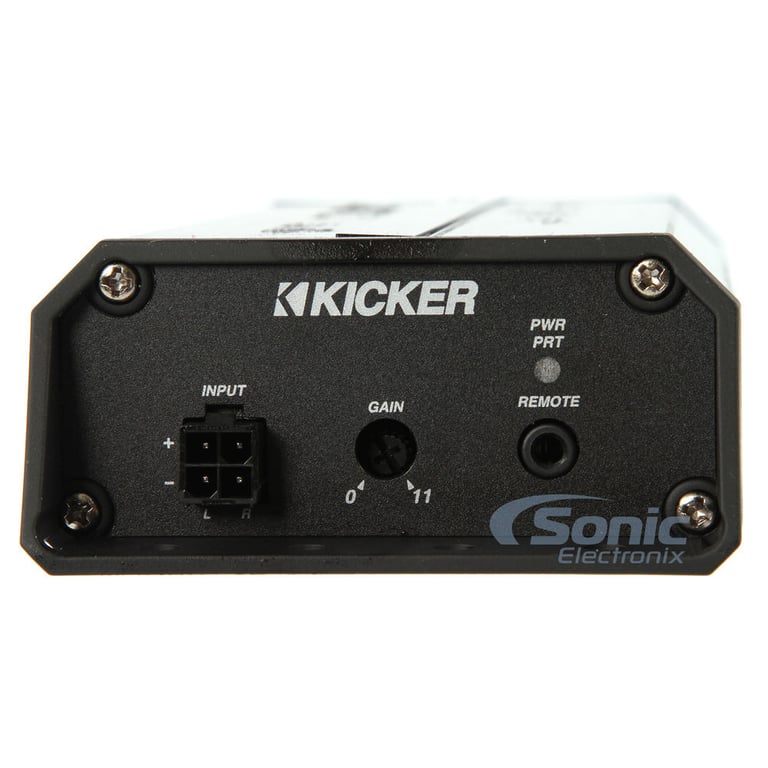

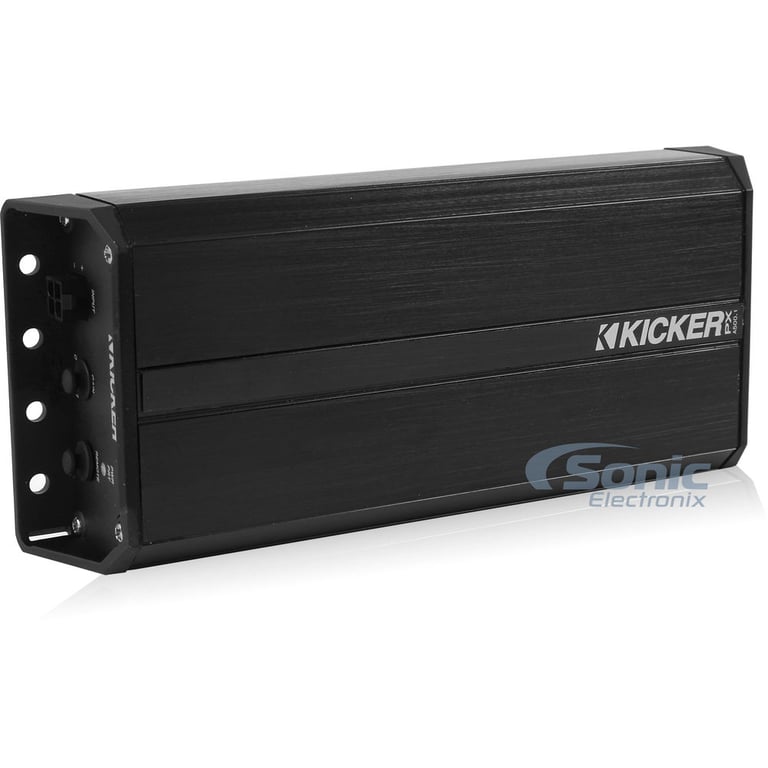

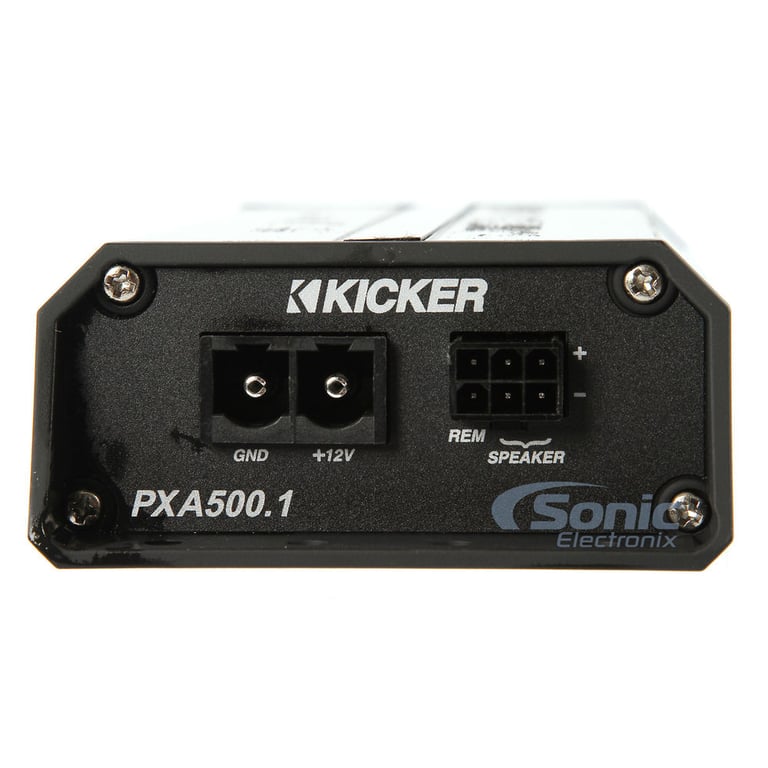

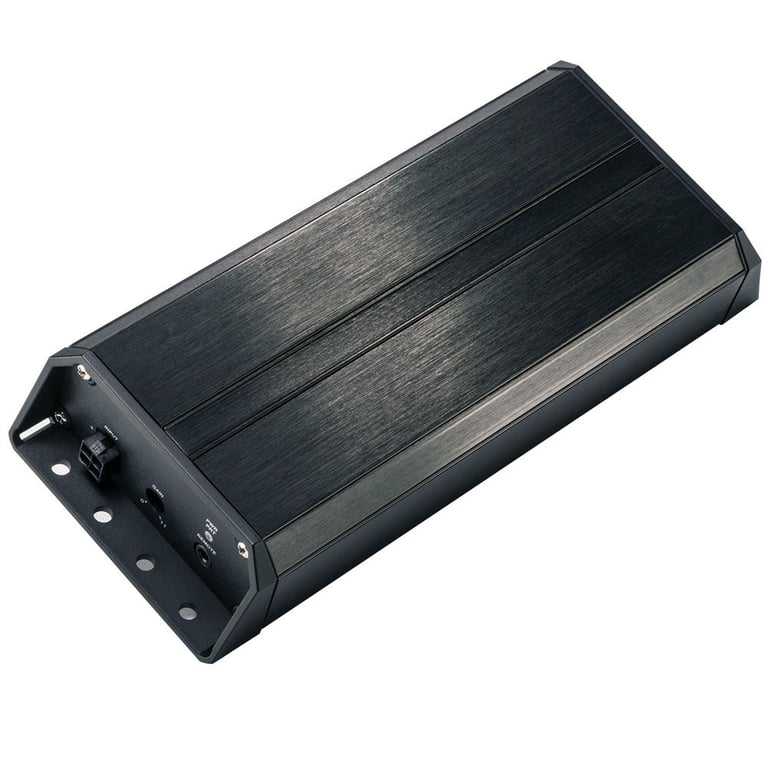

Kicker PXA500.1 (42PXA5001)

500W RMS PXA Series Compact Monoblock Amplifier

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Compact and Weather-resistant
• Class D 2 ohm Stable Monoblock Amplifier

Learn more about the 42pxa5001

We apologize

This item has been discontinued


Loading...
RSTOY6 main

Kleinn RSTOY6 Remote Start Kit for 2014-2025 Toyota PTS

Easy DIY Remote Starter Kit for Push-to-Start Vehicles Only, Takes less than 1 hour to install (RSTOY6)

-17.39%

$189.99

List price $229.99

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Product Highlights


• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Compact and Weather-resistant
• Class D 2 ohm Stable Monoblock Amplifier

Description


Kicker brand icon

Authorized dealer




Kicker PXA500.1 Amplifier

Real-World Open-Air Sound

The sound output is undeniably KICKER. PXA Amps take into account real-world, open-air listening in powersports applications, smartly directing precious power where it succeeds - in the 40-to-250-hertz frequency range where a biker or rider can truly hear and feel it in the open air. It also contains a differential audio circuit that reduces engine noise in the audio system for low T.H.D. (total harmonic distortion) and superb clarity at high volumes.

Kicker PXA500.1 Amplifier

Easy Install Anywhere

PXA-Series Amps are specifically designed for motorsports use with small battery/charging systems, and in an incredibly small footprint that can be installed in motorcycle saddle bags or fairings, glove compartments and other previously unusable spaces. No-rust, stainless-steel mounting hardware and a single Molex plug containing all wiring connections makes for easy installation into any application.




Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)



Product Details:

  • PXA Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 channel
    • 2 ohm: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Optional CXARC wired remote Bass control Kicker CXRC
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 125mV - 5 volts
    • High level: 250mV -10 volts
  • Frequency Response: 25 - 120 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 95 dB
  • Variable low-pass filter: 0 - 60, 80, 100, or 120 Hz at 24 dB/octave
  • Subsonic filter: 0 - 25 Hz at 24 dB/octave
  • Variable Bass Boost: 0 - 6 dB at at 40Hz

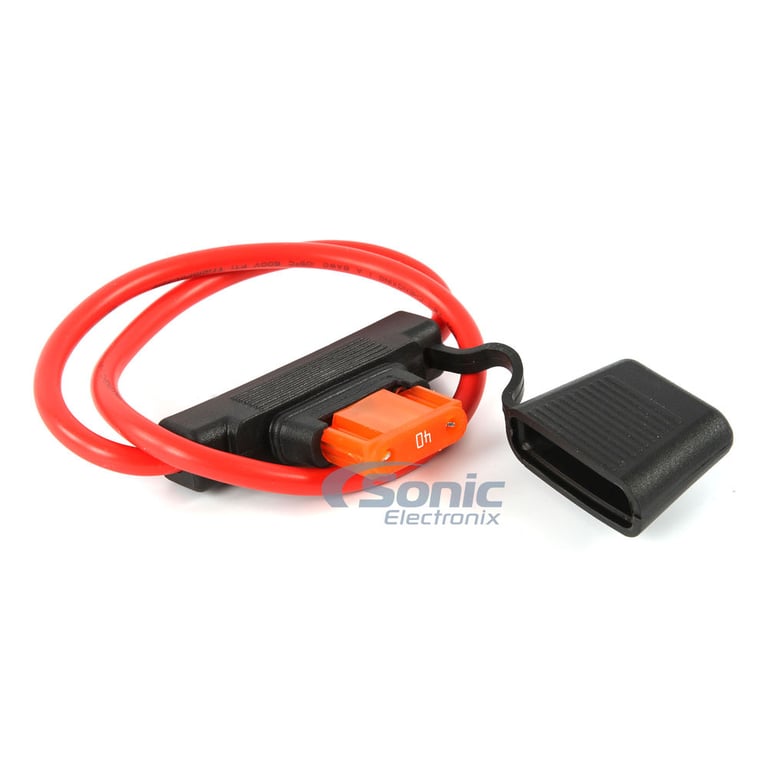

  • Fuse Rating: 40A
  • 8 AWG gauge power and ground wiring is recommended for installation.

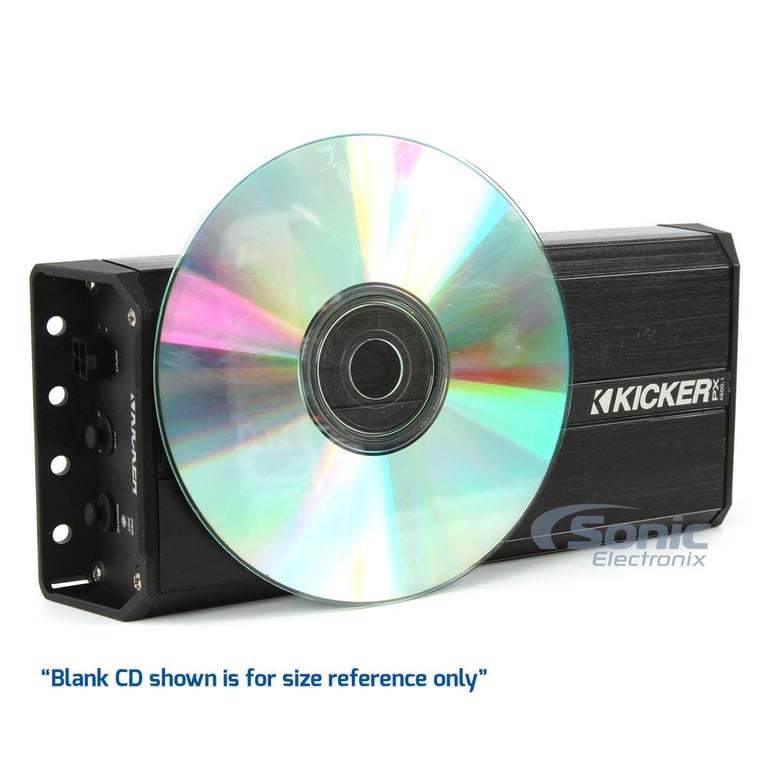

  • Dimensions: 8-1/4" W x 3-1/2" L x 1-9/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Kicker PXA500.1 Owner's Manual

**Pro Tip: To get the best performance from your new KICKER Amplifier and extend the warranty by 1 year, use genuine KICKER accessories and wiring.

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Series
PXA Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
25 - 120 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
0 - 60, 80, 100, or 120 Hz
Subsonic Filter
0 - 25 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Total Fuse Rating
40A
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
125mV - 5 volts
High-Level Input Sensitivity
250mV - 10 volts

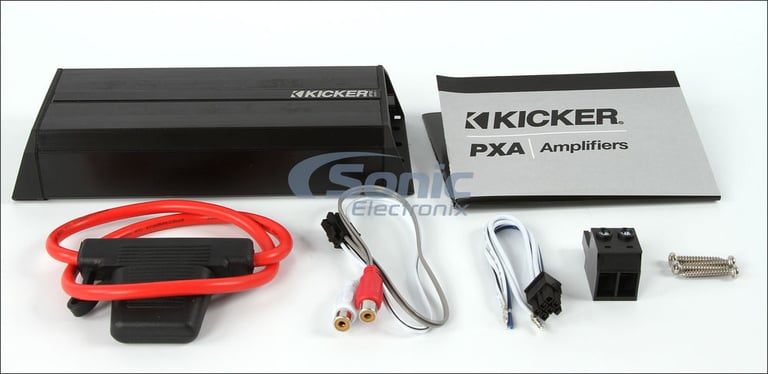

What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting screws (4)

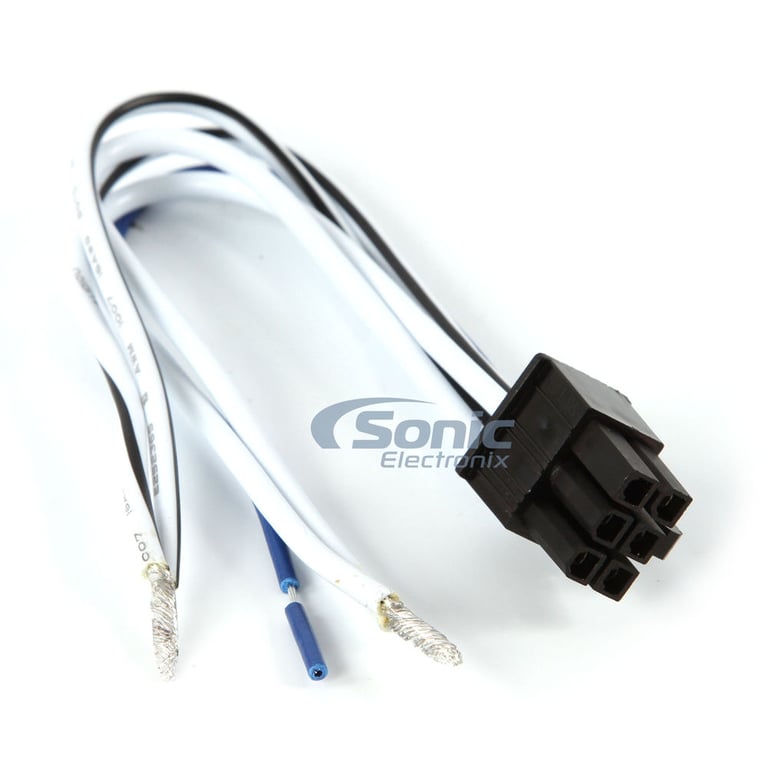

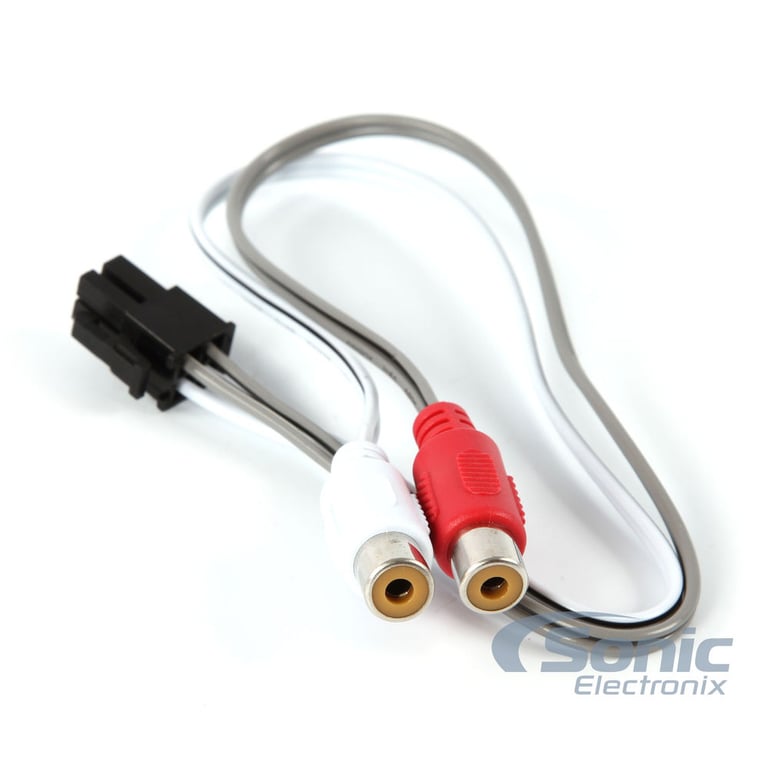

High-level input wiring harness w/ molex connectors (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

42PXA5001

Weight:

2.60lbs

Internal SKU:

42pxa5001

Internal Product ID:

94235

Product and How-to Videos


  • Kicker PX Amplifier Overview
  • Kicker PowerSports & Marine Audio | CES 2015

Customer Ratings & Reviews


Kicker PXA500.1 (42PXA5001) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

A little BEAST!!!

Tiny size and absolutely all of 500W RMS plus some. Though I'm using it in a car, I'm sure it would have no problem in the fairing of a bike.

By Kenneth on February 3, 2017

2 found this helpful


great amp!

Nice and compact weatherproof unit. Was able to mount it in a tight space as a sub amp. This amp pushes my kicker rt10 sub hard! Sound is awesome. Will be adding the same amp to my wife's system. Should have bought it long ago.

By Toby L. on April 28, 2016

1 found this helpful
