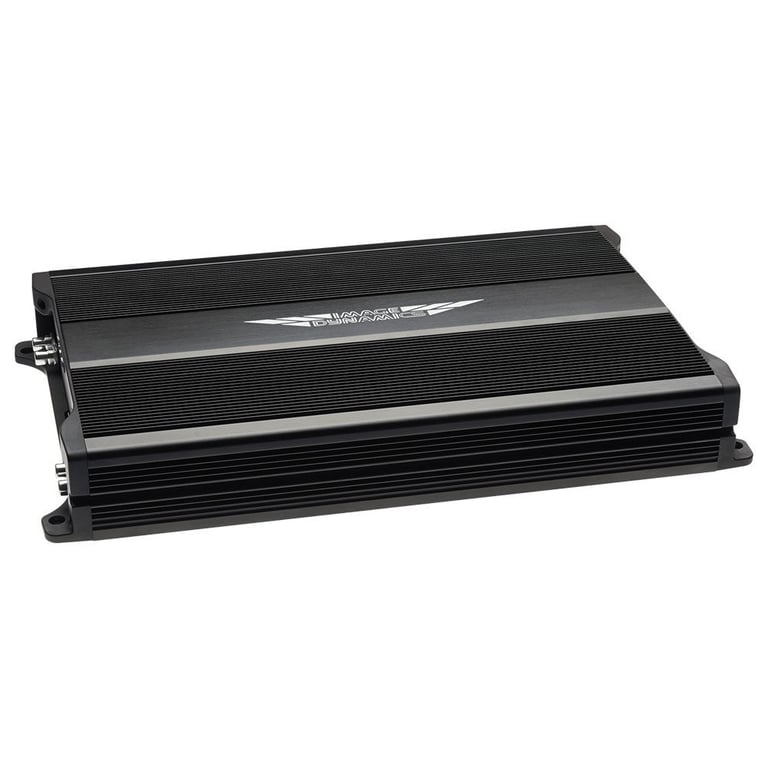

Name: Image Dynamics SQ1400.5 Damaged Packaging Only (New)
Brand: Image Dynamics
SKU: LS-sq14005-OBC8
Price: 449.99 USD
Availability: Discontinued

by Image Dynamics

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Product highlights

•4 ohm: 100 watts x 4 chan. + 300 watts x 1 chan.
•2 ohm: 200 watts x 4 chan. + 600 watts x 1 chan.
• Bridged, 4 ohm: 400 watts x 2 chan. + 600 watts x 1 chan.
• Total Peak Power: 1400 Watts
• Optically-Isolated MOSFET Power Supply
• 7.25" W x 13.3" L x 2" H

Learn more about the LS-sq14005-OBC8

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

General Features:

Image Dynamics SQ1400.5
Class-D Full Range 2-Ohm Stable 5-Channel Amplifier
RMS Power Rating:

4 ohm: 100 watts x 4 chan. + 300 watts x 1 chan.
2 ohm: 200 watts x 4 chan. + 600 watts x 1 chan.
Bridged, 4 ohm: 400 watts x 2 chan. + 600 watts x 1 chan.

Total power output: 1,400 watts
LED power (blue) and protect (red) indicators
Fan-cooled
Optically isolated MOSFET power supply
Soft start turn-on
5/3 channel operation
Speaker-level (high-level) inputs
Preamp RCA outputs to daisy chain multiple amps
5-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
High-density split-dome convection heat-sink for extreme heat dissipation
Input sensitivity:

250mV-10V

Frequency Response: 10 - 30,000 Hz
Total Harmonic Distortion (THD): <.01%
Signal to Noise Ration: >95 dB
Variable high-pass filter: 50 -300 Hz, 24 dB/octave
Variable low-pass filter: 50- 300 Hz, 24 dB/octave
Bass boost: +18dB 40 Hz
Fuse Rating: 100 A

No on-board protective fuses. A fuse and fuse holder rated at 100A are required

4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 7.25"W x 13.3"L x 2"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

200 watts x 4 channel

Bridged RMS Power

400 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

300 watts x 1 channel

RMS Power @ 2 ohms

600 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

5-Channel

Total RMS Power Output

1400 watts

Maximum Input Gauge Size

10 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<.01%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 300 Hz

Low-Pass Crossover Frequency

50 - 300 Hz

Signal-to-Noise Ratio

95 dB

Fuse Rating

100A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
