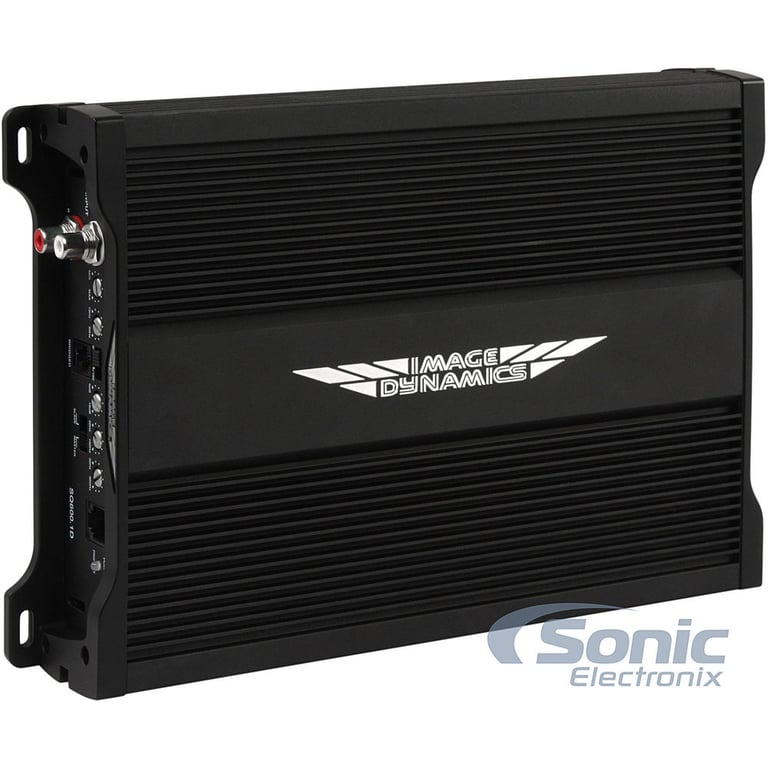

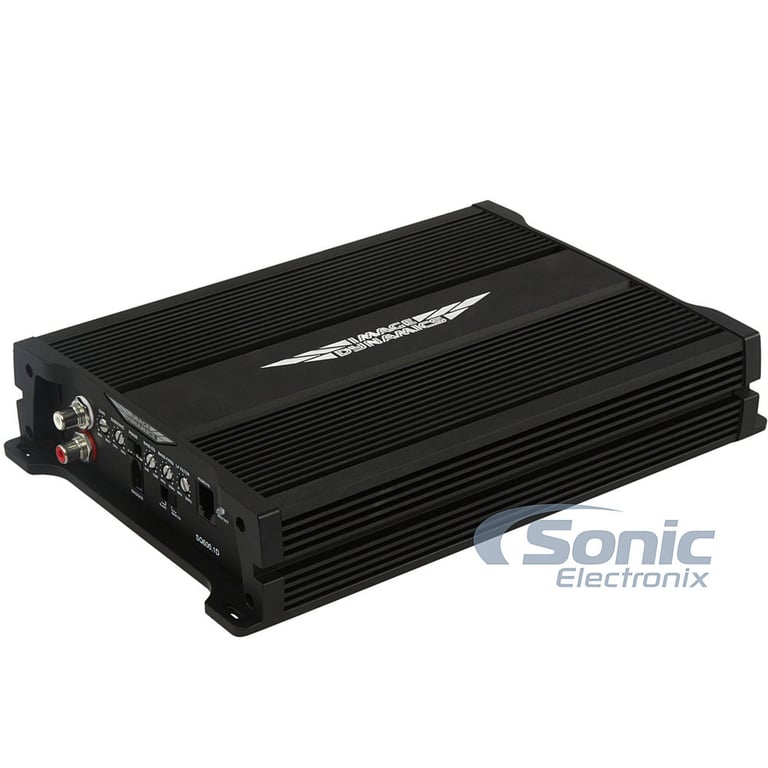

Image Dynamics SQ600.1D

600W RMS SQ Series Class-D Monoblock 1-Ohm Stable Amplifier with Bass Knob Included

Image Dynamics
Shop all Image Dynamics
Product videos
highlight-star-icon

• 250 Watts RMS x 1 @ 4 ohm
• 400 Watts RMS x 1 @ 2 ohm
• 600 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 1200 Watts
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Dimensions: 8-1/2"W x 17-3/4"L x 2-1/4"H

Learn more about the sq6001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

Product Highlights


• 250 Watts RMS x 1 @ 4 ohm
• 400 Watts RMS x 1 @ 2 ohm
• 600 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 1200 Watts
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Dimensions: 8-1/2"W x 17-3/4"L x 2-1/4"H

Description


Image Dynamics brand icon

Authorized dealer



General Features:

  • Image Dynamics SQ-Series Car Amplifier
  • Class-D FullRange 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
    • 1 ohm: 600 watts x 1 chan.
  • Total power output: 600 watts
  • Pulse Width Modulated MOSFET power supply

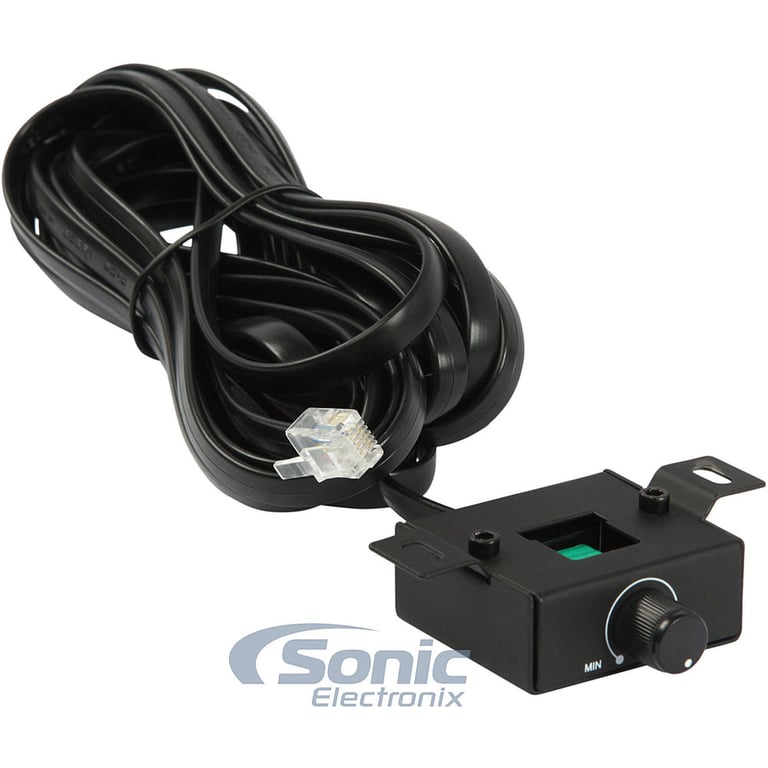

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

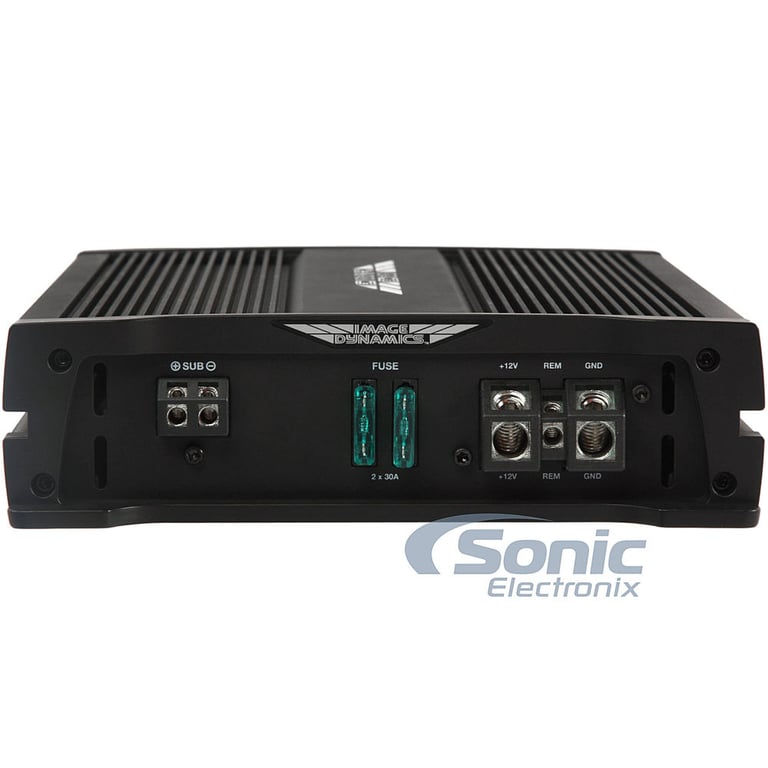

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 200mV-6V
  • Frequency Response: 10 - 20,000 Hz
  • Signal to Noise Ration: 98 dB
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Subsonic filter: 15 - 45 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8-1/2"W x 17-3/4"L x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
500 watts x 1 channel
Peak Power @ 2 ohms
800 watts x 1 channel
Peak Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 45 Hz
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SQ600.1D

Weight:

9.00lbs

Internal SKU:

sq6001d

Internal Product ID:

94406
