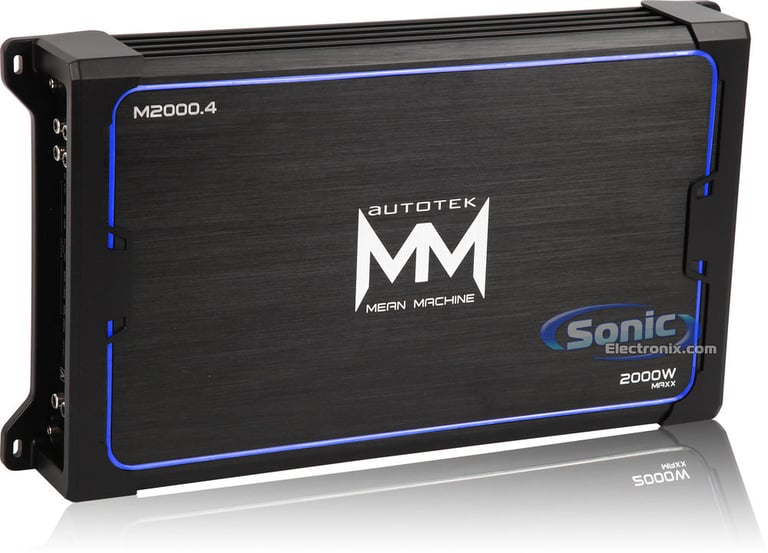

Autotek Mean Machine M2000.4 Open box Image 1 — Autotek Mean Machine M2000.4 Open box

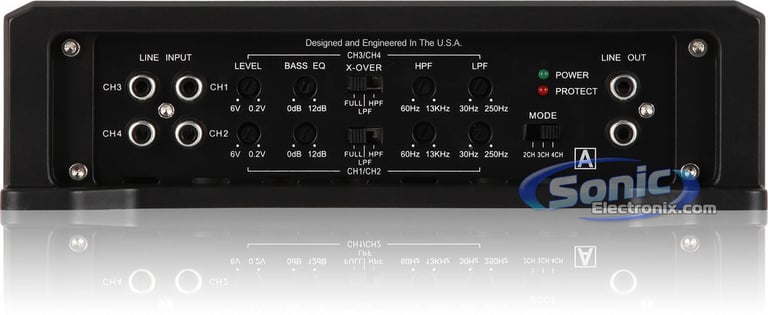

Autotek Mean Machine M2000.4 Open box Image 2 — Autotek Mean Machine M2000.4 Open box

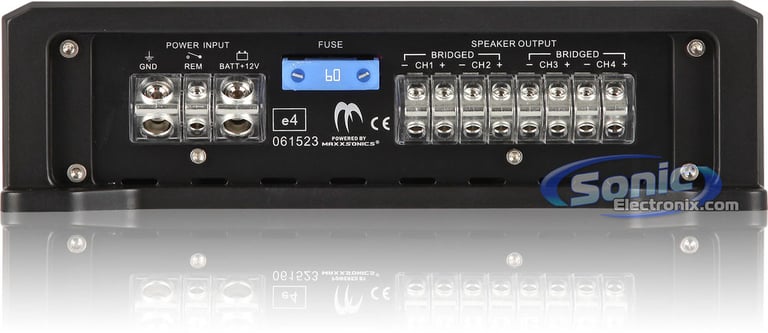

Autotek Mean Machine M2000.4 Open box Image 3 — Autotek Mean Machine M2000.4 Open box

Autotek Mean Machine M2000.4 Open box-video

Product videos

Product highlights

• 2000 Watts Max
• 250 Watts x 4-Chan. @ 2 Ohm
• 4-Way System Protection
• Selectable Highpass/Lowpass Filters

Learn more about the LS-m20004-OBINC

Product Highlights

• 2000 Watts Max
• 250 Watts x 4-Chan. @ 2 Ohm
• 4-Way System Protection
• Selectable Highpass/Lowpass Filters

Description

Authorized dealer

Item Condition - Missing Parts:

This product is missing parts and has been previously used and/or returned. See the description for details.

The Most Aggressive and Powerful Autotek
With over 10 years of Maxxsonics power, the 2011 Autotek line is bringing an entire new evolution of car amplifiers to the table. The newly designed Mean Machine amplifiers are the most aggressive and most powerful amp that the series has ever seen. The new chassis of these Mean Machines is an all black aluminum casing that also acts as the heatsink. The sides of the amp have heatsink fins that will more effectively dissipate the heat to keep the amplifier cool. Along the top of the black chassis is a blue opti-surround illumination that adds a unique style to any car. The entire Mean Machine line is made up of 8 different amplifiers that can suit any your every need.

Missing hardware/installed

Mean Machine Series 4-Channel Class A/B Car Amplifier
Product is Open Box Incomplete

Missing Hardware
Previously Installed

RMS Power Rating:
- 4 ohm: 125 watts x 4 chan.
- 2 ohm: 250 watts x 4 chan.
- Bridged, 4 ohm: 500 watts x 2 chan.
Dynamic Power Rating:
- 4 ohm: 250 watts x 4 chan.
- 2 ohm: 500 watts x 4 chan.
- Bridged, 4 ohm: 1000 watts x 2 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
Soft Start Turn-on
4/3/2 channel operation
Illuminated badge and heatsink
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals
Input sensitivity:
- Level: 200mV-6V
Variable high-pass filter (60-13,000 Hz, 24 dB/octave)
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Damping factor: >180
Frequency response: 30-13,000 Hz
Dimensions: 16-7/16"L x 9-1/16"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

125 watts x 4 channel

RMS Power @ 2 ohms

250 watts x 4 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

500 watts x 2 channel

Amplifier Specifications

Series

Mean Machine Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

2000 watts

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 13,000 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

>90 dB

Channel Separation

>80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

60A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
