Name: MB Quart XA1-600.4
Brand: MB Quart
SKU: xa16004
Price: 99.99 USD
Availability: Discontinued
Rating: 5.0000 (2 reviews)

Shop all MB Quart

by MB Quart

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

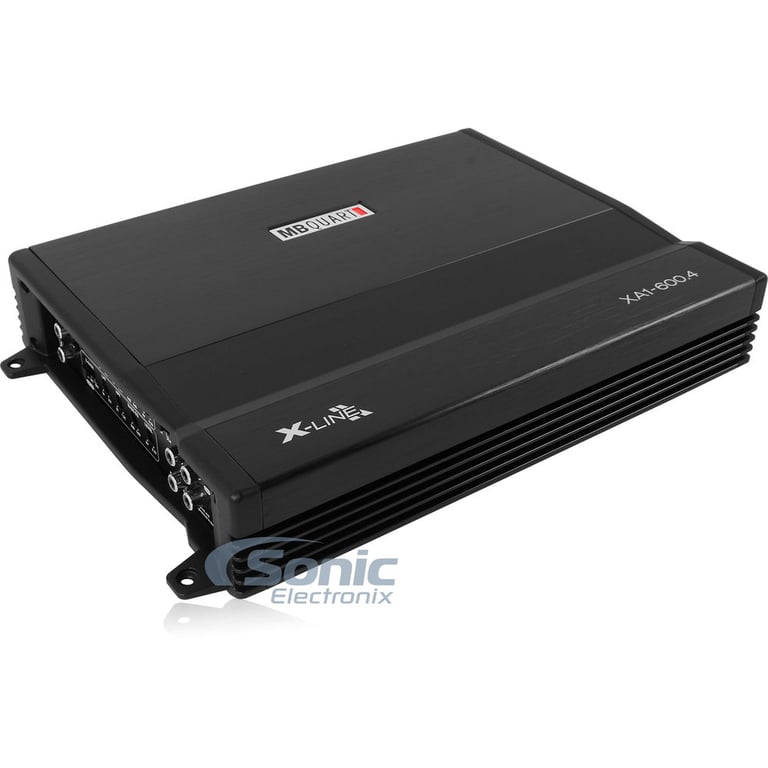

MB Quart XA1-600.4 Image 1 — MB Quart XA1-600.4

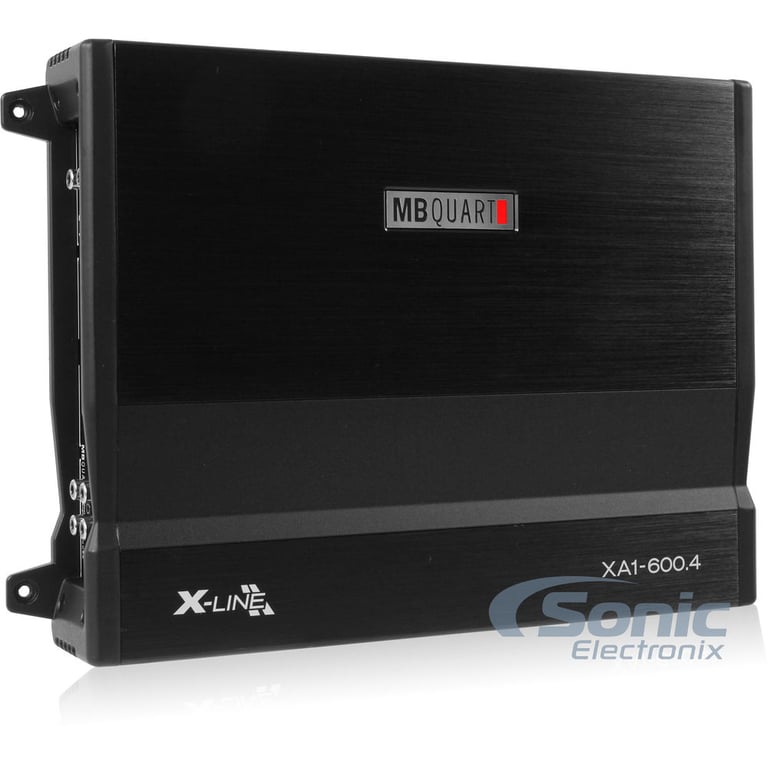

MB Quart XA1-600.4 Image 2 — MB Quart XA1-600.4

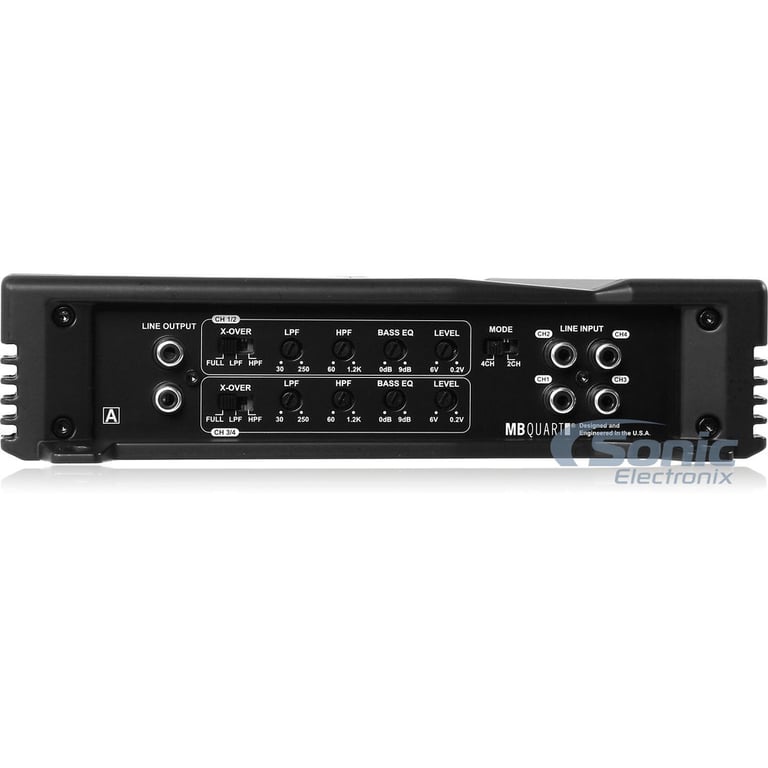

MB Quart XA1-600.4 Image 3 — MB Quart XA1-600.4

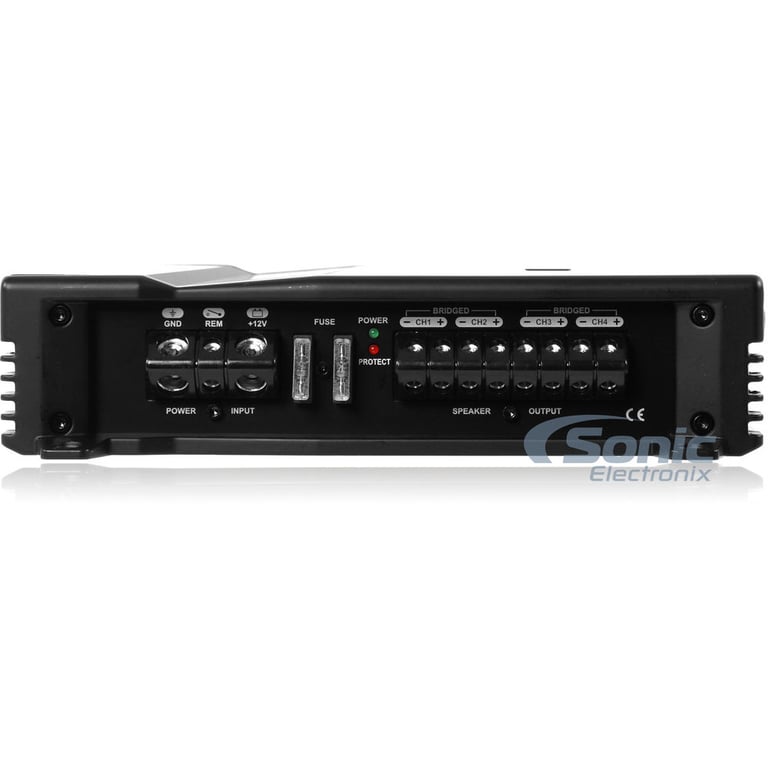

MB Quart XA1-600.4 Image 4 — MB Quart XA1-600.4

MB Quart XA1-600.4 Image 5 — MB Quart XA1-600.4

Product videos

Product highlights

• RMS: 75W x 4 @ 4 ohm, 150W x 4 @ 2 ohm, Bridged: 300W x 2 @ 4 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Elaborate preamplifier with extended control
• Frequency Response: 10 - 45,000 Hz

Learn more about the xa16004

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

Description

Authorized dealer

General Features:

X-Line Series 4-Channel Class SQ A/B Amplifier
RMS Power Rating:

4 ohm: 75 watts x 4 chan.
2 ohm: 150 watts x 4 chan.
Bridged 4 ohm: 300 watts x 2 chan.

Fluid-FETS hand selected insulated MOSFETS
Focused mass heat sink designs
Q-Stasis preamp stage with wide input range
Elaborate preamplifier with extended control
Easy access mounting tabs for a secure install
LED power (green) and protect (red) indicators
Input sensitivity: 200mV - 6V
Frequency Response: 10 - 45,000 Hz
Signal to Noise Ratio: >90 dB
Total Harmonic Distortion (THD): <0.5%
Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
Variable high-pass filter: 60 - 1,200 Hz
Variable low-pass filter: 30 - 250 Hz
Fuse Rating: 25A x 2
CEA-2006 compliant amplifier
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 9.20"W x 13.30"L x 2.20"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Similar Products

Best selling similar products

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

Bridged RMS Power

300 watts x 2 channel

Amplifier Specifications

Series

X-Line Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

600 watts

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.5%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 1,200 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

>90 dB

Bass Boost

0 - 9 dB

Fuse Rating

25A x 2

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.5
Value		5
Features		5
Design		4.5
Usability		5

Customer Reviews

Sort by:

Great value but still a very good amp as well

I wanted to wait till I had it installed for a couple weeks to do a review and now that the time has passed I can say that i am supremely satisfied with my choice.

I bought this one to replace the 5-channel PPI-Phantom amp that is now going in my wifes Mustang.

I have never owned a true top of the line amp, or even one of the top brands that are 'expensive' compared to this amp and the PPI.

There is no doubt that it does the rated power as it blows the PPI out of the water and the set-up was rather simple as well, does not seem to be many bells and whistles but I am very happy.

And it has a 2 year warranty which I extended for a year through the manufacturer for nominal fee.

By Gary on April 30, 2016 Checkmark Icon

Verified purchase

1 found this helpful

Report abuse

Mb quart xa1-600.4

It works and sounds great , im running 4 6x9
And 1 pair of mid 3.5" JBL GT. with a audio control
LC7i. More then enough power /sound

By Hoser626 on November 9, 2015

Report abuse
