Name: Crunch PZi 550.5 R/B
Brand: Crunch
SKU: LS-pzi5505-RB
Price: 99.99 USD
Availability: Discontinued

by Crunch

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

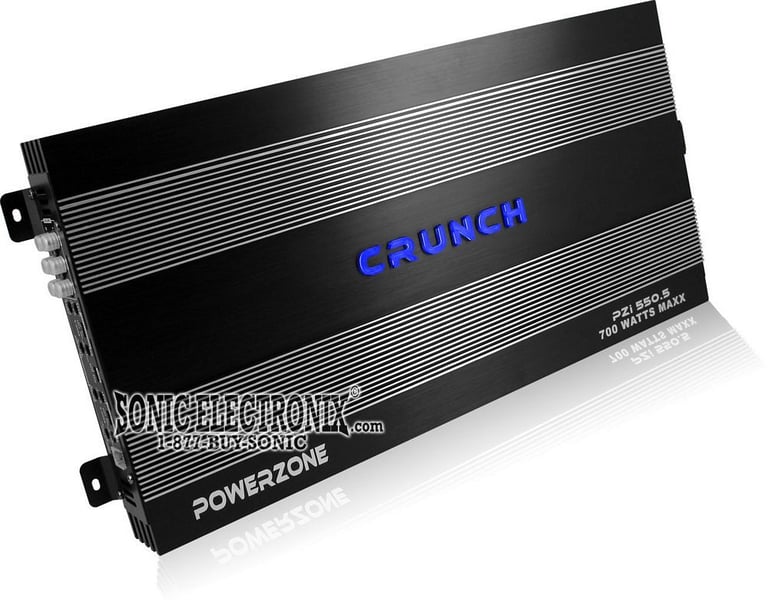

Crunch PZi 550.5 R/B Image 1 — Crunch PZi 550.5 R/B

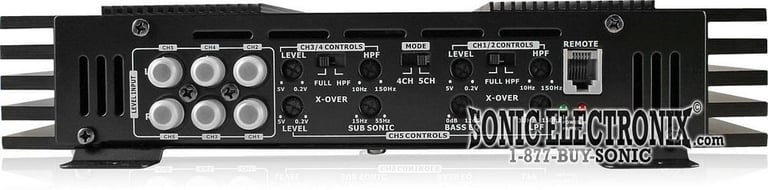

Crunch PZi 550.5 R/B Image 2 — Crunch PZi 550.5 R/B

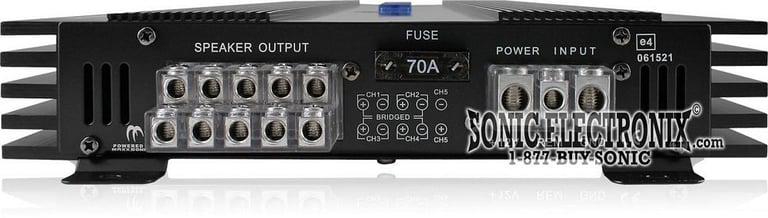

Crunch PZi 550.5 R/B Image 3 — Crunch PZi 550.5 R/B

Crunch PZi 550.5 R/B Image 4 — Crunch PZi 550.5 R/B

Product videos

Product highlights

PowerZone Series 3/5-Channel Class AB Car Amplifier • 60W x 4 chan. + 120W x 1 chan. @ 4 ohm • 125W x 4 chan. + 200W x 1 chan. @ 2 ohm • MOSFET power supply • DC, short, thermal, and overload protection circuitry • Silver-plated RCA level inputs

Learn more about the LS-pzi5505-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

PowerZone Series 3/5-Channel Class AB Car Amplifier
Max Power Rating:

4 ohm: 60 watts x 4 chan. + 120 watts x 1 chan.
2 ohm: 125 watts x 4 chan. + 200 watts x 1 chan.

MOSFET power supply
Wired remote bass level control included.
LED power and protection indicators
Tuned Bass EQ (0-12 dB bass boost at 45 Hz)
Complete solution & one-piece installation for full-range speakers combined with a subwoofer type application
5/3 channel operation
Preamp RCA outputs
DC, short, thermal, and overload protection circuitry
Maximum Dynamic Headroom (MDH) power supply
Heavy duty aluminum alloy heatsink
Silver-plated RCA level inputs
Silver-plated screw terminals
Variable high-pass filter (10-150 Hz, 24 dB/octave)
Variable low-pass filter (30-150 Hz, 24 dB/octave)
Subsonic Filter (15-55Hz)
Frequency response: 10-60000 Hz
Dimensions: 20.94"L x 10"W x 2.16H
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
Authorized Internet Dealer
90 Day Repair only SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channels + 120 watts x 1 channel

RMS Power @ 2 ohms

125 watts x 4 channels + 200 watts x 1 channel

Bridged RMS Power

200 watts x 2 channels + 200 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

5-Channel

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.1%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

10 - 150 Hz

Low-Pass Crossover Frequency

30 - 150 Hz

Subsonic Filter

15 - 55 Hz

Signal-to-Noise Ratio

95 dB

Channel Separation

85 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

70A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
