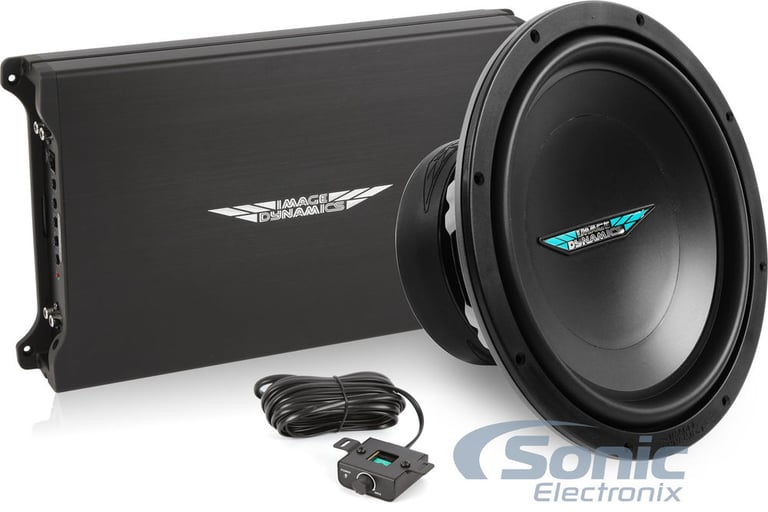

Image Dynamics 600 Watt RMS High Fidelity Bass Combo

Q600.1 Monoblock Class A/B Q Series Car Amplifier + IDQ12 D2 V.412" IDQ V.4 Series Dual 2 ohm Subwoofer

EXCLUSIVE
highlight-star-icon

• 600W RMS Total Power
• Q600.1 High Fidelity Monoblock Class A/B
• IDQ12 D2 V.412" IDQ V.4 Series Subwoofer
• Two-layer PC Board with heavy 2 oz copper

• Fiberglass composite basket
• High-temperature aluminum voice coil

Learn more about the q6001_idq12d2v4

We apologize

This item has been discontinued


Loading...
72-6515 main

Metra 72-6515

Install New Speakers in select 1999-2024 vehicles from Dodge, Jeep, Chrysler

11
-10.01%

$8.99

List price $9.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

JBL GX9638 (JBLGX9638AM)

600W Peak (200W RMS) 6x9" GX Series 3 Way Coaxial 2.3-ohm Speakers with Dual Tweeters

16
-10.01%

$89.95

List price $99.95

Description


Image Dynamics brand icon

Authorized dealer

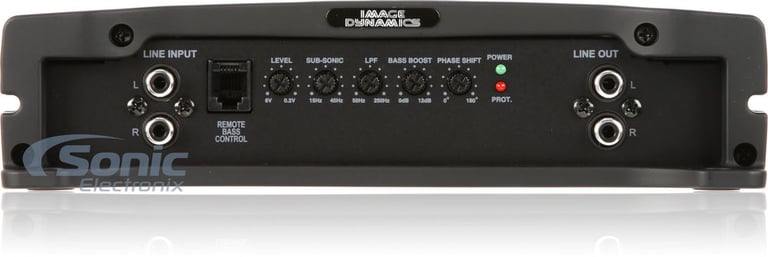

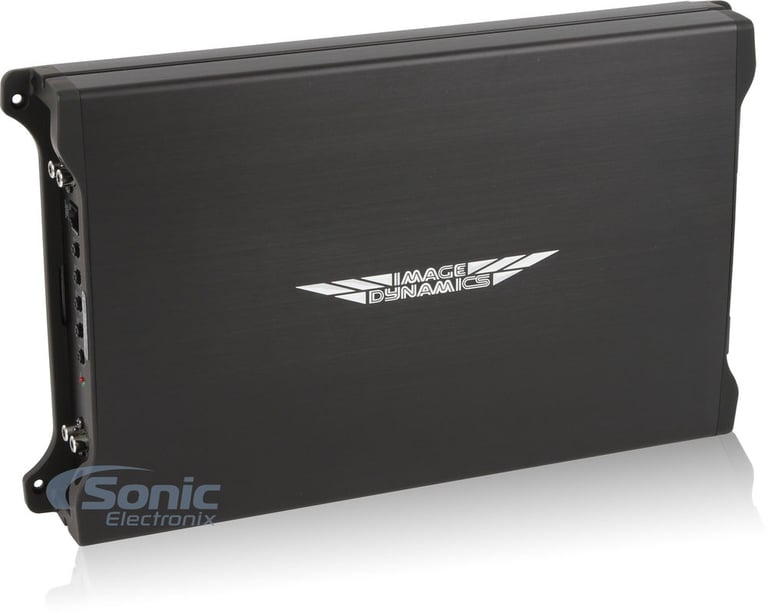

Image Dynamics Q600.1

600 RMS Monoblock Class A/B High Fidelity Q Series Car Amplifier
Quantity: 1

  • Q Series Monoblock Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
    • 1 ohm: 600 watts x 1 chan.
  • Optically isolated MOSFET power supply
  • LED power indicator
  • Variable bass boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation

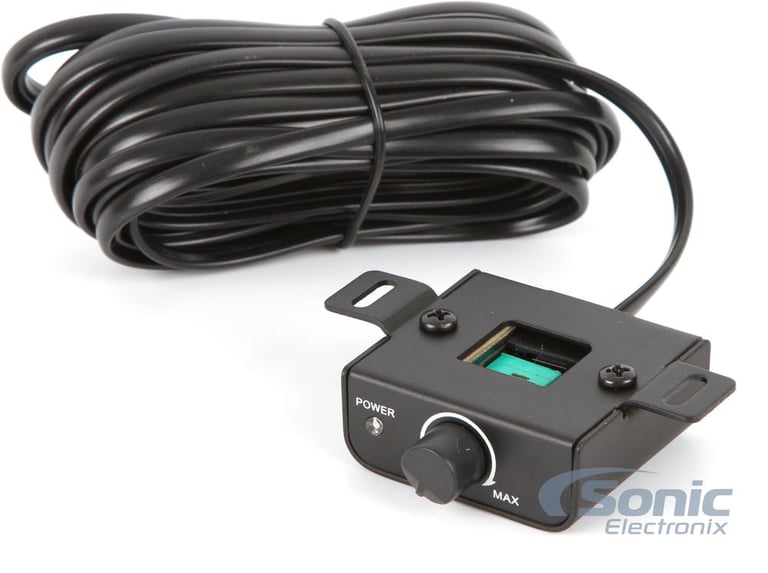

  • Remote bass level included
  • Bridgeable Capability
  • Bi-Polar High-current output devices
  • Auxiliary full range output
  • Two-layer PC Board with heavy 2 oz copper
  • Massive ground planes and precision caps
  • 5-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

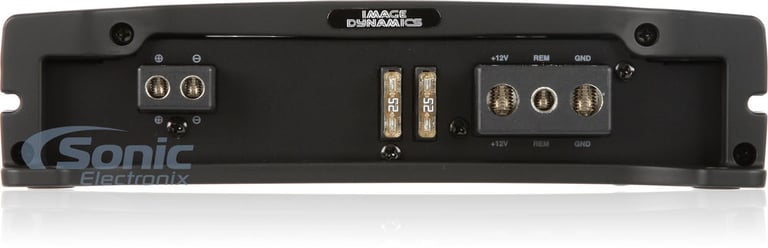

  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Variable subsonic filter (15-45 Hz, 12 dB/octave)
  • Frequency response: 10-20,000 Hz
  • Signal-to-Noise ratio: 98dB
  • Dimensions: 17-3/4"L x 8-1/2"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

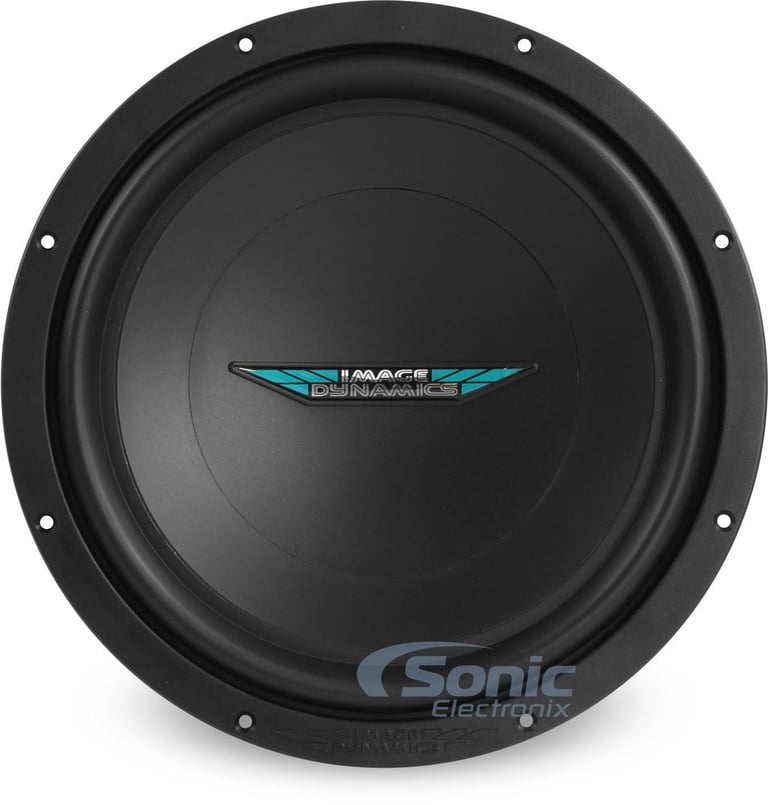

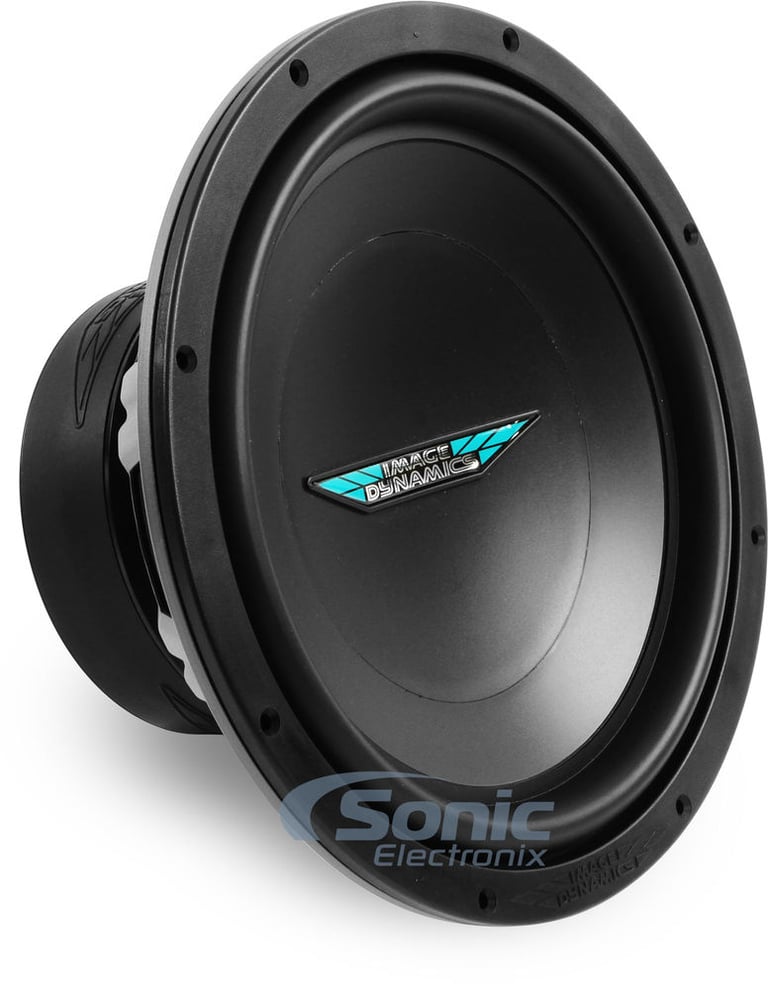

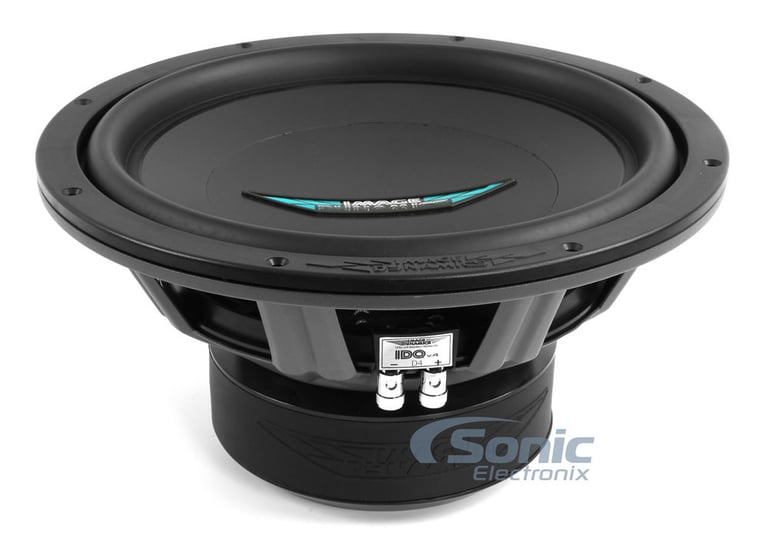

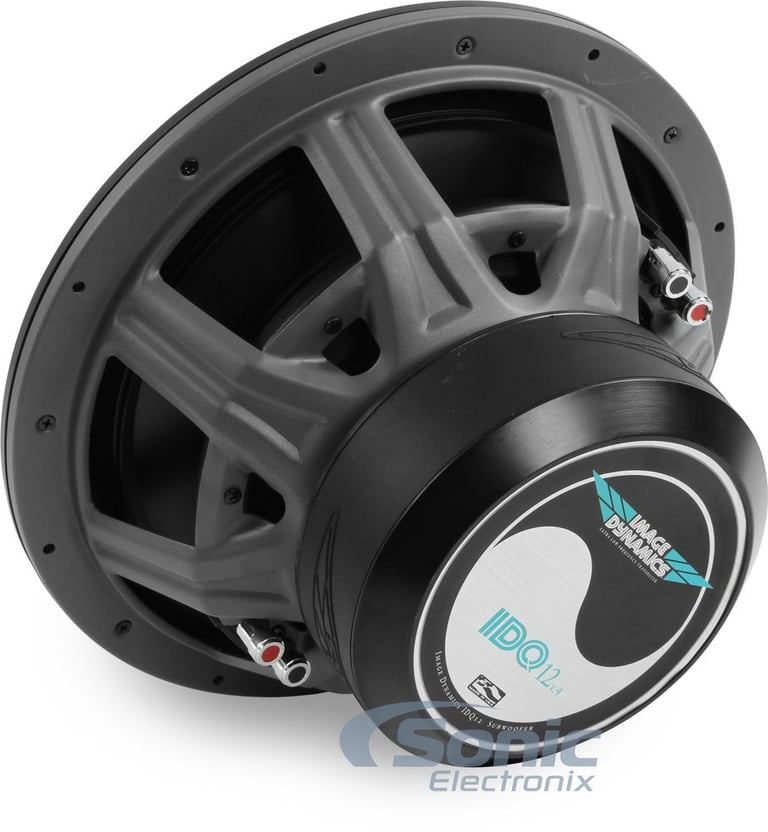

Image Dynamics IDQ12 D2 V.4

750W 12" IDQ V.4 Series Dual 2 ohm Subwoofer
Quantity: 1

  • 12" Dual 2 ohm IDQ V.4 Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
    • Recommended Power Range: 50-750 watts
  • Mica-reinforced polypropylene cone woofer
  • Parabolic roll surround
  • Removable core assembly for easy and quick replacement
  • Ability to custom match the basket color to your personal installation
  • Conex spider with integrated tinsel leads
  • Fiberglass composite basket
  • High-temperature aluminum voice coil
  • Proprietary voice coil attachment design
  • Also found as: IDQ12D2 V.4, IDQ12 D2 V.4, IDQ12 D2, IDQ12D2, IDQ12V.4 D2, IDQv4
  • Sensitivity: 87.22dB
  • Mounting depth: 5-13/16"
  • Cutout dimensions: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 45 Hz
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Series
IDQ V.4 Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
750 watts
Peak Power Handling
1500 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Mica Injected Polypropylene - MIPP
Sensitivity
87.22 dB
Xmax (millimeters)
17.00 mm
Top-Mount Depth (Mounting Depth)
5-13/16"
Cutout Diameter
11"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q600.1_IDQ12 D2 V.4

Weight:

23.50lbs

Internal SKU:

q6001_idq12d2v4

Internal Product ID:

96635

Customer Ratings & Reviews


Image Dynamics 600 Watt RMS High Fidelity Bass Combo thumbnail image

5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.5
Features
5
Design
4.6
Usability
5

Customer Reviews

Sort by:

Loading...

Great SQ Amp

The following review is for Q600.1, which is a part of the bundle you are viewing.

Just got this amp installed. performs great Paired with My IDMAX 12" D2 @ 1 OHM. I usually have Two Subs In the Trunk but decided to run just one with a sealed box. Without a doubt this set up is more powerful than my last. This amp gets really hot because it has only two heat fins. Can not run this amp with my seats up. the wiring is 100% NVX OFC 4G wire with tight connections and a 1F Capacitor. Durability rated at 3 stars due to this overheating issue maybe would be two stars if this amp fails on me soon. I love the Power and Grace idea that Image dynamics stands by but the thermal design is killing this amp. I don't know if I would buy this amp again. I'll try setting up a forced cooling solution for the time being.

By SQ Lover on July 18, 2013

47 found this helpful


Excellent amp

The following review is for Q600.1, which is a part of the bundle you are viewing.

This amp rocks paired with the IDQ12 it is driving. This amp has some power and I only have it turned up only halfway. Once I get around to fully tuning the system and crank it, my neighbors will probably hate me. I'm very satisfied with the quality and performance of this, now just need to add more matting to my car to kill some resonance.

By Jonathan on November 11, 2012

41 found this helpful


These subs hit the lows I've been looking for

The following review is for IDQ12 D2 V.4, which is a part of the bundle you are viewing.

I have a Honda Ridgeline pickup and built my own seals box to fit under the back seat I built it as large as I could and the subs are facing up with about an inch to spare. I've tried pioneer champs, kicker cvt, fosgate p2, all hit hard but didn't hit the bottom notes the way I had hoped. I know airspace was a problem at only .8 cf per 12" sub but I guess I was optomistic and hoped for the best. After I blew the pioneers, I decided to try out the Idq's after some research. These things perform twice as well as the past woofers and sound amazing at all volume levels. They get low too. I know they would even be better in a larger box. i upgraded my amp to old school mmats pushing 1400rms at 2 ohms. I've been looking for a larger alternator to keep up with the dimming lights. It's been over a year of pounding and no trouble yet. Sonic was great as they always are.

By Will on October 21, 2014

37 found this helpful


Awesome Subwoofer

The following review is for IDQ12 D2 V.4, which is a part of the bundle you are viewing.

Great for those seeking the Sound Quality of a subwoofer with clean tight response. Not for Bass Heads. Sound quality is superb...

By Joseph on April 6, 2015

29 found this helpful


Great Buy

The following review is for IDQ12 D2 V.4, which is a part of the bundle you are viewing.

I haven't installed these yet, I'm building a custom amp rack and sub box in my Ram 1500 so they still sit in the other room, but the price I got on these subs for was unmatched anywhere else and I think they came straight from Image Dynamics. This has been one of many orders I have made with Sonic and I've been satisfied every time.

By BigBlu on May 2, 2015

27 found this helpful


ID Q600.1

The following review is for Q600.1, which is a part of the bundle you are viewing.

Paid 150 for this bad boy. Had for 4 months strong before I decided to send a 5 hz sine wave throw it and blew it. None of the fuses even went. Worked well with the sundown E12. It wasn't very punchy though... I don't have good electrical and I'm not exactly sure if that was the problem but it seemed to excel in constant notes. It would get very hot as well, which may be the dirty power's fault. Definitely did rated though. Being class AB it was very inefficient. I keep voltage just as well with my current MB Quart onx1600.1D at near full power. Honestly, I wouldn't recommend it unless you're going for a system with good brand names. Can do much better at the same price and opposed to popular consensus I think my class d sounds better, but it has a lot more leeway too. It looks very classy and high quality though. Indifferent

By Sage on March 18, 2016

12 found this helpful


FINALLY a sub that can handle EDM!

The following review is for IDQ12 D2 V.4, which is a part of the bundle you are viewing.

This thing POUNDS. I had tried two different brands and models of subs before the IDQ12. I listen to various forms of electronic music coupled with some hip hop and heavy metal. Hip hop and heavy metal always worked on the others but on EDM plays both subs would clip when the notes were either too deep or the bass note too long. The IDQ took all that away. Not only is thing LOUD but it's sharp! It can hit the deepest notes without skipping a beat. This sub has convinced me that Image Dynamics is the best value for the money if you're going for SQ.

By Julian on February 8, 2016 Checkmark Icon Verified purchase

12 found this helpful


Tight, Clean

The following review is for IDQ12 D2 V.4, which is a part of the bundle you are viewing.

I went from a Infinity 120.9w which is also a SQ sub to the IDQ12. It's super tight and clean. Probably the tightest sub I've owned and I've had quite a few. Also, it hits the lows pretty well. The price is a bit expensive but it's worth it and made in the U.S.A. so you get what you pay for. It's a heavy sub with a substantial magnet. Cost me about a hundred more than my Infinity Kappa, but I'd buy again, it's worth it, I'm happy. Never had a sub where I could hear the notes so clearly. It's a fast, hard-hitting sub with no flatulence in a sealed 1 cu ft box. One thing I would say is that it is definitely a sound quality sub, so if you're looking for SPL, maybe not for you, but if you like clarity, get it!

By Jason on January 11, 2016

12 found this helpful


in all my years nothing comes close

The following review is for IDQ12 D2 V.4, which is a part of the bundle you are viewing.

in all my years experimenting with sub woofers this is hands down the cleanest flattest most breathtaking musical sub woofer i have ever owned and herd i find myself taking longer drives and making excuses to listen to it because its that incredible throw it in 1.2 cubes after displacement ans enjoy heaven!!!!!!!!!!!!!!!!!!!!

By holly on June 6, 2017

11 found this helpful


Great Sub

The following review is for IDQ12 D2 V.4, which is a part of the bundle you are viewing.

Running a 850 Zapco amp and this sub is flawless. Can hit those low frequencies well and cranks out a ton of power with ease. Great sub especially for the money. I would've never guessed the results I got from this sub. Beyond impressed!

By WesF on September 13, 2016

11 found this helpful




XA-BLUSCS-12 small

JL Audio XA-BLUSCS-12

50 ft. of 12 Gauge Speaker Cable with End Connectors Included

$59.99

List price $119.99

BPR 1 12 small

Ground Shaker BPR 1 12-OPEN BOX

12" Single Sealed Regular Bandpass Subwoofer Box

$59.95

List price $124.95

ICON-HDP-RED small

NuForce Icon HDP Audiophile Grade Headphone Amplifier & DAC (Red)

24-Bit/192 kHz Headphone Amp and Preamp Output with USB, S/PDIF Coaxial, and 3.5mm Optical

$299.99

List price $449.00

HAFX8P small

JVC HAFX8P (HA-FX8P) Pink RIPTIDZ In-Ear Headphones/Earbuds

Lightweight Rubber Earbuds w/ 3 Sets of Silicone Earpieces (Pink)

$8.99

List price $9.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2022 Jeep Compass

2022 Tesla Model X

2013 Audi RS5

2000 Toyota Avalon

1995 BMW 740iL

2009 Subaru Forester

1986 Chrysler Laser

2006 Kia Sorento

1994 Mazda B4000

2023 Audi A4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
