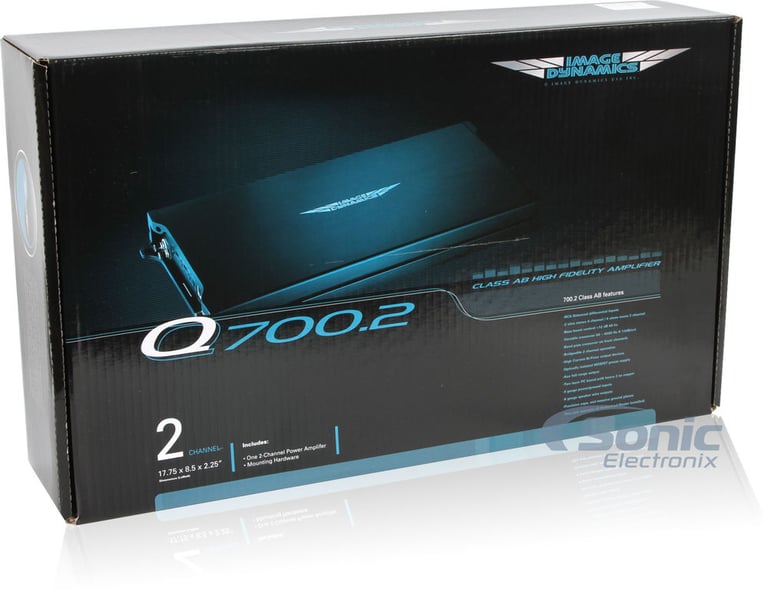

Image Dynamics Q700.2 with $25 eGift Card

$25 eGift Card Included! 650W RMS 2-Channel Class A/B High Fidelity Q Series Car Amplifier

EXCLUSIVE
Product videos
highlight-star-icon

• RMS: 175W x 2 @ 4 ohm, 325W x 2 @ 2 ohm
• 650W x 1 Channel @ 4 Ohm Bridged
• Variable Bass Boost
• Variable High and Low Pass Filters
• Optically Isolate MOSFET Power Supply
• 5 Way System Protection Circuitry
• Subsonic Filter

Learn more about the q7002_25egift

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Product Highlights


• RMS: 175W x 2 @ 4 ohm, 325W x 2 @ 2 ohm
• 650W x 1 Channel @ 4 Ohm Bridged
• Variable Bass Boost
• Variable High and Low Pass Filters
• Optically Isolate MOSFET Power Supply
• 5 Way System Protection Circuitry
• Subsonic Filter

Description


Image Dynamics brand icon

Authorized dealer

Q Stands for Quality


The Q700.2 Q series amplifier from Image Dynamics is the perfect amplifier if you are looking to power up a brand new pair of after market speakers or even some subwoofers. This amp is rated at 175W RMS x 2 Chan. @ 4ohms, 325W RMS x 2 Chan. @ 2ohms and 650W RMS x 1 Chan. @ 4ohms bridged. The amplifier utilizes the best electronics to produce the up-most quality and reliability. The Q700.2 features a 2, and mono channel operation making it versatile and capable of powering up a pair of speaker or subwoofers within the allotted power output. The amplifier is also equipped with a variable bass boost, variable low-pass/high-pass filter, and subsonic filter for finer tuning of your car audio system's frequencies. A 5-way system protection circuitry and soft start feature allow for complete protection of the amplifier but also of your devices. With its high end components and impressive features this amplifier is sure to produce a premium detailed musical performance.

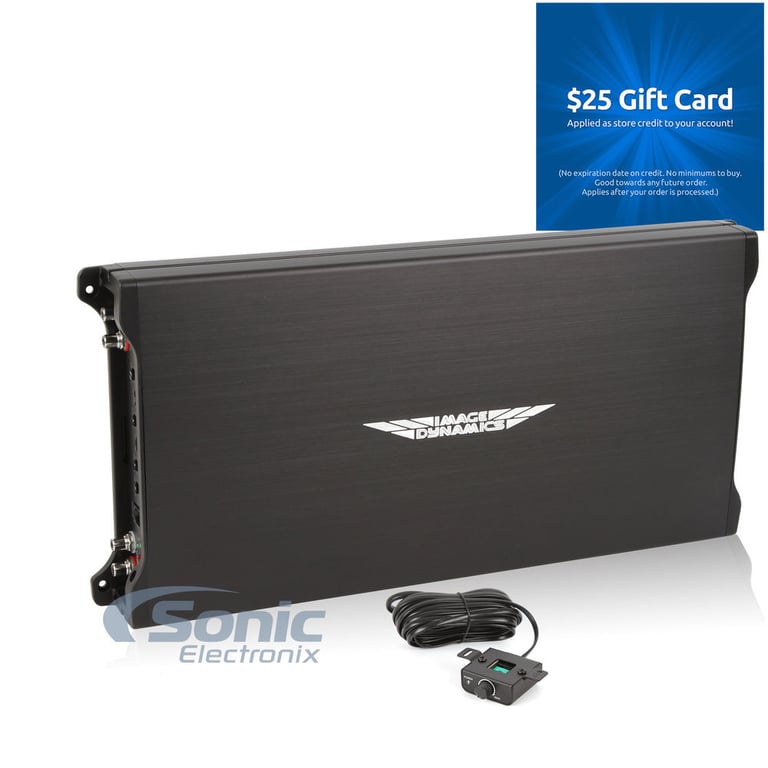

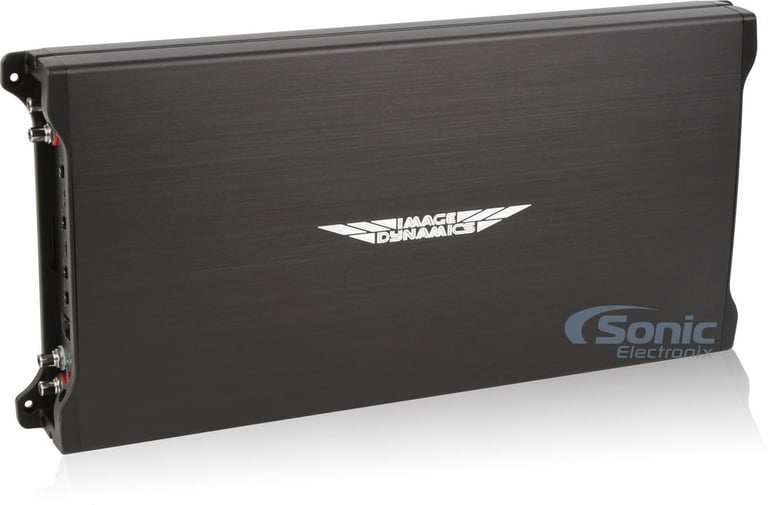

Image Dynamics Q700.2

650W RMS 2-Channel Class A/B High Fidelity Q Series Car Amplifier
Quantity: 1

  • Q Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 175 watts x 2 chan.
    • 2 ohm: 325 watts x 2 chan.
    • Bridged, 4 ohm: 650 watts x 1 chan.
  • Optically isolated MOSFET power supply
  • LED power indicator
  • Variable bass boost(0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 2/1 or Mono channel operation

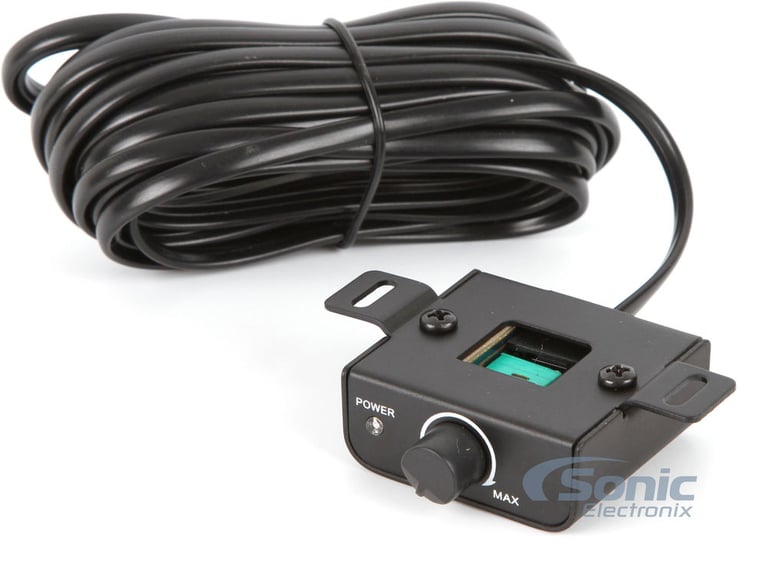

  • Remote bass level included

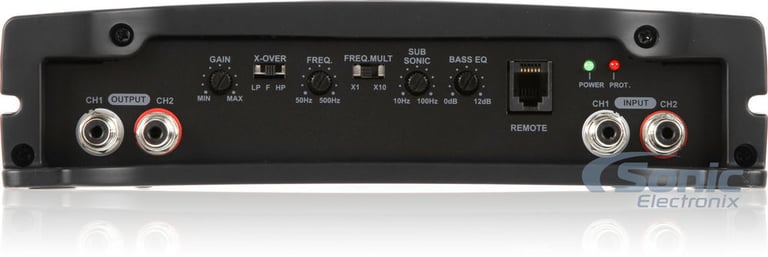

  • RCA preamp outputs
  • Bi-Polar High-current output devices
  • Auxiliary full range output
  • Two-layer PC Board with heavy 2 oz copper
  • Massive ground planes and precision caps
  • Frequency multiplier
  • 5-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs

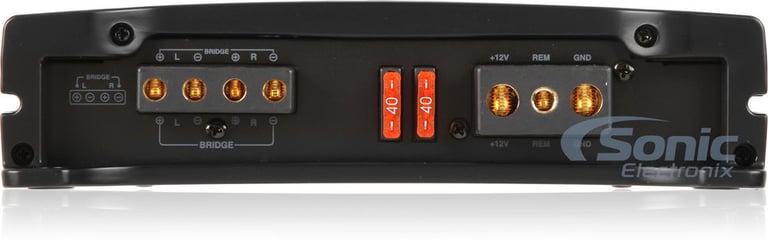

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 150mV-6V
  • Variable high-pass filter (50-5000 Hz, 12 dB/octave)
  • Variable low-pass filter (50-5000 Hz, 12 dB/octave)
  • Variable subsonic filter (10-100 Hz, 12 dB/octave)
  • Damping factor: >100
  • Frequency response: 10-30,000 Hz
  • Signal-to-Noise ratio: 98dB
  • Dimensions: 17-3/4"L x 8-1/2"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

$25 Gift Card at Sonic Electronix

Digital Gift Card for value of $25 applies electronically to account
Quantity: 1

Sonic Electronix Gift Card Features:

  • No minimums or restrictions
  • No expiration date
  • Tied to your account so you'll never lose the value or card
  • Easily see the value by simply logging into your account
  • Easy to apply at checkout (see instructions below)

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
175 watts x 2 channel
RMS Power @ 2 ohms
325 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
650 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
650 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
10 - 100 Hz
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q700.2_SE25GC

Weight:

12.01lbs

Internal SKU:

q7002_25egift

Internal Product ID:

96734

Product and How-to Videos


Customer Ratings & Reviews


Image Dynamics Q700.2 with $25 eGift Card thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
5
Features
4.4
Design
4.4
Usability
5

Customer Reviews

Sort by:

Loading...

Great bonus!

The following review is for SonicElectronix-25-Gift-Card, which is a part of the bundle you are viewing.

Got this when buying a pair of headphones. Spent it within hrs since there are a million things I want here!!! Thanks Sonic!!

By Audiojunky on January 2, 2015

73 found this helpful


Everybody loves a gift card!

The following review is for SonicElectronix-25-Gift-Card, which is a part of the bundle you are viewing.

What can I say? I got this gift card when I purchased something else. I spent it right away. It was great.

By Chris on December 30, 2013

66 found this helpful


$25 Gift Card

The following review is for SonicElectronix-25-Gift-Card, which is a part of the bundle you are viewing.

Who in their right mind would turn that down? Would you?

By Fax on December 28, 2013

65 found this helpful


You Cant go wrong!

The following review is for SonicElectronix-25-Gift-Card, which is a part of the bundle you are viewing.

You cant go wrong if the person your getting this for, loves stuff for their car!

By RG on May 2, 2014

56 found this helpful


I D Q700.2

The following review is for Q700.2, which is a part of the bundle you are viewing.

I bought this amp to run my Image Dynamics IDQ10D2 V4. This thing has plenty of power to run this sub. Gain is set low. Very clean power. Little larger than I would have liked. But for the money it is hard to beat. Shipping was quick.
