Infinity Reference 1300a

342W Max, Reference Series Class D Monoblock Amplifier

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• RMS: 200W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• Total RMS Power: 300W
• CEA-2006 Compliant
• Bass Boost: 0-6 dB
• Class D Circuitry
• Dimensions: 14-3/4"L x 9"W x 2-11/16H

Learn more about the 1300a

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• RMS: 200W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• Total RMS Power: 300W
• CEA-2006 Compliant
• Bass Boost: 0-6 dB
• Class D Circuitry
• Dimensions: 14-3/4"L x 9"W x 2-11/16H

Description


Infinity brand icon

Authorized dealer

  • Reference Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
  • Max power output: 342 watts x 1 chan.
  • MOSFET power supply

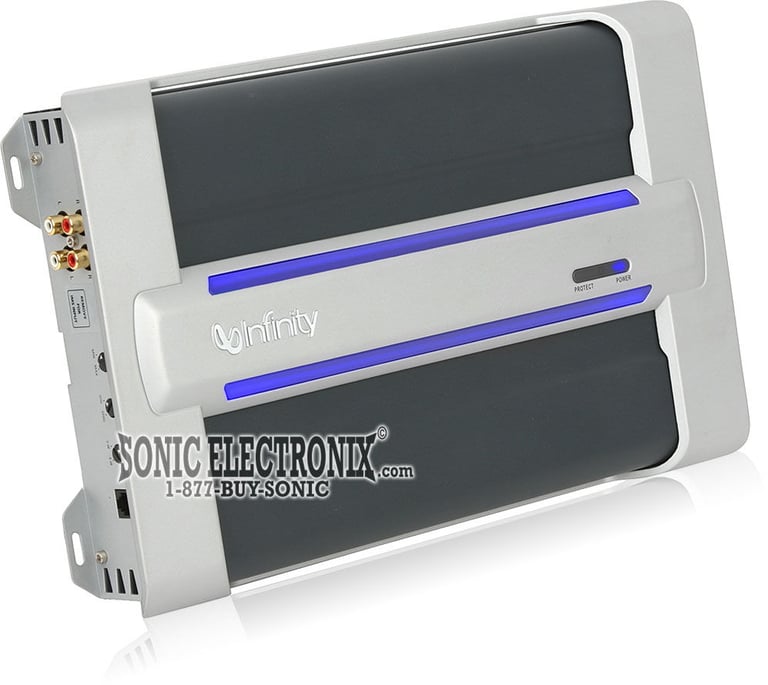

  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • IMS inputs allows connection to other Infinity expansion products
  • Gold-plated preamp RCA outputs

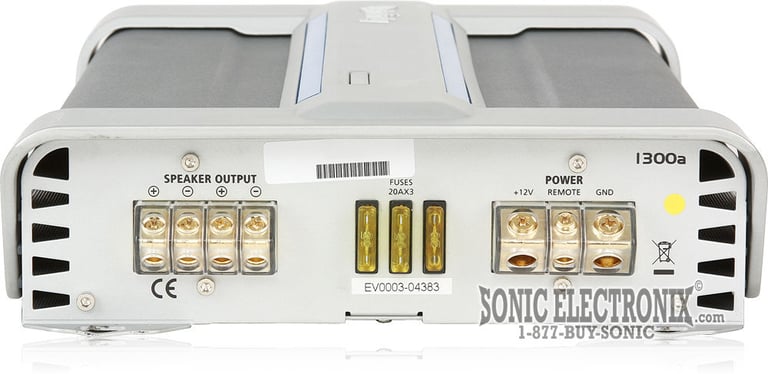

  • DC, overheat, over or under voltage, and short circuit amplifier protection

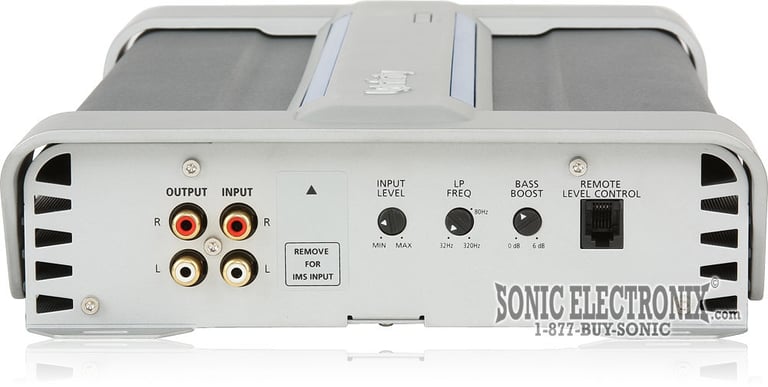

  • Gold-plated RCA level inputs
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Also found as: REF1300A
  • Frequency response: 11-330 Hz
  • Efficiency: 85 dB
  • Dimensions: 14-3/4"L x 9"W x 2-11/16H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty

Product history:

Infinity 1300a thumbnail
(newest, current model)
Infinity 311A thumbnail
(previous model, replaced by Infinity Reference 1300a)
Infinity 310A thumbnail
(previous model, replaced by Infinity Reference 311a)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Series
Reference Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
342 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
20A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

1300a

Weight:

12.00lbs

Internal SKU:

1300a

Internal Product ID:

9710

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Infinity Reference 1300a thumbnail image

5 star
69%
4 star
31%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.9
Features
4.3
Design
4.3
Usability
4.7

Customer Reviews

Sort by:

Loading...

good amp for price

good overall amp for the price no overheat problems hits hard sounds good

By Andrew on February 25, 2010

27 found this helpful


I would recommend....

I got this amp not really knowing exactly how it would perform but as soon as i got it home and hooked it up i was amazed. Even though its not an incredibly powerful amp it works great for cars. You can actually tell a difference when adjusting the frequency and bass boost. I would recommend this to anyone who doesn't want so much bass from a sub to wear you cant breath but to people who like a nice and crisp sound from an amp but still will be able to crank it up if they want too.

By tyler on July 28, 2008

25 found this helpful


great amp

I bought this amp a couple years ago and its on of the best built amps. Great quality and built like a tank. I abused the hell outta it and ran 2 12's till it got too hot to touch. Even when I blew one of the capacitors inside it still never quit and its powering my rockford sub in my car with no problem

By Cory on June 12, 2011

25 found this helpful


Good Amp

Great amp, especially for rock n roll. Good all around. I would buy another if I needed it.

By Jeremiah on April 28, 2010

23 found this helpful


Great Sub for the Price

This is a quality amp, and at this price it's hard to beat. I push my subs pretty hard, and after 8 months, I've had no issues.

By Quicko on October 15, 2009

23 found this helpful


thump, thump

I got this amp to replace a smaller in size but higher in power. I've taken a lengthy road trip with this amp and had no problems. There were no over-heating issues and I also love the few adjustment dials instead of the many others have. This amp is the one I was looking for to start with. You will not be disappointed.

By Pandaman on June 4, 2013

23 found this helpful


Great Value

I got this amp in a combo special and it performed awesome until it had a fault. But Infinity is such an awesome company they replaced it for free. Great price for a good amp from a very respectable company.

By Jeremy on January 18, 2010

23 found this helpful


You cant beat this deal great amp i love it.

plenty of power very clean power looks good too.

By p-dog on June 6, 2009

23 found this helpful


pretty good

Running dual ohm with a 12" pioneer champion series. Only overheated once on a pretty intense bass line. Solid..cant go wrong with it other than that,.

By Michael on May 14, 2009

23 found this helpful


Reliable Power and Good Looks!

I bought this amp in October of 2012 to power my first sound system, a 12 inch Kicker Comp (4 ohm) in a ported box. Although this basic sub is only rated at 150 watts rms I figured I could safely push 200 watts to it since Kicker is known to underate their products. And for almost 6 months, it has worked flawlessly, the amplifier barely even gets warm. The blue LED light strips glow really bright when its powered up and they make the trunk look cool at night. The only thing that I find strange that no one else has pointed out is this: I'm pretty sure this amp puts out way more than the 200-300 watts rms thats listed. The fuse rating on it for example, is 60 amps! This was something that my friend who works at car audio shop pointed out to me. Most 200 watt amps have 25 or 30 amp fuses...a 60 amp rating is usually only necessary and used on bigger 500 or 600 watt amps. It certainly seems true, because I only have the gain turned up not even half way and it maxes out my 12 in. Comp and thats at 4 ohms. I'm thinking of upgrading to a Kicker CVR in a bit, and at least I won't have to upgrade my amp, because I know this thing will push it no problem. Bottom line: This is a tough, powerful, reliable, and really cool looking amp for a pretty damn good price. Just be aware that it is a bit more powerful than the ratings suggest, so if you're using a weak sub, make sure you turn the gain down so you don't blow it. :)

By Justin on March 7, 2013

20 found this helpful
