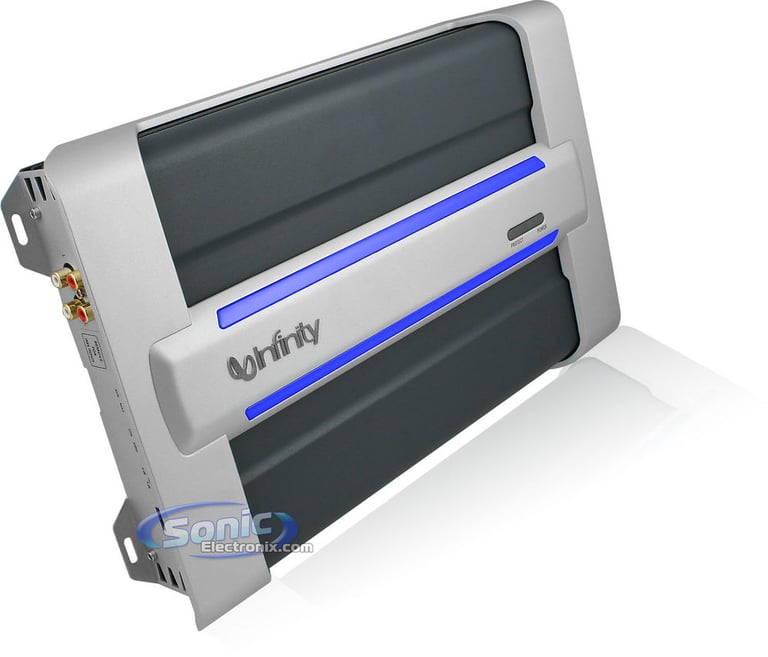

Infinity Reference 1600A

894W Max, Reference Series Class D Monoblock Amplifier

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• RMS: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm
• Total RMS Power: 600W
• CEA-2006 Compliant
• Bass Boost: 0-6 dB
• Class D Circuitry
• Dimensions: 14-3/16"L x 9"W x 2-11/16H

Learn more about the 1600a

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5026 main

Metra 95-5026 Dash Kit

Install a new Double-DIN car stereo in select 2002-2006 vehicles from Ford, Lincoln, Mercury (Black)

18
-41.68%

$13.99

List price $23.99

FD1428B main

Scosche FD1428B / FD1428 Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury (Black)

39
-9.51%

$11.99

List price $13.25

70-5701 main

Metra 70-5701 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1998-2003 Mountaineer and Explorer

9
-10.26%

$34.99

List price $38.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85

Product Highlights


• RMS: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm
• Total RMS Power: 600W
• CEA-2006 Compliant
• Bass Boost: 0-6 dB
• Class D Circuitry
• Dimensions: 14-3/16"L x 9"W x 2-11/16H

Description


Infinity brand icon

Authorized dealer

  • Reference Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
  • Max Power Output: 894 watts x 1 chan.
  • MOSFET power supply
  • LED power and protection indicators

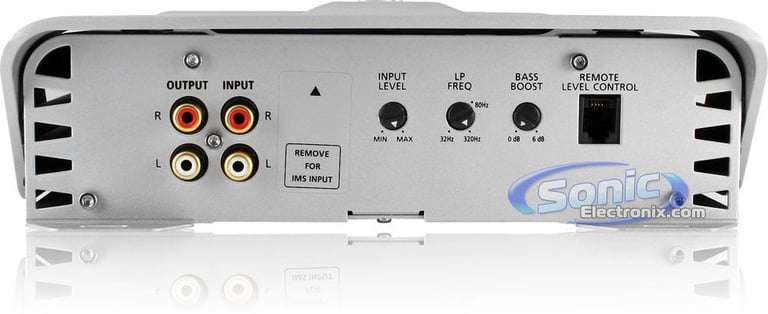

  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • IMS inputs allows connection to other Infinity expansion products
  • Gold-plated preamp RCA outputs
  • DC, overheat, over or under voltage, and short circuit amplifier protection
  • Gold-plated RCA level inputs
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Also found as: REF1600A
  • Frequency response: 11-330 Hz
  • Efficiency: 80 dB
  • Dimensions: 14-3/16"L x 9"W x 2-11/16H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty

Product history:

(newest, current model)
Infinity REF-551AAM thumbnail
(previous model, replaced by Infinity Reference 551AAM (551A))
Infinity 1600A thumbnail
(previous model, replaced by Infinity Reference 551A (REF-551A))
Infinity 611a thumbnail
(previous model, replaced by Infinity Reference 1600A)
Infinity 610A thumbnail
(previous model, replaced by Infinity 611A)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
894 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No

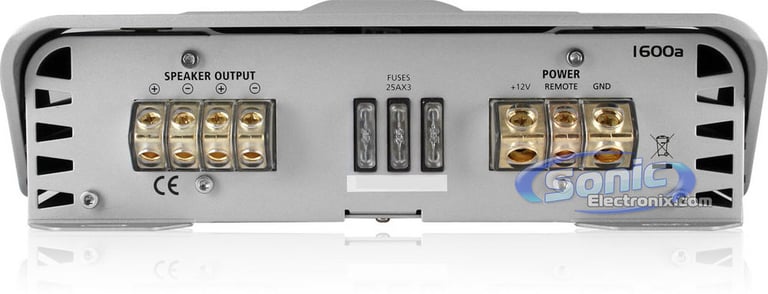

Fuse Rating
25A x 3
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

1600A

Weight:

15.00lbs

Internal SKU:

1600a

Internal Product ID:

9711
