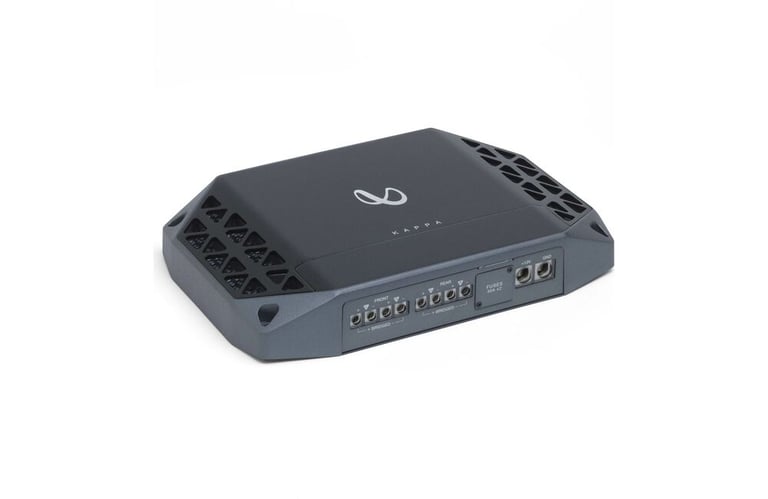

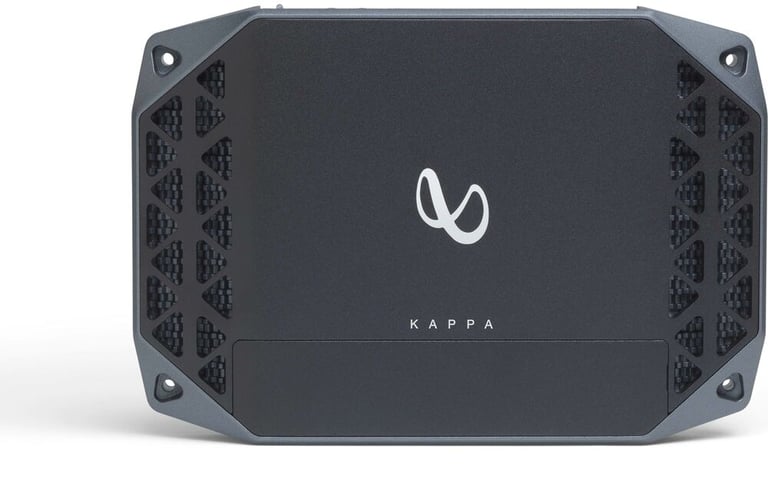

Infinity KAPPA FOUR

1200W Kappa Series 4-Channel Amplifier

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 125W x 4-Chan. @ 4 Ohm
• 150W x 4-Chan. @ 2 Ohm
• 300W x 4-Chan. Max
• Tuned Bass EQ
• Speaker-level Inputs
• Variable High and Low Pass Filters
• 4/3/2 Channel Operation

Learn more about the do-not-usekappafour

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kappafouram thumbnail

Infinity Kappa Four

OUR PRICE: $329.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

40-VW53 main

Metra 40-VW53 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

3
-27.79%

$12.99

List price $17.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

95-5806 main

Metra 95-5806 Dash Kit

Install a new Double-DIN car stereo in select 1999-2004 Focus and Cougar

13
-11.54%

$22.99

List price $25.99

99-5806 main

Metra 99-5806 Dash Kit

Install a new Single-DIN car stereo in select 1999-2004 Focus and Cougar

3
-10.00%

$26.99

List price $29.99

FMK566 main

American International FMK566

Double DIN Stereo Dash Kit for select 1999-2004 vehicles from Ford, Mercury

-70.87%

$6.99

List price $24.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• 125W x 4-Chan. @ 4 Ohm
• 150W x 4-Chan. @ 2 Ohm
• 300W x 4-Chan. Max
• Tuned Bass EQ
• Speaker-level Inputs
• Variable High and Low Pass Filters
• 4/3/2 Channel Operation

Description


Infinity brand icon

Authorized dealer

General Features

  • Infinity KAPPA 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
    • Bridged, 4 ohm: 300 watts x 2 chan.
  • Max power output: 300 watts x 4 chan.
  • DirectFET transistors for increased power output
  • Remote bass level input (remote level control sold separately
  • LED power indicators for DC output, over/under voltage, and Short circuit protection
  • Tuned Bass EQ (0-12 dB bass boost at 50 Hz)
  • High-power class D circuit topology
  • 4/3/2 Channel operation
  • Speaker-level inputs
  • 3-Way Smart System Protection

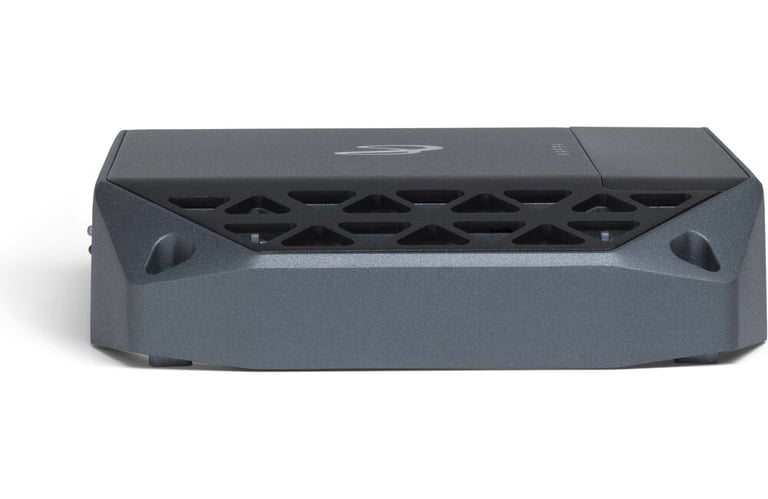

  • Heavy duty heatsink for extreme heat dissipation

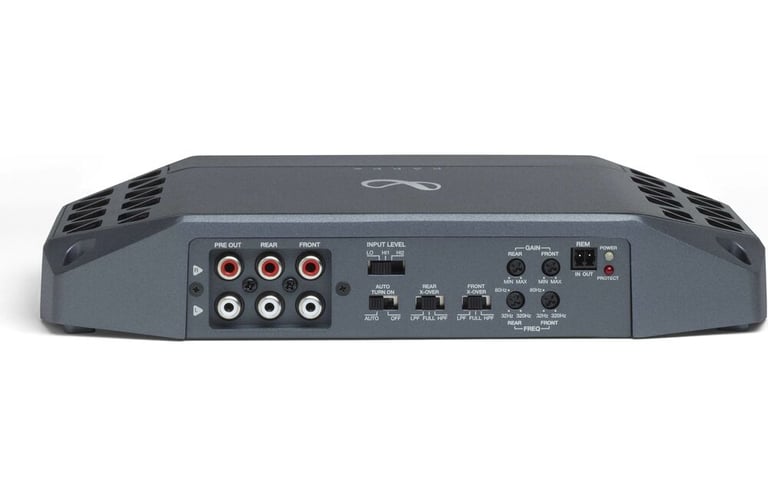

  • RCA level inputs

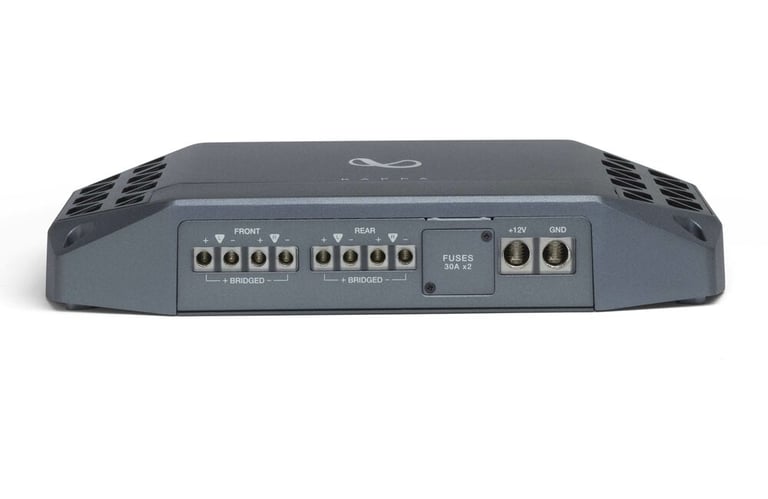

  • Screw terminals
  • Variable high-pass filter (32-320 Hz, 12 dB/octave)
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • Frequency response: 10-75,000 Hz
  • Dimensions: 13"D x 7-1/16"W x 1-3/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 3-year Manufacturer's warranty
Check out the Infinity KAPPA FOUR Owner's Manual


Product history:

Infinity Kappa Four thumbnail
(newest, current model)
Infinity DO-NOT-USE-KAPPA-FOUR thumbnail
(previous model, replaced by Infinity Kappa Four)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Series
Kappa Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Total Fuse Rating
80
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
Two spare fuses
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DO-NOT-USE-KAPPA-FOUR

Weight:

8.00lbs

Internal SKU:

do-not-usekappafour

Internal Product ID:

17780

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Infinity KAPPA FOUR thumbnail image

5 star
91%
4 star
5%
3 star
0%
2 star
5%
1 star
0%



Durability
4.7
Value
4.7
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Absolutely Gorgeous

After having an unnamed Maxxsonics made 4-channel heat itself to death on me, I opted to bite the bullet and mate this to my Kappa Perfect 6 and Reference 6830cs speakers. One word: Amazing.for an amp that is literally, half of the size of the amp it replaced, it pushes twice as much power and is still cool to the touch. Sound quality was the primary purpose of my build, and it more than meets my needs.

Also, it looks beautiful.

By Sikotik13 on July 9, 2013

110 found this helpful


Kappa Four

Amazing power on a compact design. Sound quality is outstanding!

By Jose on December 2, 2011

103 found this helpful


Great!!!

I have had the amp for 4-5 mouths. No problems or issues. I would buy it again!

By Chris on June 9, 2014

104 found this helpful


Dissapointed

I spent a while looking for a good 4 channel amp to buy and I saw that this amp received good feed back. After having it in for almost a month, it blew on me. Now before you say I had my wiring bad, no, I had a solid ground with full contact, proper sized power and ground. I've had problems with the amp to what I was suggested it to be as clipping. I had the voltage input at about half and the vibrating from the speakers stopped and to add to that, the fuses didn't blow, the amp did, non of the protections worked. Maybe I just received a bad amp, but I surely won't be buying anything from Infinity again.

By Brandon on December 31, 2012

102 found this helpful


Awesome Piece

Powering 2 - 10" Kappa 100.9W's in bridged mode in an extended cab GMC pickup, tri-amped with active crossover. The sound is crisp, clear and as loud as you want it to be, but be prepared to upgrade your charging system - this amp will give your alternator a workout. A joy to setup, all settings are easy to configure and no tweaking was necessary after initial setup. The sound is fantastic, with no coloration audible. Highly recommend this amp to anyone looking for a clear natural sound. Sonic Electonix was great to deal with and any future purchases will definitely be through them.

By Ross J. on November 23, 2012

95 found this helpful


Great Amp

The amp is great. It has fantastic sound, lots of power, and is easy to install and set up. The frequency response is good and it is easy to make adjustments. I am very happy with this amp.

By Mr C on September 17, 2013

91 found this helpful


Amazing

This amp is solid!! If the missing piece of your puzzle is an amp then look no further. I dont brag on shops often, but Sonic is the place to get your stuff. These guys know their s-it!! I explained what I had and what I wanted and they got me what I needed. I will definitely purchase from them again.

By Creighton on February 9, 2014

82 found this helpful


Kappa Four

Absolutely everything I wanted in an amp, plus a power rating that is very conservative. It is small, powerful, clean as crystal, has the right adjustments, and is very robust. You can use the front two channels to push all the speakers you want, and bridge the back two for a really conservative 300x1 @ 4ohm. I swear this back two channels bridged has driven my 2 4ohm jls (2ohm load) as well as my Kappa monoblock (rated 500rms at 4ohm). When set up in the livingroom against other considerations for my mids and highs, going from my other amps to the Infinity showed just full and musical the Infinity amp is compared to some lesser brands. Best I have owned, and it is not the most expensive I have owned.

By DrBen on September 2, 2011

73 found this helpful


Kappa Four

Had a powerbass amp before this one and the Kappa Four is definitely worth the extra $$. 2x cleaner and has extreme power for the compact design. Definitely enjoy the controls on the faceplate considering it is mounted on the back wall of my f150.

By Justin on July 26, 2012

67 found this helpful


Great amp

The sounds is clear and crisp, love this amp. Much better than the MTX 4004 that I originally had. Does not cut out and runs quite cool.

By Daviboysmith on August 21, 2013

66 found this helpful




CAP28R small

Absolute CAP28R (RED)

1.5 Farad Digital Power Capacitor

$54.99

List price $99.99

DICB160 small

Absolute DICB160

160 Amp Digital Circuit Breaker / Fuse Holder

(5)

$19.99

List price $49.99

No picture

Scosche IPBTT

Bluetooth Transmitter for iPod

$84.99

List price $99.99

DICB200 small

Absolute DICB200

200 Amp Digital Circuit Breaker / Fuse Holder

(1)

$19.99

List price $49.99

LCB200 small

Lightning Audio LCB200

200 Amp Circuit Breaker for 1/0 or 4 Gauge Power Wire

(1)

$24.99

List price $52.99

VB57.2 small

Lanzar VB57.2

$46.99

List price $79.99

SPS-13C2 small

Alpine SPS-13C2

5-1/4" Type-S 2-way Car Speakers

(6)

$54.99

List price $109.99

SV3 small

Kicker SV3

9.9 ft. (3 meters) of Video RCA Interconnect Patch Cable (05SV3)

(1)

$5.99

List price $29.99

05PWG050 small

Kicker PWG050

50 ft. Spool of 1/0 AWG Gunmetal Gray Power / Ground Wire Cable 05PWG050

(1)

$249.99

List price $249.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Ford Focus

2001 Ford Taurus

2011 Ford Explorer

2018 MINI Cooper

2015 MINI Cooper

1998 Mitsubishi Eclipse

2002 Daewoo Lanos

2012 Audi S5

2003 Mitsubishi Eclipse

1972 MG Midget

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
