See all parts that fit your 2015 Prius V

Orion HCCA 10.2 (HCCA10.2)

10" Dual 2 ohms Subwoofer

Orion
Shop all Orion
Product videos
highlight-star-icon

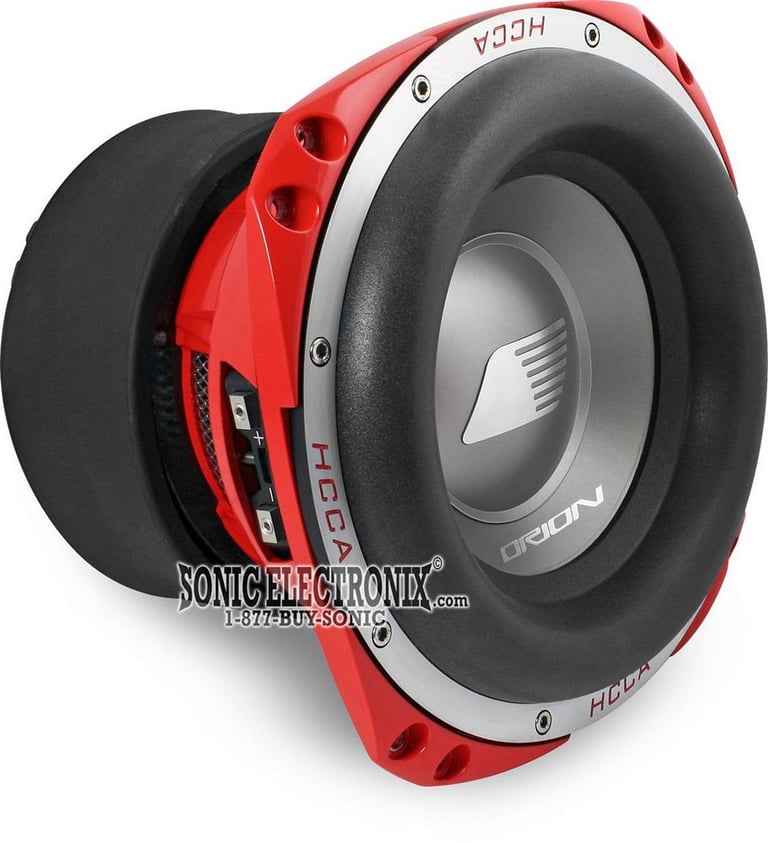

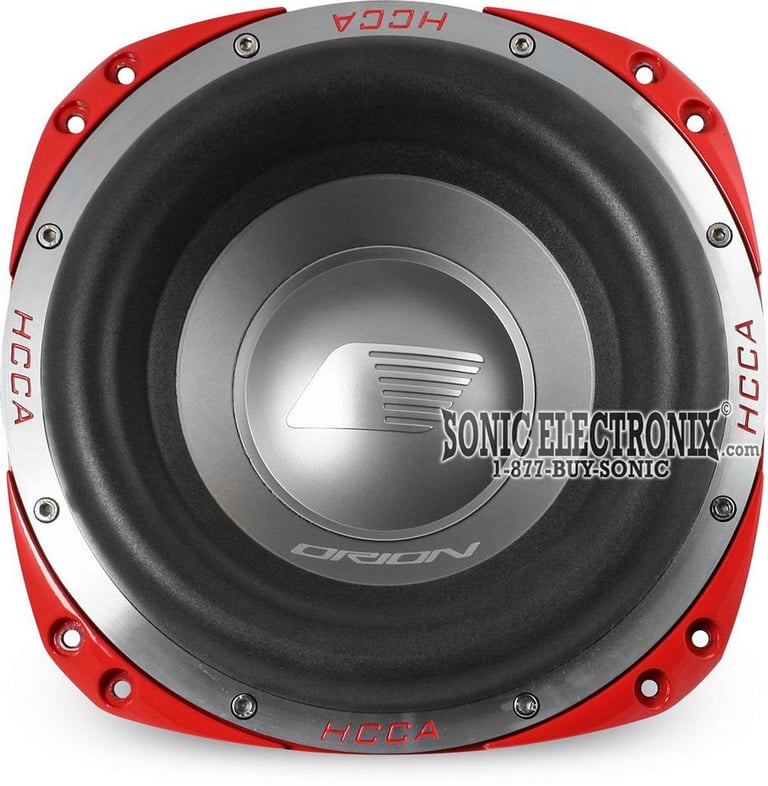

10" Dual 2 ohm HCCA Series Subwoofer • 3000W Max • 1500W RMS • Polypropylene cone • Wide foam surround • Dual Flat Conex Spiders with Loop/Stitched Tinsel Lead • Field Replaceable Cone / Voice coil / Spider Assembly

Learn more about the ori-hcca102

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

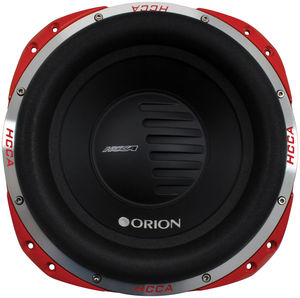

hcca102 thumbnail

Orion HCCA102

OUR PRICE: $499.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


10" Dual 2 ohm HCCA Series Subwoofer • 3000W Max • 1500W RMS • Polypropylene cone • Wide foam surround • Dual Flat Conex Spiders with Loop/Stitched Tinsel Lead • Field Replaceable Cone / Voice coil / Spider Assembly

Description


Orion brand icon

Authorized dealer

These SPL woofers are most impressive. Orion HCCA subwoofers might possibly be the baddest subs on the planet. Hands down. With its massive 4" high temp voice coil and immense motor, this subwoofer can reach as much as a 4" excursion. A higher excursion equals more bass! Orion HCCA subs have a long history of competition dating back 8-years or more. Why are they so efficient? Why are there so many positive reviews?

Orion made these subwoofers with extreme quality control. They listened to the SPL crowd and dished out a high powered durable subwoofer that can handle its own weight in a match. To keep your sub going Orion offers a field replaceable cone kit so your never out of the game. Everything on this woofer is enhanced from its voice coil cooling system to the conex spiders. This sub will take whatever you throw at it and trust us, it is power hungry.

  • 10" Dual 2 Ohm HCCA Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1500 watts
  • Impedance: Dual 2 ohm
  • Polypropylene cone
  • Wide foam surround
  • Dual Flat Conex Spiders with Loop/Stitched Tinsel Lead
  • Field Replaceable Cone / Voice coil / Spider Assembly
  • 4” copper Wound Voice Coil on an Aluminum Former, High temperature PAARC (Polyester Amide, Amide Resin Coated)

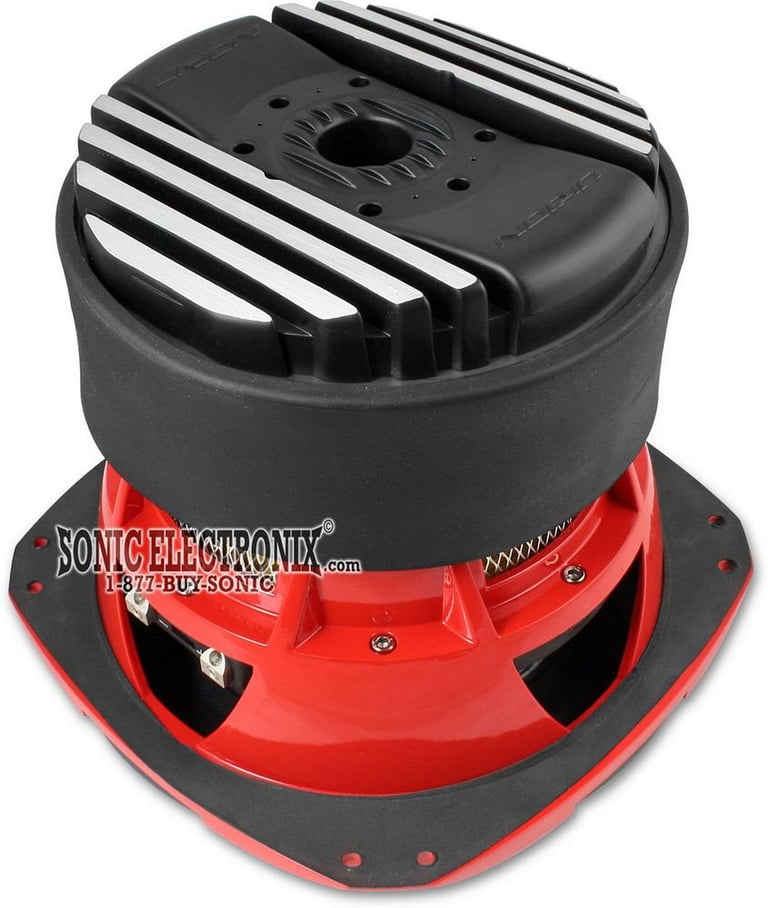

  • Enhanced voice coil cooling system (forced convection – aluminum heat sinking – shorting rings to reduce inductive heating)
  • Sensitivity: 84 dB
  • If you blow the subwoofer, there is a replacement cone kit that allows you to easily swap out the blown/burned voice coil and surround with a new one. The replacement kit allows you to keep the magnet and basket, therefore saving money as you do not need to buy a new sub.
  • 1-year SonicElectronix.com warranty (any blown woofer or cone problems must be resolved by purchasing the cone replacement item and are not covered under the warranty)

Product history:

Orion HCCA102 thumbnail
(newest, current model)
Orion HCCA10.2 thumbnail
(previous model, replaced by Orion HCCA102)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Orion HCCA 10.2 (HCCA10.2) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Orion HCCA 10.2 (HCCA10.2) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Orion HCCA 10.2 (HCCA10.2) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Orion HCCA 10.2 (HCCA10.2) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

NSW102V3 small

NVX NSW102 Version 3 (NSW102v3)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 5.36"
• Sensitivity: 85 dB

(63)

$89.99

List price $107.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
3000 watts
RMS Power Handling
1500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
31 - 250 Hz
Sensitivity
84 dB
Xmax (millimeters)
30 mm
Woofer Composition
Polypropylene
Woofer Surround
Wide Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
8-1/2"
Cutout Diameter
9-3/8"

Item Details


Manufacturer:

Model Number:

HCCA10.2

Weight:

46.00lbs

Internal SKU:

ori-hcca102

Internal Product ID:

9922

Product and How-to Videos


Customer Ratings & Reviews


Orion HCCA 10.2 (HCCA10.2) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
5
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great Sub!

Its a great sub! loved how it looks! unfortunately I couldn't power it with my amp but that was an easy fix just got a better amp.

By Abel on June 8, 2014

6 found this helpful


Awesome sub

Just got mine last night and put it in. Gotta say its the cleanest SPL sub I've ever heard. Tight bass and it will definitely get loud with 1600 watts its definitely under rated for power handling.

By Drew on February 13, 2009

6 found this helpful


hcca 10.2

I have nothing but good news to report on this sub. I am a real customer, won't profit any from the things that I'm about to say about this sub. i have owned 15s, 12s and 10inch subs. i have put this hcca 10inch sub; through the worst of punishments. I cannot make this sub bottom out. I am running only one of these in my vehicle and if you didn't know that you would think i was loaded down with subs. The excursion on this thing is ridiculous. I am very pleased with my purchase of this sub.

By Mark on January 13, 2009

3 found this helpful


NOT FOR THE WEAK ONLY FOR THE INSANE

When i was at the local audio shop i was getting 2 l7 12\'s installed in a custom cut cab box and paid like 1500 bucks, there was a kid there who was spending like 450 bucks each on just a 10\" and i was like what 450 for a 10 this kid\'s getting ripped so i just kinda was like o well.

When i went to pick up a fuse a couple days later, the kids truck was done. He had 2 of these in a custom box in the back of a crew cab Chevy.

When the bass line hit, it was like getting hit with a baseball bat. These subs are like 10 times louder than my L7s! Now I\'m saving up for these, because i have not heard any thing louder in my life. If you buy them from here you can save some real cash. Sonic\'s the best that i have ever seen in prices so buy 1 if you want to rattle your car or truck. Buy 2 if you want to lose your hearing in a week.

By patrick on November 17, 2008

1 found this helpful
