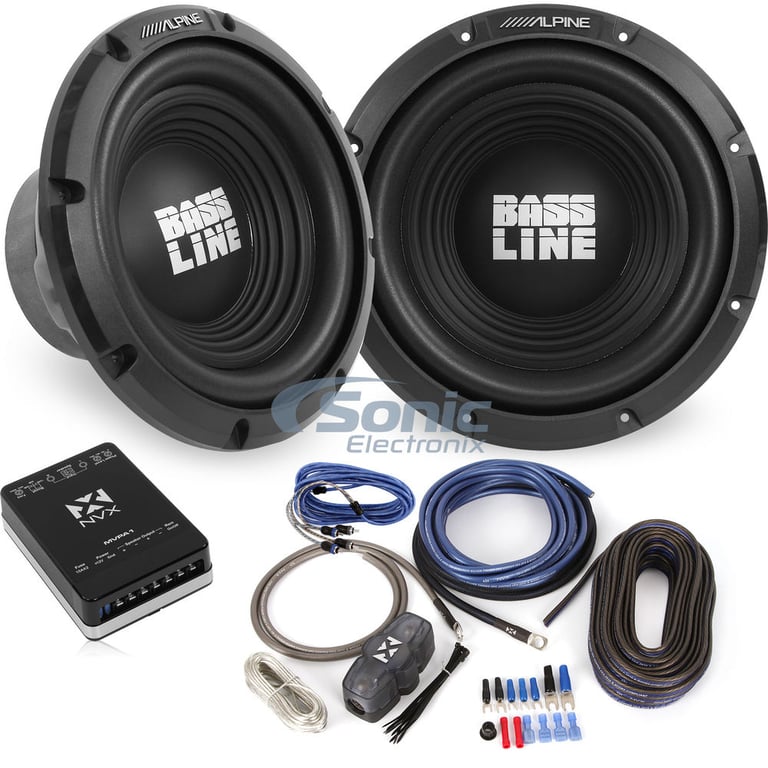

Alpine + NVX Ultra Compact Bass Bundle

General Features:

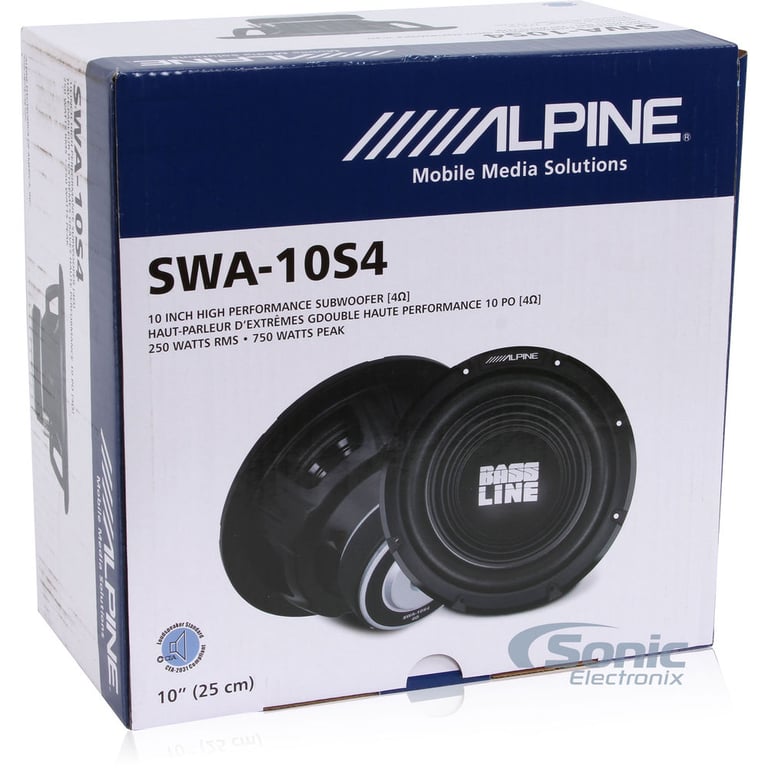

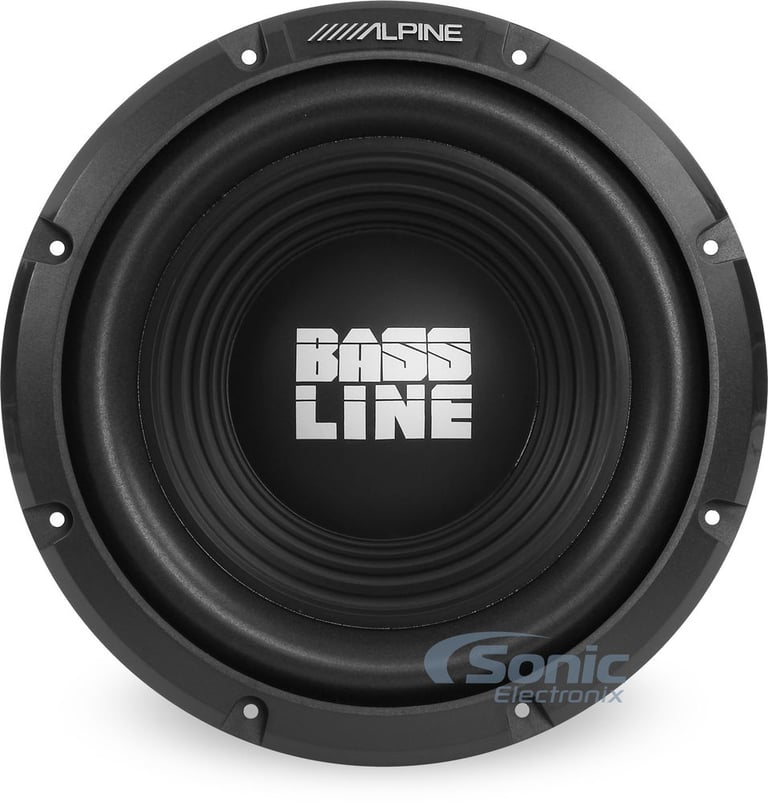

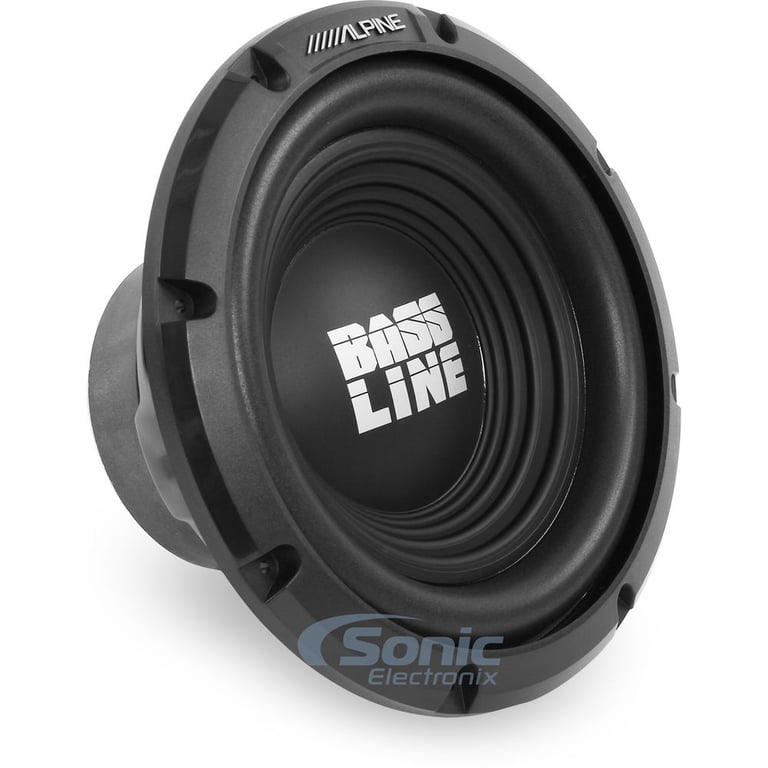

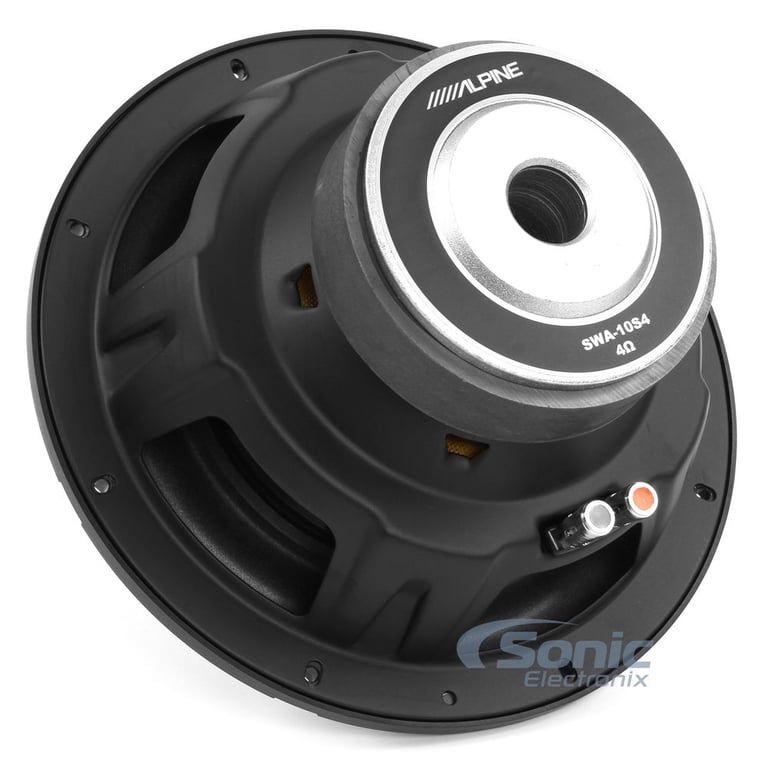

• 10" Single 4 Ohm BASSLINE Series Subwoofer
• Power Handling:
• Peak: 1500 watts per pair / 750 watts per driver
• RMS: 500 watts per pair / 250 watts per driver
• RMS Power Range: 50-250 watts
• Final Impedance: 2 Ohm - Wired in Parallel
• Polypropylene & mica damped cone with Progressive Wavelet Rib (PWR) design
• High-excursion poly-foam surround
• Polyester progressive spider
• Two-piece yoke with vented pole for improved air flow and voice coil cooling
• High strength custom steel frame
• 8 Gauge push pin terminals
• 2" Aluminum voice coil
• 60 oz. Single stacked magnet
• Resonance Frequency (Fs): 32 Hz
• Top-mount depth: 5-5/16"
• Sensitivity: 86.5 dB
• 1-year Sonic Electronix Warranty

General Features:

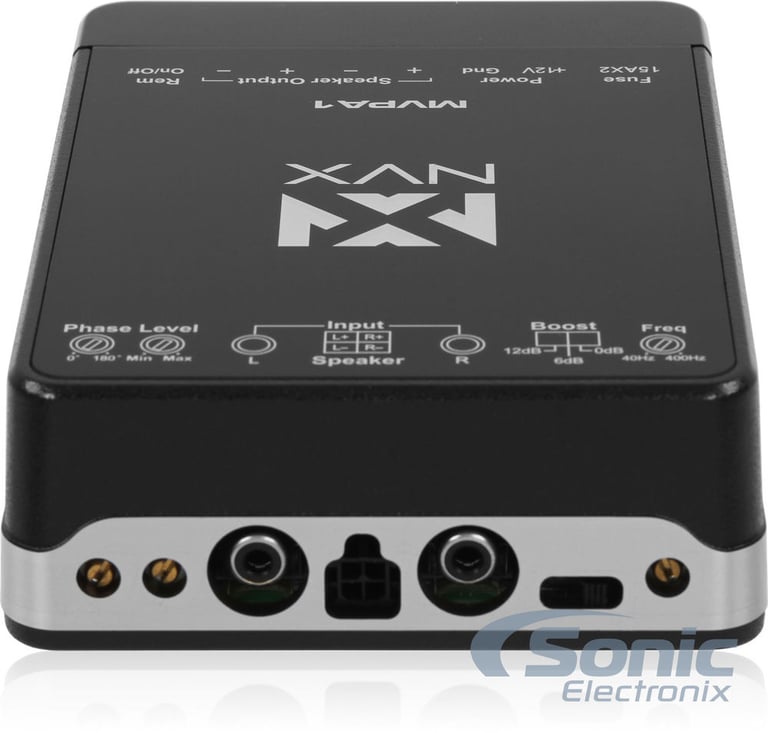

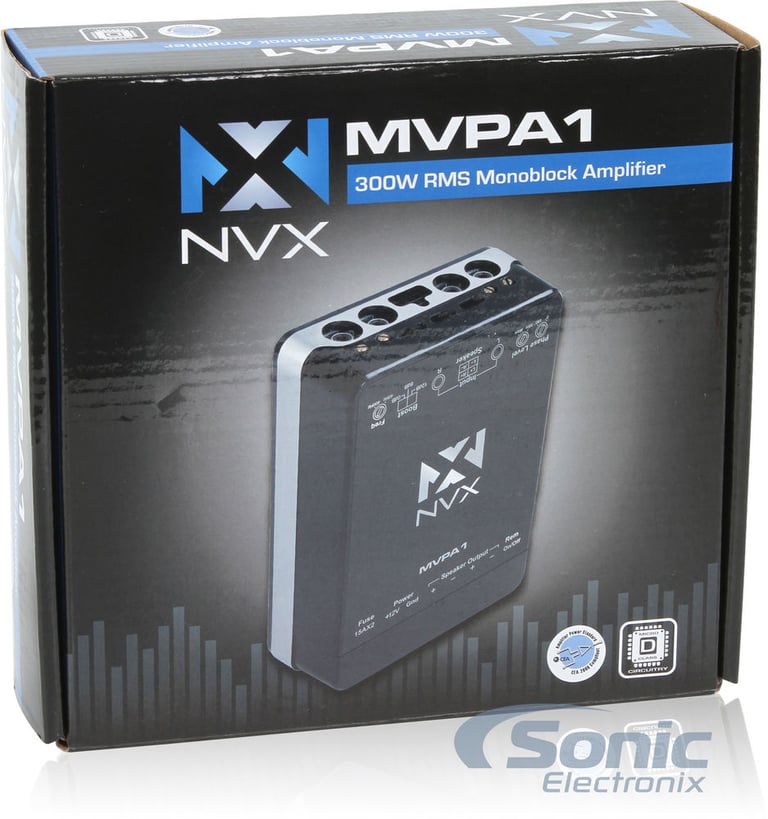

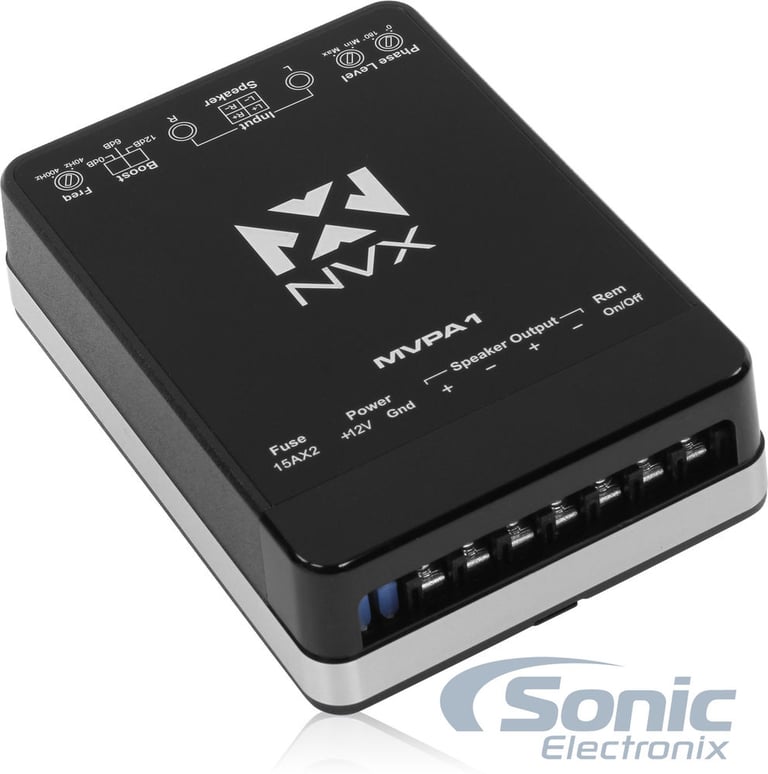

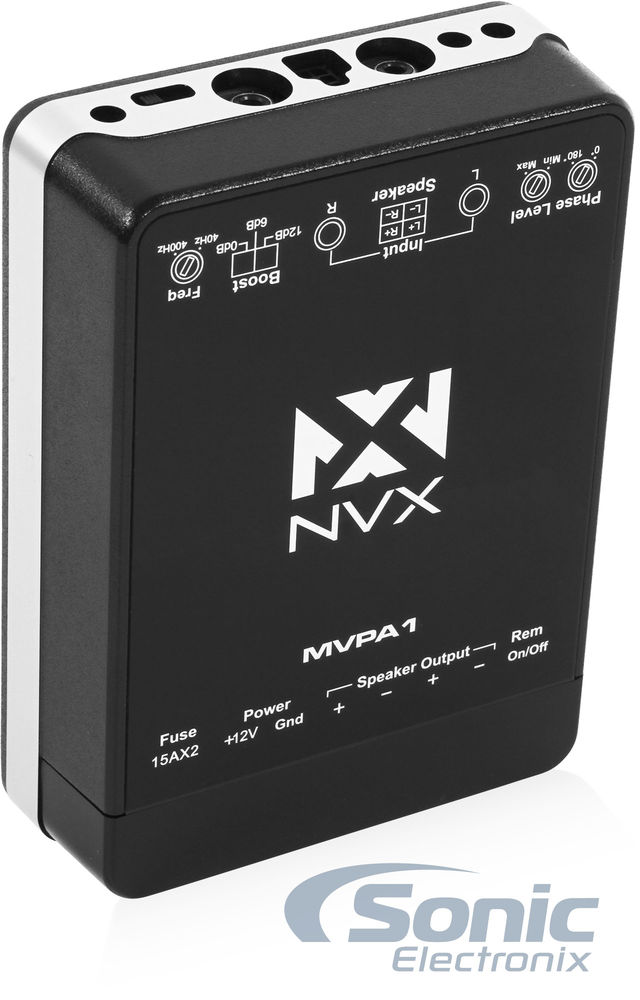

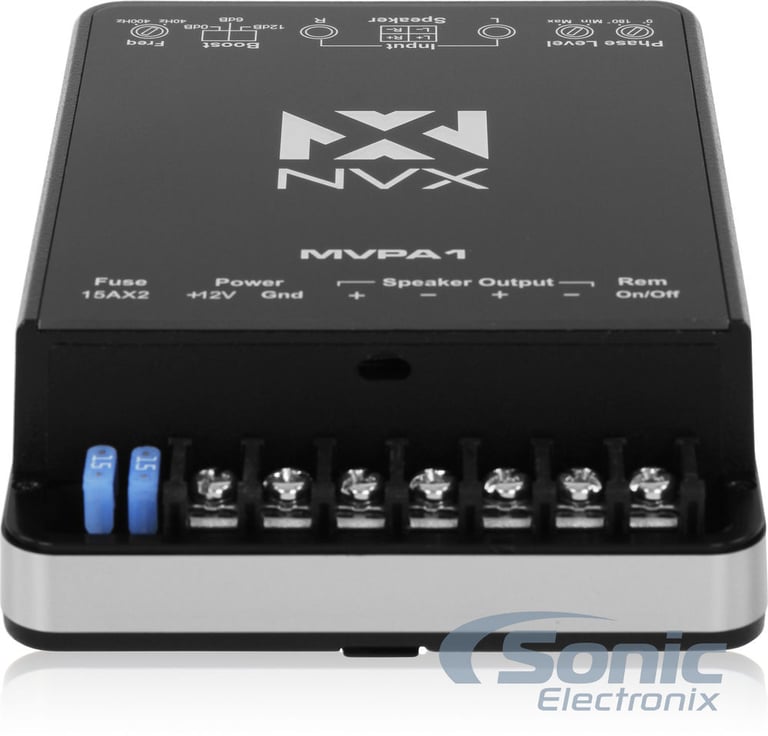

• MVP Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 300 watts x 1 chan.
• Sonic Electronix Certified Power Rating*:
• 4 ohm: 268 watts x 1 chan.
• 2 ohm: 476 watts x 1 chan.

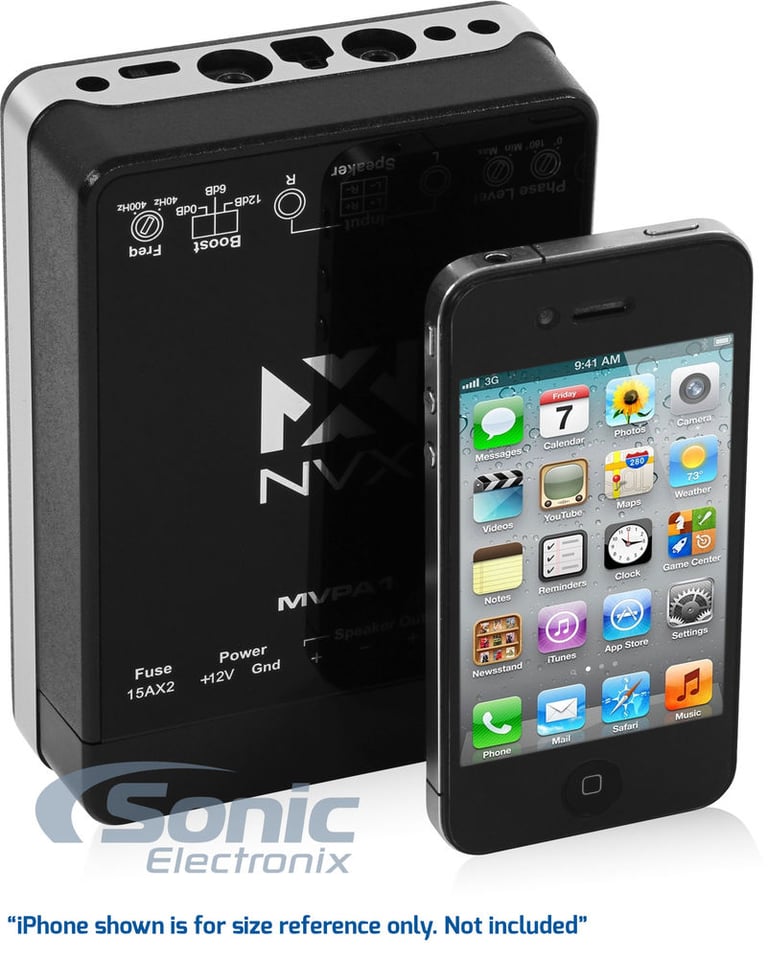

• Cutting edge Micro Class D technology allows amplifier to be extremely compact
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Switchable Bass Boost (0dB/+6dB/+12dB)
• Soft start turn-on
• Mono channel operation

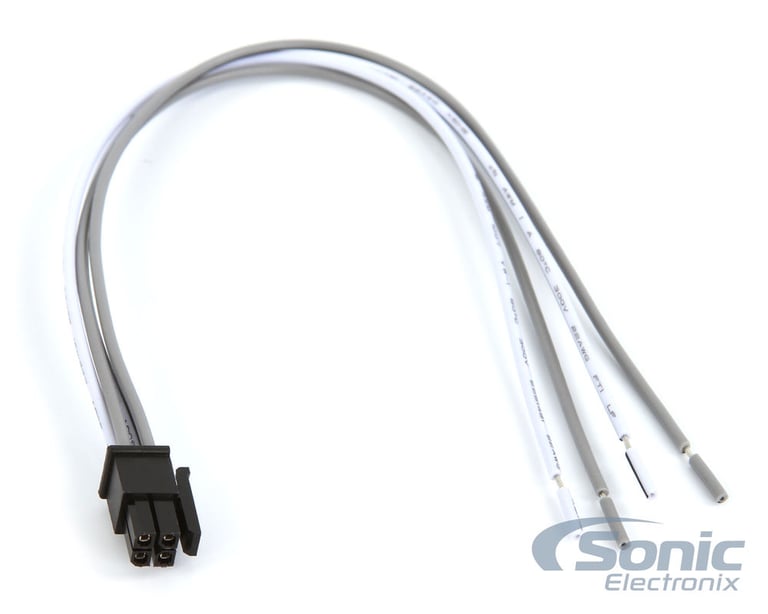

• Speaker-level (high-level) inputs with signal sensing for automatic turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)

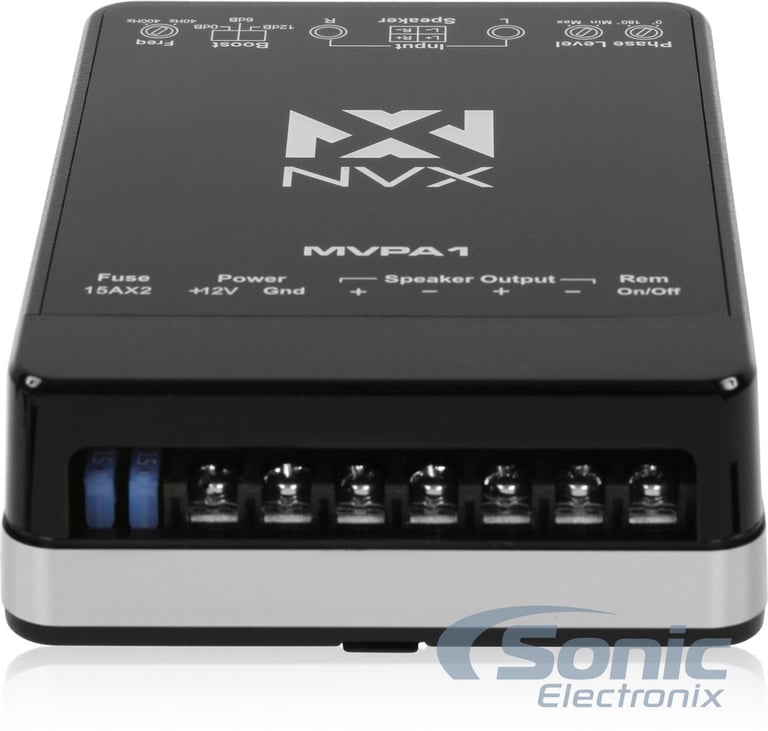

• Dual speaker terminals simplify the hookup of multiple speakers
• Input sensitivity:
• Level: 0.2V-5V
• Operating voltage: 8-16V
• Variable low-pass filter (40-400 Hz)
• CEA-2006 compliant amplifier
• 8 gauge power and ground wiring is required for installation.

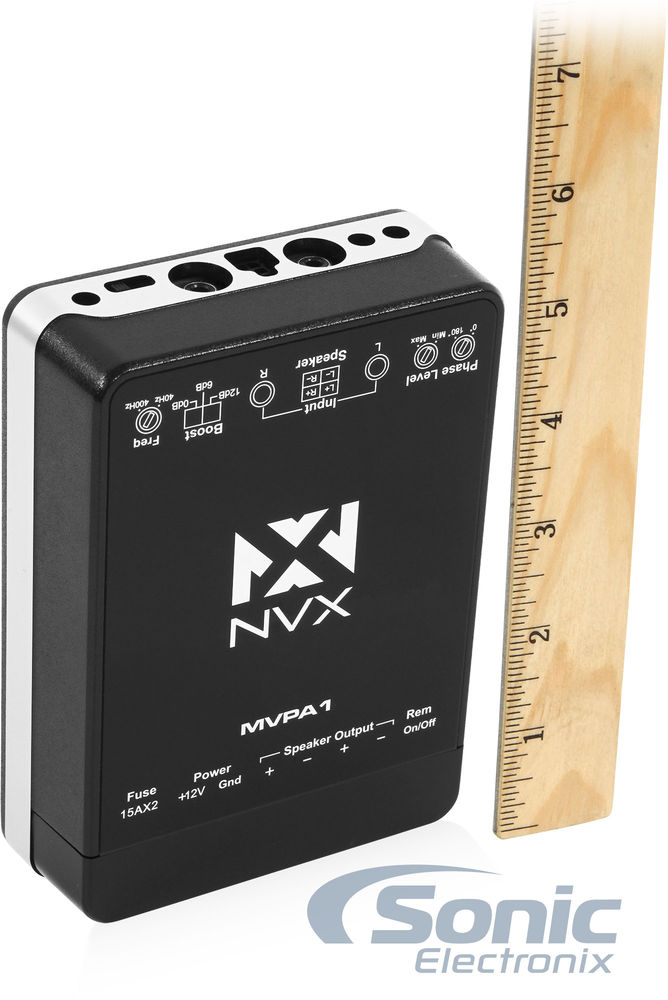

• Dimensions: 4"W x 5-7/16"L x 1-9/16"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

General Features:

• 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed specifically for car audio systems up to 600 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal

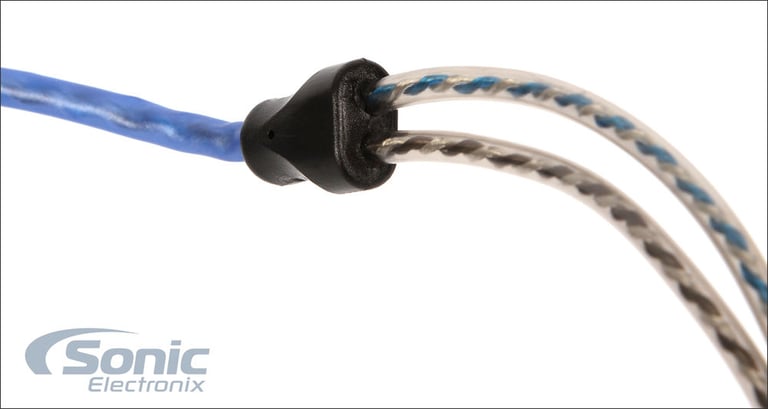

• Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
• Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Strand Count: 735
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

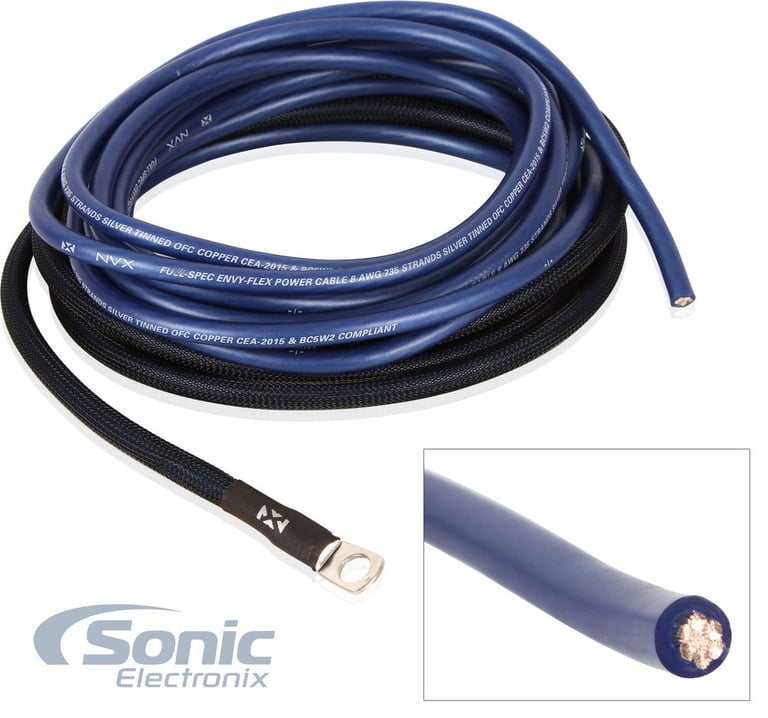

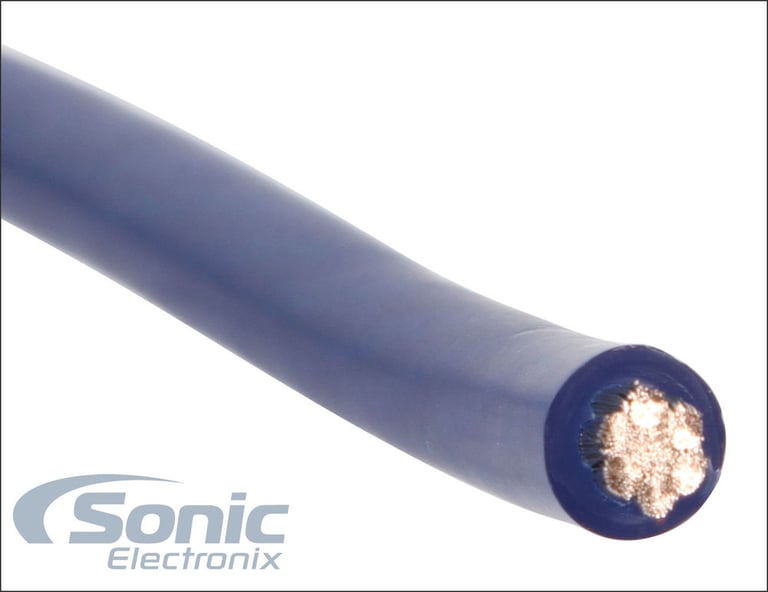

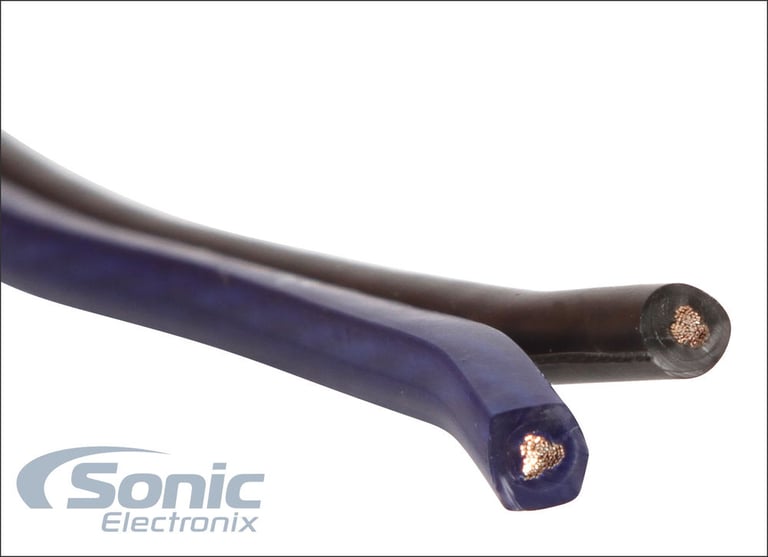

1. 20 ft. (6.1 meters) Frosted Blue 8 gauge power wire with seamless crimp ring terminal

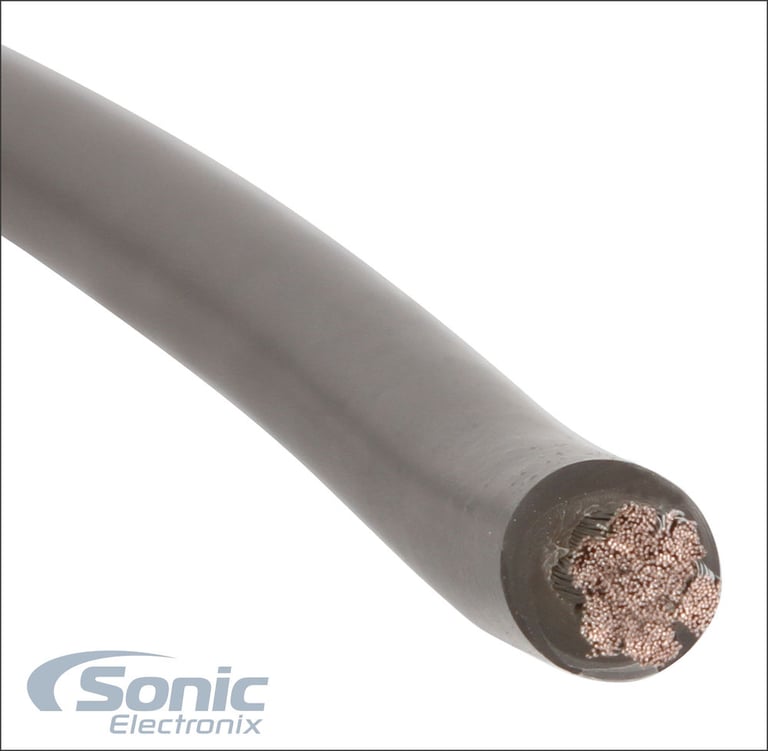

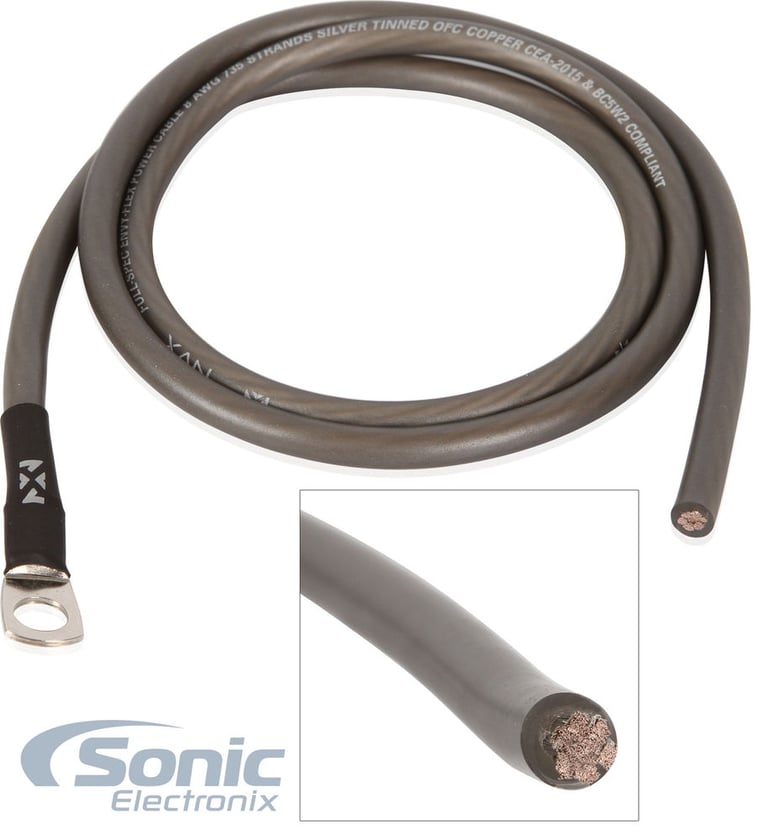

2. 3 ft. (.91 meters) Frosted Gray 8 gauge ground wire with seamless crimp ring terminal

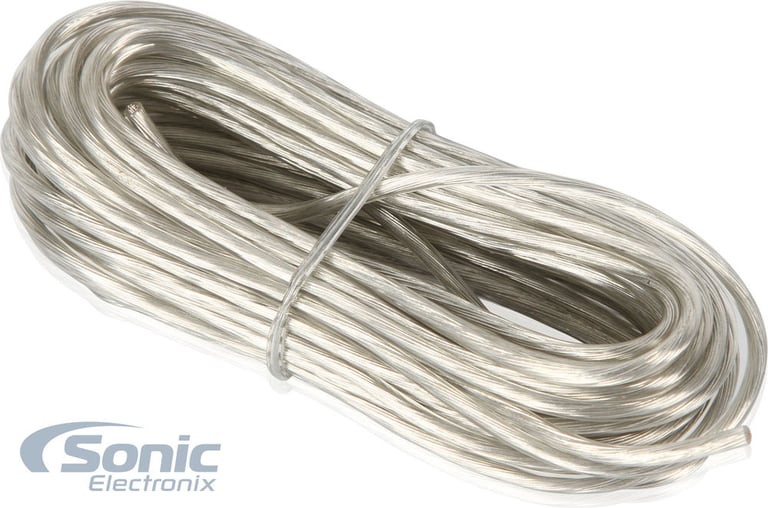

3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

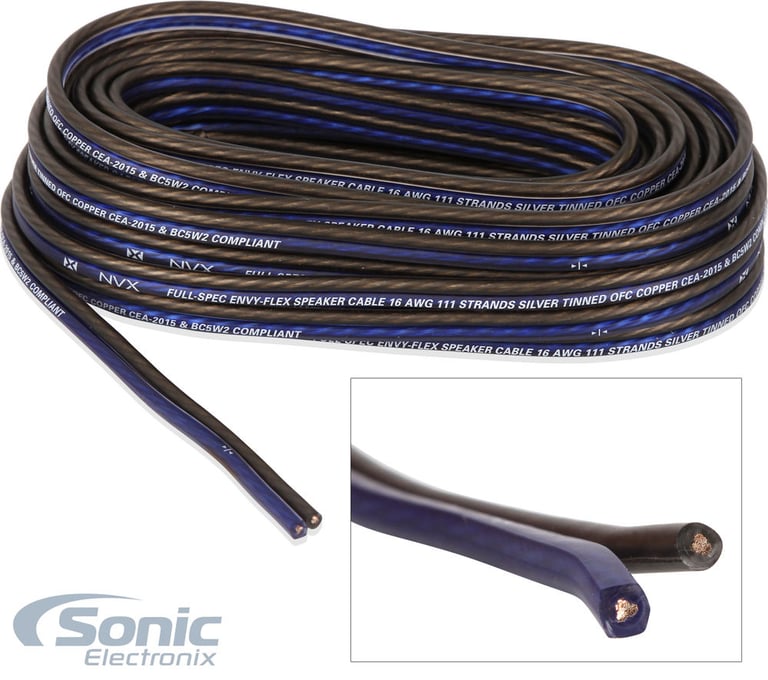

4. 40 ft. (12.2 meters) Frosted Gray/Blue 16 gauge speaker wire

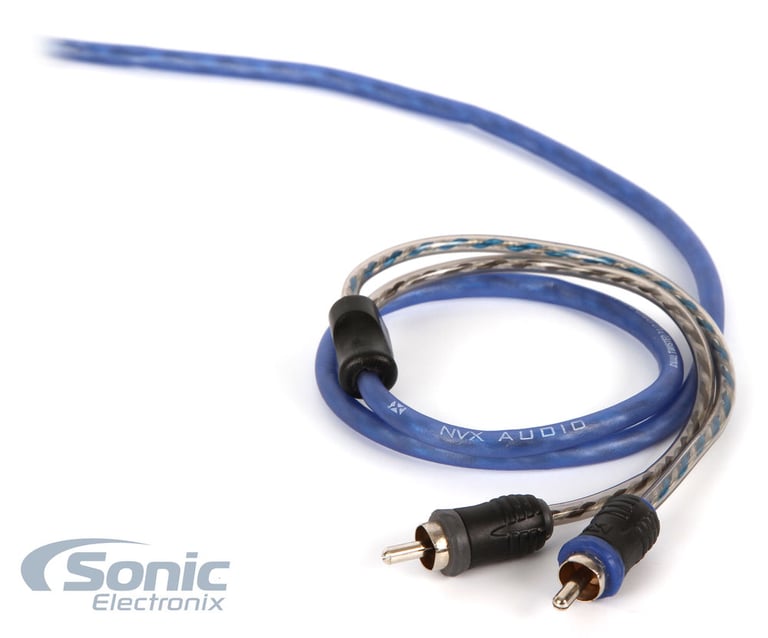

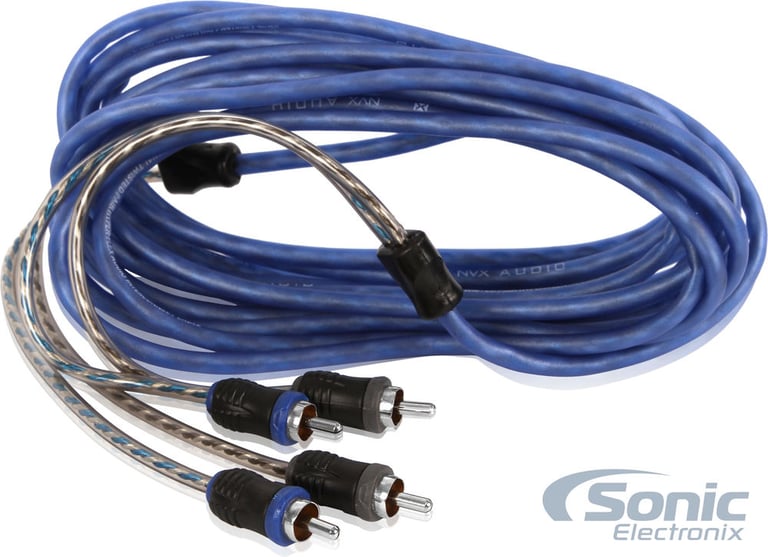

5. One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

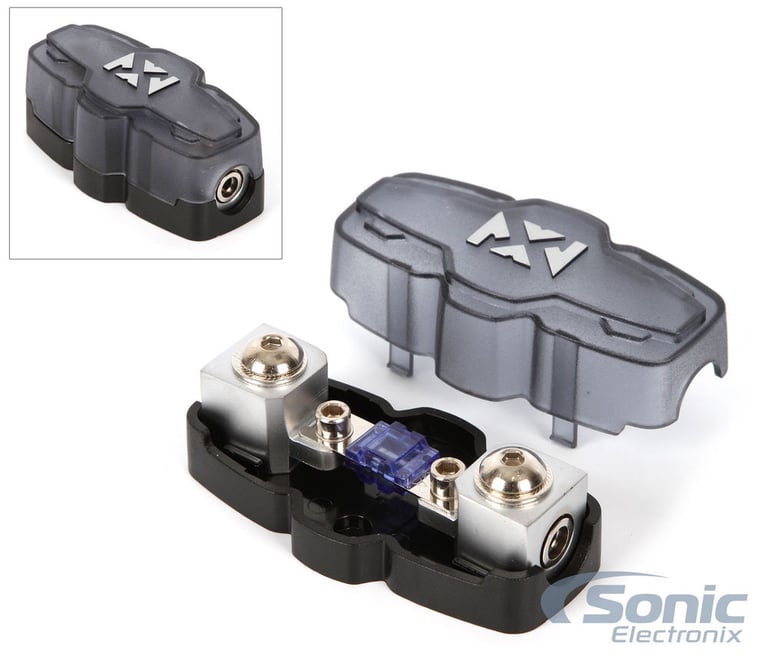

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse

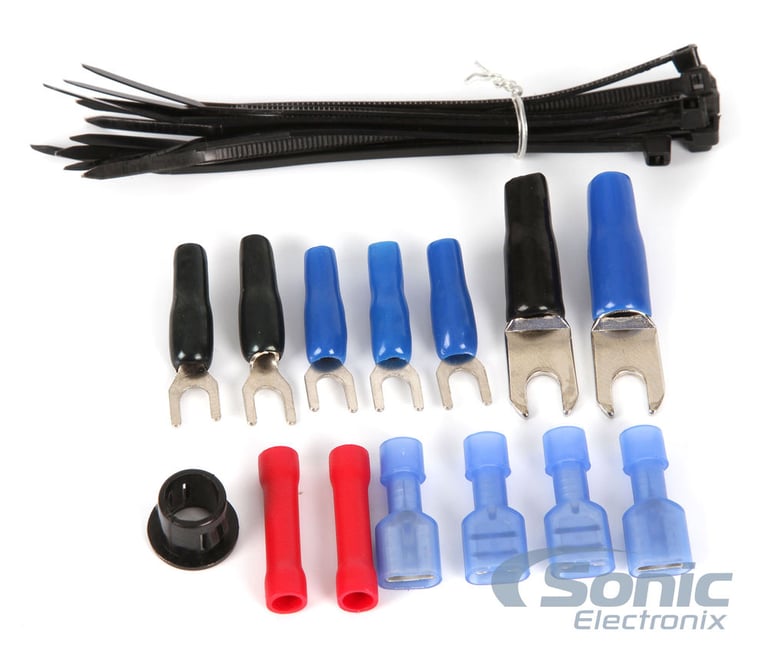

7. One 5/16" black rubber firewall grommet
8. Two 8 gauge spade terminals
9. Two black 16 gauge nickel-plated spade lugs
10. Three blue 16 gauge nickel-plated spade lugs
11. One black 18 gauge spade terminal
12. Two 18 gauge red butt connector
13. Ten 4" black zip ties
