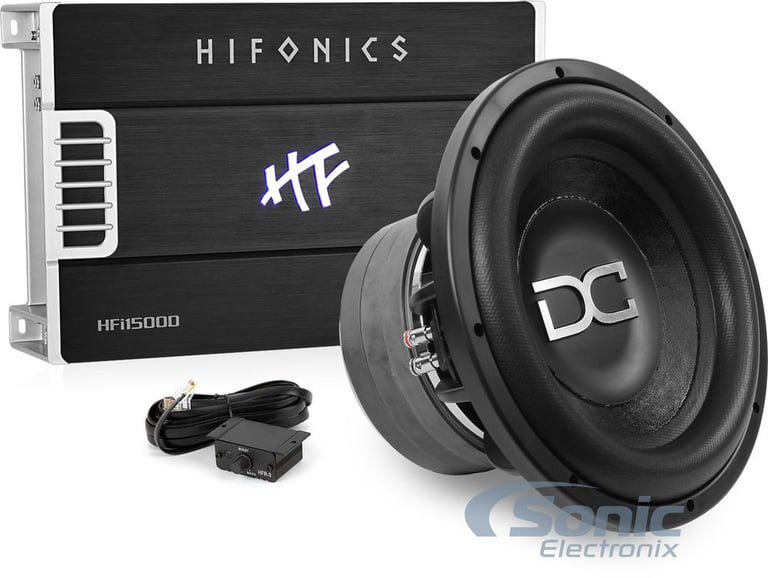

DC Audio + Hifonics 1500W Amplified Bass Bundle

DC Audio Level 4 12D2 12" Level 4 Series Dual 2 ohm Car Subwoofer + Hifonics HFi1500D 1500W RMS Class D Monoblock HFi Series Amplifier

DC Audio
Shop all DC Audio
EXCLUSIVE
highlight-star-icon

• 1 ohm: 1500 watts x 1 chan.
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround
• Wired remote bass level control included
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Signal to Noise Ration: >95 dB

Learn more about the m2lv412d2_hfi1500d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-8151 main

Metra 99-8151 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2001-2005 IS300 (Matte Black)

8
-41.19%

$19.99

List price $33.99

SOHTL-20 main

CRUX SOHTL-20 Wiring Interface

Install new car stereo and retains accessory power and other factory features in select 2003-2016 vehicles from Toyota, Scion, Lexus

-35.71%

$81.00

List price $126.00

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

iLX-507 main

Alpine iLX-507

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wireless Android Auto (SiriusXM and iDataLink Maestro Ready)

17
-17.03%

$779.95

List price $940.00

CS65C main

Crunch CS65C

600W Peak (120W RMS) 6.5" CS Series 2-Way 4-ohm Component Speaker System

28
-30.01%

$34.99

List price $49.99

DB6502 main

Polk Audio DB6502 (DB 6502)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

8

$200.00

List price $209.99

Pioneer MVH-S622BS

Double DIN Digital Media Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-10.00%

$179.99

List price $200.00

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Description


DC Audio brand icon

Authorized dealer

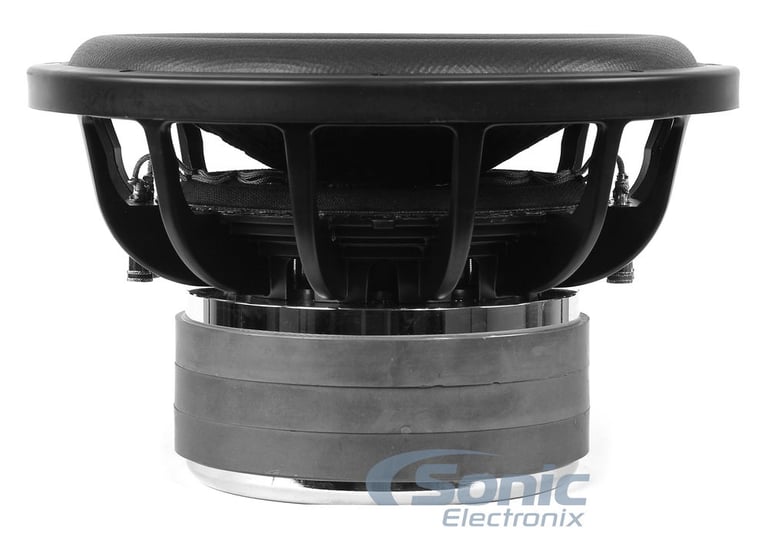

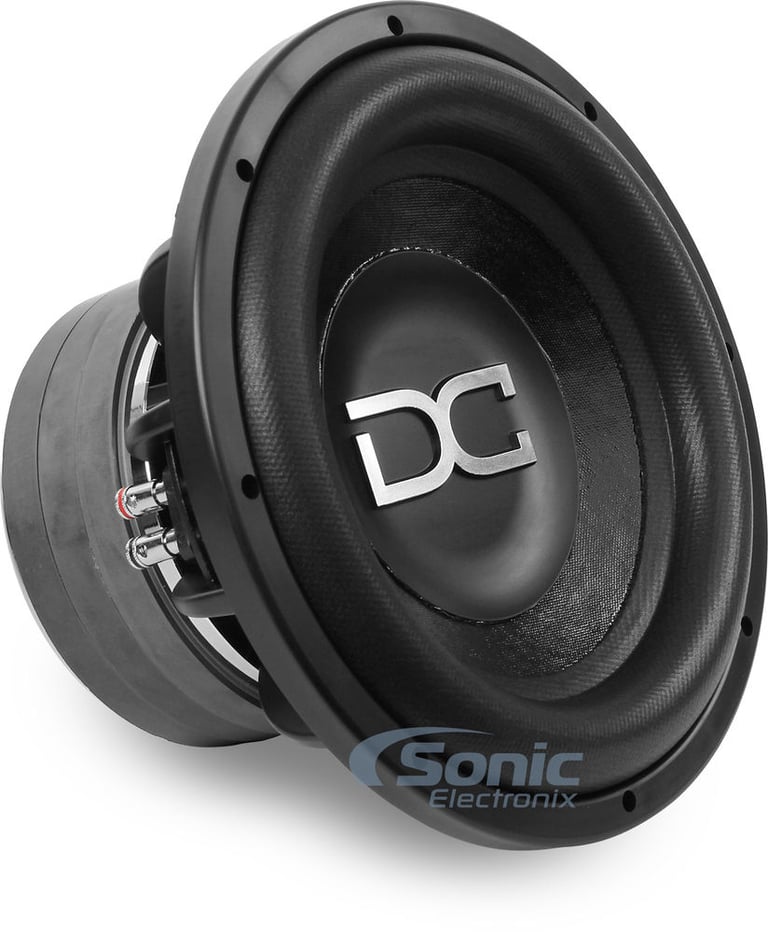

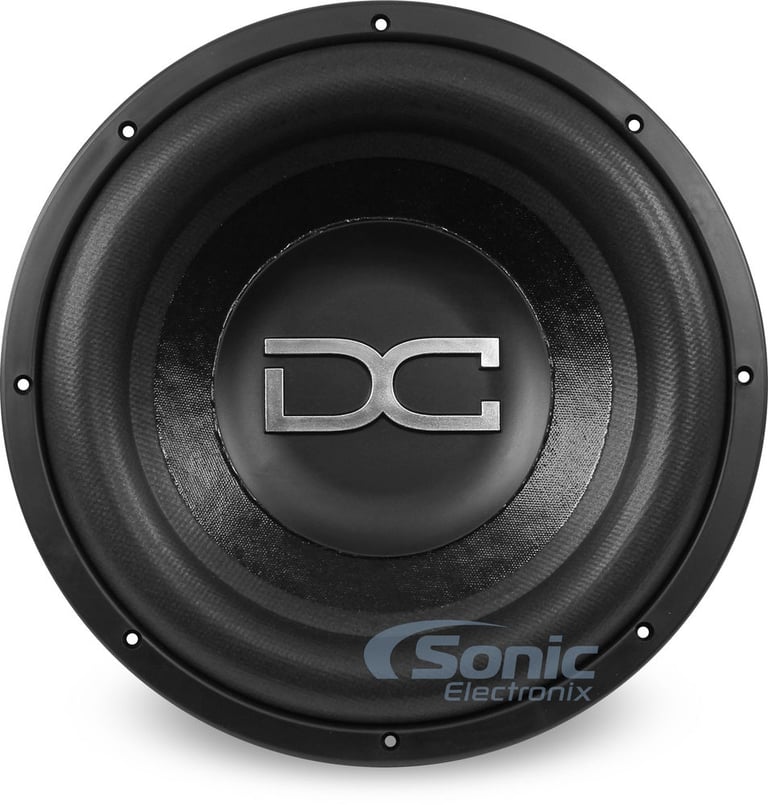

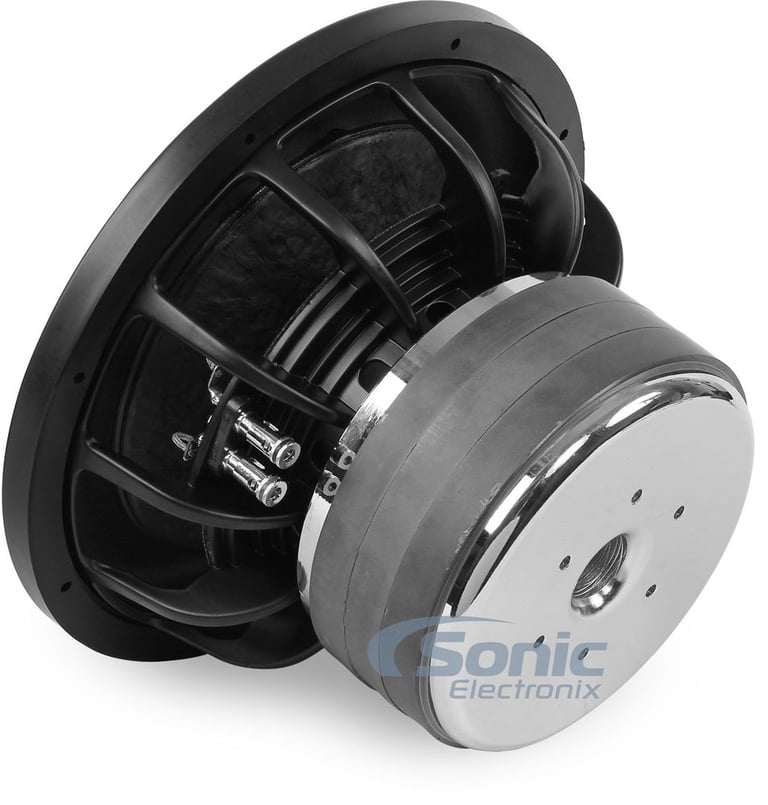

DC Audio Level 4 12 m2.1 D2

2800W Peak 12" Level 4 Series m2.1 Version Dual 2-Ohm Car Subwoofer - M2LV412D2
Quantity: 1

General Features:

  • 12" Dual 2 ohm Level 4 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 2800 watts
    • RMS: 1400 watts
  • Recommended power range: 1000 - 1400 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Triple 8" OD flat linear roll spider
  • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature Edge wound aluminum voice coil
  • Rubber mounting gasket

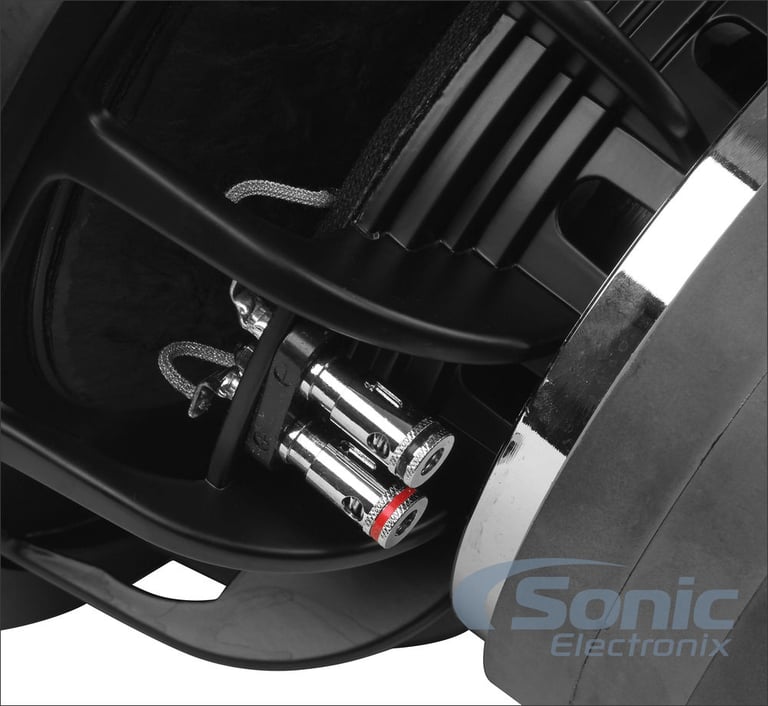

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.75"
  • Mounting Hole Diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 4 12" T/S Parameters:

  • Electrical Q Value (Qes): 0.52
  • Mechanical Q Value (Qms): 8.24
  • Total Speaker Q Value (Qts): .489
  • Free Air Resonance (Fs): 37.9 Hz
  • Equivalent Compliance (Vas): 27.38 liters
  • One-Way, Linear Excursion (Xmax): 23.5 mm
  • Efficiency (Ref SPL @ 1W): 86.4dB
  • Effective Piston Area (Sd): 481 cm²
  • DC Resistance (Re): 3.82 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 19.18
  • Mechanical Compliance (Cms): .085 mm/N
  • Mechanical Mass (Mms): 207.53 g
  • Voice Coil Inductance (Le): 3.78 mH
  • Suggested Sealed Enclosure: 1.00 ft³
  • Suggested Ported Enclose: 1.50 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

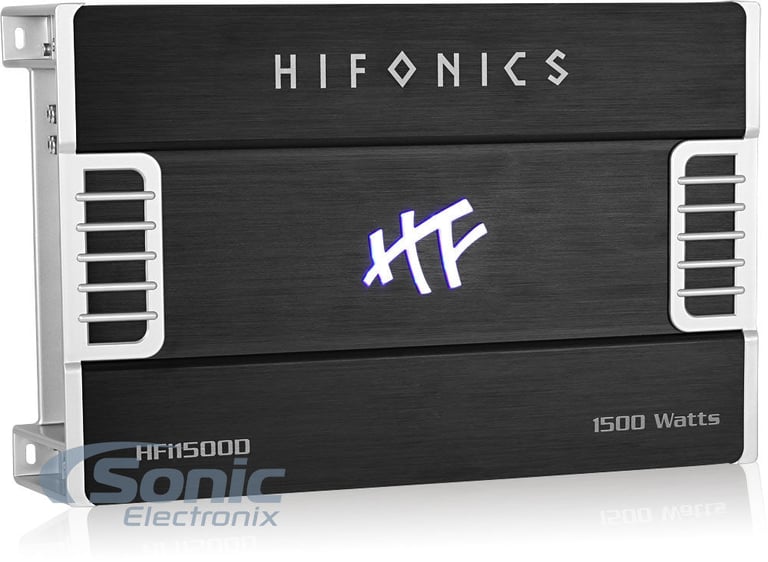

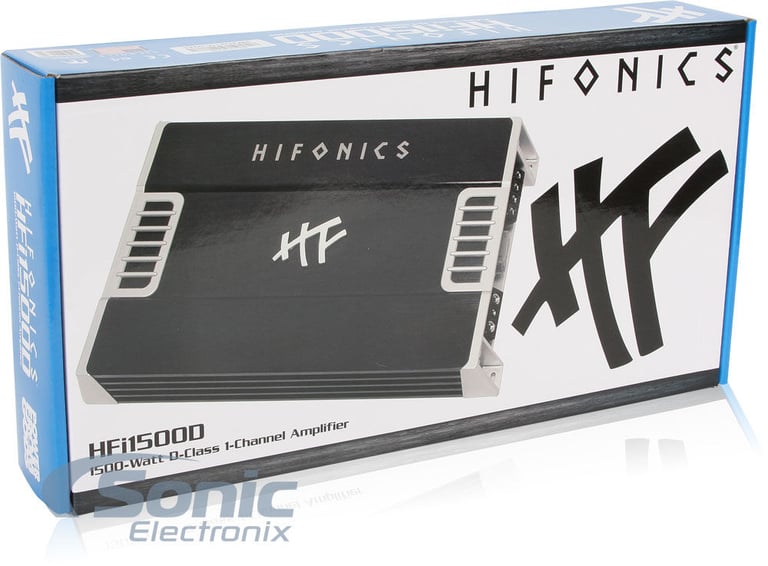

Hifonics HFi1500D

1500 Watt RMS Class D Monoblock HFi Series 1-Ohm Stable Subwoofer Amplifier (HFi 1500D)
Quantity: 1

General Features

  • HFi Series Single Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 1500 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

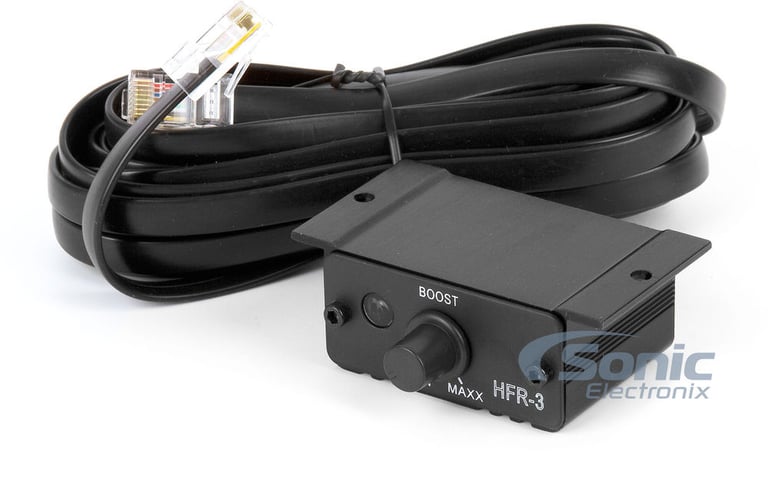

  • Wired remote bass level control included

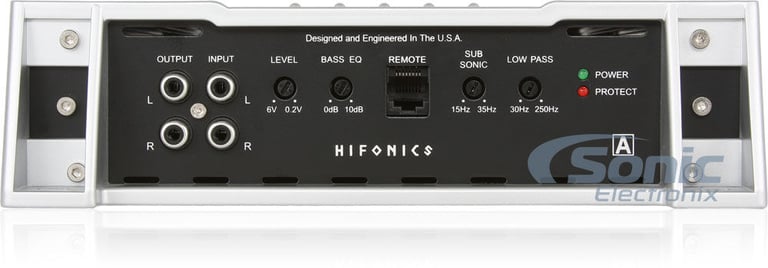

  • LED power (green) and protect (red) indicators
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • Total Harmonic Distortion & Noise: <0.05
  • Signal to Noise Ration: >95 dB
  • Damping Factor: >200
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Subsonic filter: 15 - 35 Hz
  • Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz

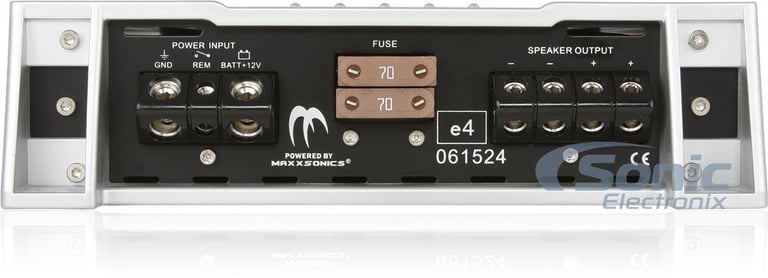

  • Fuse Rating: 70A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8.82"W x 14.65"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

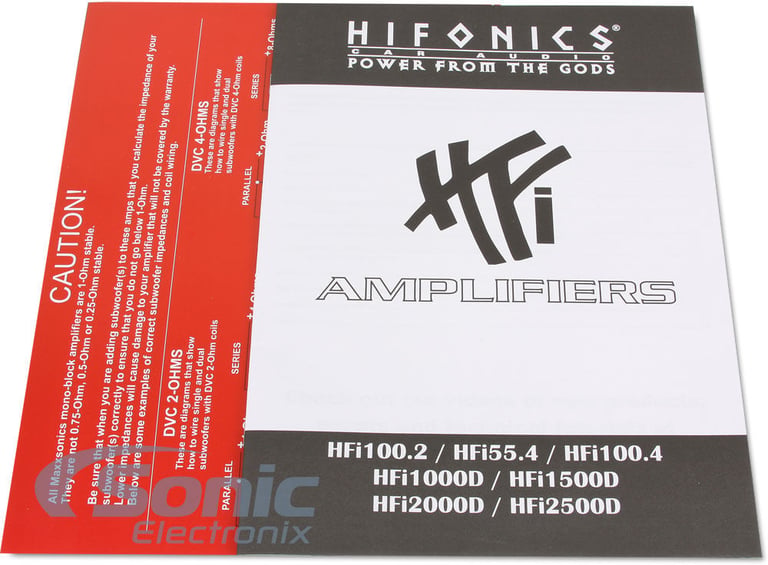

Check out the Hifonics HFi1500D Owner's Manual

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

P300-10 small

Rockford Fosgate Punch P3 P300-10

• 10" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(58)

$339.99

List price $339.99

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
1500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
70A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Level 4 Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
1400 watts
Peak Power Handling
2800 watts
Woofer Surround
Poly-Foam
Woofer Composition
Non-Pressed Paper
Sensitivity
86.4 dB
Xmax (millimeters)
23.5 mm
Top-Mount Depth (Mounting Depth)
6.75"
Cutout Diameter
11"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV412D2_HFi1500D

Weight:

47.60lbs

Internal SKU:

m2lv412d2_hfi1500d

Internal Product ID:

100163

Customer Ratings & Reviews


DC Audio + Hifonics 1500W Amplified Bass Bundle thumbnail image

5 star
83%
4 star
12%
3 star
3%
2 star
0%
1 star
3%



Durability
4.7
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Very Efficient

The following review is for HFi1500D, which is a part of the bundle you are viewing.

Bought one from Sonic in 2010, and I had it on a pair of Kicker L5 10's I also purchased from sonic. It works very well until I was bassin in the rain, trunk was flexin so hard that water got into it. Unfortunately water damage is not covered under warranty. If you want bass that flex everything and makes your wipers bounce of the windshield, get it.

By Rasta on August 5, 2014

60 found this helpful


pretty good

The following review is for HFi1500D, which is a part of the bundle you are viewing.

This is a damn good amp for the price , I would recommend it to anyone wanting moderate power of about 1200 true watts , its pushes my 2 Memphis mojo 15s damn good ... But on the bad side I had one of these amps just randomly burn up on me in just 5 days but the warranty saved me . But good buy if youre on a budget !!!

By khalid on September 2, 2014

53 found this helpful


Great Amp for the price

The following review is for HFi1500D, which is a part of the bundle you are viewing.

I was looking for an amp for my skar vvx 12's and this was perfect. While the price of the amp is very cheap it is very powerful and i haven't had any problems with it so far.

By michael on October 24, 2012

49 found this helpful


Awesome Product

The following review is for HFi1500D, which is a part of the bundle you are viewing.

I bought this amp about 2 months ago to power 3 12" 400 rms subs and it is great. Couldn't have gotten such a good amp anywhere else for this cheap.

By Dill on June 20, 2010

46 found this helpful


HFi 1500 Monoblock

The following review is for HFi1500D, which is a part of the bundle you are viewing.

This item worked perfect it has a lot of power and is easy to install and worth every dime, I recommend this product for pure bass heads.

By Saintj on August 21, 2012

44 found this helpful


Hifonics 1500D

The following review is for HFi1500D, which is a part of the bundle you are viewing.

Doesn't overheat, good versatility, and pushes your sub to the max :)

By I4man on November 15, 2012

44 found this helpful


great amp

The following review is for HFi1500D, which is a part of the bundle you are viewing.

Im always trading car audio and i traded some stuff for this amp and planned on selling the amp on ebay well i wired it up in my truck and it sounded way cleaner and louder than my rockford fosgate amp (worth $500) i couldent believe that this amp cost so little. at the time i was running 2 kicker cvr subs , then on a kicker L5 , then to my sundown sd-2 subs, and now on my new sundown sa-8's. DONT THINK TWICE ABOUT BUYING THIS AMP IM KEEPING MINE TILL IT DIES.

By (INSERT NAME HERE) on January 16, 2013

42 found this helpful


uh so so

The following review is for HFi1500D, which is a part of the bundle you are viewing.

Had this amp for about 5 months and it gave out on me went in protection mode and wouldnt come out. I have 2 alpine type-r's 12" an d it powered them great, had second battery for the amp had little to no light dim. I put a 500 watt kicker to them just to have something till this amp was fixed and the kicker never gave out sounded great, I would not recommend this amp.

By jason on February 15, 2012

41 found this helpful


HFI1500D

The following review is for HFi1500D, which is a part of the bundle you are viewing.

Great amp ive always ran Hifonics amps for my systems. I just bought this Amp for my 2 Pioneer Championship Series Pro 10 inch Subwoofers. I installed the amp and it sounded great. Hits lows harder than any other set up in town. Although i had some trouble with a defective amp at first after i got my RA and sonic sent me a new amp i couldnt be happier. Thanks Sonic

By Alex on August 26, 2014

40 found this helpful


Great amp

The following review is for HFi1500D, which is a part of the bundle you are viewing.

Great amp it pushes four 12" kickers hard. this is a great amp if you are looking for this power. i also had a power acoustic 4000 bamf and the hifonics pushed the subs harder.

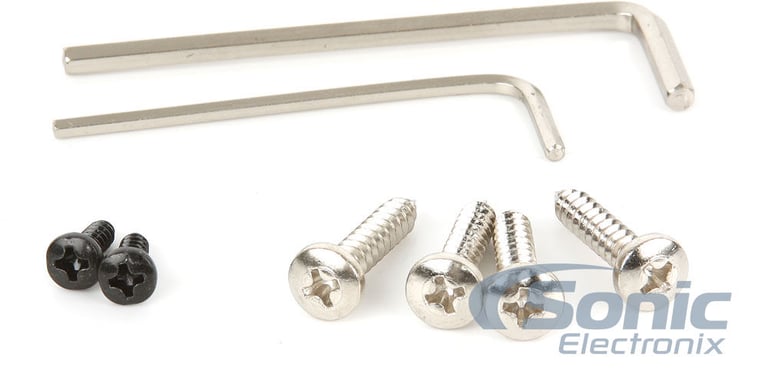

the only problem i had was the allen wrench terminals. i couldnt find a allen wrench that fit right.. but once i fiddled with it and got it secure it was great.

By mitchell on August 29, 2011

42 found this helpful




No picture

Tsunami GN601-25-1 (Black)

Tsunami GN601-25 Black 1/0 AWG Precision Wound Power/Ground Cable

$4.99

List price $7.99

BLACKBS4V1 small

VIBE Audio Black Box Stereo 4 V1 (BlackBS4-V1)

1000W Max Black Box Series 4-Channel Stereo Amplifier

$249.99

List price $299.99

GM-D9601 small

Pioneer GM-D9601 OPEN BOX COMPLETE

1200W RMS GM Digital Series Class D Monoblock Amplifier

$169.99

List price $280.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Lexus IS300

1980 Volkswagen Scirocco

2007 Ford Taurus

2010 Mitsubishi Eclipse

1995 Dodge B2500

1972 MG Midget

2010 Toyota Matrix

2007 Mercury Milan

2011 Lexus RX350

1978 Cadillac Eldorado

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
