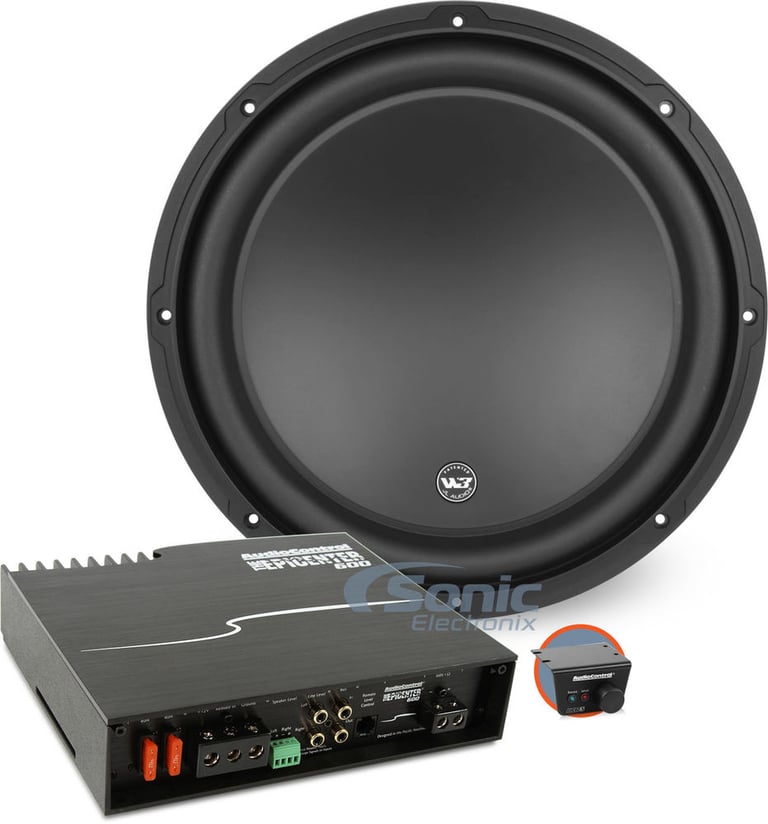

413Watt (Dyno Certified) JL Audio + AudioControl Digital Bass Restored Combo

JL Audio 12W3v3-2 12" W3v3 Series Subwoofer Driver + AudioControl The Epicenter 600 Monoblock Epicenter Series Class D Amplifier

EXCLUSIVE
highlight-star-icon

• Dyno RMS: 413W x 1 @ 2 ohm
• Claimed: 350W x 1 @ 2 ohm
• Sensitivity: 87.15 dB
• Mounting depth: 6.65 "
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor
• THE EPICENTER® Digital Bass Restoration Built-in
•MILC™ Maximum Input Level Control
• Line-Level RCA Inputs and Active Speaker-Level Inputs)

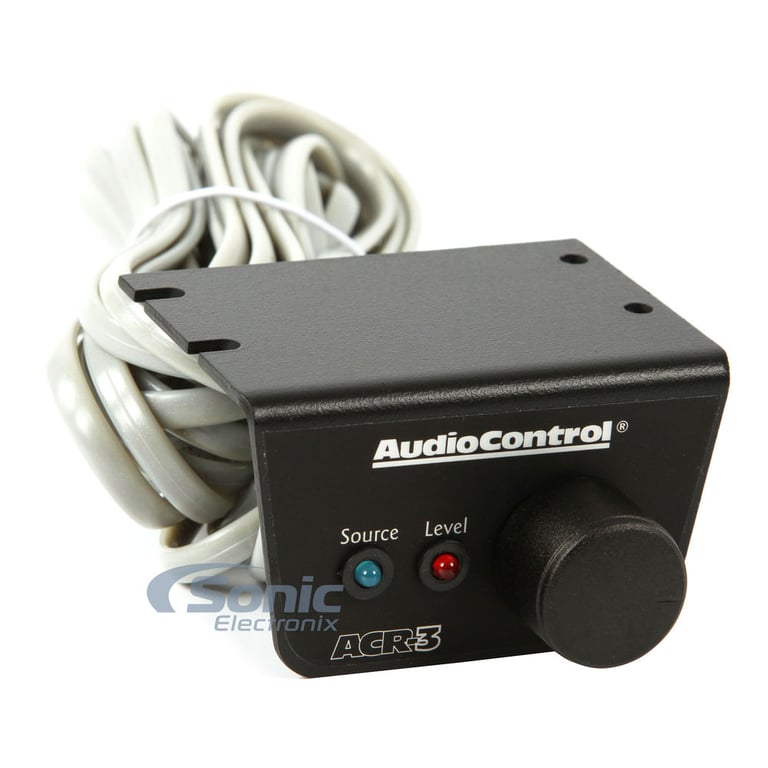

• ACR-3 Remote Control Included
• 7.95" W x 9.00" L x 2.10" H

Learn more about the theepicenter600_12w3v32

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43

Description


AudioControl brand icon

Authorized dealer

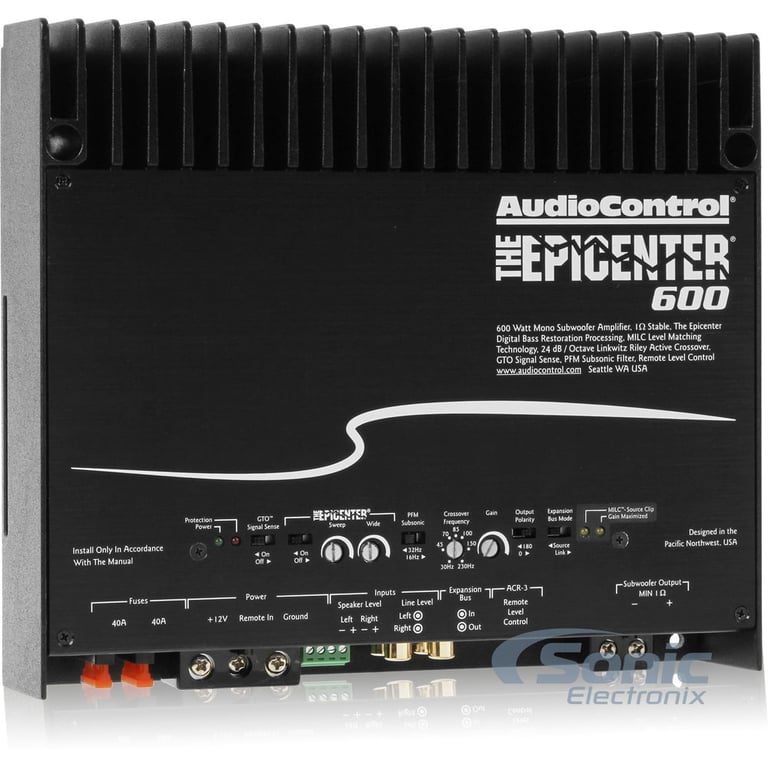

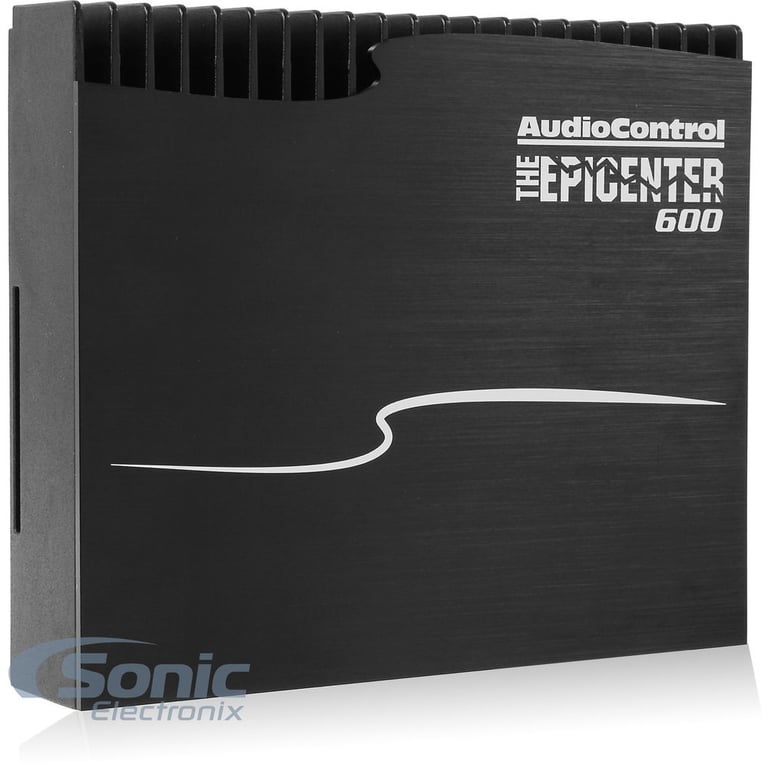

AudioControl The Epicenter 600

600W RMS Monoblock Epicenter Series Class D Amplifier w/ The Epicenter Bass Restoration Built-In
Quantity: 1

General Features:

  • The Epicenter Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 350 watts x 1 chan.
    • 1 ohm: 600 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 262 watts x 1 chan.
    • 2 ohm: 413 watts x 1 chan.
    • 1 ohm: 611 watts x 1 chan.
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Gold plated speaker and RCA terminals
  • THE EPICENTER Digital Bass Restoration Built-in
  • MILC Maximum Input Level Control
    • Maximum Input Level Control prevents clipping and damaging distortion
  • 24 dB/octave Linkwitz-Riley Alignment Crossover
  • GTO Signal Sense
  • PFM Subsonic Filter

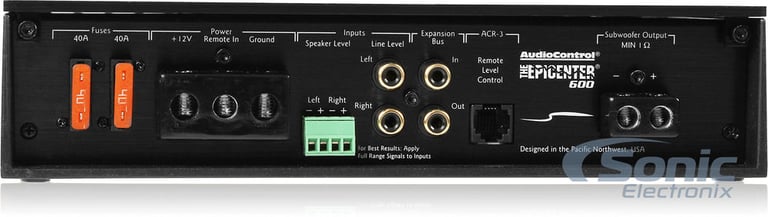

  • Line-Level RCA Inputs and Active Speaker-Level Inputs
  • Expansion Bus
    • Allows two or more amps to be controlled by one set of controls
  • Solid One-Piece Aluminum Chassis

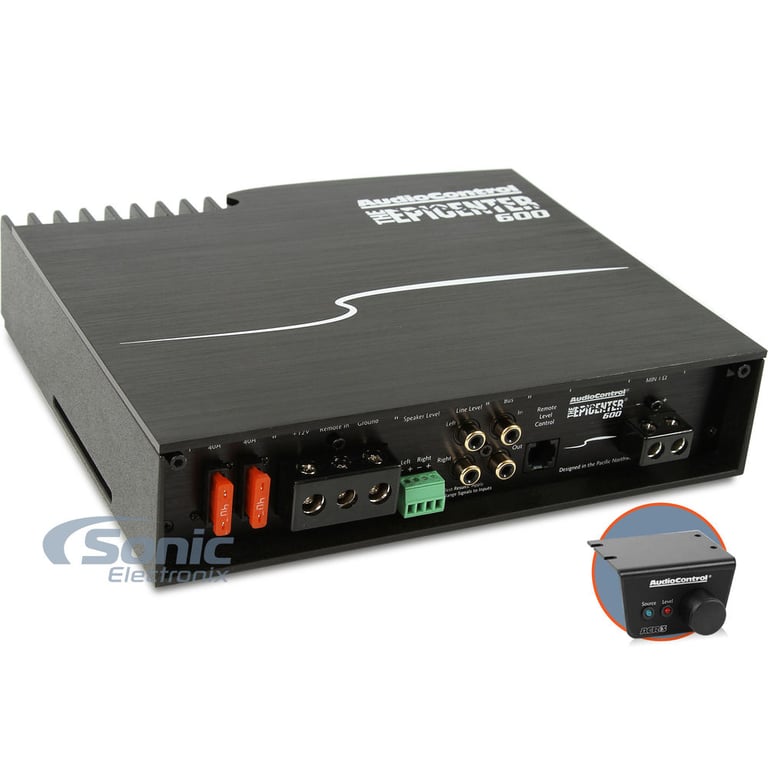

  • ACR-3 Remote Control for Subwoofer Level and THE EPICENTER effect
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 16 - 250 Hz
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ration: 104 dBa, Ref 600 W at 1 Ohm
  • Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave Linkwitz-Riley
  • Subsonic filter: Selectable 16 or 32 Hz , 18dB/Octave
  • Phase Selector: 0 - 180°
  • Fuse Rating: 40A x 2
  • CEA-2006 compliant amplifier
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7.95"W x 9.00"L x 2.10"H
  • Authorized Internet Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)
PDF Icon Check out the AudioControl The Epicenter 600 Owner's Manual

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

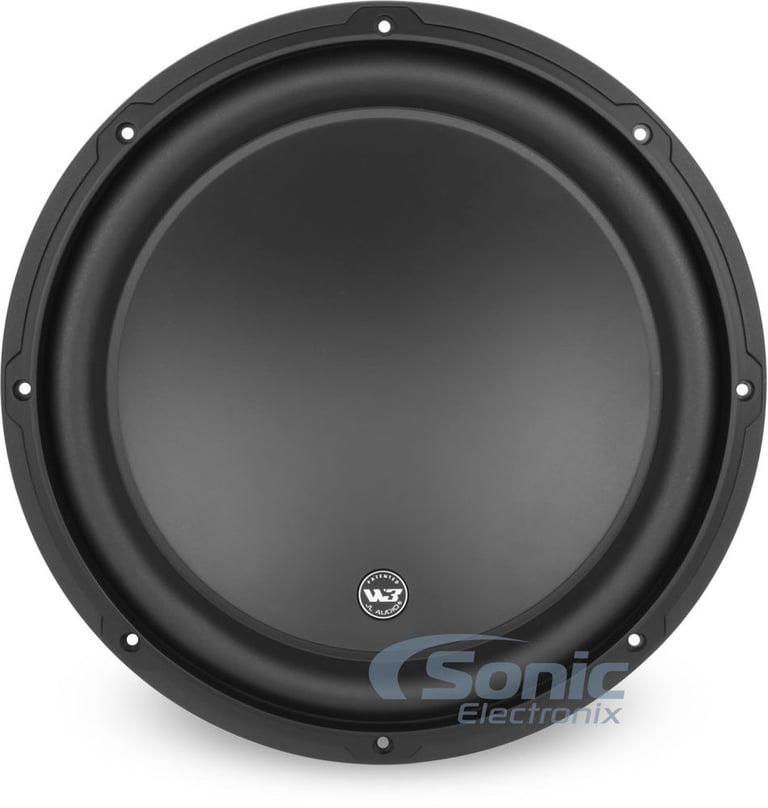

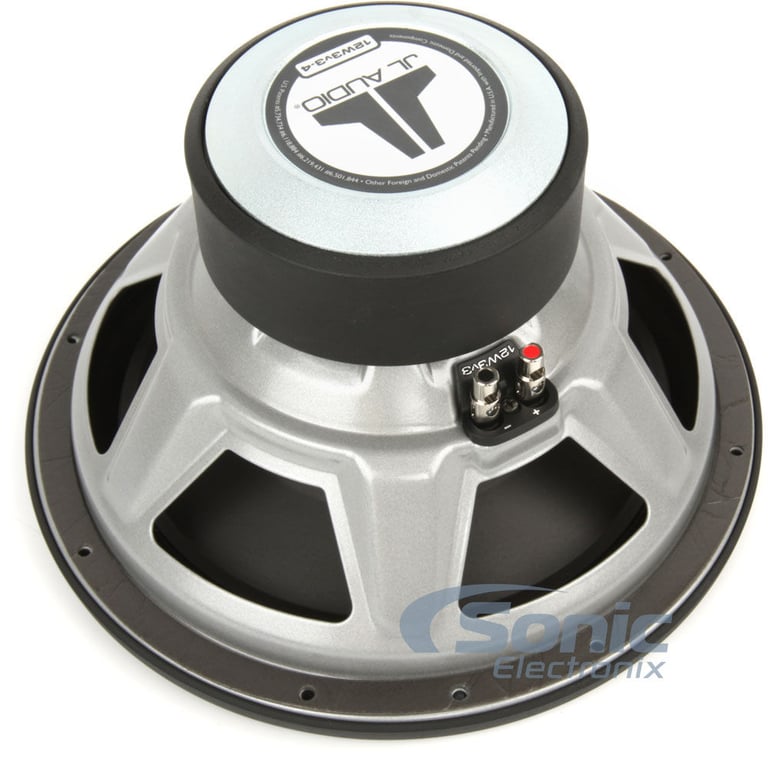

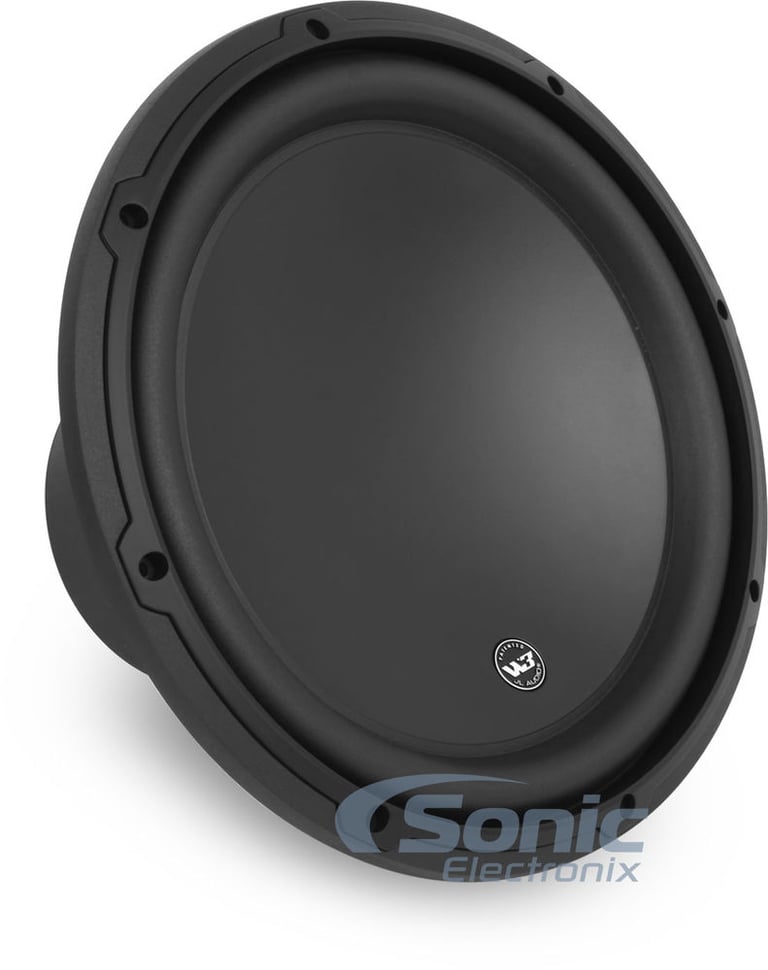

JL Audio 12W3v3-2

500W RMS 12" W3v3 Series Single 2-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Single 2 ohm W3 v3 Series Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Mineral-Filled Polypropylene Cone
  • Nitrile Butadiene Rubber NBR Surround
  • Stamped steel basket
  • Customization trim ring
  • Floating-cone attach method
  • Highly linear, DMA-Optimized motor system
  • Insert molded suspension, coil and terminal sub-assembly
  • Patented vented reinforcement collar (VRC)
  • Elevated frame cooling design
  • Nickel plated brass spring terminals
  • Engineered lead-wire design and attachments
  • 13 mm Xmax
  • Resonance Frequency (Fs): 27.97 Hz
  • Sensitivity: 87.15 dB
  • Recommended sealed box volume: 1.25 cubic feet
  • Recommended ported box volume: 1.75 cubic feet
  • Top-mount depth: 6.65"
  • Cutout diameter: 11.0625"
  • Authorized Internet Dealer
  • JL Audio SGRU-12 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

P300-10 small

Rockford Fosgate Punch P3 P300-10

• 10" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(58)

$339.99

List price $339.99

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
350 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
600 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
Yes
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
16 or 32 Hz Selectable
Signal-to-Noise Ratio
104 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
Subwoofer Specifications
Series
W3 v3 Series
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
500 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Mineral-Filled Polypropylene
Sensitivity
87.15 dB
Frequency Response
22 - 200 Hz
Xmax (millimeters)
13 mm
Top-Mount Depth (Mounting Depth)
6.65"
Cutout Diameter
11.0625"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

The-Epicenter600-12W3v3-2

Weight:

22.45lbs

Internal SKU:

theepicenter600_12w3v32

Internal Product ID:

100339

Customer Ratings & Reviews


413Watt (Dyno Certified) JL Audio + AudioControl Digital Bass Restored Combo thumbnail image

5 star
87%
4 star
9%
3 star
4%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.7
Design
4.7
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Awesome Value

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

This sub is awesome it looks simple and thats what i like about it. Theres more than meets the eye on this sub. It hits a lot harder than i expected and powered with the right amp it will be all you expected from this JL sub. I recommend this sub to anyone especially for the price listed. :D

By Yovani on October 26, 2011

75 found this helpful


Clean, Crisp and LOUD!

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

I have just ONE of these... It is hooked up to a 5 channel RF amp and it is getting about 360-365 watts rms power. I have it in a custom sealed enclosure which is 1.35 cubic feet. I used bass box pro to determine my box size. It is tuned to about 45hz. The sound is Crisp and Clean, no matter what I am playing. I like Rock, Country, Rap, Classical and Jazz. The bass is very clear.

I used to have Rockford 10s (2 of them) and they were loud, but not as crisp. This ONE 12 is Louder and Clearer than those 2 tens were. I have this in my Truck, so one is just fine... Does everything I want it to do.

I am more of a sound quality guy, and this sub is great for SQ. Although it will push some SPL as well... but I was mainly concerned about sound quality, so I went with this. From everything I have read on the W3, it is made for SQ, and so far, I couldn't agree with what I read more. Between the subs I have owned and what friends of mine have owned, I am familiar with the sound and capability of Rockford, RE, Alpine, Kicker, JBL, MTX, Boston Acoustic, and JL... So far this W3 is my favorite. The W7's are nice, but more than I cared to spend and require a much more powerful amp. The W7 is more for spl anyway. Rockford, Boston acoustic, and JBL, are definitely for spl, while this W3 seems to give the best SQ I personally have heard so far. AND, It still produces a good amount of spl.

This sub has seemed to get louder after I broke it in for a few days, and Now I am getting ready to turn up the amp. So far I really Love this sub, and if you read my review and see yourself in a similar category as far as what you are looking for, Then I would say to just get this. The price is good on sonic and it is worth every penny. I am very satisfied that I bought this sub. Very well made...

By Nathan on October 7, 2011

72 found this helpful


awsome!

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

I baught 2 of these last year from sonic and all i can say is WOW!!! jl really showed off and put there foot into W3. the sleek look and the power they can handle puts them way above the comp. be careful not to UNDERPOWER them because u will damage the voice coils!! must have them in the right enclosure for max output! would recommend to any one for medium to compitition grade!!

By clyde on January 9, 2011

72 found this helpful


Bang for the Buck

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

I had the 12W3v2-D2 and loved them, well 5 years later and my stupidity while installing speaker covers (which were the wrong ones anyway) they got ruined, replacements were impossible to find. So I found a great deal at Sonic (local shops wanted an extra $100 a piece) and ordered them right away. Shipping was fast and right on! Installed subs, and loved them as much as my previous ones. After some break in, I noticed the bass was hitting a little harder than the previous version, even though they are only a single voice coil! I only have about 300 watts running to each sub(actually slightly less) and they still sound great! When I hooked my system up originally I wasn't looking for obnoxious bass, but turn these bad boys up and even with the little amount of power, they bang and bang hard!! Perfect for my enjoyment inside the vehicle, without the crappy sound on the outside of the vehicle, plus no worries about being pulled over!! If I have the money in the near future I would love to throw a class D 1000 watt amp to them and hear them really scream!!!!! BUY THESE SUBS AND SAVE SOME CASH!!!

By Nate Dizzle on December 22, 2010

74 found this helpful


Wow, this sub is amazing.

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

When I bought this sub, I thought I was gettin a good quality, mediocre sound quality and loudness subwoofer. WOW was I wrong. This sub KILLS my friends' Alpine Type-R's and Clarion 12" subs. It is amazing. The SPL is crytal clear, but it still gets loud enough to rattle my trunk. All of this is running at 300watts(which is RMS)! JL makes a great sub. Period. After my sub was installed, I had my friend come over with is 03' 325i with 2 12" Clarion subs. I asked him if his bass was all the way up and he said yes. I was SHOCKED. It hits twice as hard. no joke. This is without a doubt the best sub for the money, hands down.

By Kenneth on November 1, 2006

69 found this helpful


Well worth it

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

Bought this sub to upgrade from a 12wx. Installed it in the box that the 12wx was in with the same Kicker 300.1 (351 watts at 2 ohms birth-sheet) and it hits easily twice as hard with much better better SQ without even being broken in yet. When the weather gets warmer I want to get a second one and build a custom box for the two and a new amp.

One con: For some reason the metallic badge thing on the front doesn't have the W3 logo on it, it just says JL.

By Basic Nickname on January 22, 2012

66 found this helpful


great sub

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

I have two of these in a 95 camaro. I have a 1600 watt hifonics amp to them in a ported 3 cu box (1.5 per sub) and an orion hcca ten with a power acoustic ps2-2600 amp bridged to it and my setup hit about 154 DBs! Best sub for the money. I was never a jl fan until a friend talkd me into buying these.

By gator on September 11, 2010

67 found this helpful


JL Audio 12w3v3-2

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

This sub hit harder than you would believe. I have it in a self-made down firing box. Located in the back of my Jeep Wrangler. It's being pushed by a 500w mono JBL amp. The sub hit so hard I have to turn down the sub volume. Just keep in mind the size of your box is very important. Also don't stress too much over getting your settings for this sub just right. All speakers have to be "broke in" before you get there full potential. So you'll just be make more changes to your settings in about 30 days. In the end, I love this subwoofer!

By Shannon on October 1, 2014

68 found this helpful


Bang for your buck isn't a reality with this one.

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

This is an EXCELLENT driver, one of the best 12's for sound quality, i should know, i owned 2. But even better is the massive audio hippo. i got mine on sale months ago on sonic for the price of 1 W3 and it just hammers! It is very loud for one 12, but it has great sq. If you are on a budget, but want loud freakin bass without sacrificing sound quality, i recommend the hippo 122.

By Kirk on January 7, 2015

66 found this helpful


12W3v3-2

The following review is for 12W3v3-2, which is a part of the bundle you are viewing.

this sub is amazing, theres just no other word for it. im feeding it with 300 rms and sounds awesome, the bass is tight, deep, and clean. i also love the way the drums kick you with this sub. i have it on a sealed box that i also bought from sonic, sonic u are gr8!

By Enox on September 15, 2009

66 found this helpful




DB-SA2510 D1 small

Deaf Bonce Apocalypse DB-SA2510 D1

1600W Peak (800W RMS) 10” Apocalypse Series Dual 1-ohm Car Subwoofer

$239.90

List price $239.90

SB4CH12 small

Sundown Audio SB4CH12 (SB4RCA-12)

12 Ft 4-Channel 8 Male RCA Interconnect Cable

$24.99

List price $29.99

GM-D8400M small

Pioneer GM-D8400M

1200W Max, Class D Monoblock Amplifier

(6)

$189.99

List price $329.99

ISPOD-WD260-BLK small

Audiopipe ISPOD-WD260-BLK (Black)

Dual 6" Door Speaker Pod

$29.99

List price $34.99

XB-RT8-4PAK small

JL Audio XB-RT8-4PAK (P/N #91677)

Four 8 AWG/Gauge Crimpable Ring Terminals with Two Red & Two Black Insulators

(1)

$3.99

List price $9.99

JWTJ97G20-T45 small

MTX Audio Thunderform JWTJ97G20-T45 (Gray, Loaded)

Jeep Wrangler TJ 1997-2006, 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

$382.99

List price $499.99

JK-BD-LR small

DS18 JK-BD-LR (Sold by Pair)

Empty Single 6.5" Back Door Speaker Panels for select 2007-2022 Wrangler Unlimited and Gladiator and Wrangler Unlimited (JK)

$191.95

List price $191.95

DEH-P500UB small

Pioneer Premier DEH-P500UB

CD, MP3, WMA Receiver with Remote and uBus USB + USB-to-iPod Cables Included

(25)

$139.99

List price $229.99

(2)EQ8-S8, XBAF8, SDSK2, SDRLR1, BTK106 small

Earthquake EQ8-S8 with Installation Accessories

110W RMS 8” Midbass Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

(142)

$165.79

List price $280.71

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Audi A4 Quattro

2002 Ford Explorer

2018 Ford Flex

1980 Volkswagen Scirocco

2011 Lexus RX350

2022 Mazda 3

2005 Lexus IS300

1982 Buick Riviera

2004 Audi A4 Quattro

1957 Chevrolet Nomad

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
