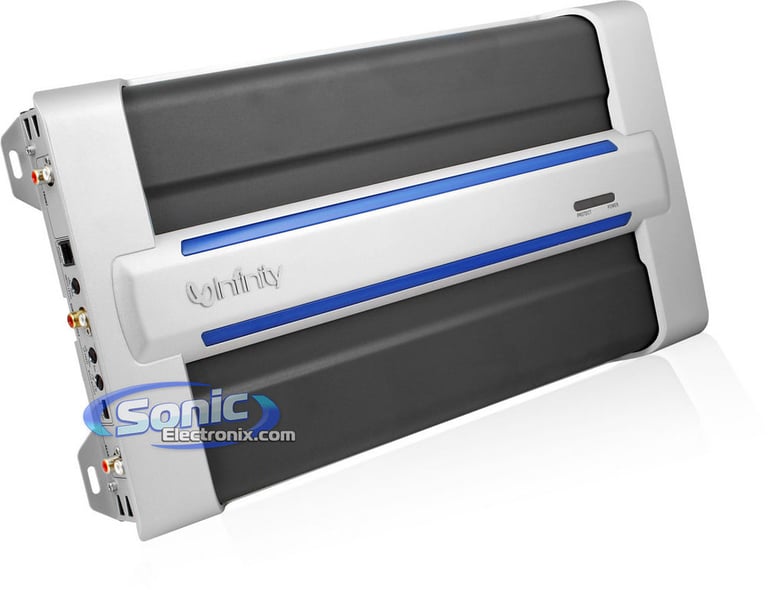

Infinity Reference 5350a

5-Channel Reference Series Amplifier

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• Full-Range RMS: 50W x 4 @ 4 ohm, 60W x 4 @ 2 ohm
• Subwoofer RMS: 150W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• CEA-2006 Compliant
• 12 dB Per Octave Crossovers
• Class D Circuitry
• Dimensions: 9"L x 16-9/16"W x 2-11/16"H

Learn more about the 5350a

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

ref4555aam thumbnail

Infinity Reference 4555A (REF-4555A)

OUR PRICE: $299.95

View item

Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

82-9010 main

Metra Kit 82-9010

6.5" to 6.75" Speaker Mounting Adapters for select 2004-2023 vehicles from Audi, Volkswagen

-41.19%

$19.99

List price $33.99

72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
XBAF525 main

NVX XBAF525

Universal 5.25" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

9
-15.01%

$16.99

List price $19.99

JL Audio C2-525

120W RMS 5.25" C2 Series 2-Way 4-ohm Component Speaker System

9

$329.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Limited time!

JBL STAGE1 62

800W Peak (100W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

1
-44.47%

$49.95

List price $89.95

Product Highlights


• Full-Range RMS: 50W x 4 @ 4 ohm, 60W x 4 @ 2 ohm
• Subwoofer RMS: 150W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• CEA-2006 Compliant
• 12 dB Per Octave Crossovers
• Class D Circuitry
• Dimensions: 9"L x 16-9/16"W x 2-11/16"H

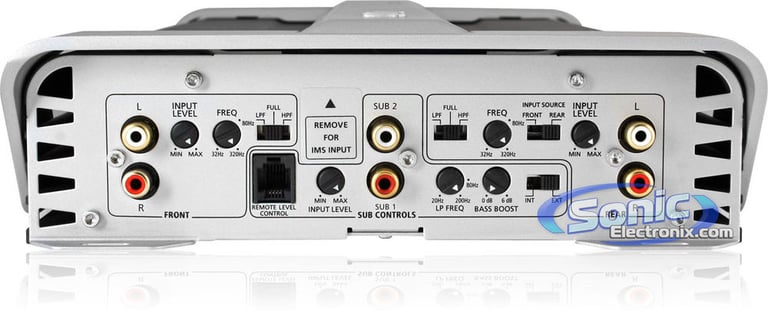

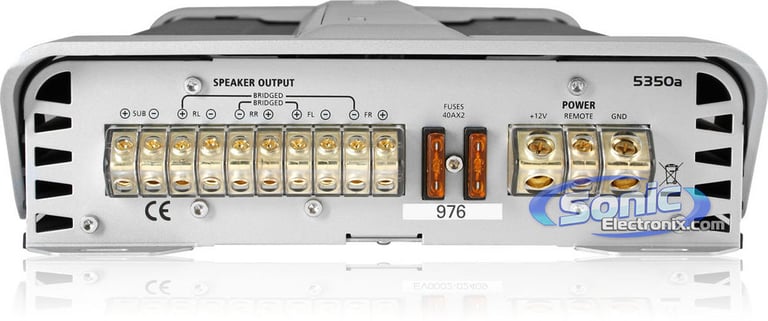

Description


Infinity brand icon

Authorized dealer

  • Reference Series Class AB 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan. + 150 watts x 1 chan.
    • 2 ohm: 60 watts x 4 chan. + 300 watts x 1 chan.
    • Bridged, 4 ohm: 120 watts x 2 chan. (for the 4 channels) + 300 watts x 1 chan.
  • Max power output: 89 watts x 4 chan. + 444 watts x 1 chan. (approx. for sub channel)
  • MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • DC, overheat, over or under voltage, and short circuit amplifier protection
  • Gold-plated RCA level inputs
  • Variable high-pass filter (32-320 Hz, 12 dB/octave)
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Efficiency: 85 dB
  • Dimensions: 9"L x 16-9/16"W x 2-11/16"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Note: The Infinity Reference 5350a no longer includes a bass remote. While the older version of the manual does list that a bass remote is included, Infinity has stopped including bass remotes with this amp.

Product history:

Infinity REF-4555AAM thumbnail
(newest, current model)
Infinity REF-4555A thumbnail
(previous model, replaced by Infinity Reference 4555A (REF-4555A))
Infinity 5350A thumbnail
(previous model, replaced by Infinity Reference 4555A)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
60 watts x 4 channel
Bridged RMS Power
120 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
AB / D
Number of Channels
5-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
540 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

5350A

Weight:

17.00lbs

Internal SKU:

5350a

Internal Product ID:

10145

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Infinity Reference 5350a thumbnail image

5 star
57%
4 star
36%
3 star
7%
2 star
0%
1 star
0%



Durability
4.6
Value
4.7
Features
4.7
Design
4.5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Good enough amp for the $$

Good entry-level 5-channel amp. I have this behind my Pioneer AVIC-D3 head unit, driving Polk Audio DB691 fronts, DB651 rears and a pair of Rockford Fosgate P3SD412 subs. It's a great amp for this at 'normal' volumes, but doesn't have enough power to really drive the bass at really loud volumes. Overall, an excellent product. The only con is the size - it's kind of large.

By cwd on March 1, 2011

14 found this helpful


Good amp

The amp is very good for a basic setup. the 300 w sub rms is limiting, but quality is solid. does not heat up, as others may mention.

By Neil on June 7, 2009

13 found this helpful


Great sound quality!

I am impressed with the sound quality this amp produces when hooked to my Infinity 6.5" rear, 10" sub and 4x6" front speakers. Wow! I am sold on the quality of Infinity.

By s10 on October 18, 2010

13 found this helpful


best ever

I have owned this unit now for 2 months and all I can say is this equipment is great, just make sure and get it all the air you can, it get hot!
I bought 2 computer fan and it seems to work great.

By buellmc on August 21, 2009

12 found this helpful


nice product

first sonic electronix great customer service!i like this amp i run tweeters mids front & back & one sub & this amp works great.i know its not the loudest system but the over all sound highs & lows & clean sound cant be beat.nice price,good product & easy to install

By bone city on April 4, 2014

11 found this helpful


Great Amp

I bought this amp to replace 3 amps that I used in an active setup. The top end of this amp isnt as great, but the amps this replaced cost considerably more. Thank goodness that I have a 30 band EQ to smooth out the top end. The mid range and sub bass in this amp sounds the same. From what I can hear, this amp makes what it claims if not more.

I do not like the that fact that you cannot bypass the subsection in addition to supplied bass remote not working. Not a huge issue to me though.

The design of the amplifier isnt a strong point in my opinion. The large silver flange on the case is removable and the amplifier looks a bit better. Again, not big issue to me. The "Infinity" logo lights up a pleasant blue, not overly bright, very classy.

I have not had any issues with this amp yet. The amp stays fairly cool in the hatch of my car.

Overall, a great quality amplifier for the money.

By Vin on May 15, 2010

11 found this helpful


Had this amp for a while went out

Had this Infinity for a while it did a good job not clowining on it. It did go out on me had it for a year had it done professionally not a really great amp. wish i would of gone through with a alpine.

By ziggy on December 23, 2010

10 found this helpful


The best

This Amp is great! I have attached to 2ea Alpine 10" and 2 ea apline 6x9 and 2ea 6 1/2 alpine conponets speakers alone with 2 ea 3" alpine and it sounds like a concert hall love this amo

By Stef on July 3, 2009

9 found this helpful


Great Amp

I installed this amp, with 2 10" alpines, 2 6x9 alpines, 2 6.5 alpines comp, and 2 4' alpines my god it bonces my mini off the ground. Just make sure to use at least #4 monster cables to power and ground the unit and you will be very happy.

By buellmc on November 11, 2011

8 found this helpful


Nice Amp

This is a great amp for the money and does what u need it too. I am powering two 10" 400w rockford fosgates and they sound great in my F250 thanks to this amp. its also powering my two rear infinity 5/8" mids and the two front 5/8" infinity mids as well. the adjustable bass knob is a Great feature and comes with a supper long cord for hiding the control just about anywhere. i would buy this amp again if i need another one to do what im doing now. . . If i were u i would buy it!!!

By johnson on April 15, 2009

9 found this helpful




502T small

Directed 502T

Closed Loop Trigger Module

(2)

$19.99

List price $21.99

BassLink-II small

Infinity BassLink II

10" Square Powered Subwoofer

(13)

$236.95

List price $424.95

PF20 small

Poly-Fil PF20

20 oz Polyfil Stuffing For Subwoofer Enclosure Box (Polyester Fiber Fill, Poly-Fil)

(26)

$6.99

List price $9.99

ICB60 small

Absolute ICB60

60 Amp In-Line Circuit Breaker

(7)

$9.99

List price $19.99

No picture

JL Audio 300/4 R/B

(Factory Refurbished) 4-Channel Amplifier

$244.99

List price $649.99

PW4100R small

Hitron PW4100R (Red)

100 Ft Spool of 4 Gauge Power/Ground Wire Cable

(2)

$79.99

List price $129.99

VWA2B small

Scosche VWA2B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

(22)

$12.99

List price $14.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2009 Audi TT

2021 Porsche Macan

1977 Datsun 710

2000 BMW Z3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
