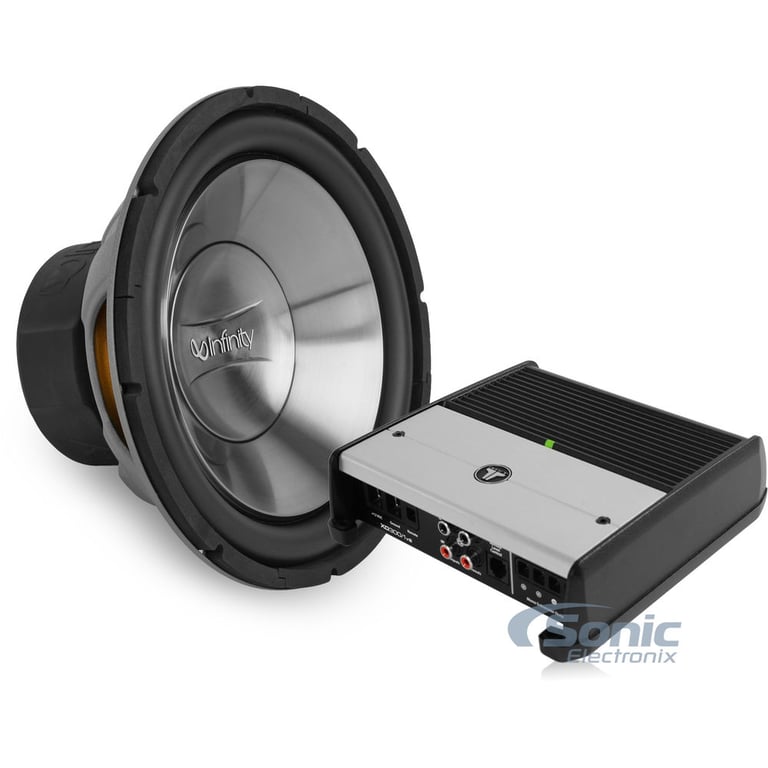

JL Audio Class D Amplifier + FREE Infinity 12" Reference Series Subwoofer

JL Audio XD300/1v2 300W XDv2 Series Monoblock Class D Subwoofer Amplifier + Infinity 1262W300W 12" Reference Series Dual 4 ohm Subwoofer

JL Audio
Shop all JL Audio
EXCLUSIVE
highlight-star-icon

• 300 W x 1 @ 2 ohm
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces
• Progressive Spider
• NexD™ Switching Technology
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• Selectable Low-Pass Filter Slope: 12 dB or 24 dB
• Detented, Calibrated Filter Freq. Potentiometer

Learn more about the xd3001v2_1262w

We apologize

This item has been discontinued


Loading...
82-5601 main

Metra 82-5601

5 1/4" Component Speaker to 6" x 8" Adapter Kit for select 1990-2019 vehicles from Ford, Mazda, Mercury

3
-13.64%

$18.99

List price $21.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

C1-690tx main

JL Audio C1-690tx (C1 690tx)

200W RMS 6x9" C1 Series 3 Way Coaxial 4-ohm Car Speakers

9
TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

Belva BMV712

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Phone Mirroring

23
-63.34%

$54.99

List price $149.99

Description


JL Audio brand icon

Authorized dealer

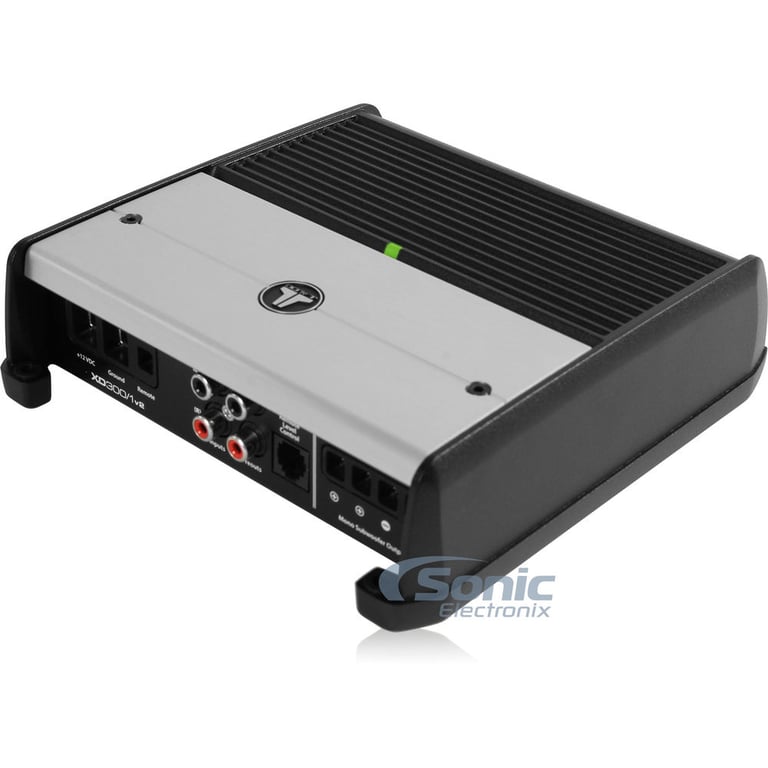

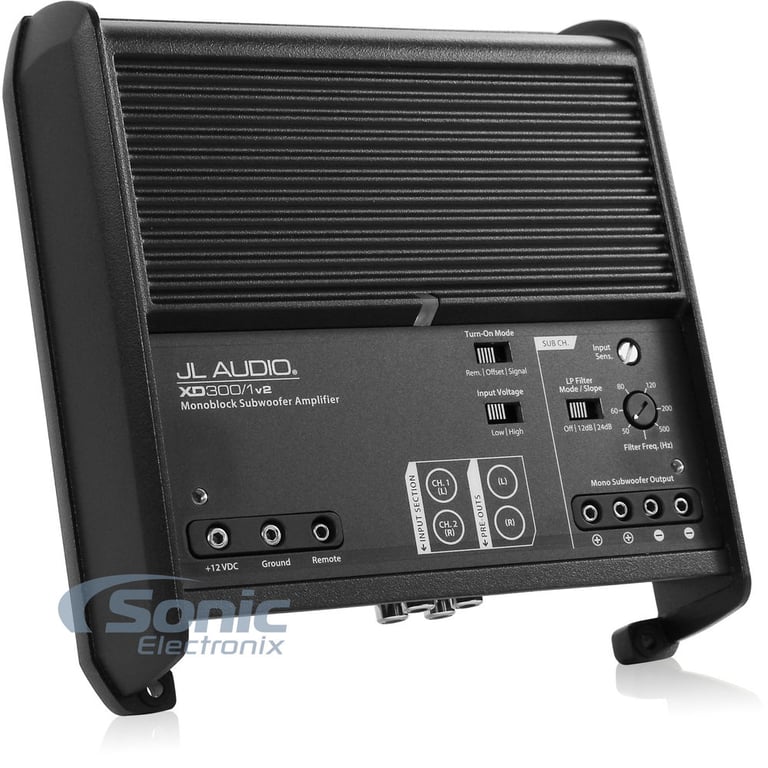

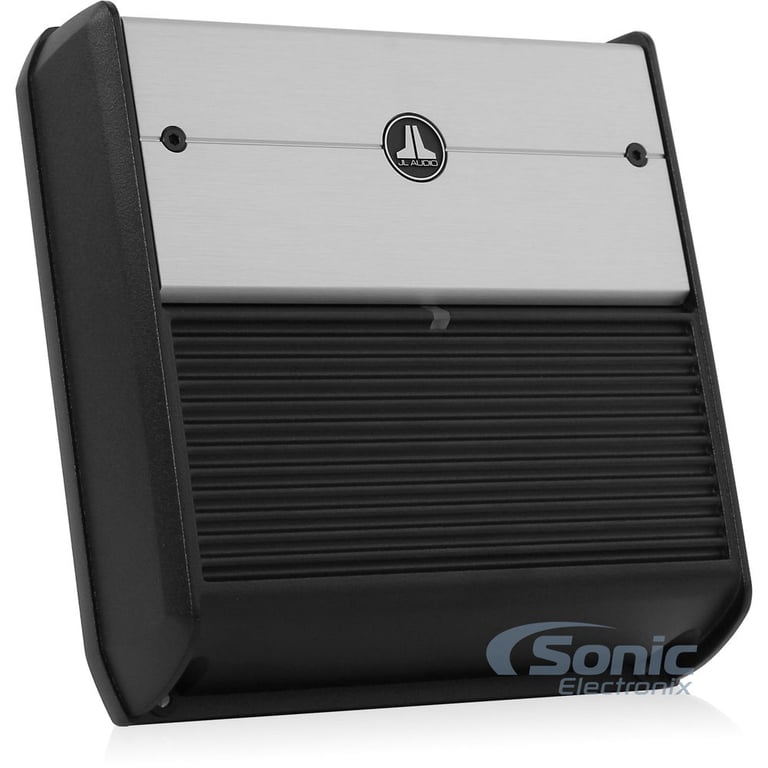

JL Audio XD300/1v2

300W RMS XDv2 Series Monoblock Class D Subwoofer Amplifier w/ High-Speed NexD Switching
Quantity: 1

General Features:

  • XDv2 Series Class D Monoblock Amplifier
  • RMS Power Rating @14.4V:
    • 4 ohm: 200 watts x 1 chan.
    • 3 ohm: 250 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
    • 1 ohm: ----------N/A----------
  • RMS Power Rating @12.5V:
    • 4 ohm: 160 watts x 1 chan.
    • 3 ohm: 210 watts x 1 chan.
    • 2 ohm: 270 watts x 1 chan.
    • 1 ohm: ----------N/A----------
  • NexD#8482; High Speed Switching Class D Technology
  • Wired HD-RLC remote level control available, sold separately
  • LED power (green), over-current (yellow) and protect (red) indicators
  • Advanced Rollback Protection
  • Dual-Range Differential Balanced Input Section

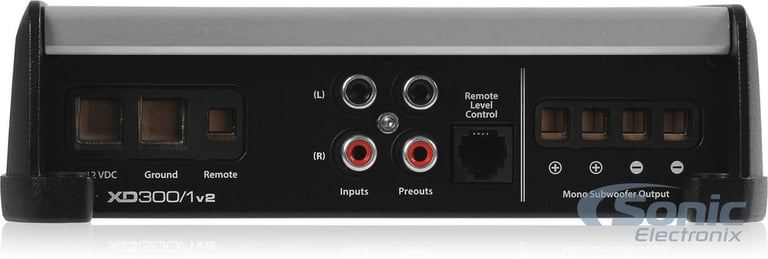

  • Buffered pass-through preamp RCA outputs
  • Selectable turn-on modes: REM / Offset / Signal
    • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
    • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
    • Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Detented, Calibrated Filter Freq. Potentiometer
  • 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley Crossover
  • Input sensitivity:
    • Low level: 800mV - 8V
    • High level: 200mV - 2V
  • Frequency Response: 10 - 1,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >100 dB ref. to rated power
  • Signal to Noise Ratio: >80 dB ref. to 1W
  • Damping Factor @4ohm: >120 / 50 Hz
  • Damping Factor @2ohm: >60/ 50 Hz
  • Selectable Low-Pass Filter Slope: 12 dB or 24 dB
  • Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
  • Fuse Rating: 30A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Weight: 3.80 lb

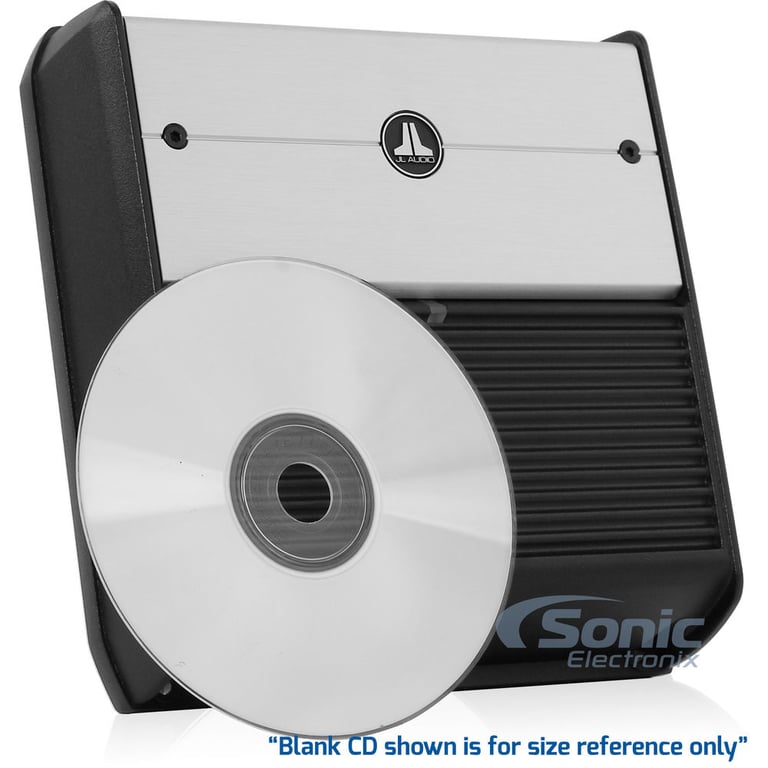

  • Dimensions: 6.85"W x 7.09"L x 2.05"H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

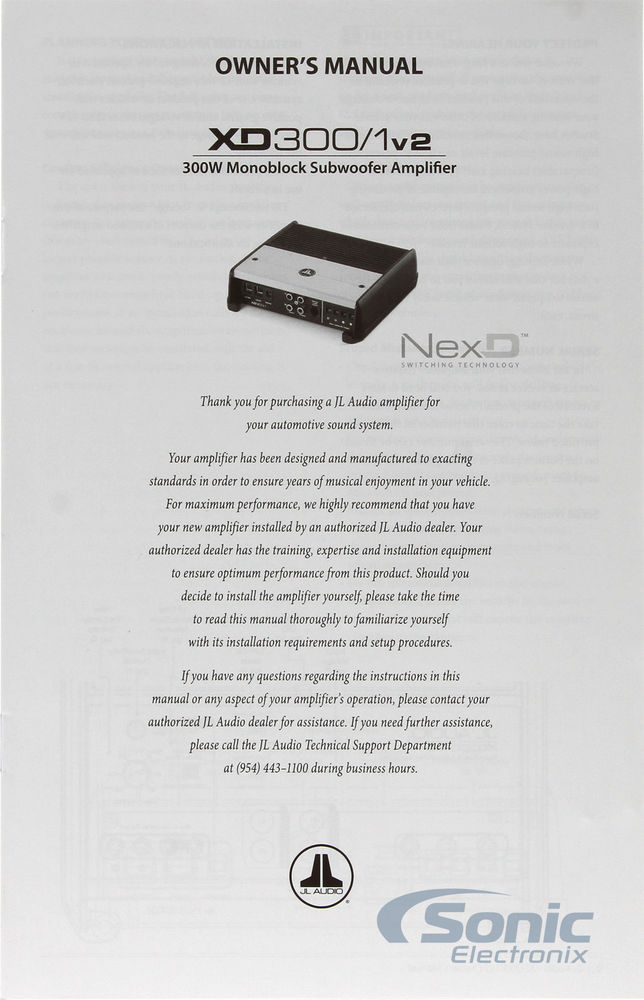

JL Audio XD300/1v2 owner’s manual

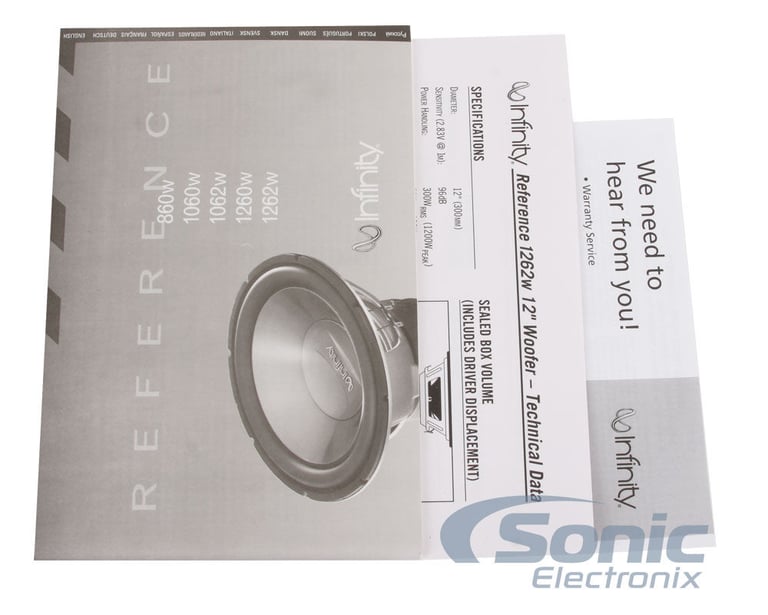

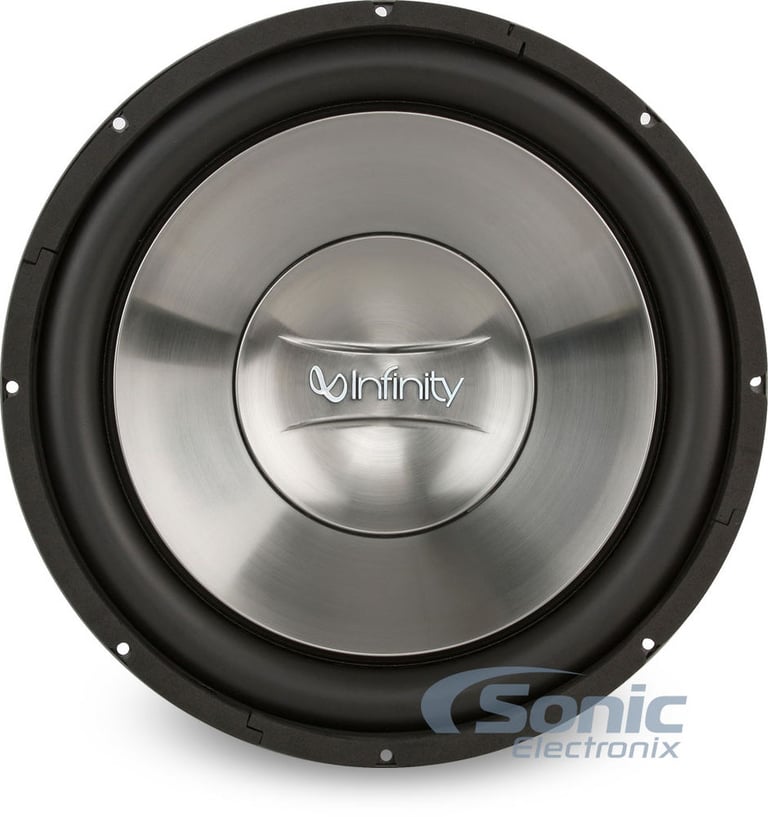

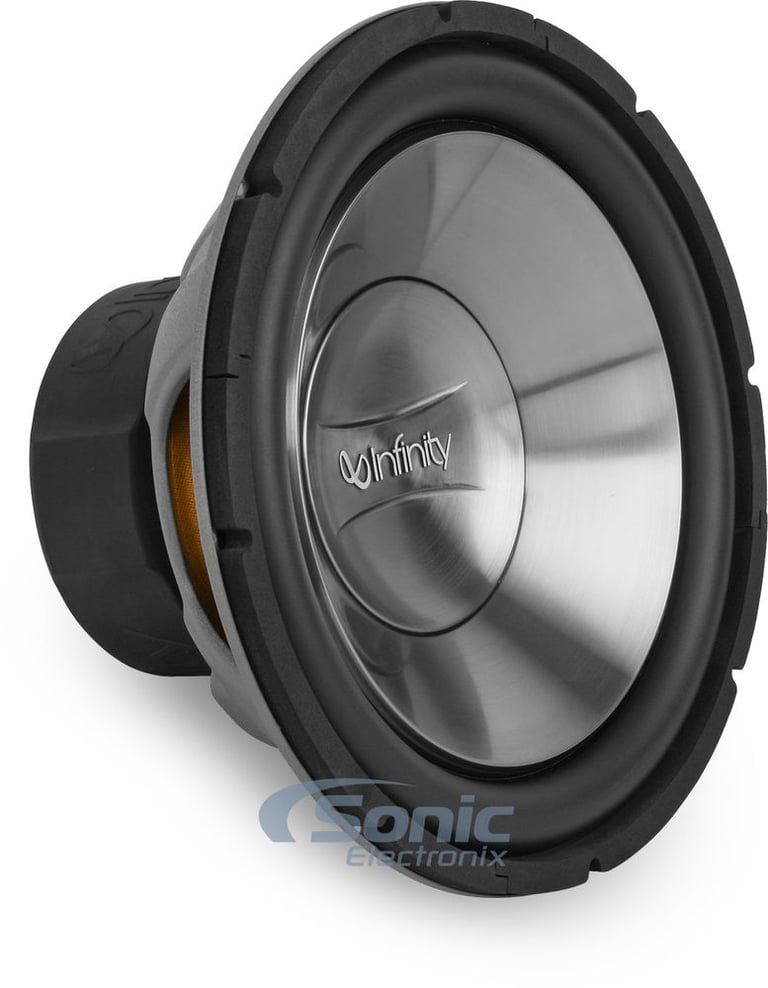

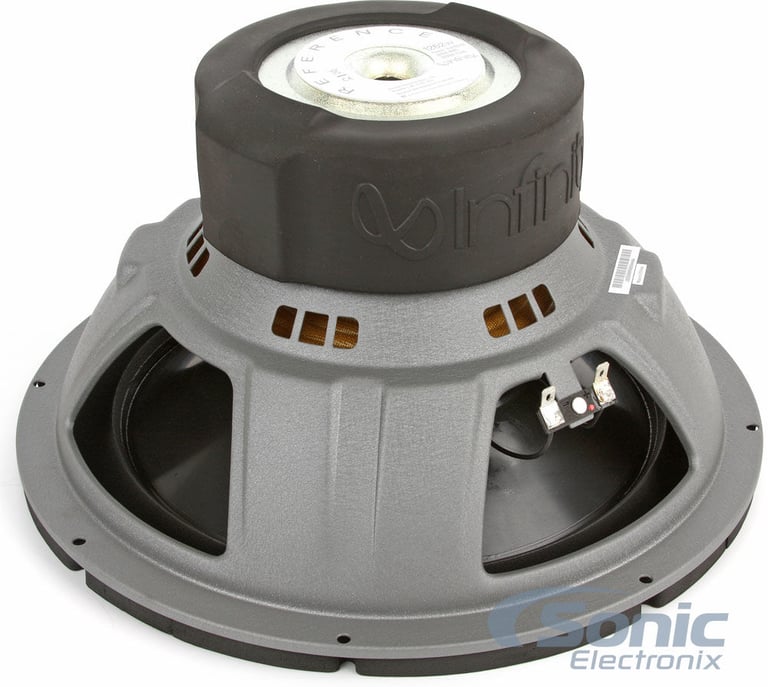

Infinity Reference 1262W

300W 12" Reference Series Dual 4 ohm Subwoofer
Quantity: 1

General Features:

  • 12" Dual 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Impedance: Dual 4 Ohm
  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions
  • Vented pole pieces provide additional cooling of the motor
  • Progressive spider provides better control at excursion limits
  • 2" Voice coil
  • Frequency response: 23-400 Hz
  • Sensitivity: 96 dB
  • Mounting Depth: 6-3/8"
  • Cutout Diameter: 11-1/16"
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty



Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>100 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A X 1 In-Line Fuse Recommended
Subwoofer Specifications
Series
Reference Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Peak Power Handling
1200 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Sensitivity
93 dB
Frequency Response
23 - 400 Hz
Xmax (millimeters)
13 mm
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
11-1/16"
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD300/1v2_1262w

Weight:

20.75lbs

Internal SKU:

xd3001v2_1262w

Internal Product ID:

105803

Customer Ratings & Reviews


JL Audio Class D Amplifier + FREE Infinity 12

5 star
80%
4 star
13%
3 star
7%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.6
Design
4.8
Usability
4.6

Customer Reviews

Sort by:

Loading...

Subwoofer by Infinity

The following review is for 1262w, which is a part of the bundle you are viewing.

Very nice sound and handling. shakes the entire car. Would buy from them again.

By Doug on April 21, 2014

67 found this helpful


Love this sub!

The following review is for 1262w, which is a part of the bundle you are viewing.

I bought one of these off of Ebay a while ago and was extremely pleased with it, so I bought a 2nd one from SonicElectronix during their Black November sale. I built my own custom ported enclosure at 2.0 cubic feet, tuned to 32hz. This sub hits the lows very well and puts out an insane amount of bass for only being a 300w RMS sub. In the enclosure that I built, it actually gives my buddy's 600w rms sub a run for it's money. I would highly recommend this sub to anyone, but also recommend that you look at the suggested enclosure size and don't skimp on a proper enclosure.

By Chris on December 21, 2013

74 found this helpful


Infinity 1262w

The following review is for 1262w, which is a part of the bundle you are viewing.

Great sub for the price. I used this with a 300rms MTX amp and it was loud, deep, and clear. Would recommend for sure.

By Chris from Toronto on April 4, 2012

64 found this helpful


Sound as accurate as JL Audio w1v2's

The following review is for 1262w, which is a part of the bundle you are viewing.

I was tired of the sloppy sound from my old subs, and I always knew Infinity was known for realistic, accurate bass sound, so I grabbed me two of these and put them in a Sound Ordinance 1.25 cf braced, sealed enclosure. They sound very, very good- just like my JL's in my Explorer... I am driving them with a Rockford Fosgate T1500-1BDcp amp at 4 ohms...a bit much, but they seem to handle that power fine with the gain set halfway and the crossover at about 70 hz.. I also have some Kappa 12's in my Camaro... go for them if you can.

By Bo on November 20, 2010

62 found this helpful


Infinity Reference 1262W

The following review is for 1262w, which is a part of the bundle you are viewing.

I have two of these speakers and they do the job just fine. They are not the hardest hitting subs but they are not that poor quality neither.

By Charles on January 16, 2015

59 found this helpful


Great subwoofer at a great price.

The following review is for 1262w, which is a part of the bundle you are viewing.

My goal was to find about a 300-500 watt RMS (DVC @ 4 ohms/coil) 12" subwoofer that would be somewhere between $50-$100. After extensive research on Sonic's awesome site, I chose this model over the similar Alpine, Pioneer and Kicker models.

Pioneer TS-W310D4
Alpine SWS-12D4

The Infinity was less than $60 to my door, looks great installed in my custom ported MDF/fiber box and hits really solid. If I had it to do again, I might have built a sealed box for tighter bass and less space. It still sounds great and I have it tuned right around 33Hz.

I would highly recommend this model. If you are on the fence with a 12" sub decision, you won't be disappointed. The magnet on this thing is MASSIVE!

By Ernie on January 1, 2014

59 found this helpful


Awesome value.

The following review is for 1262w, which is a part of the bundle you are viewing.

I recently purchased this sub for my Subaru Outback and have been more than pleased so far. It's in a sealed 1.25cu ft box, fed 500 watts @ 4 ohms. This exactly what I wanted at an amazing price. My goal was for a good sq sub that didn't require loads of power...goal met. If you're looking for a nice affordable sub look no further. Looks awesome, sounds terrific and doesn't break the bank.

Pros:
Killer price
Amazing sound quality in the recommended sealed box
Looks good

Cons:
Can't think of any off hand.

By Jordan on September 2, 2014

57 found this helpful


Infinity Sub

The following review is for 1262w, which is a part of the bundle you are viewing.

this is a great product sounds very clear I love them

By Ethan on January 23, 2015

55 found this helpful


great value

The following review is for 1262w, which is a part of the bundle you are viewing.

It's pretty good sub for that price hits hard enough for me loving this sub.

By Reggie on May 8, 2014

56 found this helpful


Amazing

The following review is for 1262w, which is a part of the bundle you are viewing.

I bought an old set of infinitys in a box and they were a few years old, those blew within a year. I then purchased 2 Infinity 1262Ws and they've been hitting hard and proud for the past year!

By Luke on June 15, 2012

55 found this helpful




EN-JS6/RD small

DS18 EN-JS6/RD (Sold by Pair)

Empty Single 6.5" Universal Flat Mount Kick Panel Speaker Pods in Red with RGB LED

$164.95

List price $164.95

10W3v3-4_PA D2000.2 small

JL Audio 10W3v3-4 + Polk Audio PA D2000.2

500W RMS 10" W3v3 Series Single 4-Ohm Subwoofer + PA D Series Class-D 2-Channel Car Amplifier

(49)

$466.88

List price $699.94

1200/1v3_SUMMO 124 small

JL Audio Slash Amplifier + FREE Massive Audio 12" Summo Series Subwoofer

JL Audio Slash 1200/1v3 1200W Monoblock Slash v3 Series Class D Amplifier + Massive Audio SUMMO 124 12" Summo Series Dual 4 Ohm Subwoofer

(12)

$1362.80

List price $2324.93

1200/1v3_2-VCW102 small

JL Audio Class D Amplifier + Two FREE NVX 10" VC-Series Subwoofers

JL Audio Slash 1200/1v3 1200W Monoblock Slash v3 Series Class D Amplifier + NVX VCW102 10" VC-Series Dual 2-ohm Subwoofers

$1292.03

List price $2157.96

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Ford Taurus

2012 Audi Q7

2003 Ford Escape

2001 Mercedes-Benz CLK320

2011 Audi A4

2004 Saab 9-3

2011 Nissan Cube

2012 Mitsubishi Eclipse

2012 Dodge Durango

2004 Dodge Sprinter 2500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
