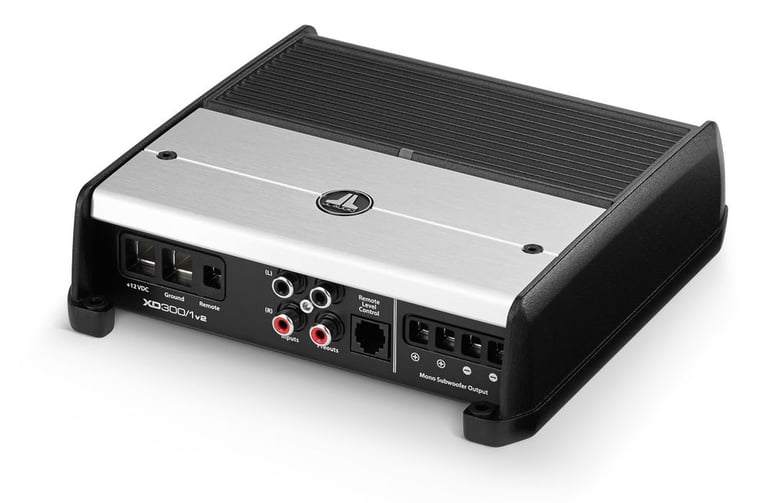

JL Audio XD300/1v2

300W RMS XDv2 Series Monoblock Class D Subwoofer Amplifier w/ High-Speed NexD Switching

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• NexD Switching Technology
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• Selectable Low-Pass Filter Slope: 12 dB or 24 dB
• Detented, Calibrated Filter Freq. Potentiometer

Learn more about the xd3001v2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

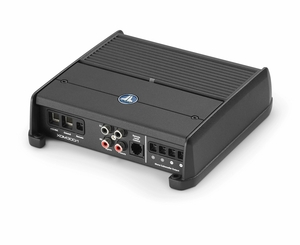

xdm3001 thumbnail

JL Audio XDM300/1

OUR PRICE: $499.99

View item

Product Highlights


• NexD Switching Technology
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• Selectable Low-Pass Filter Slope: 12 dB or 24 dB
• Detented, Calibrated Filter Freq. Potentiometer

Description


JL Audio brand icon

Authorized dealer

JL Audio XD300/1v2 - XDv2 Series Monoblock Class D Subwoofer Amplifier

This ultra-compact monoblock amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output for its size. It is small enough to fit in the tightest space applications, including motorcycles and ATV's (in a weather-tight compartment). Targeted specifically for subwoofer applications, the XD300/1v2 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. The XD300/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls. Its frequency response is limited to the range below 500 Hz. It is not designed for driving midrange speakers or tweeters. Every aspect of its operation has been optimized for low-frequency amplification.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.


NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed Pulse Width Modulation design approach and enhanced it with a very high switching frequency: 240 kHz, which is about 4x higher than most Class D subwoofer amplifiers. This pushes the amplifier's bandwidth to at least 500 Hz with minimal distortion and improves efficiency, while keeping typically bulky circuity more compact. Your subwoofers will reward you with tight, rock-solid bass. These technologies allow XDv2 amplifiers to achieve efficiencies exceeding 80%, meaning far less heat and strain on your vehicle's electrical system than a conventional large amplifier.

General Features:

  • XDv2 Series Class D Monoblock Amplifier
  • RMS Power Rating @14.4V:
    • 4 ohm: 200 watts x 1 chan.
    • 3 ohm: 250 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
    • 1 ohm: ----------N/A----------
  • RMS Power Rating @12.5V:
    • 4 ohm: 160 watts x 1 chan.
    • 3 ohm: 210 watts x 1 chan.
    • 2 ohm: 270 watts x 1 chan.
    • 1 ohm: ----------N/A----------
  • NexD#8482; High Speed Switching Class D Technology
  • Wired HD-RLC remote level control available, sold separately
  • LED power (green), over-current (yellow) and protect (red) indicators
  • Advanced Rollback Protection
  • Dual-Range Differential Balanced Input Section

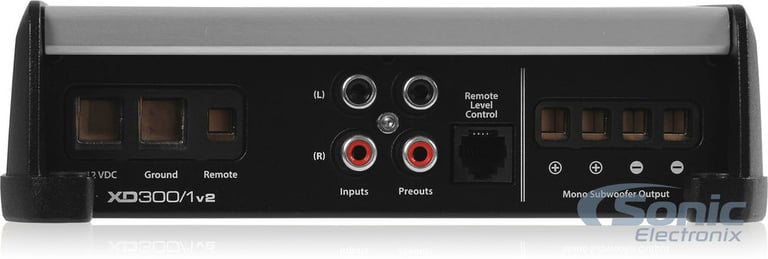

  • Buffered pass-through preamp RCA outputs

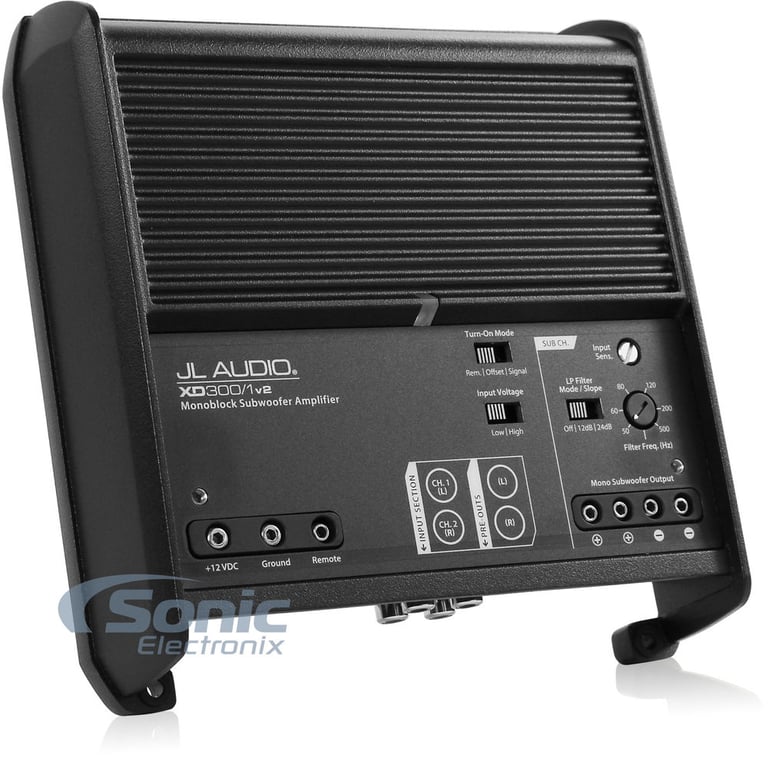

  • Selectable turn-on modes: REM / Offset / Signal
    • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
    • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
    • Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
  • Dual speaker terminals simplify the hookup of multiple speakers

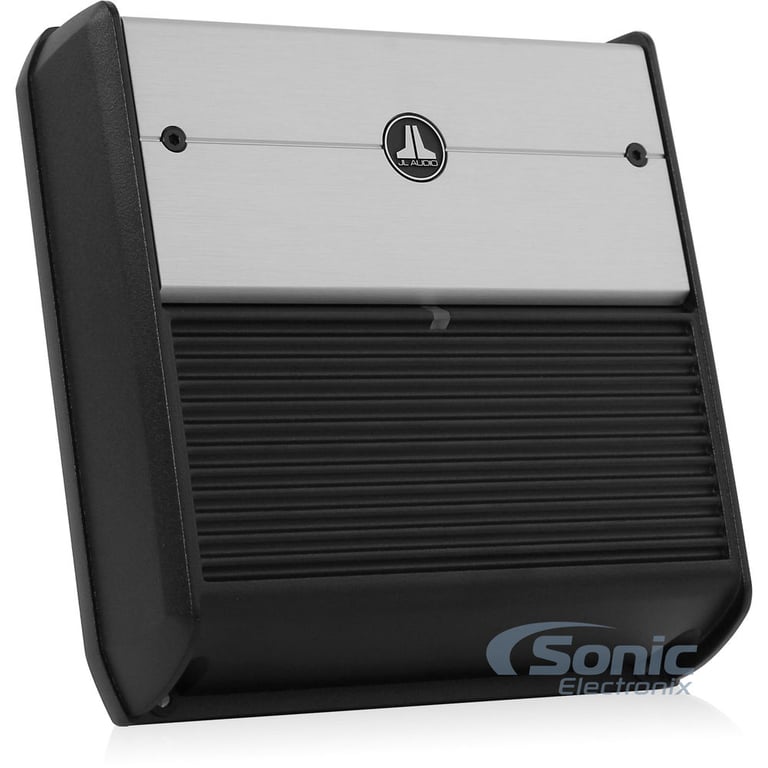

  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Detented, Calibrated Filter Freq. Potentiometer
  • 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley Crossover
  • Input sensitivity:
    • Low level: 800mV - 8V
    • High level: 200mV - 2V
  • Frequency Response: 10 - 1,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >100 dB ref. to rated power
  • Signal to Noise Ratio: >80 dB ref. to 1W
  • Damping Factor @4ohm: >120 / 50 Hz
  • Damping Factor @2ohm: >60/ 50 Hz
  • Selectable Low-Pass Filter Slope: 12 dB or 24 dB
  • Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
  • Fuse Rating: 30A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Weight: 3.80 lb
  • Dimensions: 6.85"W x 7.09"L x 2.05"H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

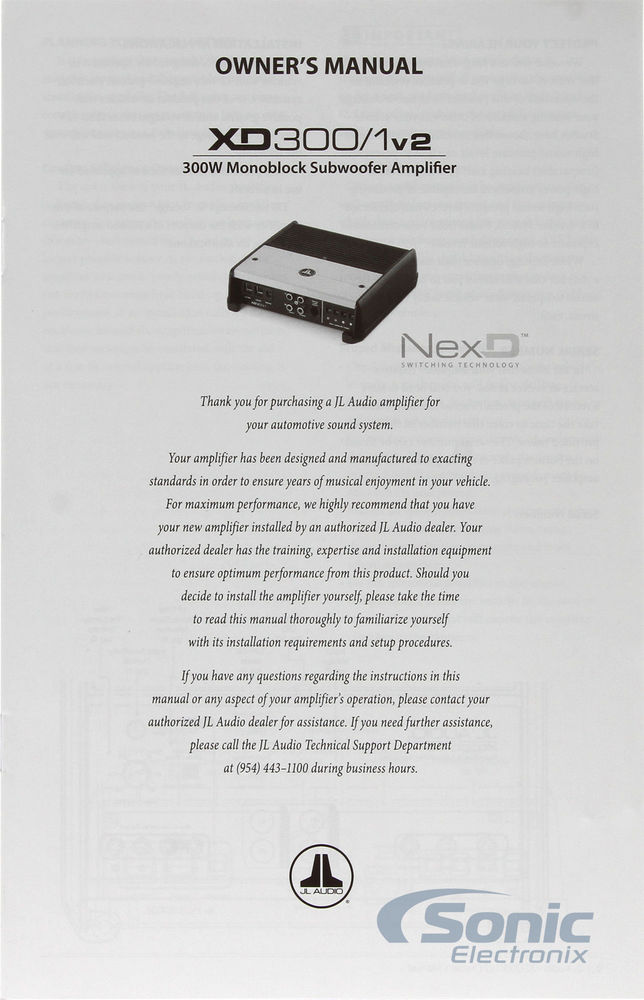

JL Audio XD300/1v2 owner’s manual

Product history:

JL Audio XDM300/1 thumbnail
(newest, current model)
JL Audio XD300/1v2 thumbnail
(previous model, replaced by JL Audio XDM300/1)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Series
XD-v2 Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>100 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A X 1 In-Line Fuse Recommended
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Adhesive brand badge
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD300/1v2

Weight:

4.75lbs

Internal SKU:

xd3001v2

Internal Product ID:

97403
