Name: JL Audio MX500/4 (Open Box)
Brand: JL Audio
SKU: LS-mx5004-OB7
Price: 359.99 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

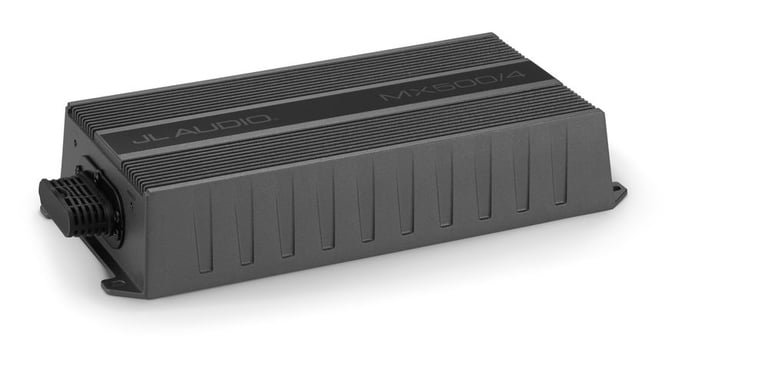

JL Audio MX500/4 (Open Box) Image 1 — JL Audio MX500/4 (Open Box)

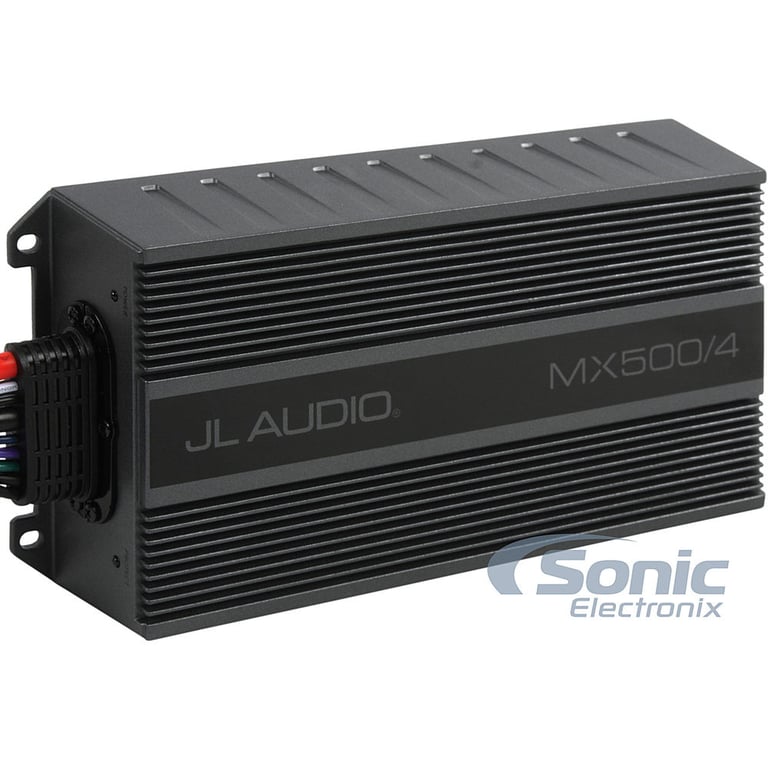

JL Audio MX500/4 (Open Box) Image 2 — JL Audio MX500/4 (Open Box)

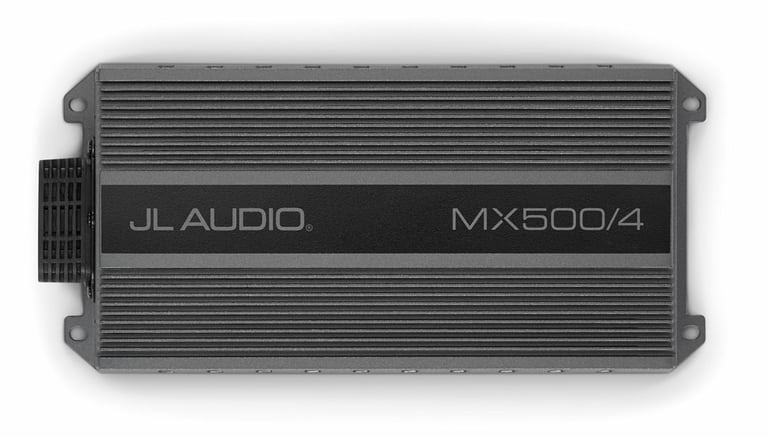

JL Audio MX500/4 (Open Box) Image 3 — JL Audio MX500/4 (Open Box)

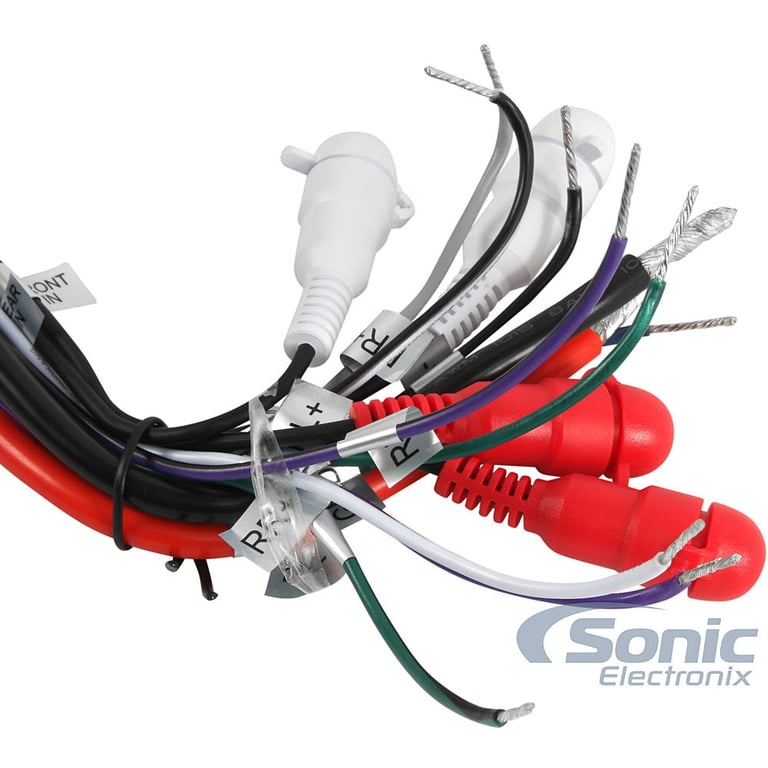

JL Audio MX500/4 (Open Box) Image 4 — JL Audio MX500/4 (Open Box)

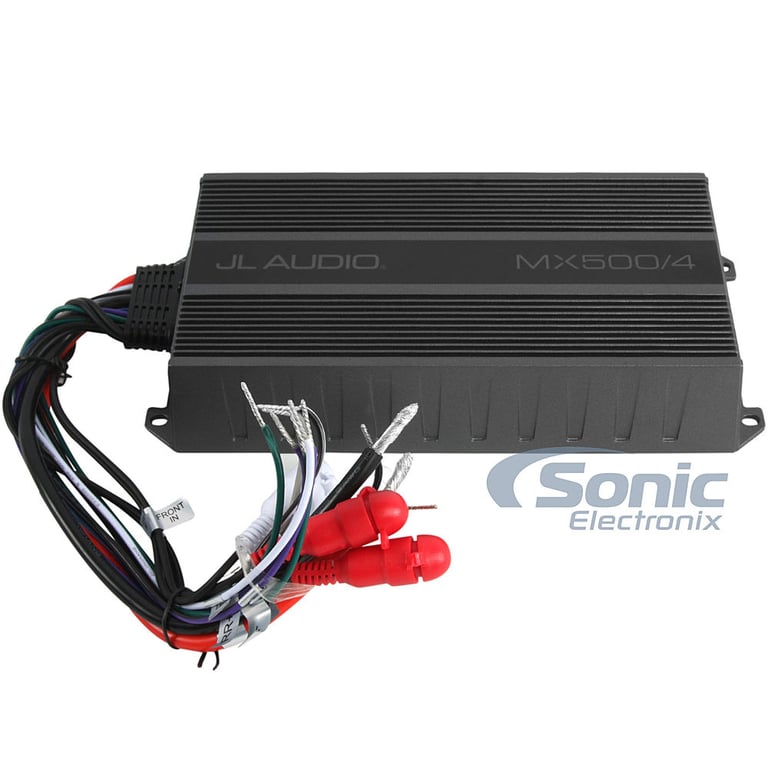

JL Audio MX500/4 (Open Box) Image 5 — JL Audio MX500/4 (Open Box)

JL Audio MX500/4 (Open Box) Image 6 — JL Audio MX500/4 (Open Box)

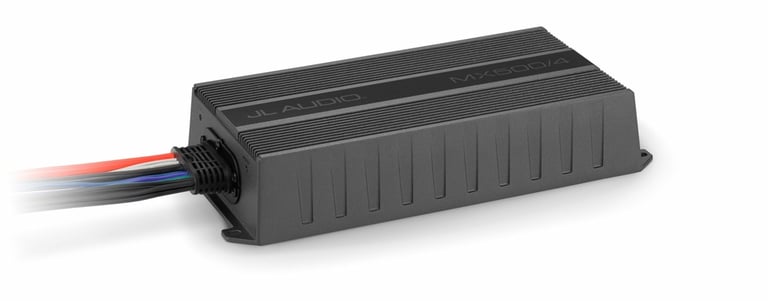

JL Audio MX500/4 (Open Box) Image 7 — JL Audio MX500/4 (Open Box)

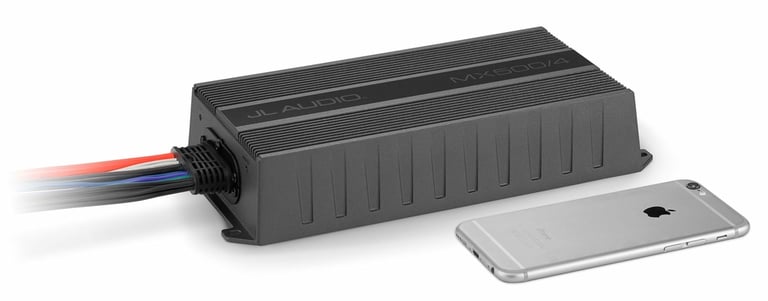

JL Audio MX500/4 (Open Box) Image 8 — JL Audio MX500/4 (Open Box)

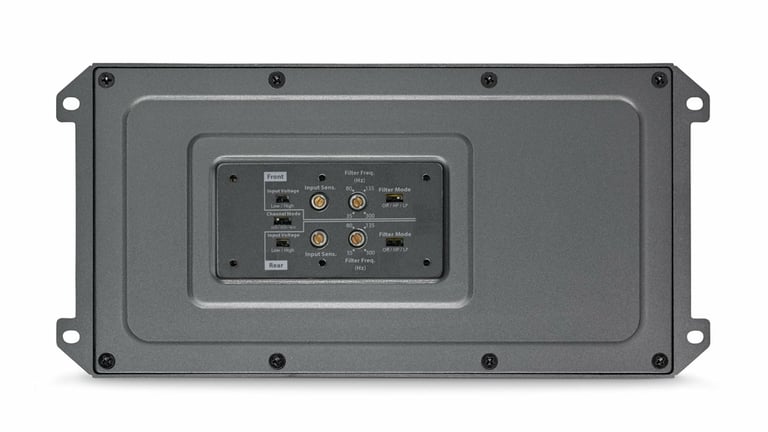

JL Audio MX500/4 (Open Box) Image 9 — JL Audio MX500/4 (Open Box)

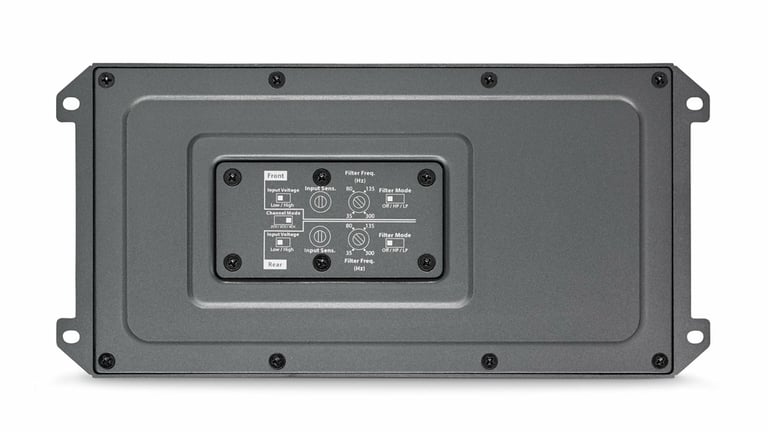

JL Audio MX500/4 (Open Box) Image 10 — JL Audio MX500/4 (Open Box)

JL Audio MX500/4 (Open Box) Image 11 — JL Audio MX500/4 (Open Box)

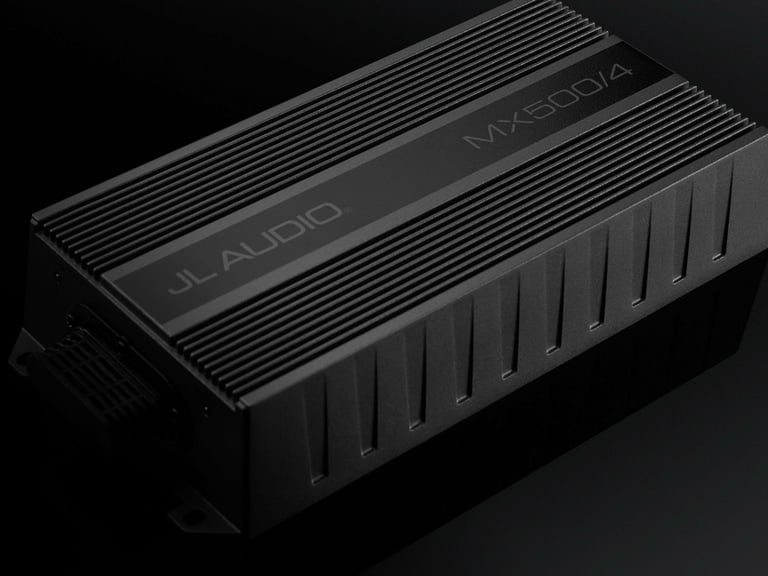

JL Audio MX500/4 (Open Box) Image 12 — JL Audio MX500/4 (Open Box)

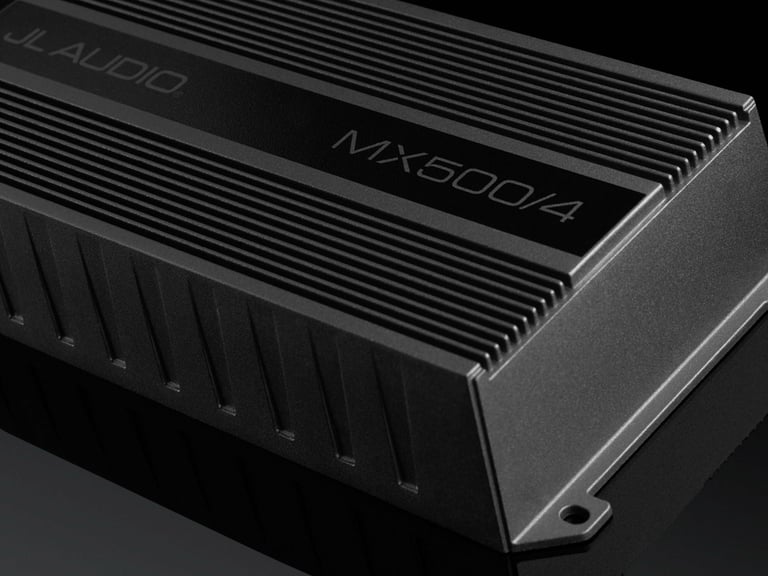

JL Audio MX500/4 (Open Box) Image 13 — JL Audio MX500/4 (Open Box)

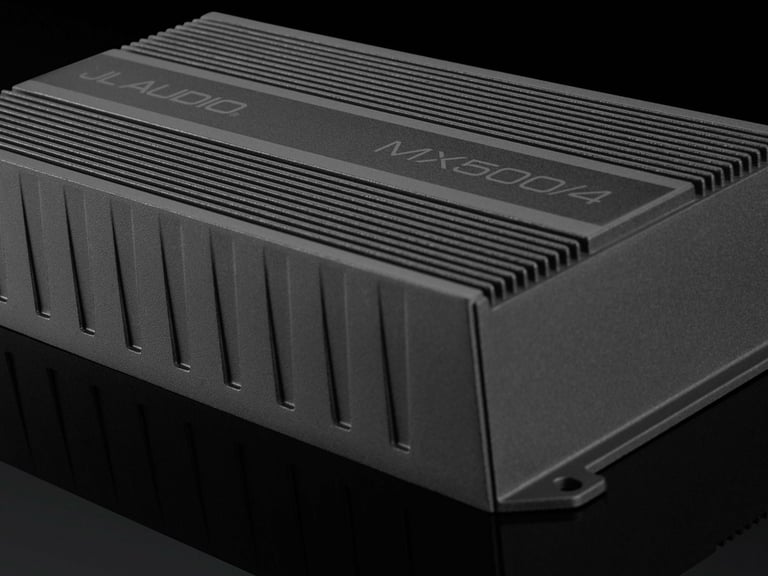

JL Audio MX500/4 (Open Box) Image 14 — JL Audio MX500/4 (Open Box)

Product highlights

• Item Condition: Open Box
• 70 Watts RMS x 4 @ 4 ohm
• 125 Watts RMS x 4 @ 2 ohm
• 250 Watts RMS Bridged x 2 @ 4 ohm
• Total RMS Power: 500 Watts
• CEA-2006 Compliant
• IPX6 waterproof rating
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Dimensions: 9-3/8"W x 1-13/16"H x 4-9/16"D

Learn more about the LS-mx5004-OB7

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition: Like New Open Box

General Features:

JL Audio MX500/4
Class-D Full Range 4-Channel Marine/Powersports Amplifier
RMS Power Rating:

4 ohm: 70 watts x 4 chan.
2 ohm: 125 watts x 4 chan.
1 ohm: ------------N/A------------
Bridged, 4 ohm: 250 watts x 2 chan.

Total RMS power output: 500 watts
CEA-2006 Compliant Amplifier
IPX6 water resistance rating
Black powder coat finish
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
4/3/2 channel operation
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity:

Low level: 125mV-5V
High level: 250mV-10V

Frequency Response: 20 - 20,000 Hz
Total Harmonic Distortion (THD): 1%
Signal to Noise Ration: 88 dB
Variable high-pass filter: 35 - 300 Hz, 12 dB/octave
Variable low-pass filter: 35 - 300 Hz, 12 dB/octave
Fuse Rating: 50A x 1
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 9-3/8"W x 1-13/16"H x 4-9/16"D
Remote bass knob sold separately - M-RBC-1.
Authorized Internet Dealer
1-year Manufacturer's Warranty

Check out the MX500/4 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

70 watts x 4 channel

RMS Power @ 2 ohms

125 watts x 4 channel

Bridged RMS Power

250 watts x 2 channel

Amplifier Specifications

Series

MX Series

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

500 watts

Maximum Input Gauge Size

8 AWG

THD at Rated RMS Power

<1%

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

35 - 300 Hz

Low-Pass Crossover Frequency

35 - 300 Hz

Signal-to-Noise Ratio

88 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Fuse Rating

50A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
