See all parts that fit your 2006 TrailBlazer

Power Acoustik EG1-7000D

3500W RMS Class-D Monoblock 1-Ohm Stable Amplifier with Bass Knob

Product videos
highlight-star-icon

• 1100 Watts RMS x 1 @ 4 ohm
• 2300 Watts RMS x 1 @ 2 ohm
• 3500 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 7000 Watts
• Variable low-pass filter: 30 - 250 Hz
• Variable Bass Boost: 0 to +12 dB bass boost
• Subsonic filter: 20 - 50 Hz , 12 dB/octave
• Dimensions: 9"W x 16.25"L x 2.25"H

Learn more about the eg17000d

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

120
-33.36%

$9.99

List price $14.99

40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

DKGM-C2D main

Crux DKGM-C2D Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2000-2012 vehicles from Chevrolet, GMC, Pontiac

2
-35.71%

$81.00

List price $126.00

99-2011 main

Metra 99-2011 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1990-2012 vehicles from Chevrolet, GMC, Buick

20
-37.05%

$16.99

List price $26.99

SAGTE6 main

Scosche SAGTE6

5 1/4" - 6 1/2" Speaker Adaptors for select 2002-2009 vehicles from GMC, Chevrolet, Isuzu

4
-6.63%

$19.99

List price $21.41

82-3021 main

Metra 82-3021

6-6.75 inch speakers - Front door for select 2002-2009 vehicles from Chevrolet, GMC, Buick

5
-42.87%

$15.99

List price $27.99

SOCGM-17 main

Crux SOCGM-17 Wiring Interface

Install a new car stereo and retains the safety warning chimes in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

6
-35.71%

$58.05

List price $90.30

82-3022 main

Metra 82-3022

6-6.75 inch speaker adapters for select 1998-2009 Envoy and TrailBlazer and Bravada

-10.00%

$26.99

List price $29.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Product Highlights


• 1100 Watts RMS x 1 @ 4 ohm
• 2300 Watts RMS x 1 @ 2 ohm
• 3500 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 7000 Watts
• Variable low-pass filter: 30 - 250 Hz
• Variable Bass Boost: 0 to +12 dB bass boost
• Subsonic filter: 20 - 50 Hz , 12 dB/octave
• Dimensions: 9"W x 16.25"L x 2.25"H

Description


Power Acoustik brand icon

Authorized dealer

POWER SYSTEM WARNING: This amplifier requires a charging system capable of at least 150 amps. If your vehicle's charging system isn't powerful enough, it will damage or destroy this amplifier and possibly damage your vehicle, as well as void your warranty on the amp. You must perform electrical system upgrades to provide the power this kind of amp demands. Visit our Mean Green High Output Alternators store to find the right alternator for your vehicle.

General Features:

  • Power Acoustik Edge Series EG1-7000D
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1100 watts x 1 chan.
    • 2 ohm: 2300 watts x 1 chan.
    • 1 ohm: 3500 watts x 1 chan.
  • Total power output: 7000 watts
  • Pulse Width Modulated MOSFET power supply

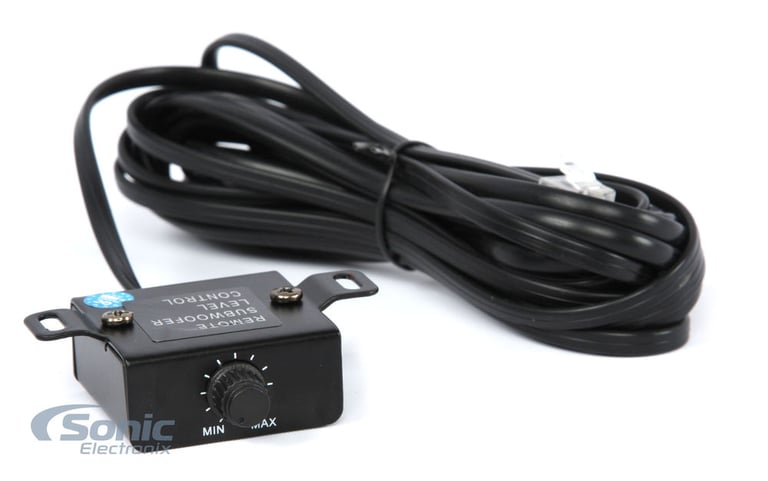

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Monoblock channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 0.2V - 6V
  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Subsonic filter: 20 - 50 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost
  • 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9"W x 16.25"L x 2.25"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
Check out the Power Acoustik EG1-7000D Owner's Manual

Product history:

Power Acoustik EG1-7000D thumbnail
(newest, current model)
Power Acoustik GT1-6000D thumbnail
(previous model, replaced by Power Acoustik EG1-7000D)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1100 watts x 1 channel
RMS Power @ 2 ohms
2300 watts x 1 channel
RMS Power @ 1 ohm
3500 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
2200 watts x 1 channel
Peak Power @ 2 ohms
4600 watts x 1 channel
Peak Power @ 1 ohm
7000 watts x 1 channel
Amplifier Specifications
Series
Edge Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
7000 watts
Total RMS Power Output
3500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
20 - 50 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Strappable
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)

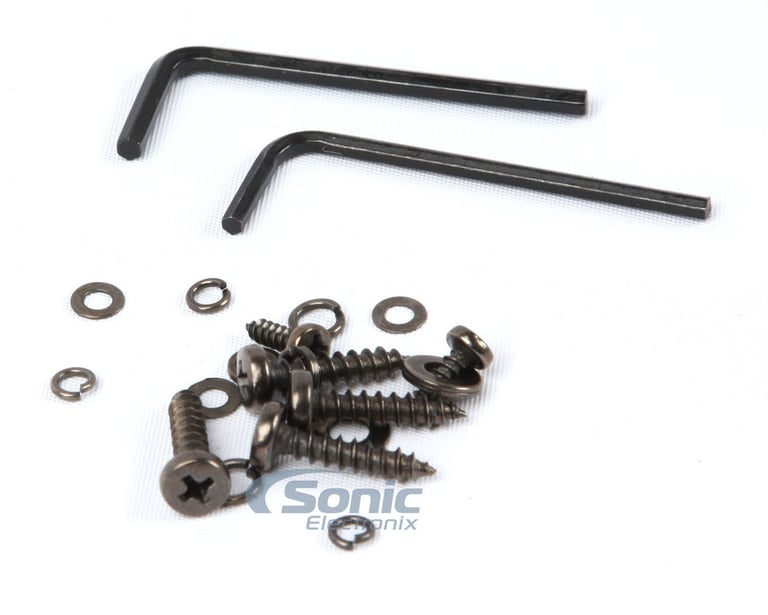

Mounting screws (6)
