Name: Soundstorm EVO5000.1 (Open Box Complete)
Brand: Sound Storm Labs (SSL)
SKU: ls-evo50001-obc282585
Price: 119.96 USD
Availability: Discontinued

by Sound Storm Labs (SSL)

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Soundstorm EVO5000.1 (Open Box Complete) Image 1 — Soundstorm EVO5000.1 (Open Box Complete)

Soundstorm EVO5000.1 (Open Box Complete) Image 2 — Soundstorm EVO5000.1 (Open Box Complete)

Soundstorm EVO5000.1 (Open Box Complete) Image 3 — Soundstorm EVO5000.1 (Open Box Complete)

Soundstorm EVO5000.1 (Open Box Complete) Image 4 — Soundstorm EVO5000.1 (Open Box Complete)

Soundstorm EVO5000.1 (Open Box Complete) Image 5 — Soundstorm EVO5000.1 (Open Box Complete)

Soundstorm EVO5000.1 (Open Box Complete) Image 6 — Soundstorm EVO5000.1 (Open Box Complete)

Soundstorm EVO5000.1 (Open Box Complete) Image 7 — Soundstorm EVO5000.1 (Open Box Complete)

Product highlights

• 1750W x 1 Chan. @ 4 Ohm
• 3500W x 1 Chan. @ 2 Ohm
• 5000 x 1 Chan. @ 1 Ohm
• Peak Power: 5000W
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Learn more about the ls-evo50001-obc282585

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Note: This is an open box complete product

General Features:

Evolution Series Monoblock 1-Ohm Stable Car Amplifier
RMS Power Rating:

4 ohm: 938 watts x 1 chan.
2 ohm: 1875 watts x 1 chan.
1 ohm: 3750 watts x 1 chan.

Max power output:

5000 watts

MOSFET PWM (Pulse Width Modulated) power supply)

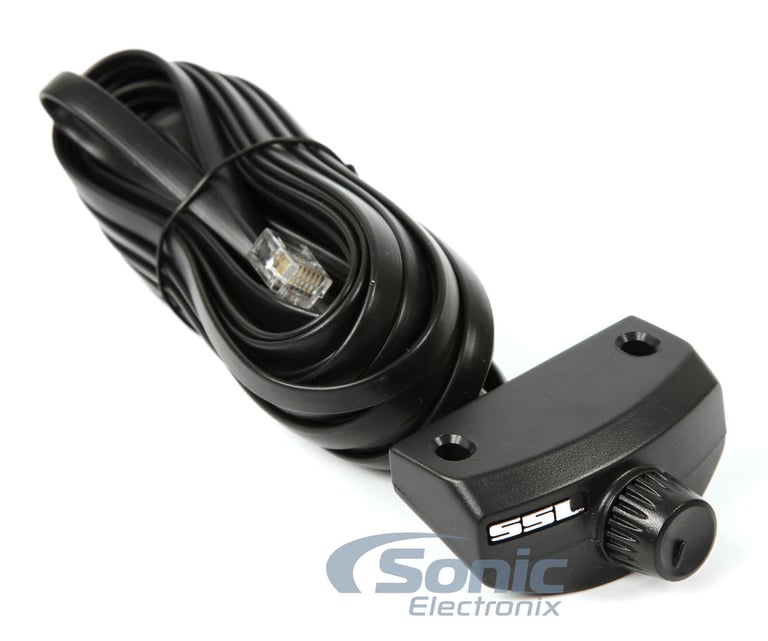

Wired bass remote knob included
Power and protection LED indicators
Variable tuned bass EQ (0-18 dB bass boost)
Subsonic Filter (15-40 Hz)
1 Ohm stable
1 channel monoblock operation
Thermal and speaker short protection
Soft turn-on circuit
Remote turn-on/turn-off circuit
Variable input gain control
Dark gray anodized heatsink
Large aluminum heatsink for excellent heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (50-150 Hz, 12 dB/octave)
Frequency response: 15-500 Hz
Dimensions: 2.3"D x 10"W x 19.09"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

938 watts x 1 channel

RMS Power @ 2 ohms

1875 watts x 1 channel

RMS Power @ 1 ohm

3750 watts x 1 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

1750 watts x 1 channel

Peak Power @ 2 ohms

3500 watts x 1 channel

Peak Power @ 1 ohm

5000 watts x 1 channel

Amplifier Specifications

Series

Evolution Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

5000 watts

Total RMS Power Output

3750 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.01%

Speaker Level Inputs

Preamp Outputs

2 pairs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Strappable

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
