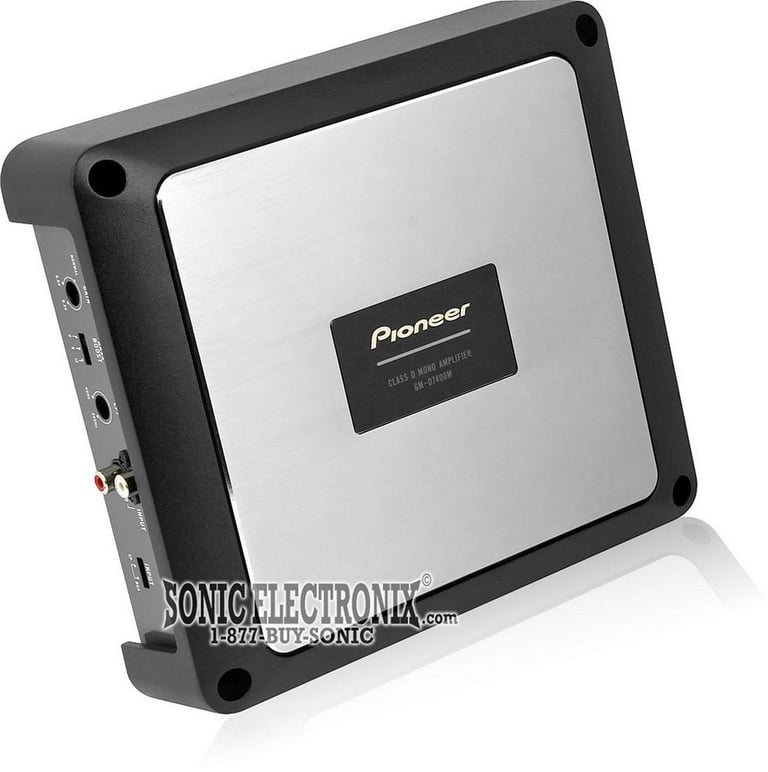

Pioneer GM-D7400M

800W Max, Class D Monoblock GM Series Amplifier with New Small-Footprint Design

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

GM Series Class D Monoblock Car Amplifier • 250W x 1 chan. @ 4 ohm • 400W x 1 chan. @ 2 ohm • 800W x 1 chan. Max • Pioneer digital signal amplification technology allows for great amplification within an extremely compact design

Learn more about the gmd7400m

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gmd8701 thumbnail

Pioneer GM-D8701

OUR PRICE: $169.95

View item

Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

LAI10 main

Scosche LAI10 Wiring Interface

Install new car stereo and retain steering wheel audio controls in select 2004-2023 vehicles from Audi

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

CAR1415 main

Jensen CAR1415

14" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and SiriusXM Ready

1

Product Highlights


GM Series Class D Monoblock Car Amplifier • 250W x 1 chan. @ 4 ohm • 400W x 1 chan. @ 2 ohm • 800W x 1 chan. Max • Pioneer digital signal amplification technology allows for great amplification within an extremely compact design

Description


Pioneer brand icon

Authorized dealer

  • GM Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
  • Max power output: 800 watts x 1 chan.
  • Pulse width modulated (PWM) MOSFET power supply

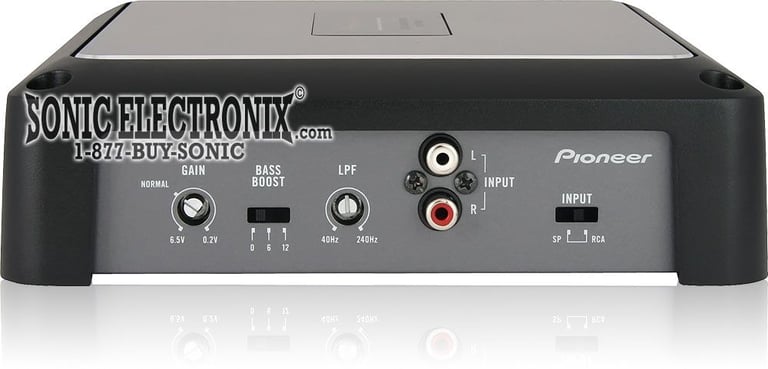

  • Selectable bass boost (0, 6, 9, 12 dB at 50 Hz)
  • Pioneer digital signal amplification technology allows for great amplification within an extremely compact design
  • Balanced isolator speaker-level inputs
  • Compression-type speaker terminals
  • Variable low-pass filter (40-240 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-240 Hz
  • Dimensions: 8-7/8"L x 7-7/8"W x 2-1/4"H

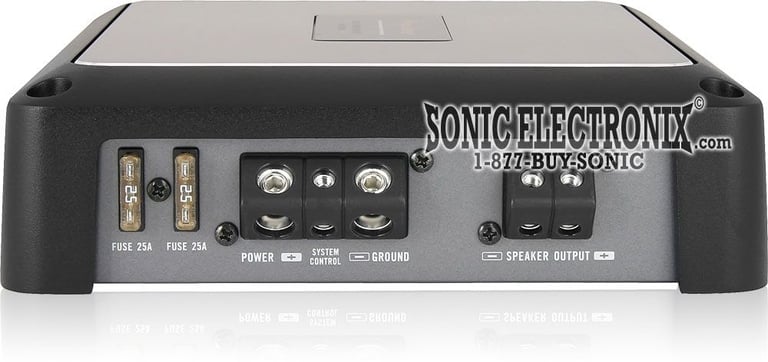

  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer GM-D8701 thumbnail
(newest, current model)
Pioneer GM-D8601 thumbnail
(previous model, replaced by Pioneer GM-D8701)
Pioneer GM-D7500M thumbnail
(previous model, replaced by Pioneer GM-D8601 (Ships as 2019 model: Pioneer GM-D8701))
Pioneer GM-D7400M thumbnail
(previous model, replaced by Pioneer GM-D7500M)
Pioneer GM-7300M thumbnail
(previous model, replaced by Pioneer GM-D7400M)
Pioneer GM-7200M thumbnail
(previous model, replaced by Pioneer GM-7300M)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 240 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
Selectable 0, 6, 9, 12 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-D7400M

Weight:

6.50lbs

Internal SKU:

gmd7400m

Internal Product ID:

11634

Product and How-to Videos


Customer Ratings & Reviews


Pioneer GM-D7400M thumbnail image

5 star
69%
4 star
31%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.3
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Pioneer Premier GM-D7400M

This thing is sweet! Works great... $ for $ it a good deal. And its small too

By Robert on August 25, 2008

32 found this helpful


Cheap good amp

I would recommend this amp to anyone if you are looking for a amp which performs for the money. I had this connected to a 8 inch jbl sub and it powered it decently. Its clarity is good, but could be better.

By David on April 26, 2009

30 found this helpful


amp

i have this running two pioneer champ 10's and they knock. if you're looking to save money go with this. cant beat the deal here

By jdub on September 7, 2009

29 found this helpful


Great Amp

I recently bought this amp and i love it. It powers my 400w rms pioneer sub perfectly. This is a great product and i love my new system. highly recommended

By Robert on October 21, 2008

29 found this helpful


two thumbs up

i like the pioneer. the built in cross over is perfect for my factory stereo. small compact and powerful.

By dp on October 13, 2009

28 found this helpful


great value!!

outstanding bang for the buck! one of the cheaper amps in its class. I have two of these each running their own woofer at 2 ohms and they perform great. very durable I have run them literally all day (big roadtrip) at about 80% and had them get hot but NOT overheat, for sound, I mean they arent the loudest things ive ever heard but thats hard to do when youve been to competitions but thats not what I was going for in the firstplace!! I was going for my everyday driver that I could CRANK once a month or so to show off and wow family and freinds on a budget... deffinantly the right choice in these amps!!

By Donny on July 31, 2009

27 found this helpful


Good Buy!

For such a small amp this thing really puts out. I'm extremely impressesd with how hard this thing bumps my two 12"s for sucha low wattage. Definately worth the money and strongly reccomended!!!

By Wolfy on July 6, 2009

28 found this helpful


great value!!

not a bad amp and when the price is considered, this thing whips a$$!! I have 2 of these in an avalanche and they each run their own sub. At full power you really have to work hard to feel any heat coming off of them but I wont say its impossible... they easily put out their rated power and personally i think more, all in all great value for the average bass enthusiast, however if you plan on going high current with your system this might not be the best choice, as you would need at least 4 of these to justify (in my opinion at least) the added cost of going high current.

By Donny on August 26, 2009

27 found this helpful


Gr8 Amp

i bought this amp for a 10" DVC 2ohm kicker CVR. wired it at a 4ohms load and this amp is pushing pretty smooth.

By Joe on May 27, 2009

27 found this helpful


Cool Performer

This little amp is SWEET. It's small, and easy to install. Simple to wire and adjust. Great power output at either 2 or 4 ohms. I have this amp pushing one 10" sub wired at 4 ohms, it never even gets warm. It is mounted under the passenger seat, with 4ga power and ground wires. Runs cool, looks cool, and puts out good clean power. I highly recommend this amp. The only thing I wish it had was a subsonic filter at 40hz.

By Shadow Mantis on January 15, 2010

24 found this helpful




KCA-BT100 small

Kenwood KCA-BT100

Bluetooth adaptor kit for compatible Kenwood car stereos that allows you to connect your cell phone to make hands-free calls in the car

(13)

$69.99

List price $199.99

06S8L74 small

Kicker 06S8L74 Solo-Baric L7 Series

8" Dual 4 ohms DVC L7 Series Subwoofer S8L7 S8L74

(3)

$189.95

List price $299.99

No picture

Audiobahn A6005DN R/B

600W Max, Intake Series Class D Monoblock Amplifier (Factory Refurbished)

$74.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Audi TT Quattro

2011 Kia Sorento

2024 Nissan Armada

2005 BMW 330xi

2003 Mitsubishi Eclipse

2008 Acura TL

2005 GMC Envoy XUV

2004 Hummer H1

1987 Pontiac 6000

2009 Chrysler PT Cruiser

Vehicle
Store
Delete

2007 Harley Davidson FXDC Super Glide Custom

2007 Harley Davidson FLHTC Electra Glide Classic

Vehicle
Store
Delete

2018 Can-Am Defender MAX HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
