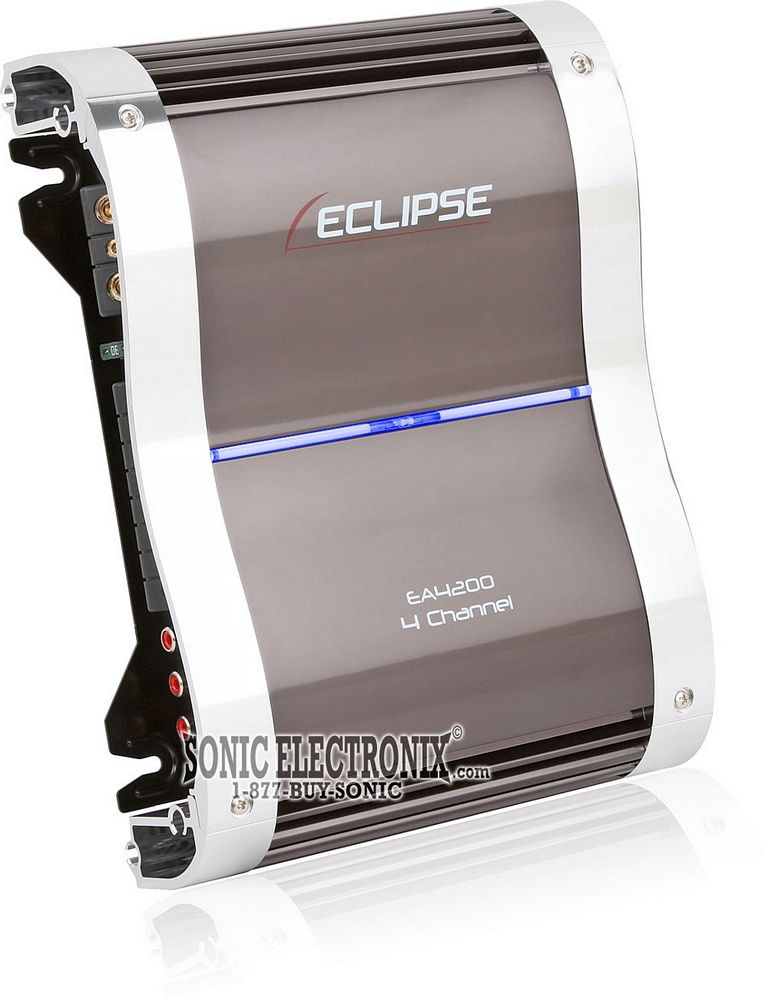

Eclipse EA4200

400W Max, 4-Channel EA Series Amplifier

Eclipse
Shop all Eclipse
Product videos
highlight-star-icon

EA Series 4-Channel Class D Car Amplifier • 60W x 4 chan. @ 4 ohm • 70W x 4 chan. @ 2 ohm • 140W x 2 chan. @ 4 ohm • 100W x 4 chan. Max • Very high efficiency rate with minimal heat build-up • Preamp RCA outputs

Learn more about the ea4200

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7500 main

Metra 82-7500

5-1/4" - 6-1/2" Universal Speaker Adapter Brackets for select 1990-2013 vehicles from Honda, Acura, Mazda

9
-10.53%

$16.99

List price $18.99

70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
HonK834 main

American International HONK834

Double DIN Stereo Dash Kit for select 2003-2011 Element

2
-55.91%

$14.99

List price $34.00

HA08BCB main

Scosche HA08BCB Wiring Harness

Install a new car stereo in select 1998-2019 vehicles from Honda, Acura

4
-16.74%

$9.95

List price $11.95

95-7863 main

Metra 95-7863 Dash Kit

Install a new Double-DIN car stereo in select 2003-2011 Element

4
-41.68%

$13.99

List price $23.99

70-7863 main

Metra 70-7863 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2003-2011 Element

9
-10.45%

$59.99

List price $66.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Product Highlights


EA Series 4-Channel Class D Car Amplifier • 60W x 4 chan. @ 4 ohm • 70W x 4 chan. @ 2 ohm • 140W x 2 chan. @ 4 ohm • 100W x 4 chan. Max • Very high efficiency rate with minimal heat build-up • Preamp RCA outputs

Description


  • EA Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 70 watts x 4 chan.
    • Bridged, 4 ohm: 140 watts x 2 chan.
  • Max power output: 100 watts x 4 chan.

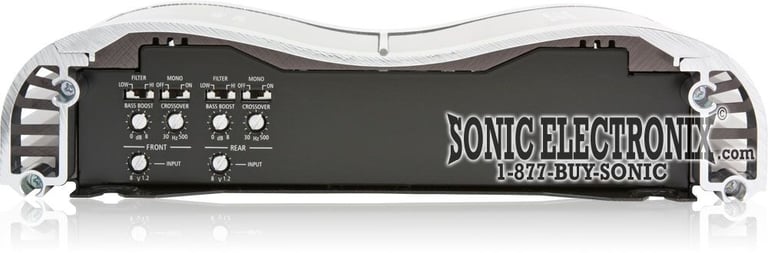

  • LED power indicators
  • Tuned Bass EQ (0-8 dB bass boost at 45 Hz)
  • Very high efficiency rate with minimal heat build-up
  • 4/3/2 channel operation

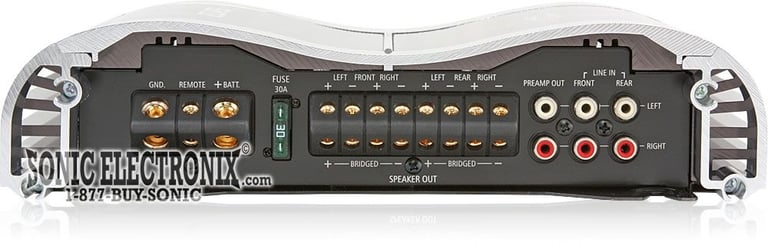

  • Preamp RCA outputs
  • Heavy duty aluminum alloy heatsink
  • Variable high-pass filter (32-500 Hz, 12 dB/octave)
  • Variable low-pass filter (32-500 Hz, 12 dB/octave)
  • Subsonic Filter (18 dB at 20 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Dimensions: 10.1"L x 7.5"W x 2.36"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
70 watts x 4 channel
Bridged RMS Power
140 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
280 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
30 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 8 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

EA4200

Weight:

7.00lbs

Internal SKU:

ea4200

Internal Product ID:

12439

Product and How-to Videos


Customer Ratings & Reviews


Eclipse EA4200 thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.8
Features
4.4
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Excellent Amp

I got this for $105 shipped on eBay and it has been amazing. I have it hooked up to 4 Polk db571 door speakers and it sounds great. It stays cool and the fit and finish is very nice and the blue light is a nice touch. I haven't had a single problem with it and I installed it myself. I would recommend this to anyone looking for an amp for their door speakers.

By Willie on April 9, 2010

30 found this helpful


Great Amp!

I bought this amp to replace my Profile powering my two 10" kickers and i have to say it is probably the b*** b** i have ever made towards an amplifier. It pounds my subs just as hard as my Profile did.

Pros of this amp are that it is very powerful and its small size. Very versitle as to where you can put it. it is also very clean looking and very sharp.

The only thing i would have for Cons is the price tag.

Overall this is one of the best products i have bought over the years. Very powerful, even for the ratings they give it!

By Ryan on August 3, 2009

30 found this helpful


Good solid amp

I've got two RF punch subs and i've tried two different amps on them. The eclipse by far was more durable. I bridged them and it made them hit; this amp could use more power, but for pushing door speakers it would be more than you need! Awesome brand name for the price.

By Jon on September 3, 2008

28 found this helpful


My MoTo Setup

I needed a small yet powerful amp that could power two 4" Polk Audio db401s up front in the fairing... yet also power a JL Audio 6W3v3 6.5" subwoofer (bridged mono) I put into a custom-made Fiberglass enclosure for the trunk.

I am proud to say that my MoTo is now louder than most peoples cars =)

By Gary on March 14, 2010

27 found this helpful


Great Value

This amp powers my door speakers and two little tweeters.
The sound is awesome whether I have it turned down for conversation or rocking out at full throttle

By Dino on January 6, 2010

27 found this helpful




XHD7714 small

Dual XHD7714

In-Dash CD/MP3 Player with Remote, Built-in Bluetooth, HD Radio, iPod Cable, and 3.5mm Aux Input

(33)

$129.99

List price $299.99

LVCB-07 small

Crux LVCB-07

Factory Rear-View Camera Retention for select 2015-2022 vehicles from Ram, Jeep with Digital Camera

$195.75

List price $304.50

MS10LB small

JBL MS10LB

750W Max (250W RMS) 10" Club Marine Single 4 ohm Marine Subwoofer w/ RGB Illumination (Black)

$149.95

List price $279.95

XM-GS400-OB small

Sony XM-GS400 (Open Box)

320W 4-Channel GS Series Compact Car Amplifier

(3)

$159.99

List price $399.99

No picture

Pyle Pro PLMPA35 Open Box Missing (Good, Used)

300W 2-Channel Class AB Mini Amplifier With 3.5mm Input Open Box Missing (Good, Used)

$16.99

List price $51.99

micdatablt small

TYLT MIC-DATABL-T

Blue Micro USB Charge/Sync Cable

$5.00

List price $14.99

XM68V small

Cadence XM68V

6-1/2" XM Series High Performance Mid-Range Speaker Driver

(2)

$12.99

List price $49.99

TX600.4 small

Diamond Audio TX600.4

600W RMS 4-Channel Class AB TX Series Amplifier (TX6004)

$249.99

List price $499.99

IBBAF62 small

Metra IBBAF62

6" Acoustic Speaker Baffles

$11.99

List price $13.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1982 Ford Escort

2005 Honda Element

2012 Subaru Forester

2012 Chrysler 200

2003 Saab 9-3

2012 Ford Expedition

1989 Ford Probe

2012 BMW M6

2014 Ford Flex

2016 Mazda 6

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
