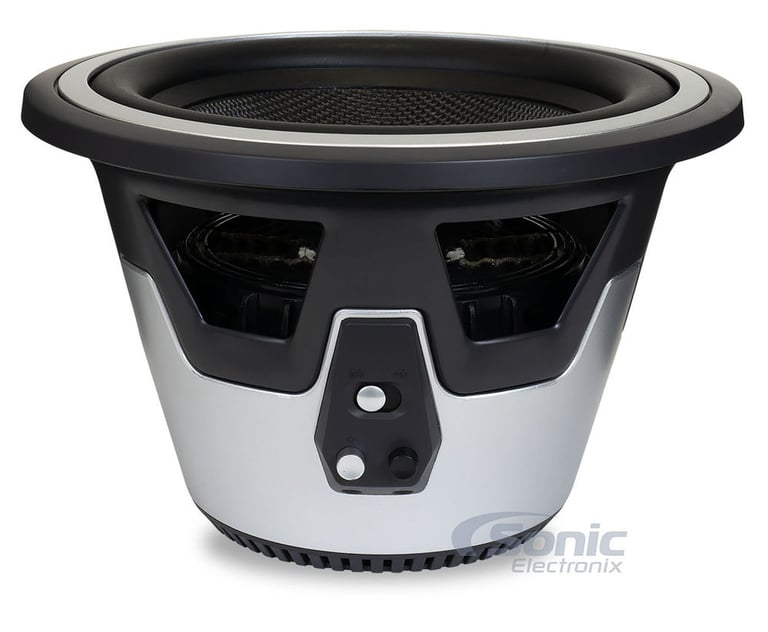

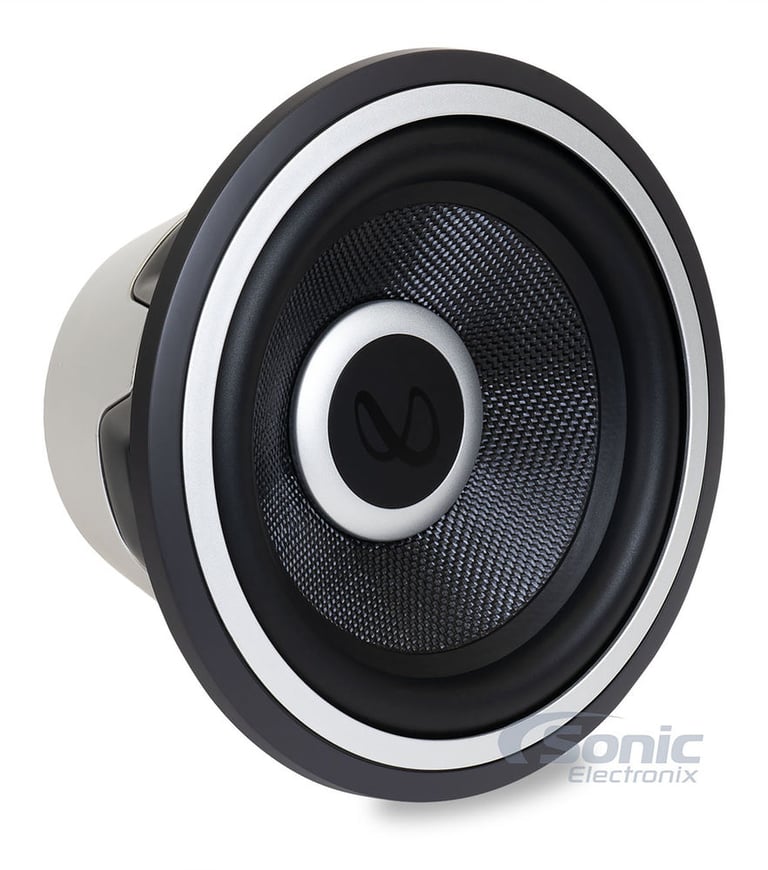

Infinity Kappa 1000W

1800W Peak (450W RMS) 10" Kappa Series Selectable Smart Impedance (SSI™) Subwoofer

Infinity
Shop all Infinity
highlight-star-icon

• 450 Watts RMS
• 1800 Watts Max
• Acoustically damped glass-fiber cone
• Proprietary aero-cooling design
• Acoustically damped glass-fiber cone
• Premium screw down terminals
• Two-sided, ducted airflow design

Learn more about the kappa1000w

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kappa1000wblkam thumbnail

Infinity KAPPA 1000WBLKAM

OUR PRICE: $219.95

View item

Loading...
AXSSO-GM2 main

Axxess AXSSO-GM2

Stop/Start Override Interface in select 2016-2025 vehicles from Chevrolet, GMC, Buick

-10.07%

$124.99

List price $138.99

AXUSBM-A main

Axxess AXUSBM-A

Factory USB Port Retention Adapter in select 2009-2025 vehicles from Chevrolet, GMC, Cadillac

1
-16.69%

$4.99

List price $5.99

LPHGM71 main

PAC LPHGM71

Vehicle Specific Audio Integration T-Harness for select 2019-2024 vehicles from GMC, Chevrolet

1
-42.28%

$86.00

List price $149.00

82-3005 main

Metra 82-3005

6" to 6.75" Speaker Mounting Adapters for select 2010-2025 vehicles from GMC, Chevrolet, Cadillac

10
-11.11%

$31.99

List price $35.99

40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Volkswagen

49
-13.05%

$19.99

List price $22.99

72-4572 main

Metra 72-4572

Install New Speakers in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac

36
-6.67%

$13.99

List price $14.99

EU08 main

PAC EU08

Connect Factory Antenna to a New Aftermarket Stereo for select 2000-2025 vehicles from Volkswagen, Chevrolet, Audi

-16.67%

$20.00

List price $24.00

AXTC-LN30 main

Axxess AXTC-LN30

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2019-2025 vehicles from Chevrolet, GMC, Cadillac

1
-10.00%

$197.99

List price $219.99

99-3022B main

Metra 99-3022B Dash Kit

Single DIN Stereo Dash Kit for select 2018-2022 Equinox

-38.19%

$33.99

List price $54.99

95-3022B main

Metra 95-3022B Dash Kit

Install a new Double-DIN car stereo in select 2018-2022 Equinox

-10.64%

$41.99

List price $46.99

Description


Infinity brand icon

Authorized dealer


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 10" Selectable Smart Impedance (SSI) Kappa Series Subwoofer

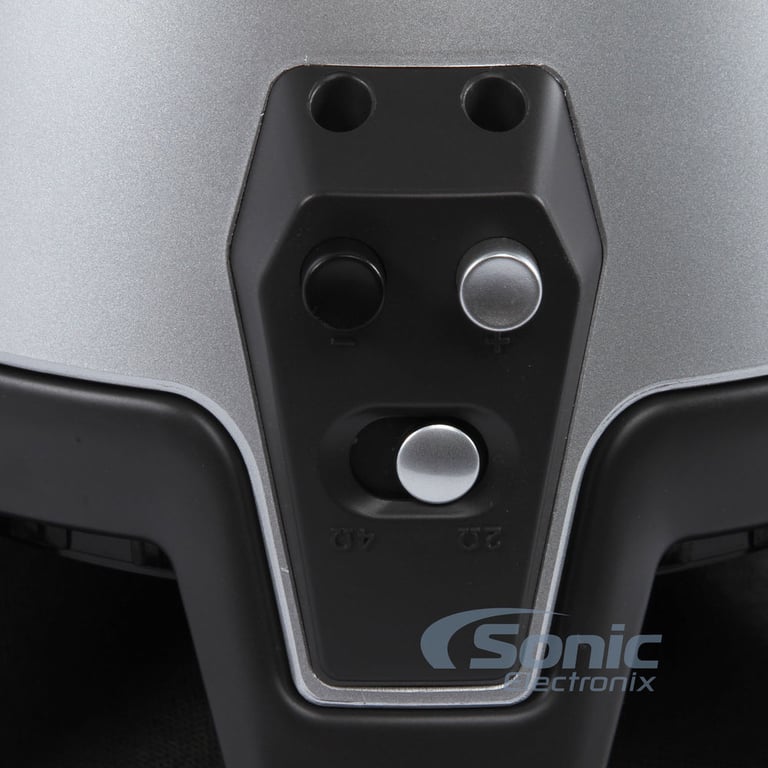

    • Choose between 2 or 4 ohm impedance at the flip of a switch
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 450 watts
  • Recommended power range: 200 - 450W RMS

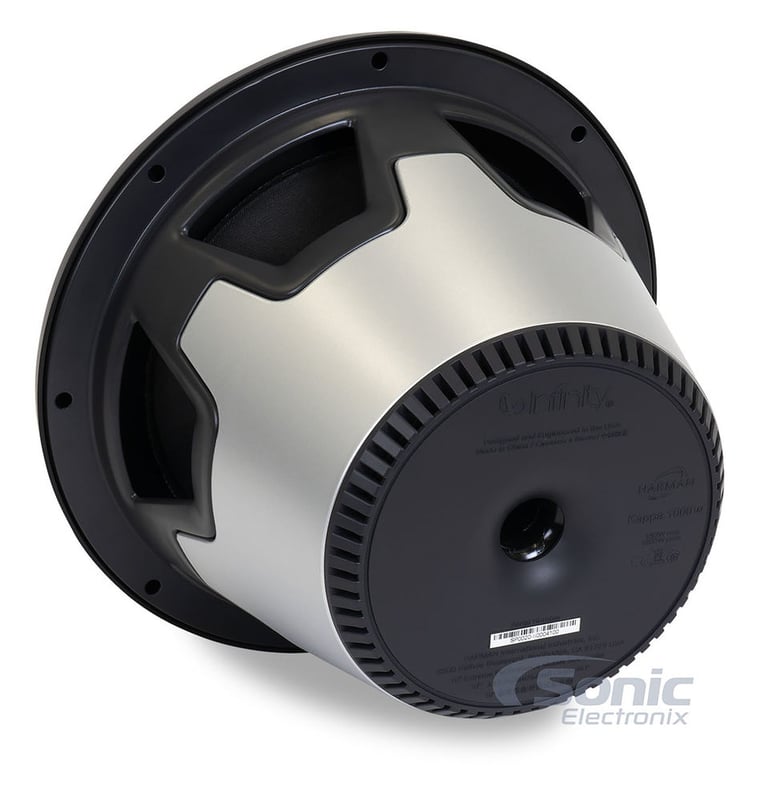

  • Proprietary aero-cooling design keeps the voice coil cool

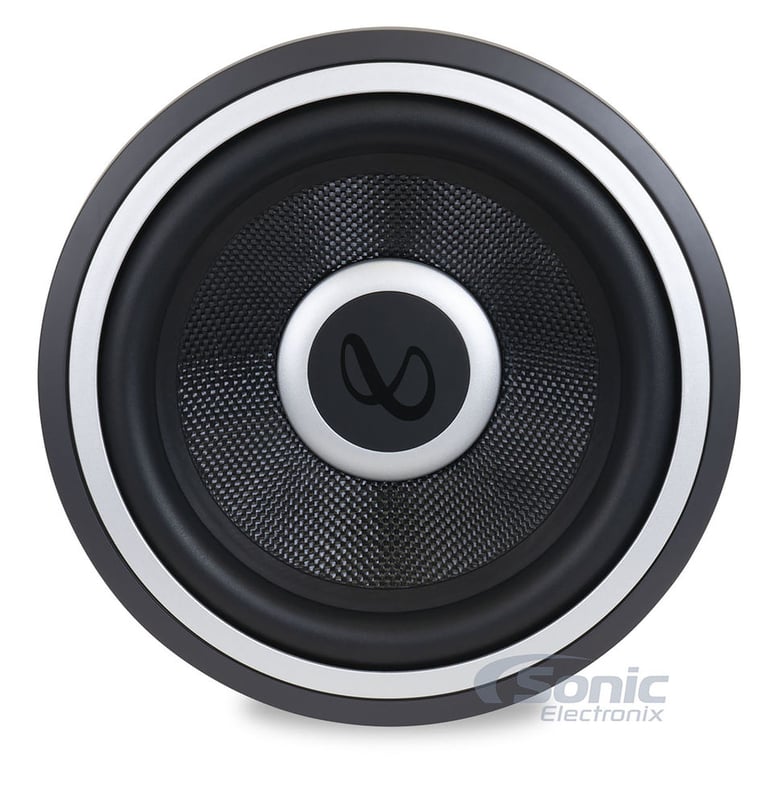

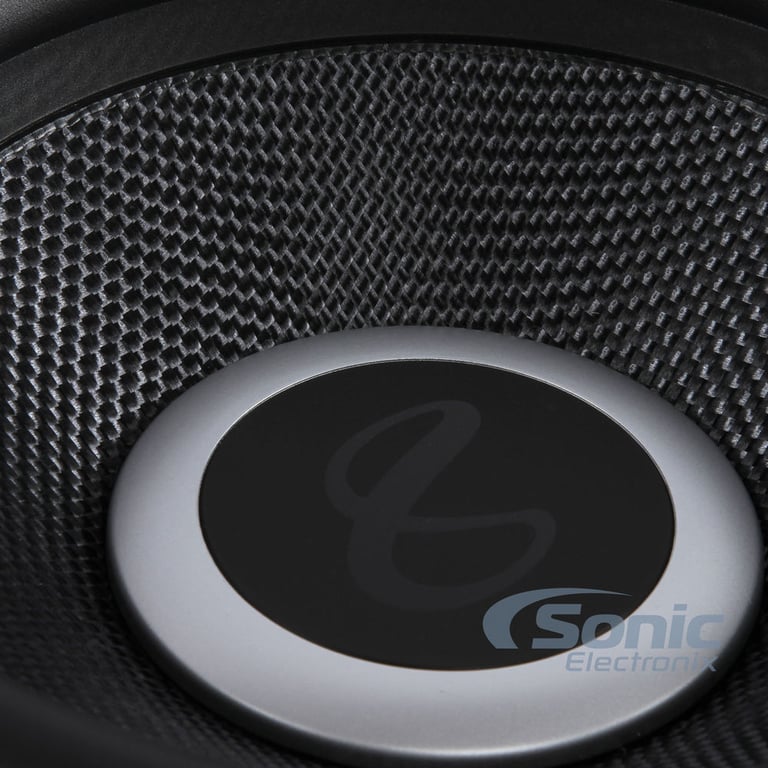

  • Acoustically damped glass-fiber cone
  • Premium screw down terminals
    • Accommodates up to 8 gauge wire
  • Aero-cooled voice coil

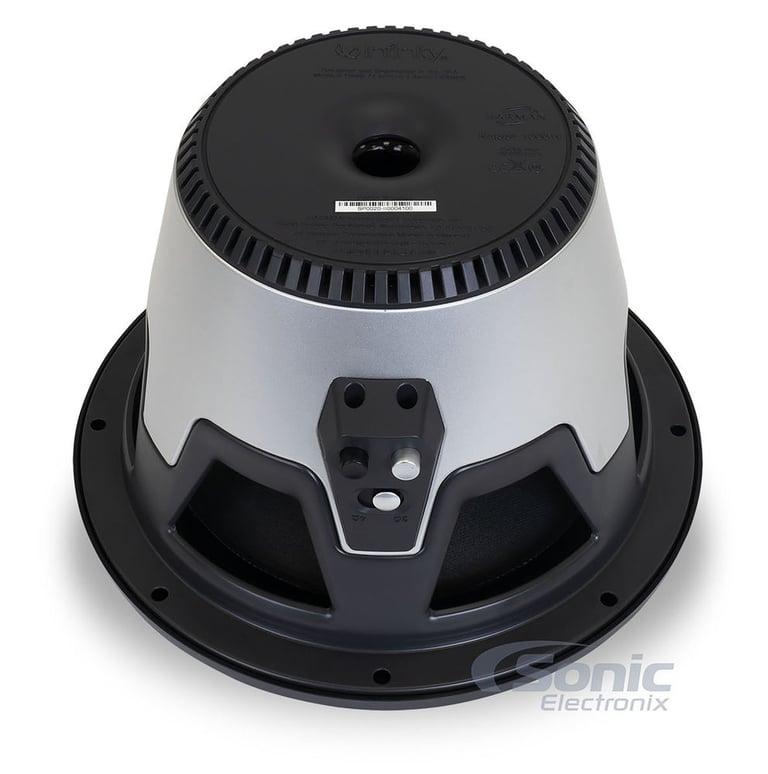

    • Two-sided, ducted airflow design
    • Increases power handling and improves reliability
  • Voice Coil Diameter: 2"
  • Top-mount depth: 6-3/16"
  • Cutout diameter: 9-1/16"
  • Frequency Response: 30 - 175 Hz
  • Sensitivity: 90 dB
  • Resonance Frequency (Fs): 30.5 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

What is Included:

  • Subwoofer
  • Foam Mounting Gasket
  • 3mm Hex Wrench
  • Owner’s manual

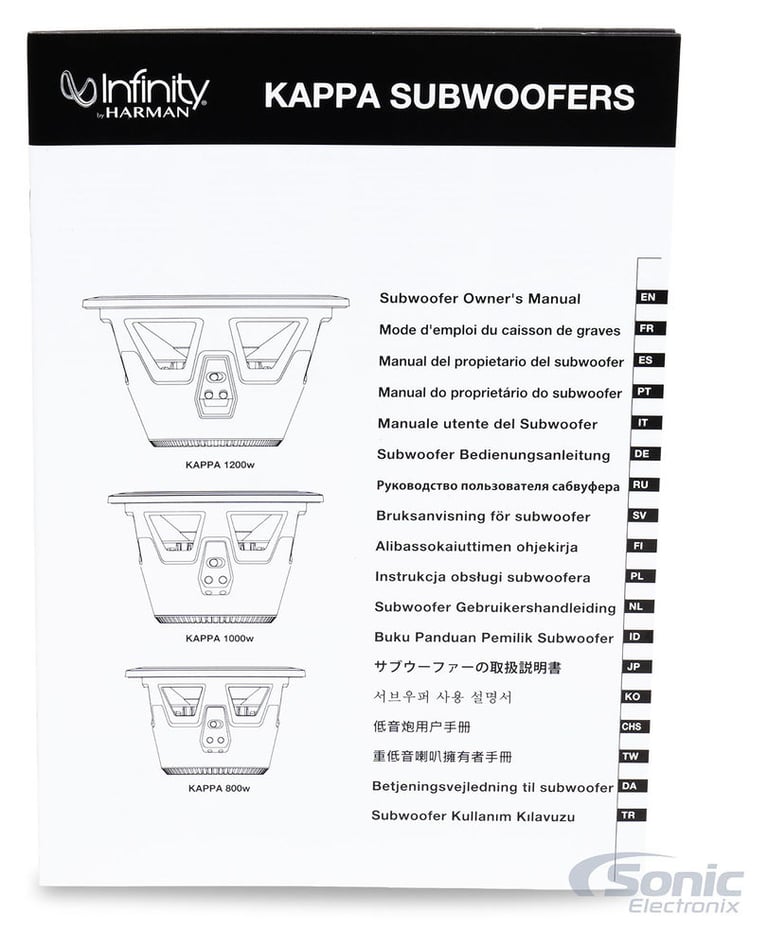

Infinity Kappa 1000W owner’s manual

PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Infinity KAPPA 1000WBLKAM thumbnail
(newest, current model)
Infinity Kappa 1000W thumbnail
(previous model, replaced by Infinity KAPPA 1000WBLKAM)
Infinity 100.9W thumbnail
(previous model, replaced by Infinity Kappa 1000W)
Infinity 102.7w thumbnail
(previous model, replaced by Infinity Kappa 100.9W)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Kappa 1000W Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Kappa 1000W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Kappa 1000W Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Kappa 1000W Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Kappa Series
Subwoofer Size
10"
Peak Power Handling
1800 watts
RMS Power Handling
450 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
30 - 175 Hz
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Glass Carbon Fiber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
6-13/16"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.5 Hz
Equivalent Compliance (Vas)
27.06 liters
Total Speaker Q Value (Qts)
0.37
Electrical Q Value (Qes)
0.408
Electrical Resistance of Voice Coil (Re)
2 or 4 ohms
Mechanical Q Value (Qms)
4
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Illuminated grille (attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Kappa 1000W

Weight:

19.00lbs

Internal SKU:

kappa1000w

Internal Product ID:

125247

Customer Ratings & Reviews


Infinity Kappa 1000W thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.7
Usability
5

Customer Reviews

Sort by:

Loading...

Slamming and articulate, all in one!

I didn't know what I was missing until I got this Infinity KAPPA 1000W. I even had another Infinity, the 100.9w, which wasn't nearly as good. This Kappa 1000W has no problem keeping up with my JBL MS?A5001 amp. I have the sub in a small sealed 0.72 cu.ft. enclosure, and it sounds amazing. Highly recommended!

By Gecko on January 4, 2017 Checkmark Icon Verified purchase

10 found this helpful


Why pay more

I searched for a long time to find a sub woofer that would fit my needs and fit my budget. I came across this infinity 10" sub and took a chance based on the few reviews available online for it. I am glad I did. I have this sub in a .6 cu.ft. sealed enclosure as per the manufacturers recommendation. I needed something that would not take up the entire trunk. I am running this sub in a 5th gen Camaro and I must say that this little sub has some boom. The bass is smooth and tight. You will enjoy this sub and it cost much less than some of the other well known competition. I have only had this sub for a short while so I can not speak for it's durability, but it looks very well put together and sturdy.

By Mace on March 18, 2018 Checkmark Icon Verified purchase

7 found this helpful


Infinity KAPPA 1000W

Very nice sub. Sound was very nice. Great SQ that gets loud

By Anonymous on June 7, 2018

6 found this helpful




P1S2-8 small

Rockford Fosgate P1S2-8 (P1 S2 8 inch) OPEN BOX COMPLETE

Single 2 ohm, 400W 8" Punch Stage 1 Subwoofer (P1S28)

$45.49

List price $149.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2020 Chevrolet Equinox

2024 Genesis G80

1984 Isuzu Trooper

2006 Honda Pilot

2019 Ram Promaster 3500

2015 Lincoln MKZ

2002 Chrysler Concorde

1988 BMW 528e

2003 Saturn Ion-1

2006 Dodge Durango

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
