See all parts that fit your 2007 Sprinter

Infinity KAPPA 1000WBLKAM

1800W Peak (450W RMS) 10" Kappa Series Selectable Smart Impedance (SSI™) Subwoofer

Infinity
Shop all Infinity
highlight-star-icon

• Peak Power: 1800 watts
• RMS Power: 450 watts
• Damped Glass-Fiber Cone
• Rubber Surround
• Impedance: Single 2 or 4 ohm
• Mount depth: 6-1/4"
• Sensitivity: 90 dB

Learn more about the kappa1000wblkam

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Description


Infinity brand icon

Authorized dealer


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


Product Details:

  • 10" Single 2 or 4 ohm Kappa Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 450 watts
  • Damped Glass-Fiber Cone
  • Rubber Surround
  • Smart Impedance (SSI™)
  • Steel Basket
  • 2" High Temperature Voice coil
  • 10.25 mm Xmax
  • Frequency Response: 25 - 400 Hz
  • Resonance Frequency (Fs): 30.5 Hz
  • Sensitivity: 90 dB
  • Sealed box volume: 0.6 cubic feet
  • Ported box volume: 1.5 cubic feet
  • Top-mount depth: 6-1/4"
  • Cutout diameter: 9-1/16"
  • CTA-2031 Compliant: No
  • Authorized Internet Dealer
  • Protective subwoofer grille: No
  • 1-year Manufacturer's Warranty

  • Priced Individually


PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Infinity KAPPA 1000WBLKAM thumbnail
(newest, current model)
Infinity Kappa 1000W thumbnail
(previous model, replaced by Infinity KAPPA 1000WBLKAM)
Infinity 100.9W thumbnail
(previous model, replaced by Infinity Kappa 1000W)
Infinity 102.7w thumbnail
(previous model, replaced by Infinity Kappa 100.9W)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity KAPPA 1000WBLKAM Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity KAPPA 1000WBLKAM Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity KAPPA 1000WBLKAM Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity KAPPA 1000WBLKAM Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Kappa Series
Subwoofer Size
10"
Peak Power Handling
1800 watts
RMS Power Handling
450 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
25 - 400 Hz
Sensitivity
90 dB
Xmax (millimeters)
10.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Damped Glass-Fiber
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.6 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/4"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.5 Hz
Equivalent Compliance (Vas)
27.06 liters
Total Speaker Q Value (Qts)
0.37
Electrical Q Value (Qes)
0.408
Electrical Resistance of Voice Coil (Re)
2 or 4 ohms
Mechanical Q Value (Qms)
4
What is in the box?
Paperwork

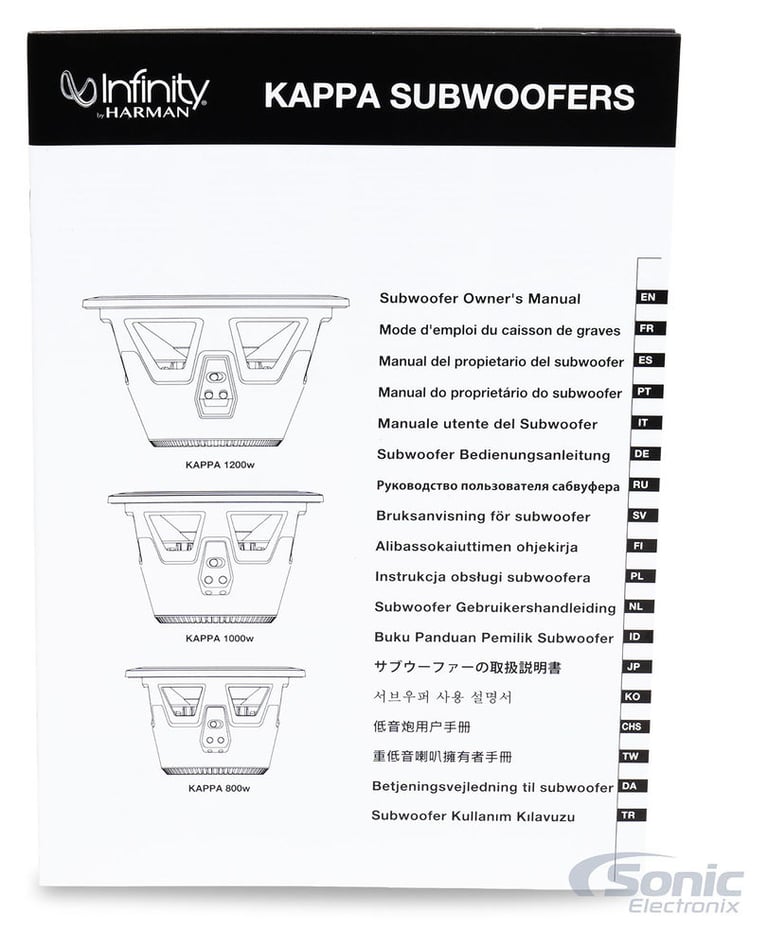

User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KAPPA 1000WBLKAM

Weight:

19.00lbs

Internal SKU:

kappa1000wblkam

Internal Product ID:

174171
