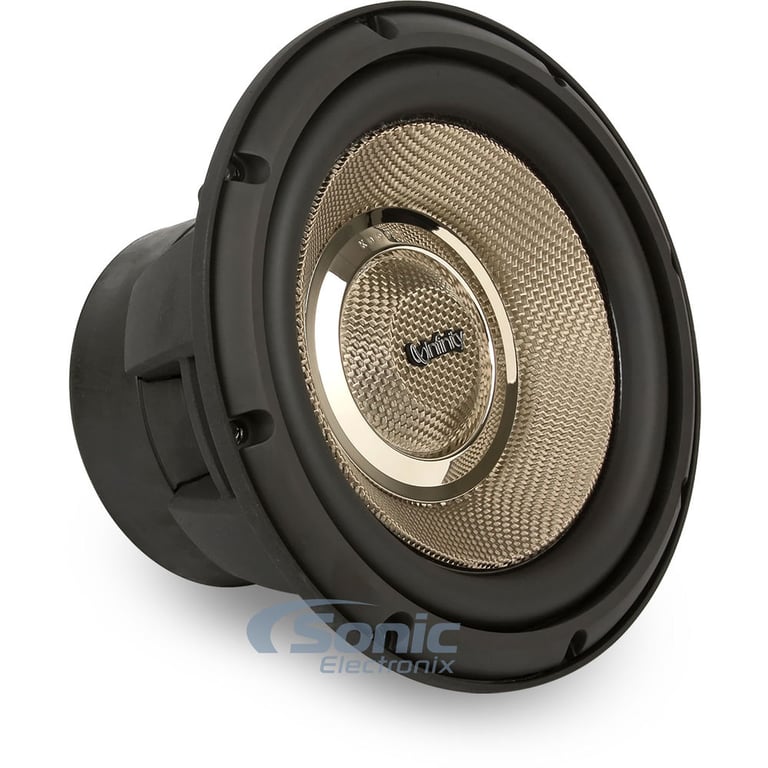

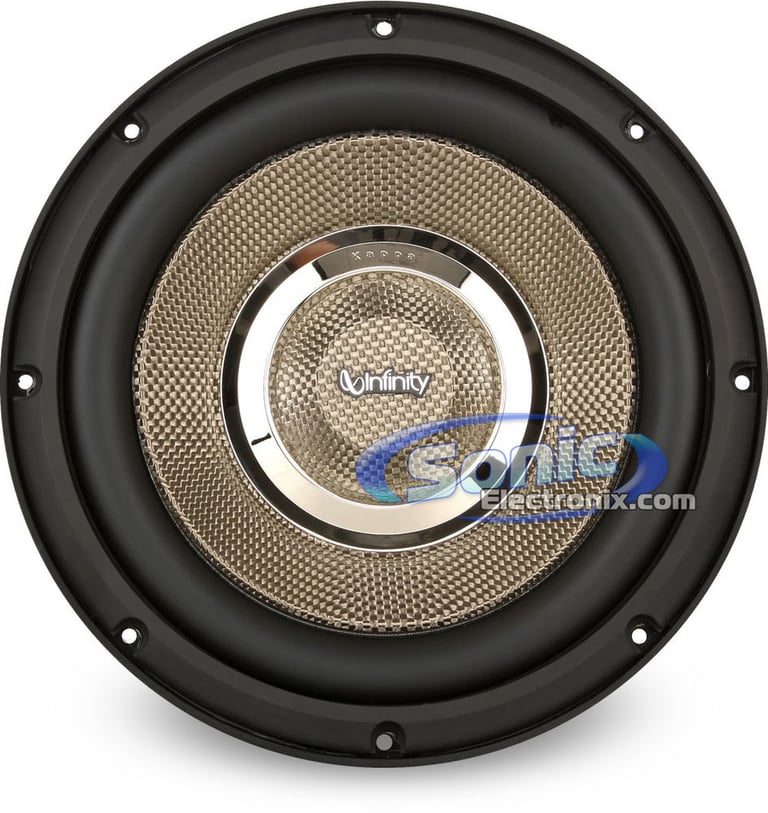

Infinity Kappa 100.9W

350W 10" Kappa Series Selectable Smart Impedance Subwoofer

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 1400W Peak
• 350W RMS

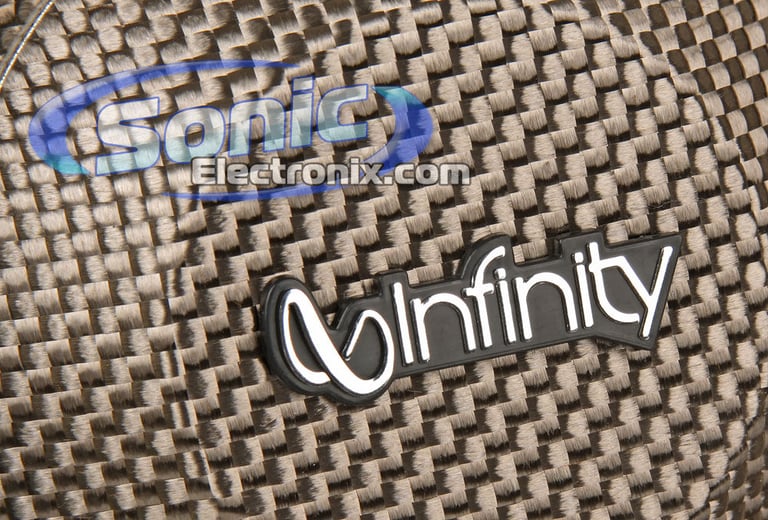

• Coated Glass-Fiber Woofer Cone
• Thick Rubber Surround
• Selectable Smart Impedance (SSI)
• 2" Voice Coil Diameter
• Cast Aluminum Basket

Learn more about the 1009w

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

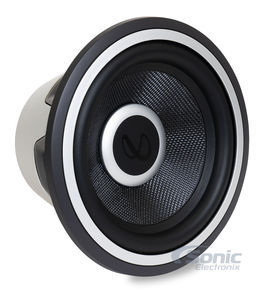

kappa1000wblkam thumbnail

Infinity KAPPA 1000WBLKAM

OUR PRICE: $219.95

View item

Loading...
AXSSO-GM2 main

Axxess AXSSO-GM2

Stop/Start Override Interface in select 2016-2025 vehicles from Chevrolet, GMC, Buick

-10.07%

$124.99

List price $138.99

AXUSBM-A main

Axxess AXUSBM-A

Factory USB Port Retention Adapter in select 2009-2025 vehicles from Chevrolet, GMC, Cadillac

1
-16.69%

$4.99

List price $5.99

LPHGM71 main

PAC LPHGM71

Vehicle Specific Audio Integration T-Harness for select 2019-2024 vehicles from GMC, Chevrolet

1
-42.28%

$86.00

List price $149.00

82-3005 main

Metra 82-3005

6" to 6.75" Speaker Mounting Adapters for select 2010-2025 vehicles from GMC, Chevrolet, Cadillac

10
-11.11%

$31.99

List price $35.99

40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Volkswagen

49
-13.05%

$19.99

List price $22.99

72-4572 main

Metra 72-4572

Install New Speakers in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac

36
-6.67%

$13.99

List price $14.99

EU08 main

PAC EU08

Connect Factory Antenna to a New Aftermarket Stereo for select 2000-2025 vehicles from Volkswagen, Chevrolet, Audi

-16.67%

$20.00

List price $24.00

AXTC-LN30 main

Axxess AXTC-LN30

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2019-2025 vehicles from Chevrolet, GMC, Cadillac

1
-10.00%

$197.99

List price $219.99

99-3022B main

Metra 99-3022B Dash Kit

Single DIN Stereo Dash Kit for select 2018-2022 Equinox

-38.19%

$33.99

List price $54.99

95-3022B main

Metra 95-3022B Dash Kit

Install a new Double-DIN car stereo in select 2018-2022 Equinox

-10.64%

$41.99

List price $46.99

Product Highlights


• 1400W Peak
• 350W RMS
• Coated Glass-Fiber Woofer Cone
• Thick Rubber Surround
• Selectable Smart Impedance (SSI)
• 2" Voice Coil Diameter
• Cast Aluminum Basket

Description


Infinity brand icon

Authorized dealer



Infinity subwoofers have always distinguished themselves clearly from the competition. The Infinity SSI Kappa series subwoofers are no exception and fight on a playing field all their own. Right away the coated glass-fiber cone shows off an air of sophistication and style while offering incredible rigidity that minimizes distortion.

Once you get past the cultured exterior, the interior components uphold Infinities affinity for advanced technology. This Kappa sub utilizes a triple voice coil system which gives it the incredible ability to offer selectable impedance. Selectable Smart Impedance (SSI) technology allows this sub to run at 2 Ohms or 4 Ohms with the flick of a switch. This allows you to extract the most from your subwoofer amplifier in any situation. If you decide to add a subwoofer down the line, SSI makes it easy to reconfigure your entire system without buying different subwoofers or amplifiers.

The SSI Kappa subwoofers handle a remarkable amount of power and sound incredible in sealed or ported enclosures. If you want great sounding bass with unheard of wiring versatility, Infinity Kappa subs are technologically advanced enough to handle it.


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 10" SSI Kappa Series 2 Ohm or 4 Ohm Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 350 watts
  • Impedance: Selectable 2 or 4 ohm
  • Coated glass-fiber woofer cone
  • Thick rubber surround

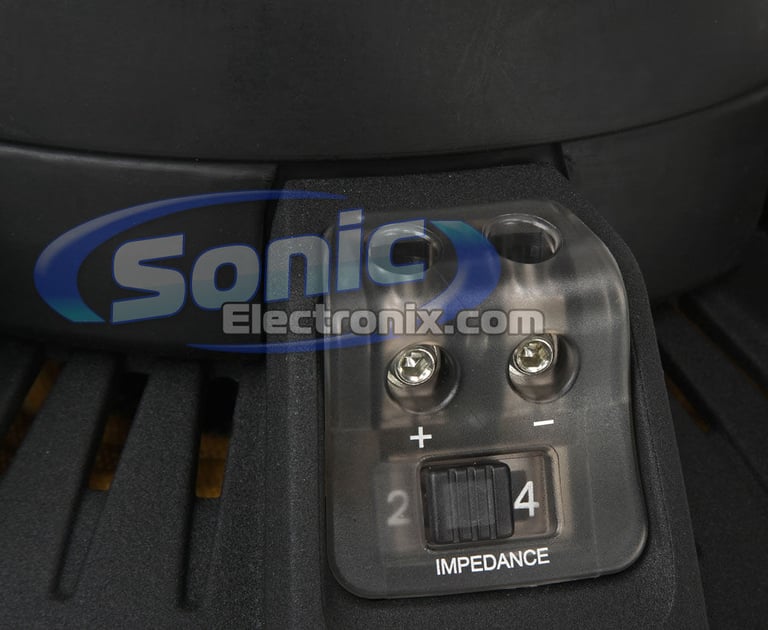

  • Selectable Smart Impedance (SSI) lets you set the subwoofers impedance with the flip of a switch

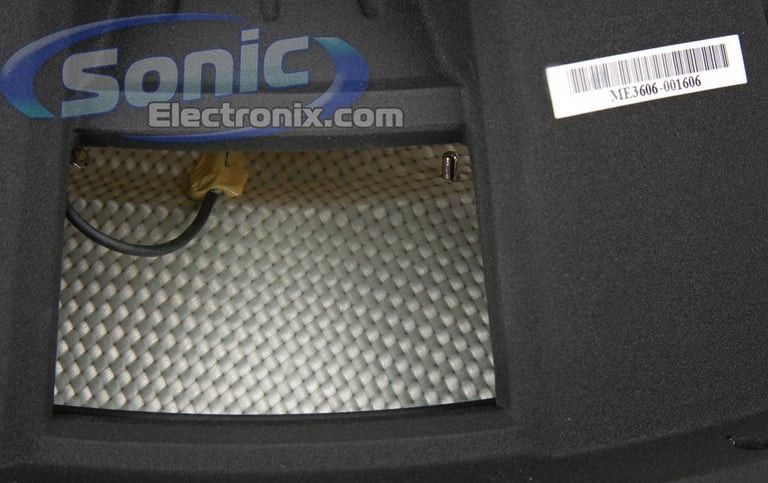

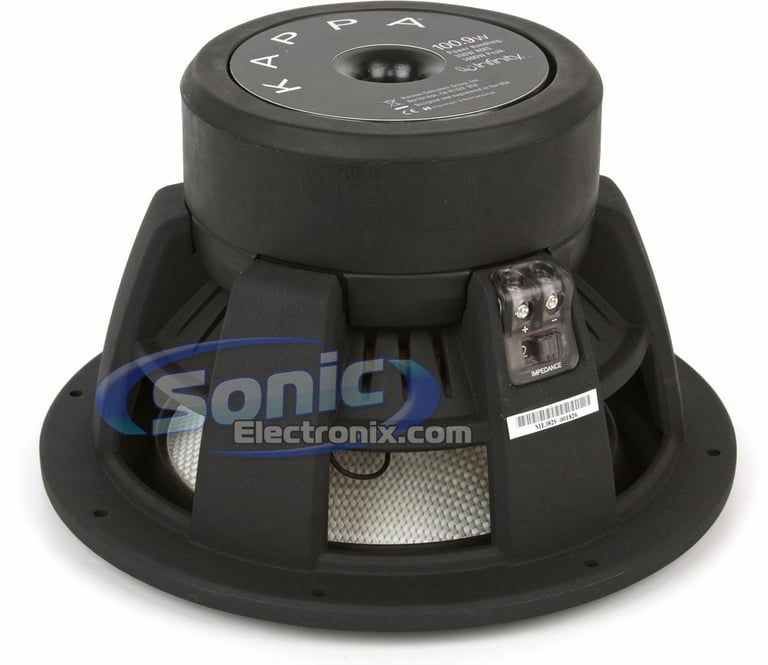

  • Cast aluminum basket with voice coil vents
  • Triple voice coil technology
  • 2" Voice coil diameter
  • Rubber boot surrounds the magnet structure
  • Frequency response: 25-400 Hz
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

Package Includres:

  • 100.9w SSI Subwoofer
  • Foam Mounting Gasket

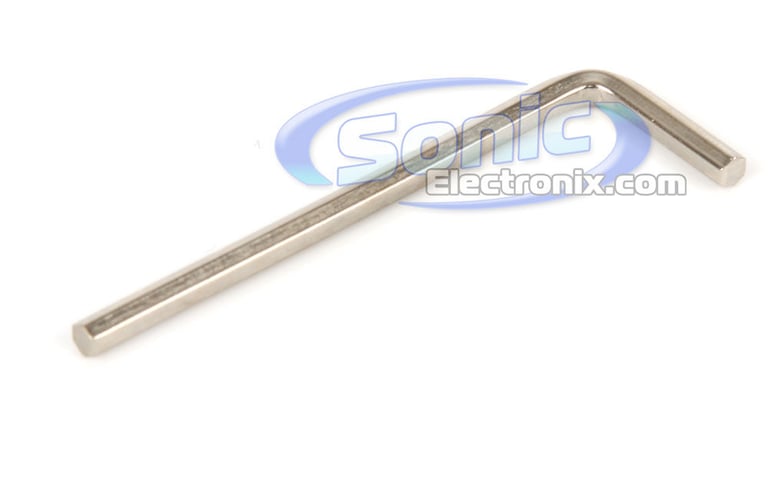

  • 3mm Hex Wrench

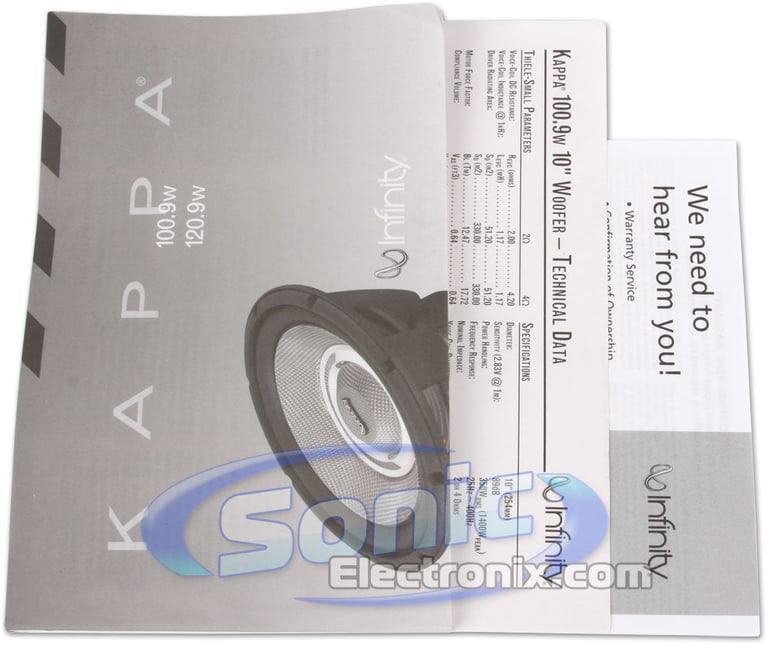

  • Owner's Manual
  • Technical Data Sheet

Learn more about the 100.9W at our blog.

Product history:

Infinity KAPPA 1000WBLKAM thumbnail
(newest, current model)
Infinity Kappa 1000W thumbnail
(previous model, replaced by Infinity KAPPA 1000WBLKAM)
Infinity 100.9W thumbnail
(previous model, replaced by Infinity Kappa 1000W)
Infinity 102.7w thumbnail
(previous model, replaced by Infinity Kappa 100.9W)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Kappa 100.9W Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Kappa 100.9W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Kappa 100.9W Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Kappa 100.9W Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Kappa Series
Subwoofer Size
10"
Peak Power Handling
1400 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Frequency Response
25 - 400 Hz
Sensitivity
89 dB
Xmax (millimeters)
17.55 mm
Subwoofer Design
Round / Circle
Main Cone Color
Gold
Woofer Composition
Coated Glass Fiber
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-15/16"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

100.9W

Weight:

19.00lbs

Internal SKU:

1009w

Internal Product ID:

20026

Product and How-to Videos


  • Infinity Kappa Subwoofers with SSI (Selectable Smart Impedance) 120.9W & 100.9W
  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Infinity Kappa 100.9W thumbnail image

5 star
83%
4 star
10%
3 star
0%
2 star
5%
1 star
2%



Durability
4.7
Value
4.6
Features
4.9
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

GREAT sound

I have many years of experience in studio recording in the music industry - as a musician. So I was looking to build a system that can replicate the studio sound as best as I could to listen to a wide variety of music. I do not need thumping deep rattle the next car bass, I want clean musical sound. I have had alpine subs and those can punch and get some solid deep bass, but that was not my goal with this setup (although it can do that too, rather well). This is my 2nd purchase of this sub in a second vehicle and in both cases this has performed exactly what I needed. The sound of an upright bass sounds amazing, can easily go into the higher frequency range and make the transition from door speakers to sub seamless. I bought this sub to play anything I threw at it and do it well, not to only play one type of music all the time. Mostly Jazz, Classic Rock, Ska, 90's, Classical, Pop (wife likes that stuff..) and occasional R&B. I recommend the kappa components to go along with the sub - some say the highs are harsh, but I call it accurate and clear. This sub can do it all, I'm very happy with it.

TL;DR, get this amazing sounding sub for your setup if you want perfect sound and a strong presence. Might want to go larger than 10" or another brand if you want that deep killer decibel punch and trunk rattling bass;)

By Mike on August 16, 2014

58 found this helpful


Awesome sub for the price

It hits hard and looks great. The 4 to 2 ohm switch makes setting up your amp easy. I'm running it with a mono block jl 500 watt amp and outs loud and hitting great.

By Adam on August 16, 2014

55 found this helpful


car speakers

These speakers sound nice and balanced not to boomy but a good punchy bass and treble sound. They can handle whatever power amplification is fed to them. I would recommend them for their overall value and just crisp clear sound without the distortion.

By sam medina on May 23, 2014

54 found this helpful


Infinity subs and speakers. Bad a** products

Love infinity products. The 100.9 is a great value and very good addition to any system they sous excellent and can handle the power. Highly recommend

By Cab300zx on August 11, 2014

53 found this helpful


Great price on a great product

Good tight bass response, very durable, good price highly recommended.

By Jaym on September 26, 2012

51 found this helpful


high quality

have lots of experience in the car audio industry and decided to get these after doing research on what i felt would be best for my setup. My last system had 2 L7 12s but this time i was looking to conserve a little more trunk space and was looking for more quality. put this in the recommended .75 sealed enclosure powered by a polk 5 channel amp and have been impressed so far. doesn't hit the lows like my last setup but for the size this really packs a punch. One of the most accurate sounding subs ive heard. going to try it in a ported box soon to compare.

By jeeves on September 25, 2013

52 found this helpful


Great sound

Great item, sound is excellent , best item I brought, the value is ok.

By Anudra on October 23, 2012

50 found this helpful


Great sub!

For a single 10", this sub hits hard. It looks even better. Hookup is flexible with the 2ohm switch. Makes wiring that much easier. Just what I needed to add clear bass to my system without annoying everyone else around me.

By Allan on August 19, 2012

48 found this helpful


Sweet Sub

Nice smooth sound comes from this amp, looks great too!

By chad on April 8, 2014

50 found this helpful


High Quality Sound

I ordered two of these and built a box to Infiinty's specs with 1" MDF. These sound so great! They don't play extremely loud (powered perfectly by a Kappa One) but they blend so well with the rest of the system. The sound is clean and hard, not boomy. On that note they can handle high volume, but if you want that slammin' bass in your face feel, these aren't for you (I know these are only 10's. but I'm confident the 12's are very similar). I am an Infinity loyalist in the car as well as home, and these remind me why!

By J Ro on September 3, 2013

46 found this helpful




40CWS84 small

Kicker 40CWS84 (CompS84) OPEN BOX COMPLETE

200W 8" Comp S Series Single 4-Ohm Subwoofer

$69.95

List price $99.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2020 Chevrolet Equinox

2024 Genesis G80

1984 Isuzu Trooper

2006 Honda Pilot

2019 Ram Promaster 3500

2015 Lincoln MKZ

2002 Chrysler Concorde

1988 BMW 528e

2003 Saturn Ion-1

2006 Dodge Durango

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
