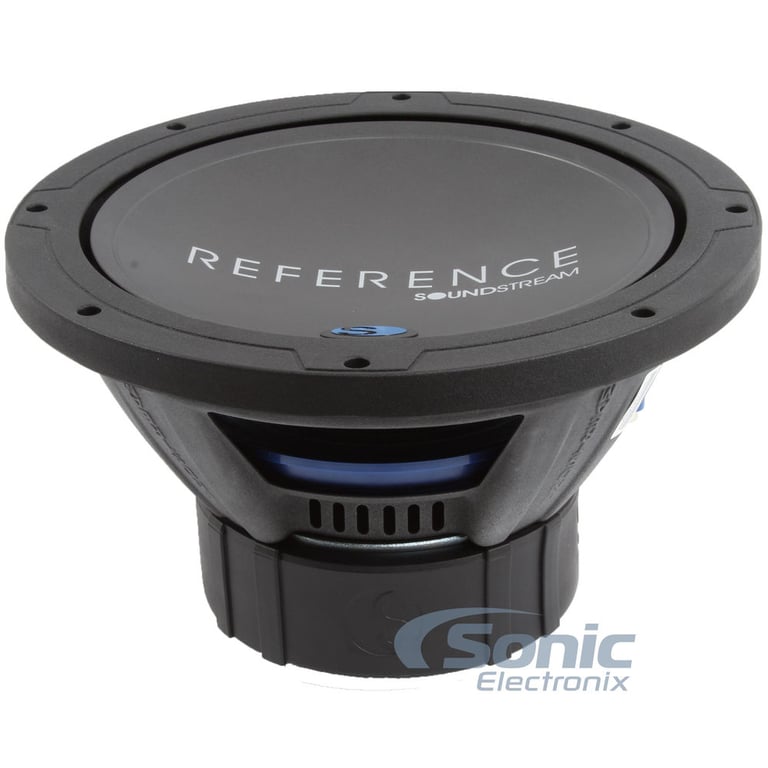

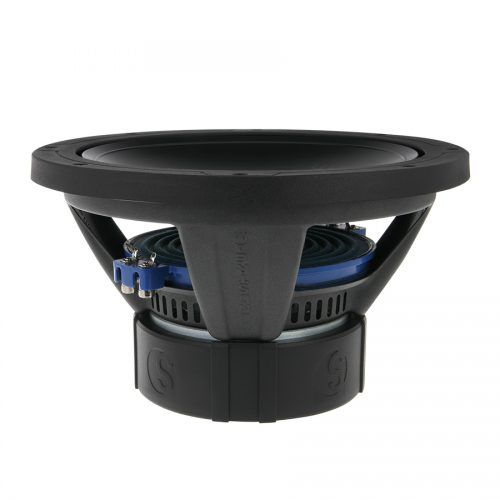

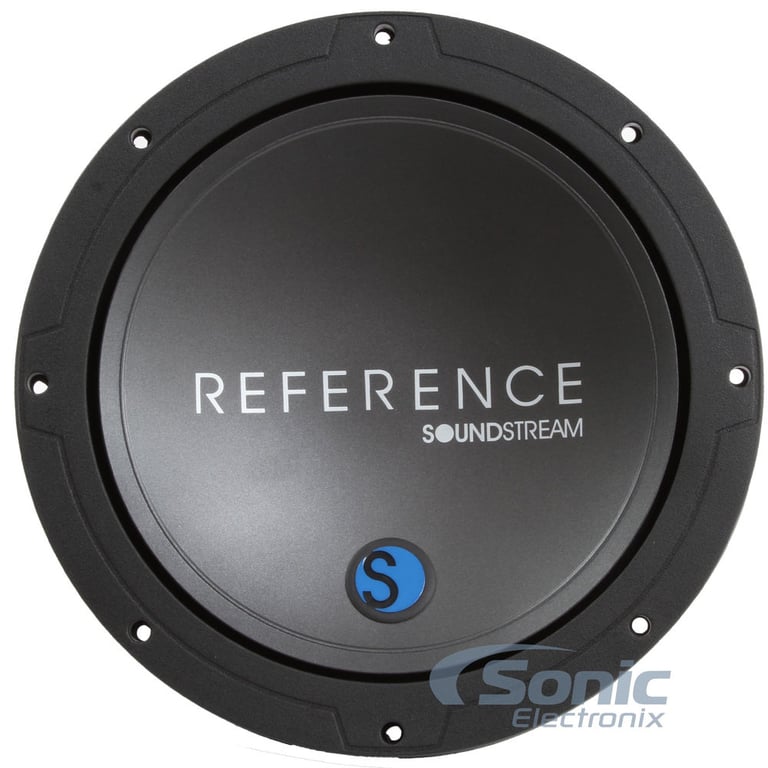

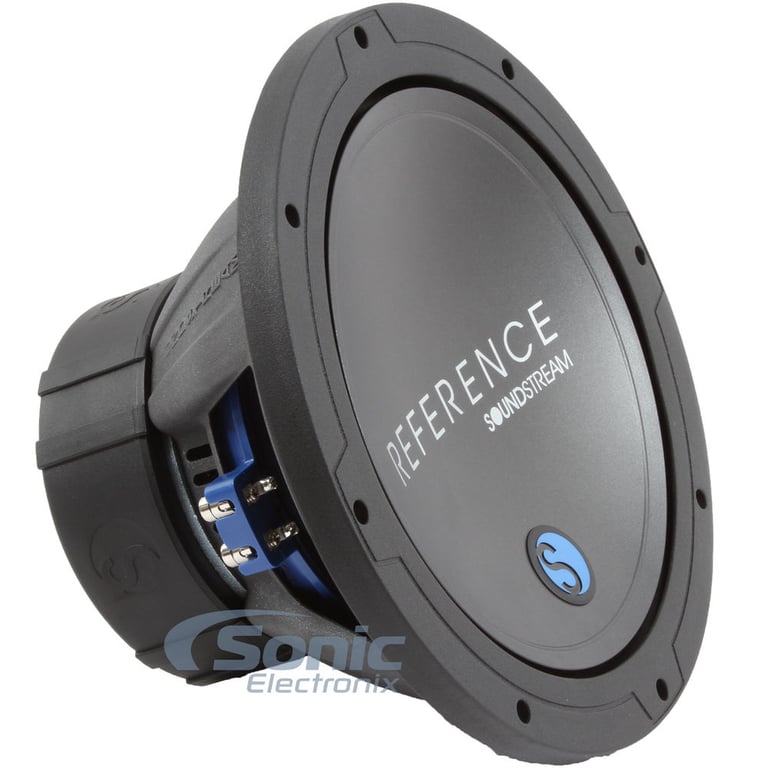

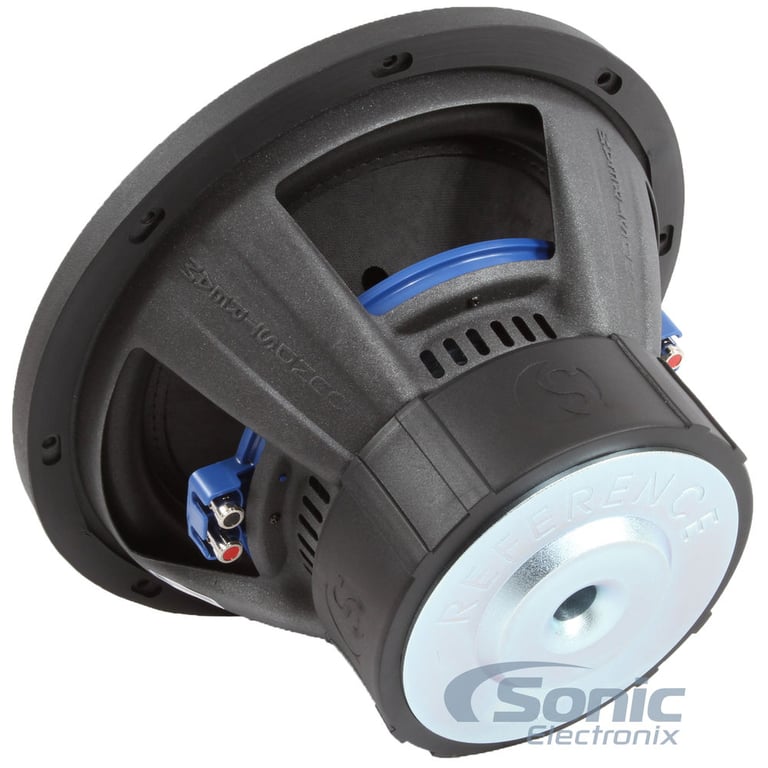

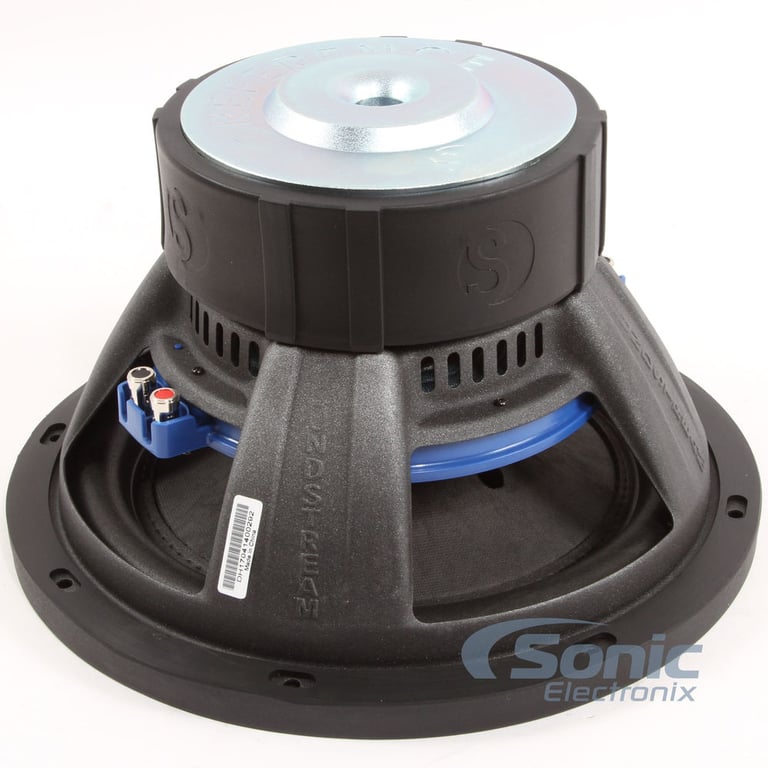

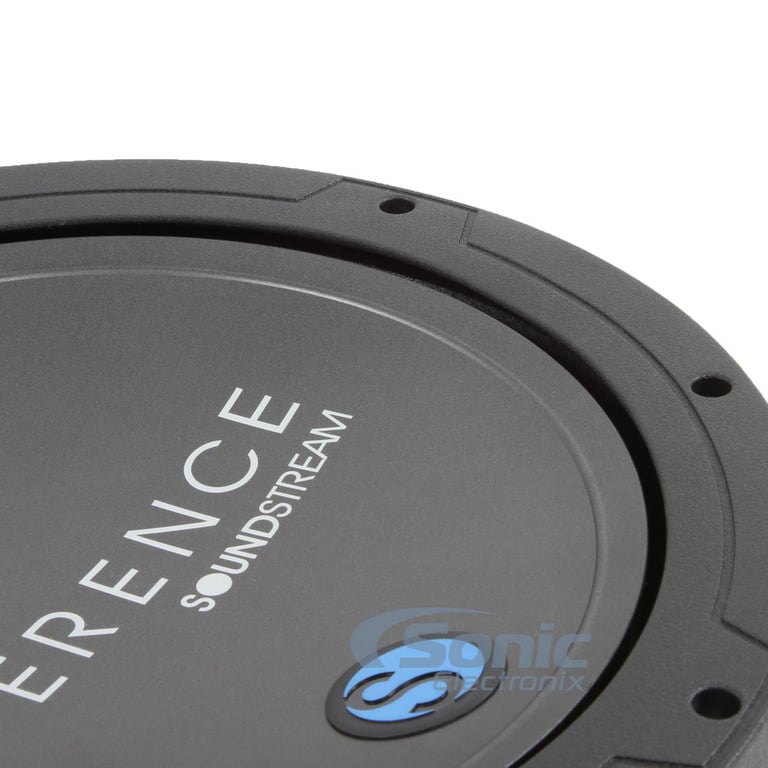

Soundstream R.124

2000W Max (1000W RMS) 12" Series Dual 4 Ohm Car Subwoofer

Soundstream
Shop all Soundstream
highlight-star-icon

• 2000 Watts Max
• 1000 Watts RMS
• Non-Transfer Spruce Pulp Cone, Concave Injection-Molded Polypropylene Cone
• Inverted Roll Polyether Foam Surround
• Third Generation Soundstream Reference Frame
• Stitched Voice Coil Leads
•2.5" 4-Layer Voice Coil

Learn more about the r124

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Description


Soundstream brand icon

Authorized dealer

General Features:

  • 12" 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 2,000watts
    • RMS: 1,000 watts
  • Oversized concave injection-molded polypropylene cone
  • Inverted roll polyether foam surround
  • Non-transfer spruce pulp cone
  • Stitched voice coil leads
  • Third generation Soundstream Reference frame
  • Two sets of push terminals
  • 2.5" 4-layer voice coil
  • Double stacked 317 oz. magnet
  • Top-mount depth: 7"
  • Cutout diameter: 11"
  • Sensitivity: 84.36dB
  • Resonance Frequency (Fs): 27.62
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Product history:

Soundstream R.124 thumbnail
(newest, current model)
Soundstream R1.124 thumbnail
(previous model, replaced by Soundstream R.124)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Soundstream R.124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Soundstream R.124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Soundstream R.124 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Soundstream R.124 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Reference R1 Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
84.36 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Polyether Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Optimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Optimum Ported Box Volume
2 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
7.75"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27.62 Hz
Equivalent Compliance (Vas)
2.13 liters
Total Speaker Q Value (Qts)
.54
Electrical Q Value (Qes)
.59
Electrical Resistance of Voice Coil (Re)
7.23 ohm
Mechanical Q Value (Qms)
6.19
