See all parts that fit your 2010 Golf

MB Quart ZA2-1500.5 (ZA21500.5)

1500W RMS Z-Line Class-D 5-Channel 1-Ohm Stable Amplifier with Bass Knob Included

MB Quart
Shop all MB Quart
highlight-star-icon

• 60 Watts Peak x 4, 350 watts x 1 @ 4 ohm
• 100 watts x 4 chan., 750 watts x 1 chan @ 2 ohm
•1 ohm: 1,000 watts x 1 chan. only @ 1 ohm
• Total Peak Power: 1,400 Watts
• Built-in High and Low Pass Filters
• Heavy Duty Aluminum Alloy Heatsink
• Dimensions: 23.38" W x 10.63" L x 3.25" H

Learn more about the za215005

We apologize

This item has been discontinued


Loading...
82-VW1 main

Metra 82-VW1

Volkswagen 1998-2015 Speaker Adapter Kit - Front

1
-30.78%

$26.99

List price $38.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
Limited time!
P1V2-675 main

Rockford Fosgate Punch P1V2-675

300W Peak (150W RMS) 6.75" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.00%

$179.99

List price $239.99

Limited time!
DCPA813 main

Dual DCPA813

8” Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto

-10.35%

$259.99

List price $289.99

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

Description


MB Quart brand icon

Authorized dealer

General Features:

  • MBA Quart ZA2-1500.5
  • Class-Q1 (D) Full Range 5-Channel Amplifier with 1 ohm stable 5th channel
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan., 350 watts x 1 chan.
    • 2 ohm: 100 watts x 4 chan., 750 watts x 1 chan.
    • 1 ohm (Subwoofer channel only): 1,000 watts x 1 chan. only
    • 4 ohm, bridged: 300 watts x 2 chan., 500 watts x 1 chan.
  • Total Power Output: 1400 watts total (100W x 4 chan. at 2 ohm + 1000W x 1 chan. at 1 ohm)

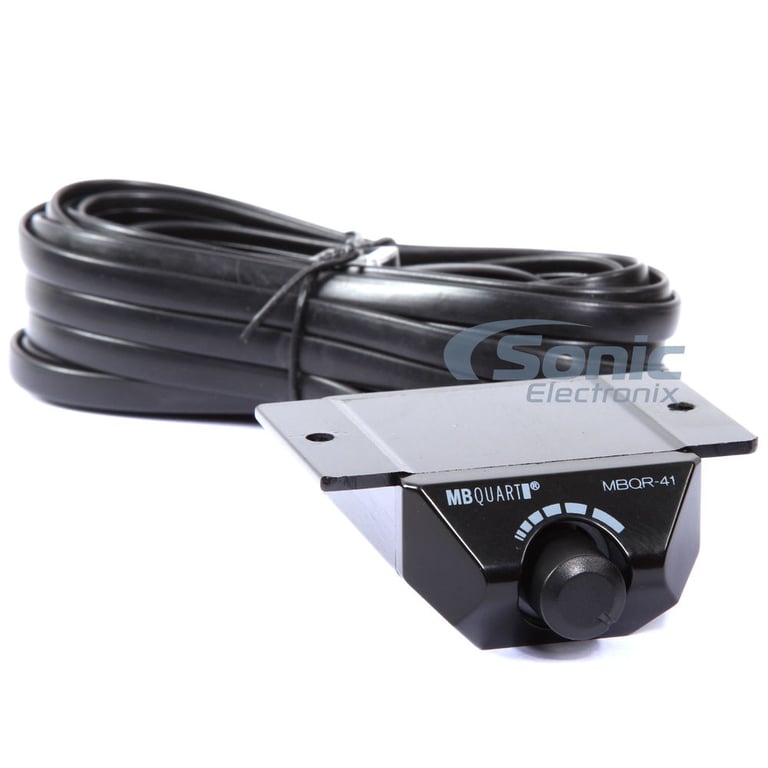

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

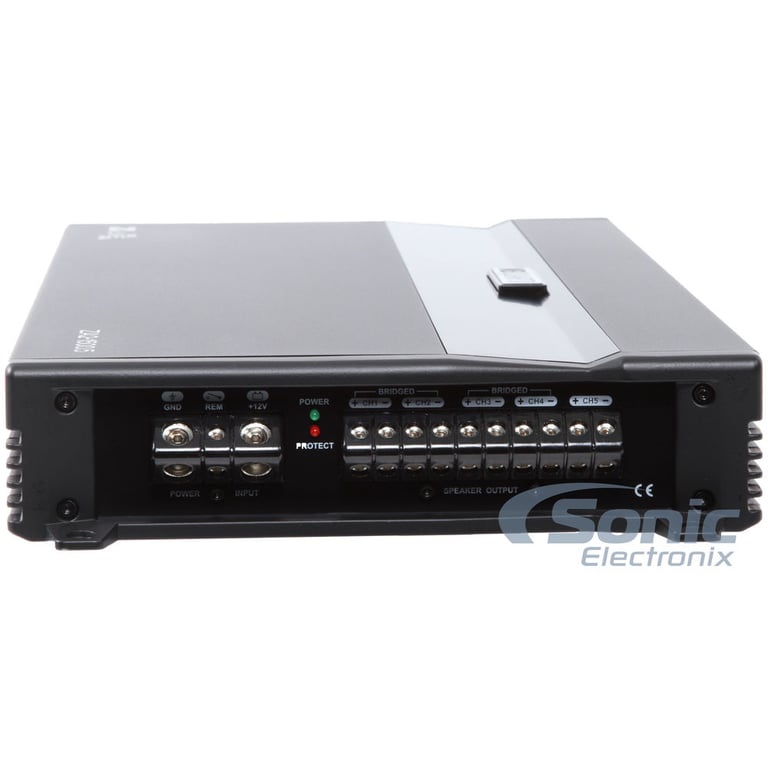

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Frequency Response: 10 - 45,000 Hz
  • Total Harmonic Distortion (THD): <.05%
  • Signal to Noise Ratio: >90 dB

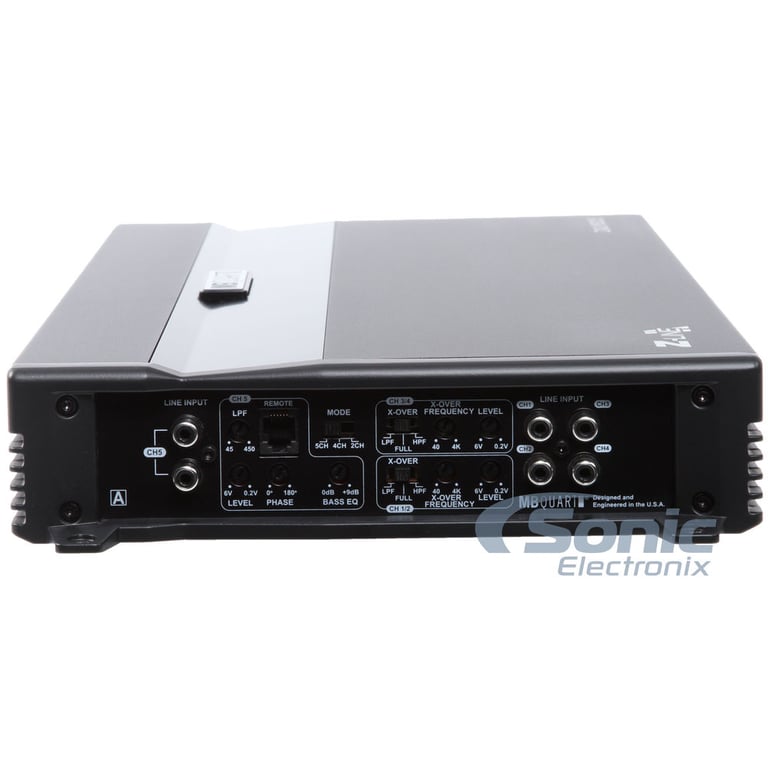

  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Subsonic filter: 10 -40 Hz, 12dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 50 Hz
  • Fuse Rating: 150 A x 1, external
  • 2-4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 23.38"W x 10.63"L x 3.25"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the ZA2-1500.5 product manual

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(10)

$259.99

List price $323.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$499.99

List price $600.00

HD900/5 small

JL Audio HD900/5

• 100 watts x 4 channel + 500 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 150 watts x 2 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 1.5 ohm Stable 5-Channel Amplifier

(23)

$1549.99

List price $1549.99

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$649.99

List price $779.98

Specifications & Details


Power Specifications - Full Range Channels
Peak Power @ 4 ohms
60 watts x 4 channel
Peak Power @ 2 ohms
100 watts x 4 channel
Bridged Peak/Max Power
300 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
350 watts x 1 channel
Peak Power @ 2 ohms
750 watts x 1 channel
Peak Power @ 1 ohm
1,000 watts x 1 channel
Amplifier Specifications
Series
Z-Line Series
Amplifier Class
SQ
Number of Channels
5-Channel
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 4,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
150A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZA2-1500.5

Weight:

13.00lbs

Internal SKU:

za215005

Internal Product ID:

128323
