Open Box, Great - Hifonics ZRX1200.1D 1200W Max Zeus Series 1-Ohm Stable Class D Monoblock Amplifier

by Hifonics

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Hifonics ZRX1200.1D Open Box Complete Image 1 — Hifonics ZRX1200.1D Open Box Complete

Hifonics ZRX1200.1D Open Box Complete Image 2 — Hifonics ZRX1200.1D Open Box Complete

Hifonics ZRX1200.1D Open Box Complete Image 3 — Hifonics ZRX1200.1D Open Box Complete

Hifonics ZRX1200.1D Open Box Complete Image 4 — Hifonics ZRX1200.1D Open Box Complete

Hifonics ZRX1200.1D Open Box Complete Image 5 — Hifonics ZRX1200.1D Open Box Complete

Hifonics ZRX1200.1D Open Box Complete Image 6 — Hifonics ZRX1200.1D Open Box Complete

Product highlights

• Item Condition: Open Box Complete
• Peak: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total Peak Power: 1200W
• Class D Circuitry
• Variable Bass Boost: 0 to +10 dB at 45 Hz
• Wired Bass Remote Included
• Dimensions: 12"L x 10"W x 2-7/16"H

Learn more about the ls-zrx12001d-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

A part that is fully functional but shows no sign of use outside of installation.

General Features:

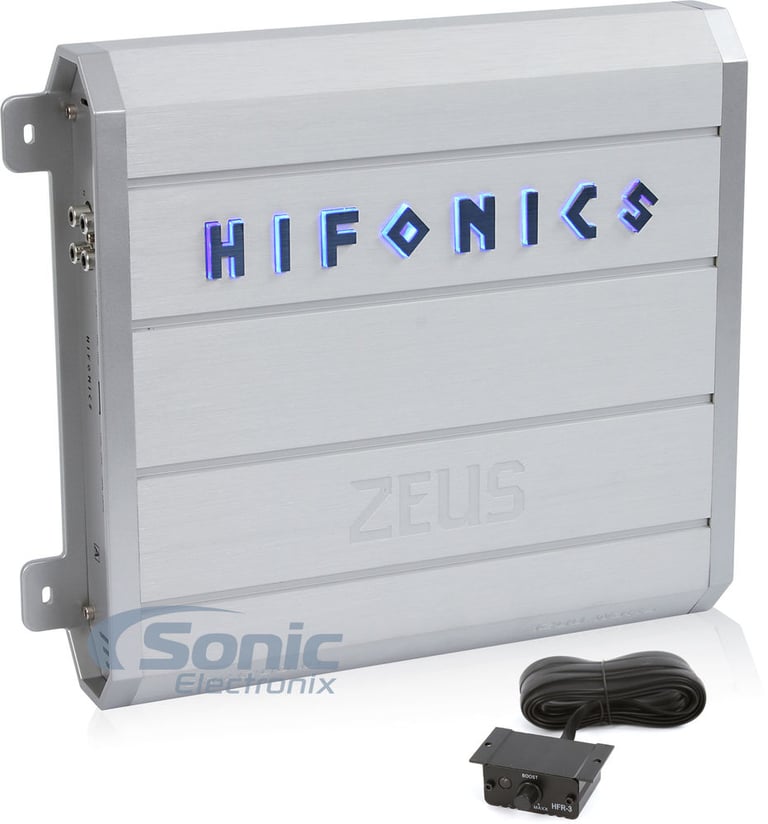

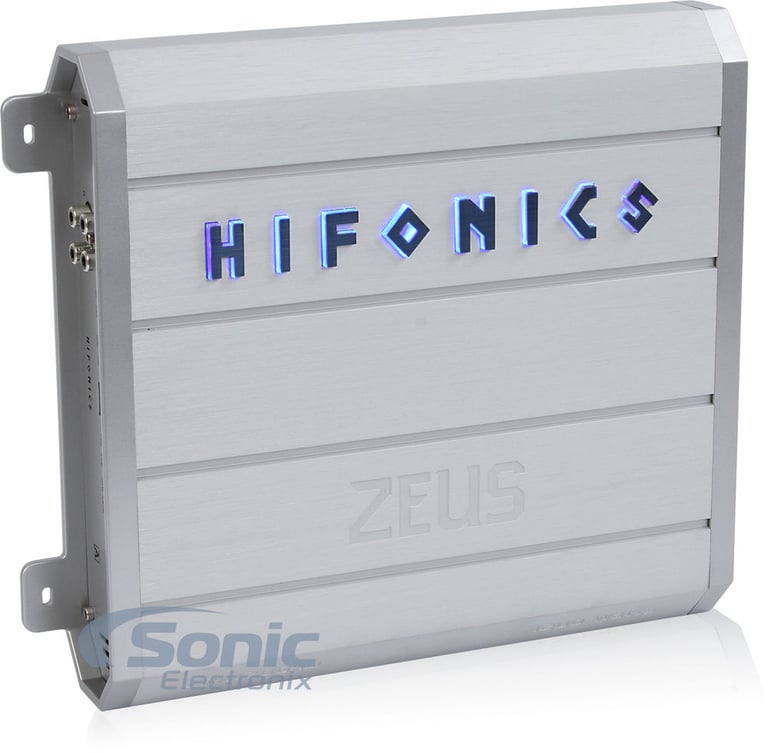

Zeus Series Single Channel Monoblock Class D Car Amplifier
Max Power Rating:

4 ohm: 400 watts x 1 chan.
2 ohm: 600 watts x 1 chan.
1 ohm: 1200 watts x 1 chan.

Max power output: 1200 watts
Simpatico coil design (SPC) Ultra-Fi Pulse Width Modulated MOSFET power supply
LED power (blue) and protect (red) indicators

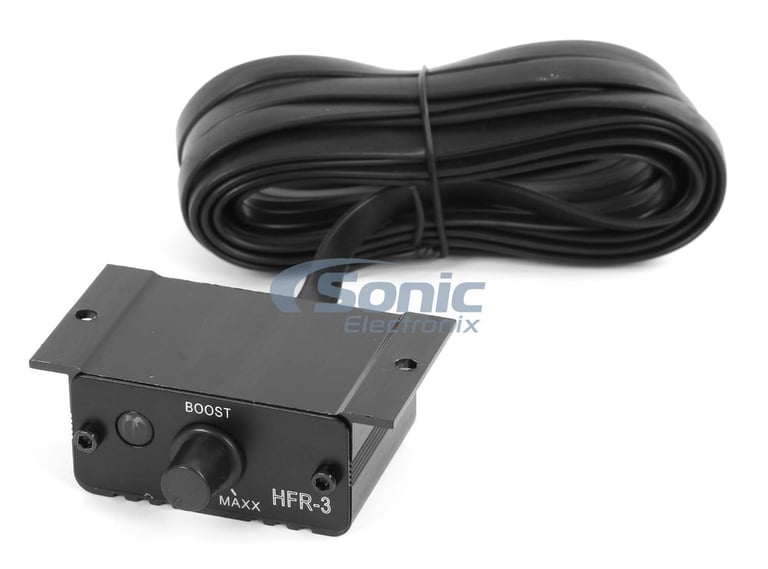

Wired HFR-3 remote bass level control included
Blue illuminated Hifonics badge
Soft start sound function
Mono channel operation

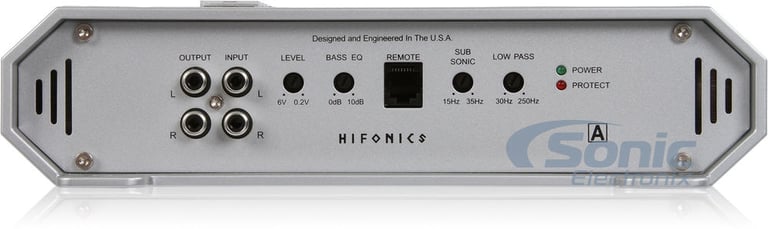

Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)

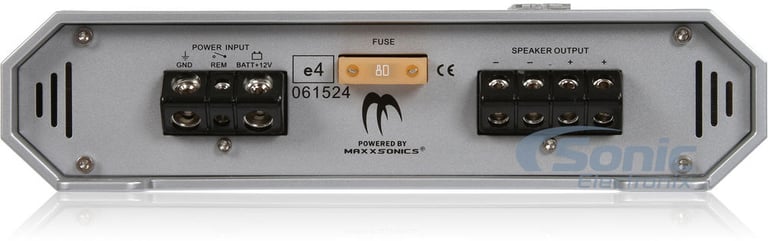

Dual 12 gauge speaker terminals simplify hookup
Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
Silver nickle-plated RCA level inputs
Silver nickle-plated screw terminals
Input sensitivity: 200mV - 6V
Frequency Response: 15 - 250 Hz
Total Harmonic Distortion (THD): 0.10%
Signal to Noise Ration: >95 dB
Damping factor: >200
Variable low-pass filter: 30 - 250 Hz
Subsonic filter: 15 - 35 Hz
Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz
Fuse Rating: 80 A x 1
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 12"L x 10"W x 2-7/16"H
Authorized Internet Dealer
90 Day Manufacturer's Warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

200 watts x 1 channel

RMS Power @ 2 ohms

300 watts x 1 channel

RMS Power @ 1 ohm

600 watts x 1 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

400 watts x 1 channel

Peak Power @ 2 ohms

600 watts x 1 channel

Peak Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Series

Zeus Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

1200 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.10%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

15 - 35 Hz

Signal-to-Noise Ratio

>95 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Yes

Fuse Rating

80A x 1

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
