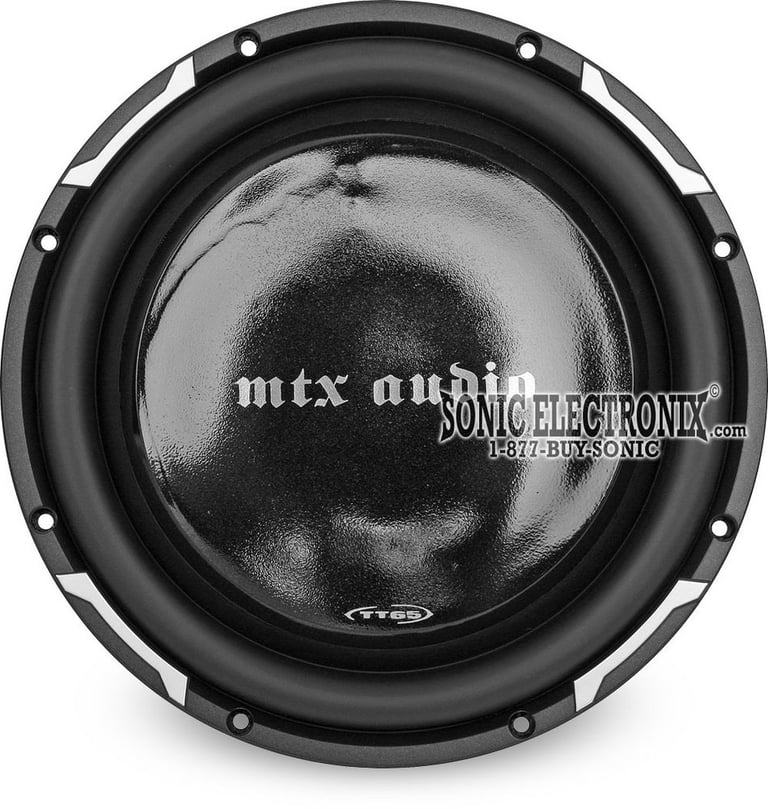

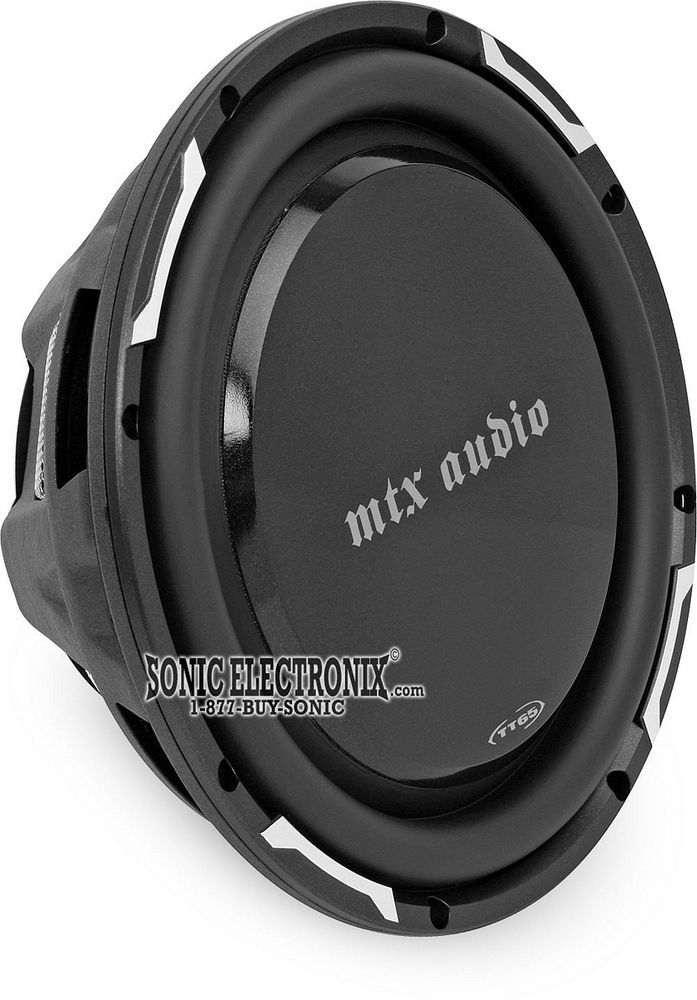

MTX Audio TT6510-04

10" Single 4 ohm TT65 Thunder Thin Series Car Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

10" Single 4 ohm Thunder Thin Series Subwoofer • 600W Max • 300W RMS • Extra dense injection molded polypropylene semi-dome woofer • Rubber surround • Large basket frame venting for optimal heat dissipation and proper cooling

Learn more about the tt651004

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

fpr1004 thumbnail

MTX Audio 10" Shallow Mount Subwoofer (FPR10-04)

OUR PRICE: $179.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
SAVW6 main

Scosche SAVW6

Speaker Adapters for select 1998-2018 vehicles from Volkswagen, Audi

4
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

Limited time!
KFC-1366S main

Kenwood KFC-1366S

520W Peak (60W RMS) 5.25" Sport Series 2 Way Coaxial 4-ohm Car Speakers

3
-38.75%

$49.00

List price $80.00

C1-075ct main

JL Audio C1-075ct

50W RMS 0.75" C1 Series 8-ohm Component Dome Tweeters

5
PR753T main

Infinity Primus 753T (PR753T)

240W Peak (80W RMS) 3/4” Primus Series 3-ohm Edge-Driven Silk Dome Tweeters

1
-30.02%

$69.95

List price $99.95

Product Highlights


10" Single 4 ohm Thunder Thin Series Subwoofer • 600W Max • 300W RMS • Extra dense injection molded polypropylene semi-dome woofer • Rubber surround • Large basket frame venting for optimal heat dissipation and proper cooling

Description


MTX brand icon

Authorized dealer

Thin is In

Many vehicles today have limited space. Having a large enclosure to get the bass you want may not fit your lifestyle. Limited space has traditionally meant limited options for those who wants loud, clear music. Not anymore! Introducing Thunder Thin (TT) 65 series subwoofers. TT65 subwoofers are the next evolution in the MTX subwoofer line-up. Measuring only 3-3/8" deep these subwoofers will fit just about anywhere. Utilizing a patented "One Piece Spider Cone", the TT65 subwoofers achieve excursion levels that are unparalleled in the "thin" subwoofer market. In fact, they can produce the same amount of excursion as the MTX Audio Thunder Round TR55 series subwoofers.

What does this all mean? It means that if you want to get an extreme amount of bass from a very small space (such as you car door), TT65 subwoofers are the solution for you. TT65 subwoofers are available in 10" and 12" sizes and are available in single 4 ohm or single 2 ohm configurations.

Authorized MTX Dealer
  • 10" Single 4 ohm Thunder Thin Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: Single 4 ohm
  • Extra dense injection molded polypropylene semi-dome woofer
  • Rubber surround
  • Thin and compact construction
  • One piece spider cone
  • Large basket frame venting for optimal heat dissipation and proper cooling
  • Heavy duty push terminal
  • 1.75" Single 4 ohm voice coil
  • 53oz. Magnet structure
  • Sensitivity: 84 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

MTX FPR10-04 thumbnail
(newest, current model)
MTX TT6510-04 thumbnail
(previous model, replaced by MTX Audio 10" Shallow Mount Subwoofer (FPR10-04))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MTX Audio TT6510-04 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MTX Audio TT6510-04 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MTX Audio TT6510-04 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 MTX Audio TT6510-04 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Thunder Thin 65 TT65 Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
84 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.60 cubic feet
Maximum Sealed Box Volume
0.60 cubic feet
Top-Mount Depth (Mounting Depth)
3-3/8"
Cutout Diameter
9-1/8"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TT6510-04

Weight:

12.00lbs

Internal SKU:

tt651004

Internal Product ID:

13543

Product and How-to Videos


Customer Ratings & Reviews


MTX Audio TT6510-04 thumbnail image

5 star
40%
4 star
60%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4
Features
4.6
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

A little monster!

Got this for a customer install and they are more than happy with it. Simple installation in a Chevy pickup with an MTX amp under the seat and it exceeded my expectations! For the price and power, well worth buying!

By King Kong Audio on September 7, 2011

4 found this helpful


Excellent Choice

I purchased this speaker along with the MTX Thunder form box for a 2003 Chevy Tahoe. I really like the way the speaker sounds and it performs like a champ. It fits flush in the rear side wall without taking away cargo space and it kicks.

By Boriqua116 on December 20, 2010

4 found this helpful


A Shallow Sub

Well, due to space limitations in my mid size truck, I didn't have a lot of options for adding a subwoofer, especially since I wanted all my cab and seat space. So armed with an MTX thunderform and this sub I gave it a try. Boy am I sure glad. It sounds great! If you have to be shallow, go with MTX

By Monte on September 22, 2010

4 found this helpful


Nice sub

Really a nice product, quality build and big sound. Shallow depth makes getting it under seats easy. Thing hits pretty low for a shallow mount. Replaced a cheap sub I blew up with this, after modding my sealed box a bit to make it bigger and can say it is a great upgrade. Sonic gave me the price I offered and with the free shipping it turned out to be a decent deal.

By Timothy on May 10, 2009

5 found this helpful


PERFECT POUNDING COMPACT SUB!

I was originally set on the new premier shallow mount 10's but Larsen at sonicelectronics.com recommend the new mtx thunderthin line. I was very skeptical because i had not purchased mtx stuff in 5 years. I took his advice and IM SO GLAD I DID! These subs absolutely POUND! I swear they sound like 12 inch subs and i have been asked if they are 12's. The sub looks heavy duty and has nickel push terminals. The sub is very compact needing less than 4 inches of mounting depth. The sub hits all the notes great! I have had many subs and heard many more and this sub is very impressive!

By john on June 10, 2010

4 found this helpful




OL-RS-BZ1 small

Omega OL-RS-BZ1 (OLRSBZ1 )

Plug & Play Web-Programmable Remote Start Solution for Select Mercedes-Benz Vehicles 2006-2013

$279.99

List price $799.99

DVP-FX980 small

Sony DVP-FX980 - Black

9" Portable DVD Player w/ Standard AC Charger & Mobile DC Car Power Adapter, Video Cable, & Remote

(1)

$109.95

List price $129.99

R1-1X10 small

Rockford Fosgate Prime R1-1X10 400W Loaded Enclosure

400W Max (200W RMS )Single 10" Prime Series Loaded Enclosure

(2)

$139.99

List price $129.99

DVP-FX750 small

Sony DVP-FX750 - Black

7" Widescreen Portable DVD Player

$69.99

List price $99.99

SounfFly AP small

JBL SoundFly AP AirPlay (White)

Compact AirPlay Plug-In Speaker w/ Wi-Fi

$119.99

List price $239.00

RFALL642W small

Crimestopper RFALL642W / RF642W (Requires Programming)

2-Way Keyless Entry FM RF Kit with 2-Way 4 Button Remote and Companion Remote

$114.99

List price $149.99

K9-150D-LA small

Omega K-9 K9-150D-LA

Car Alarm Vehicle Security System with 8 Programmable Features

$43.99

List price $119.99

BC1210NY small

Xscorpion BC1210NY

100 Pack of 12/10 Gauge Pro Nylon Yellow Butt Connectors

(1)

$9.78

List price $14.99

ST 1 6X9-BLACK small

Ground Shaker ST 1 6X9-BLACK

6 x 9" Single Truck Speaker Box

(1)

$9.99

List price $29.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Audi Q5

2009 Dodge Durango

1987 Dodge 600

2016 Ford Edge

2000 Buick Century

1996 GMC Suburban

2014 Kia Sorento

2018 Alfa Romeo Giulia

1984 Buick Regal

1996 Ford F-150

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
