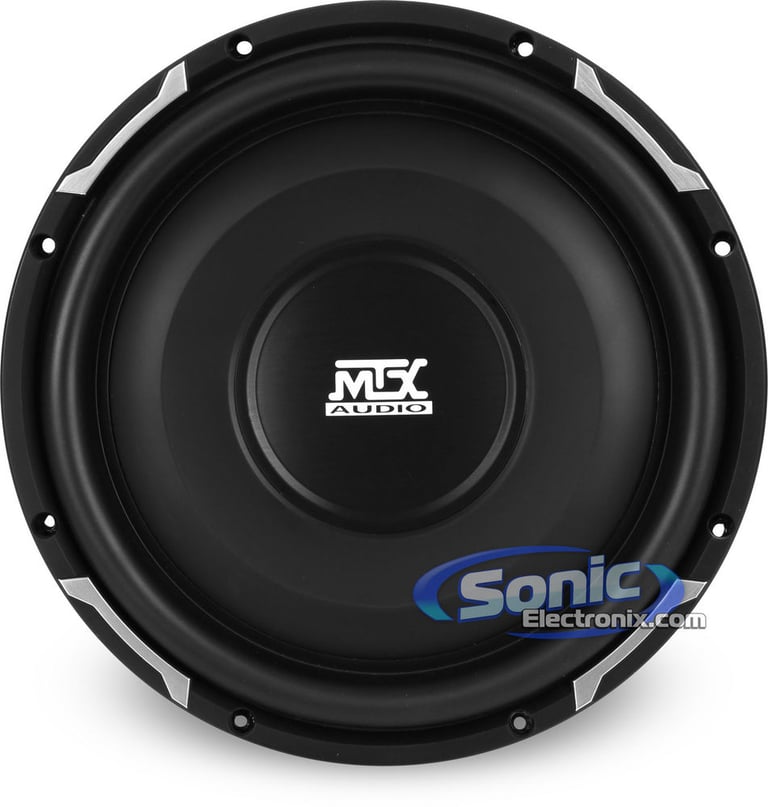

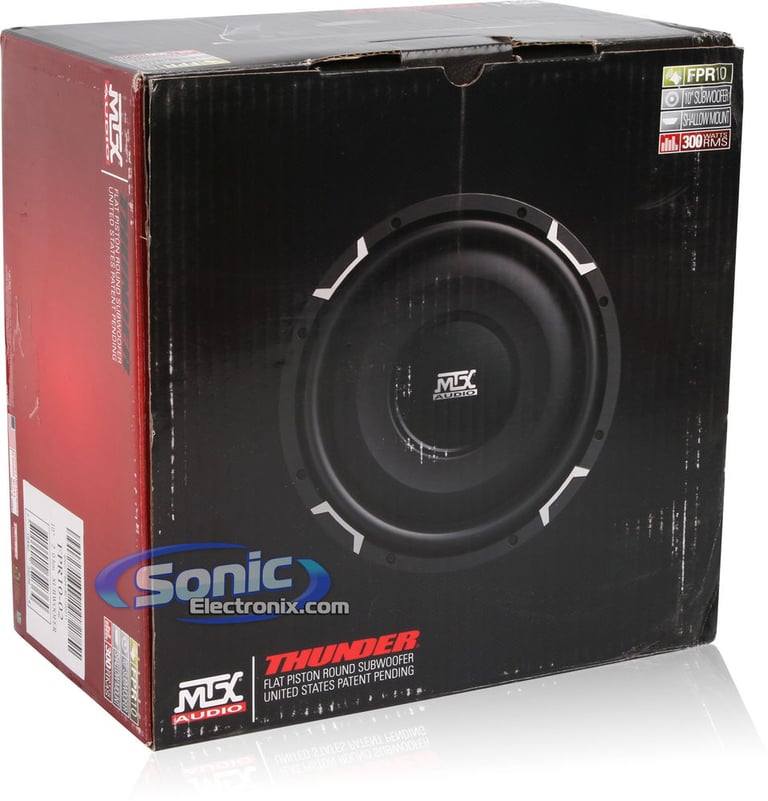

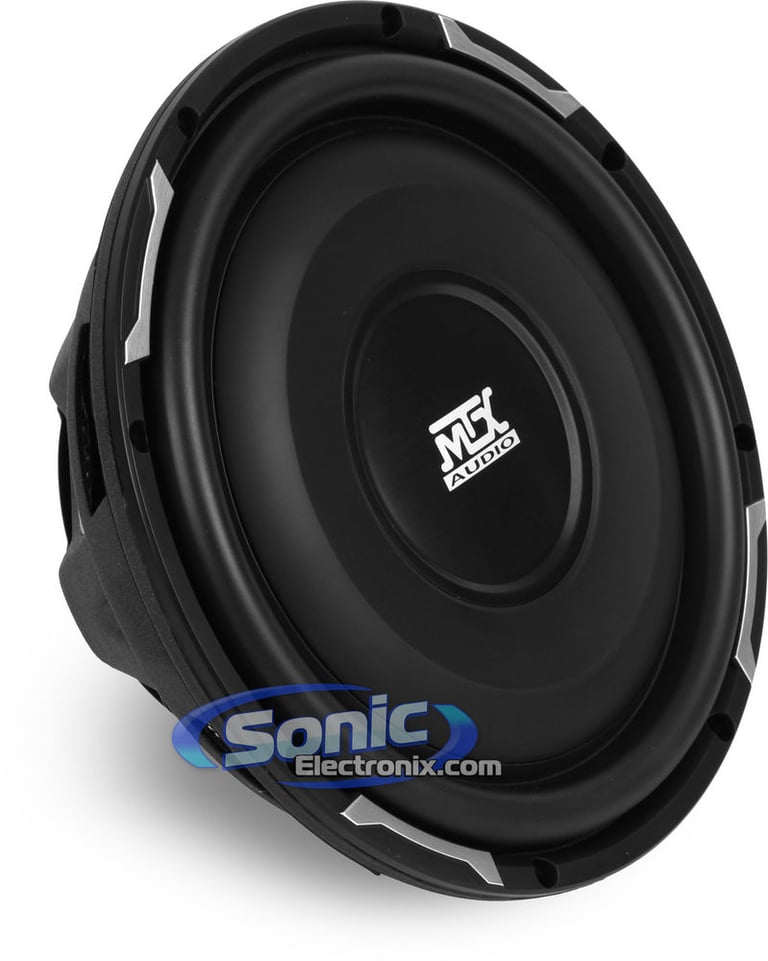

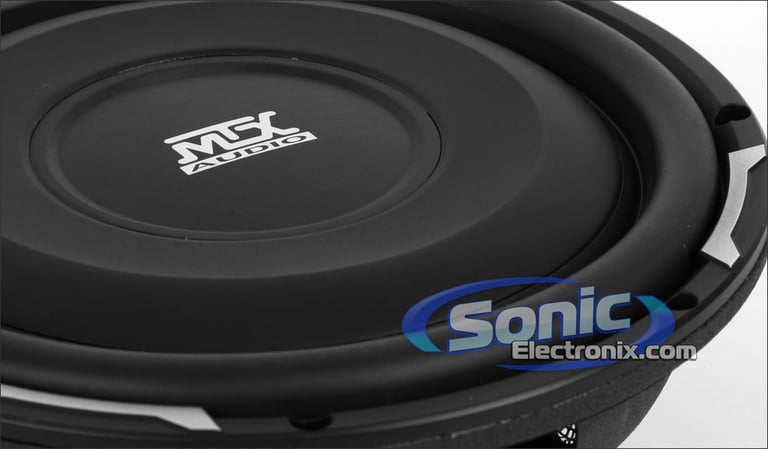

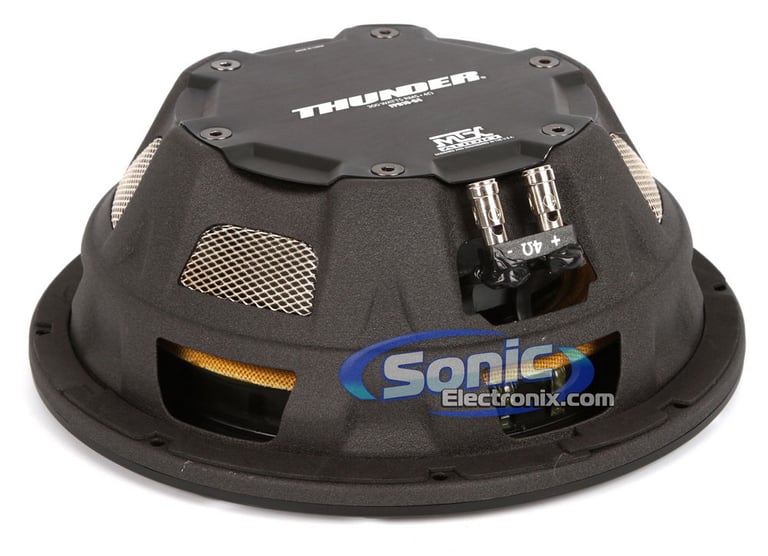

MTX Audio 10" Shallow Mount Subwoofer (FPR10-04)

600W Peak (300W RMS) 10" Thunder Series Flat Piston / Shallow Mount Single 4-Ohm Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

• 600W Peak
• 300W RMS
• Molded Polypropylene woofer cone material
• Rubber surround
• Shallow mount application
• 1.75" High temperature voice coil

Learn more about the fpr1004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Volkswagen

49
-13.05%

$19.99

List price $22.99

99-3307G main

Metra 99-3307G (Includes Wiring Harness)

Install a new Single-DIN or Double-DIN car stereo in select 2010-2015 Terrain and Equinox (Gray)

3
-41.18%

$319.99

List price $543.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

82-3307 main

Metra 82-3307

6"- 6.75" Speaker Adapters for select 2001-2017 vehicles from Saturn, Chevrolet, GMC

2
-48.66%

$18.99

List price $36.99

SWRGM-49N main

Crux SWRGM-49N

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2010-2017 vehicles from Chevrolet, GMC, Buick

1
-35.71%

$121.50

List price $189.00

HRN-HRR-GM2 main

iDataLink Maestro HRN-HRR-GM2 Wiring Harness

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2010-2020 vehicles from Chevrolet, GMC

-13.04%

$79.99

List price $91.99

EU08 main

PAC EU08

Connect Factory Antenna to a New Aftermarket Stereo for select 2000-2025 vehicles from Volkswagen, Chevrolet, Audi

-16.67%

$20.00

List price $24.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Product Highlights


• 600W Peak
• 300W RMS
• Molded Polypropylene woofer cone material
• Rubber surround
• Shallow mount application
• 1.75" High temperature voice coil

Description


MTX brand icon

Authorized dealer




General Features:

  • 10" Flat Piston Round Series Shallow Mount Car Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Recommended power range: 150 - 300 watts RMS
  • Impedance: Single 4 ohm
  • Molded Polypropylene woofer cone material
  • Rubber surround
  • Shallow mount application
  • One piece spider cone
  • 1.75" High temperature voice coil
  • 53oz. magnet motor structure
  • Frequency response: 28-150 Hz
  • Resonance Frequency (Fs): 35 Hz
  • Top-mount depth: 3-3/8"
  • Sensitivity: 82dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

MTX FPR10-04 thumbnail
(newest, current model)
MTX TT6510-04 thumbnail
(previous model, replaced by MTX Audio 10" Shallow Mount Subwoofer (FPR10-04))

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MTX Audio 10" Shallow Mount Subwoofer (FPR10-04) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MTX Audio 10" Shallow Mount Subwoofer (FPR10-04) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MTX Audio 10" Shallow Mount Subwoofer (FPR10-04) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 MTX Audio 10" Shallow Mount Subwoofer (FPR10-04) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Flat Piston Round Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-3/4"
Frequency Response
28 - 150 Hz
Sensitivity
82 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
.60 cubic feet
Maximum Sealed Box Volume
.80 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/3"
Cutout Diameter
9-1/8"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35 Hz
Equivalent Compliance (Vas)
0.705 liters
Total Speaker Q Value (Qts)
0.768
Electrical Q Value (Qes)
.893
Electrical Resistance of Voice Coil (Re)
3.31 ohm
Mechanical Q Value (Qms)
5.470
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

FPR10-04

Weight:

12.60lbs

Internal SKU:

fpr1004

Internal Product ID:

43793

Product and How-to Videos


  • MTX Audio FPR Car Subwoofer | Shallow Sub
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


MTX Audio 10

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome!!!

I needed a subwoofer that would fit behind my single can s10. So I bought one and I'll tell you it's loud deep crisp bass. highly recommended going to buy a second one soon. So far no cons great job mtx

By Roberts on September 16, 2016 Checkmark Icon Verified purchase


Awesome!!!

I needed a subwoofer that would fit behind my single can s10. So I bought one and I'll tell you it's loud deep crisp bass. highly recommended going to buy a second one soon. So far no cons great job mtx

By Roberts on September 16, 2016 Checkmark Icon Verified purchase


Bang so hard my girl left me

I bought 2 of these paired with a Pioneer GM-D9601 class D amp in a dual enclosure down firing under the rear seats of my 2005 Colorado crew cab. The mounting depth was perfect for the box I got and the air space was spot on with some to give. I wired these to 2ohm for a combined 600w. The amp I mentioned is 2400w total and 800w when wired at 2ohm. I believe I have the best setup for me. tuned to around 34hz, these slap hard and very clean/crisp. At times it still shocks me how smooth it is. They bang so good my girl left me for them. :D

By James Burlett on June 9, 2016 Checkmark Icon Verified purchase


Surprisingly loud

This speaker is pretty loud for a 10. It sounds good too. Sounds great in an small sealed box. I couldn't believe that it sounded as good as my 15" home subwoofer!!

By Michael Bailey on June 9, 2016 Checkmark Icon Verified purchase


Best 10" shallow-mount sub!

Having tried a few different shallow-mount 10" subs, some costing three times as much, these MTX's blow them all out of the water. I have two in a custom, sealed box that fits under the rear seat of my '14 F150 hooked to an Alpine MRV-M500. Much cleaner, louder, and deeper bass than the RF's they replaced.

By SabastianU on February 7, 2016




Ear Force XL1 (Black) small

Turtle Beach Ear Force XL1 (Black)

Over-Ear Xbox 360 Gaming Headset with In-Line Amplifier & 50mm Bass Boost Drivers (TBS-2149-01)

$35.99

List price $59.95

TS-A1681R small

Pioneer TS-A1681R

6-1/2" / 6-3/4" 4-way Speakers

(12)

$58.99

List price $99.99

IMAGE S4 II BLACK small

Klipsch IMAGE S4 II (Black)

Image Series In-Ear Headphones with Noise-Isolation Technology and Built-In Strain Relief (1014811)

(1)

$47.99

List price $79.99

CTX124_DSS12-BLACK small

700W Image Dynamics CTX124 + Enclosure Bass Package

Pair of Image Dynamics CTX124 12" CTX Series Subwoofers + DSS-12 Black 12" Sealed Sub Enclosure

(16)

$215.03

List price $484.97

08S12L52 small

Kicker Solo-Baric L5 08S12L52

12" Dual 2 ohm Subwoofer (S12L5, S12L52)

(15)

$149.99

List price $349.95

NM-105RD small

Naxa NM-105RD (Red)

MP3 Player w/ 4GB Flash Memory, LCD Display, PLL Digital FM Radio & USB Plug Adapter

$16.95

List price $29.99

CTX128_DSS-12 BLACK small

700W Image Dynamics CTX128 + Enclosure Bass Package

Pair of Image Dynamics CTX128 12" CTX Series Subwoofers + DSS-12 Black 12" Sealed Sub Enclosure

(15)

$114.95

List price $484.97

OTR3-3250S-14-C1OTR small

OtterBox OTR3-3250S-14-C1OTR (Blue)

3250 Series Protective Waterproof Case

$21.99

List price $25.49

ADS-MRR,HRN-RR-FI1 small

idataLink ADS-MRR Maestro + Steering Wheel Control + Replacement T-Harness

Quickly add an Aftermarket Radio in select Fiat 500 trims 2012-2015, While Retaining Steering Wheel Controls and Additional On Screen Data

(37)

$224.98

List price $273.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Audi A4

2011 GMC Terrain

2014 Mazda 3

2009 Lexus GX470

2016 Audi RS7

2021 Lexus ES300h

2010 Mitsubishi Lancer

2016 Buick Encore

2007 Ford Edge

2025 Chrysler Pacifica Hybrid

Vehicle
Store
Delete

2017 Harley Davidson FLHX Street Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
