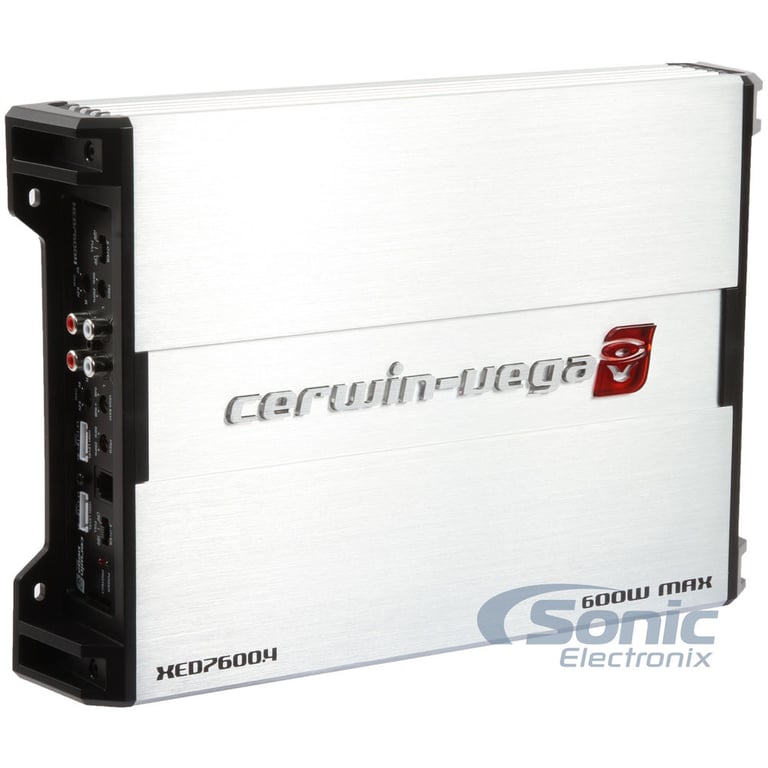

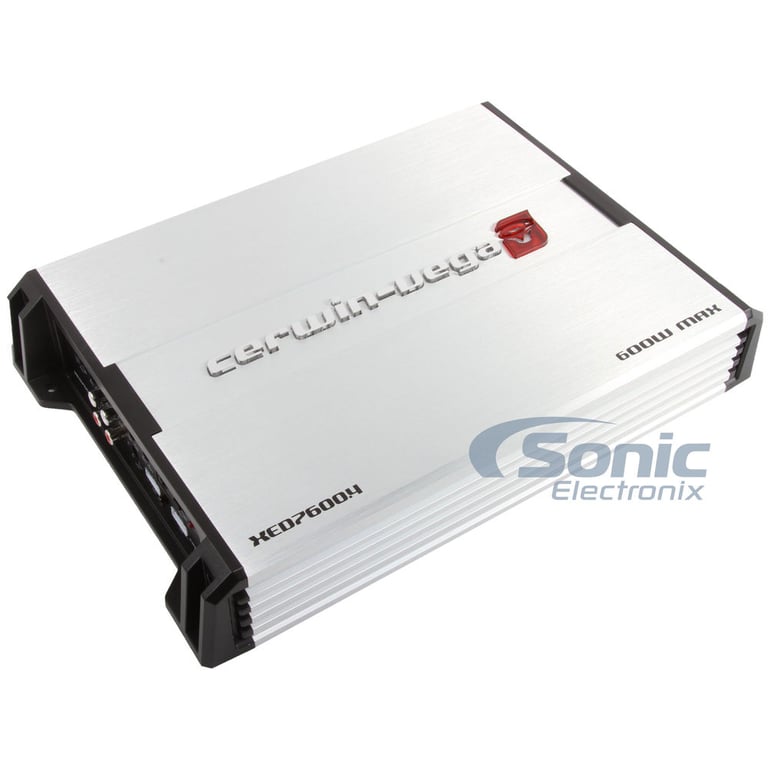

Cerwin Vega XED7600.4

600W XED Series Class-A/B 4-Channel 2 ohm Stable Amplifier with Remote Level Control

highlight-star-icon

• 45 Watts RMS x 4 @ 4 ohms
• 70 Watts RMS x 4 @ 2 ohms
• 150 Watts RMS x 2 @ 2 ohms, Bridged
• Total Peak Power: 600 Watts

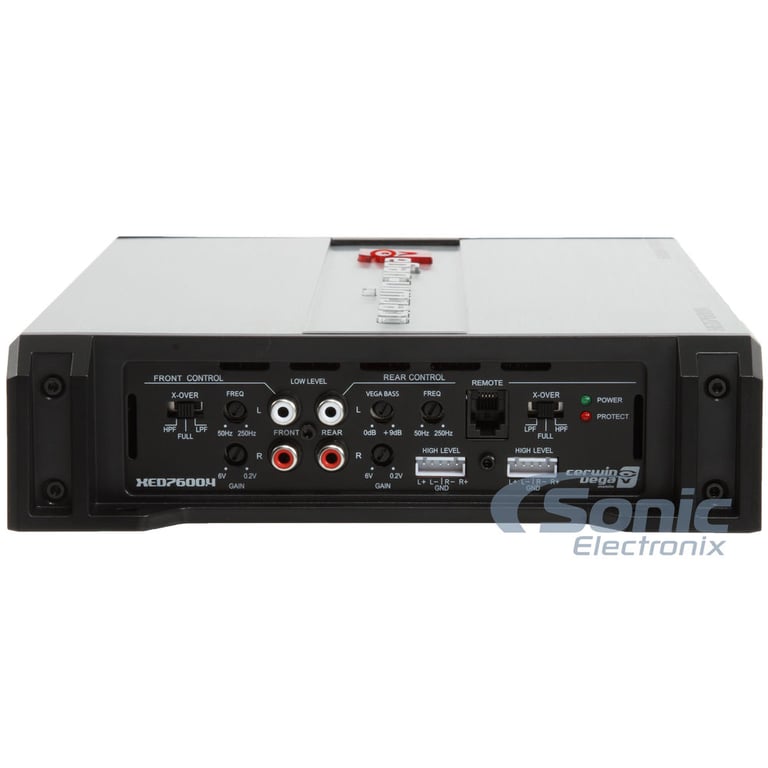

• Built-In Adjustable Crossover
• 0-9 dB Vega Boost
• Aluminum Heatsink
• Dimensions: 12.9" W x 8.875" L x 2.187" H

Learn more about the xed76004

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

xed6004 thumbnail

Cerwin-Vega XED600.4

OUR PRICE: $149.99

View item

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • Cerwin Vega XED Series XED7600.4
  • Class-A/B Full Range 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 45 watts x 4 chan.
    • 2 ohms: 70 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 150 watts x 2 chan.
  • Total power output: 600 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Frequency Response: 35 - 45000 Hz
  • Signal-to-noise ratio: 85 dB
  • Total harmonic distortion (THD): .10%
  • Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost

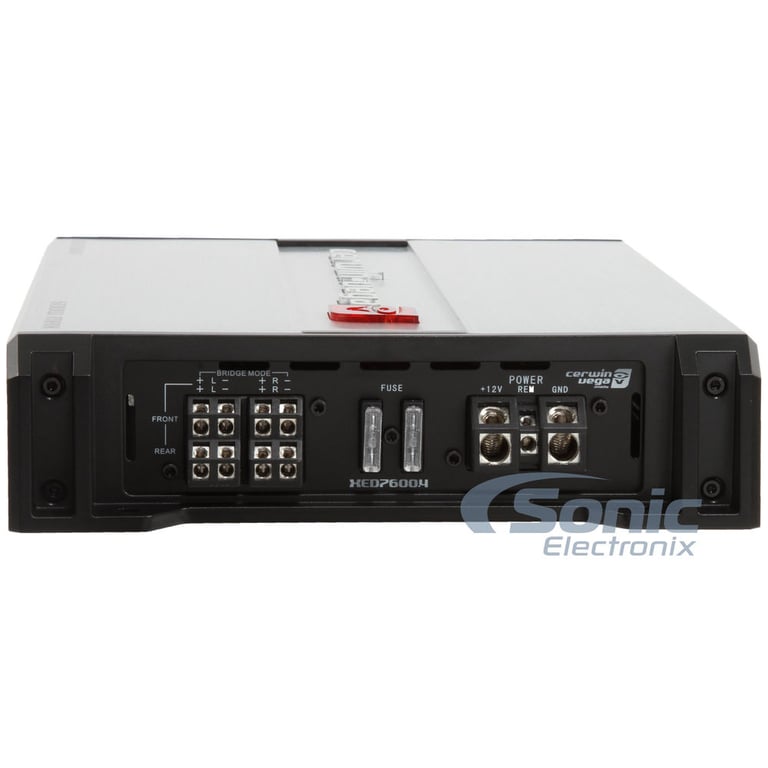

  • Fuse Rating: 25 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 12.9"W x 8.875"L x 2.187"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega XED600.4 thumbnail
(newest, current model)
Cerwin-Vega XED7600.4 thumbnail
(previous model, replaced by Cerwin-Vega XED600.4)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
45 watts x 4 channel
RMS Power @ 2 ohms
70 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Series
XED Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
280 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Total Fuse Rating
50
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
Brand sticker/decal
WITB: Amplifiers

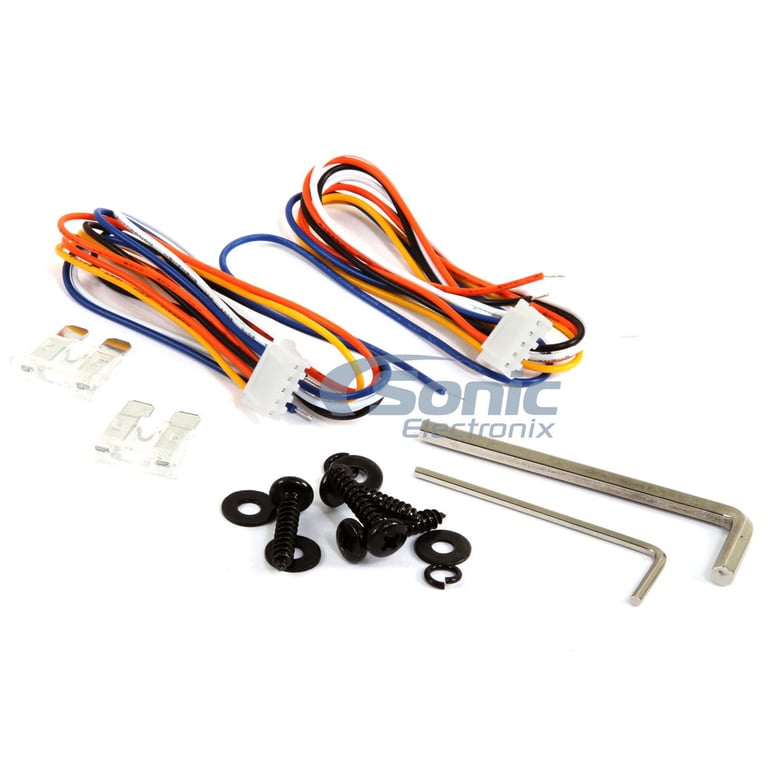

Amplifier
Mounting screws (4)
Washers (4)
Two spare fuses
High-level input wiring harness w/ molex connectors (2)
Allen wrench
Other Accessory #1
4 lock washers
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XED7600.4

Weight:

8.00lbs

Internal SKU:

xed76004

Internal Product ID:

135681

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
4.5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Quality built cerwin vega amp

I bought and Installed the Cerwin Vega xed series 5.25 components so I got this amp because I am so pleased with the speakers, I am all for Cerwin Vega now. Sounds absolutely awesome!!

By Horse on May 24, 2021

1

found this helpful.

Great amp

Good amp to push your highs, just the right watts. Doesn't overheat or shut off. Great product here with the buck and well-spent dollars. Highly recommend!

By Erik on May 18, 2020

2

found this helpful.

Good amplifier

Nice sound and design fits my Nissan Sentra I like Cerwin Vega products

By Alexcid Benedict III on April 14, 2018

1

found this helpful.

This Amp kicks hard

The Cerwin Vega best 4 channel Amplifier to my sound quality wow push my front speakers and rear speakers and it give more sound to my tweeters the light of the amplifier looks awesome too adds beauty my trunk I like Cerwin Vega products

By Alexcid on March 31, 2018

1

found this helpful.

Cerwin Vega XED7600.4

Great quality for a great price.......will buy from sonic again.

By Casey on March 22, 2020 Checkmark Icon Verified purchase

Great amp!

I am using this amp to push Kicker 4x6's in my dash. MB Quart 6 1/2 componet speakers in my front doors and two 6 1/2 Pioneer's in my rear doors. This amp rocks!! All my speakers scream!! Crisp clear amazing sound!!

By Heath on May 6, 2018

1

found this helpful.
