Polk Audio PA500.4

800W Max, 4-Channel Amplifier

Product videos
highlight-star-icon

PA Series 4-Channel Class AB Car Amplifier • 90W x 4 chan. @ 4 ohm • 125W x 4 chan. @ 2 ohm • 250W x 2 chan. @ 4 ohm • 4/3/2 channel operation • Preamp RCA outputs

Learn more about the pa5004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Product Highlights


PA Series 4-Channel Class AB Car Amplifier • 90W x 4 chan. @ 4 ohm • 125W x 4 chan. @ 2 ohm • 250W x 2 chan. @ 4 ohm • 4/3/2 channel operation • Preamp RCA outputs

Description


Polk Audio brand icon

Authorized dealer

  • PA Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 90 watts x 4 chan.
    • 2 ohm: 125 watts x 4 chan.
    • Bridged, 4 ohm: 250 watts x 2 chan.
  • Max power output: 200 watts x 4 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply

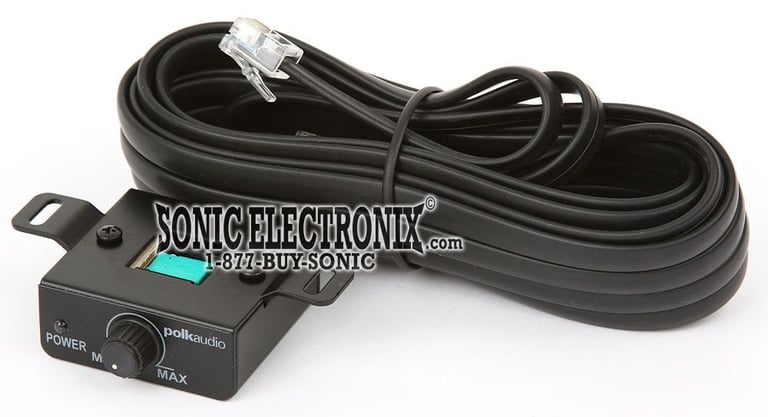

  • Wired remote volume level control included
  • LED power and protection indicators
  • Selectable bass boost (0, +8 dB at 40 Hz)
  • Double-layer fiberglass epoxy printed circuit boards
  • 4/3/2 channel operation
  • Connection for optional LED light bar or optional amplifier cooling
  • Power/ground-reversal, thermal, short, current, overdraw, and low impedance protection circuitry
  • Cast aluminum textured end caps
  • Switchable 180° phase inversion
  • Variable input sensitivity optimizes match with different signal sources
  • Unity gain pass-through RCA jacks
  • Mounting hardware with rubber isolation grommets and extra fuses included.
  • Effective Damping Factor: >150
  • Anodized extruded brushed-aluminum cover for maximum heat dissipation
  • Preamp RCA outputs
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Dimensions: 18"L x 10-1/4"W x 2-3/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
90 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
98 dB
Channel Separation
65 dB
Bass Boost
0 - 8 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PA500.4

Weight:

19.00lbs

Internal SKU:

pa5004

Internal Product ID:

13577

Product and How-to Videos


Customer Ratings & Reviews


Polk Audio PA500.4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.6
Features
4.8
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

One kicking amp!

Paired with component Momo's in the front and Mobile Monitors in the rear, this amp blasts the speakers without an OUNCE of distortion. Crisp, clear and LOUD. Reproduces signals with great accuracy! A must have!

By 07civicLX on June 7, 2010

5 found this helpful


Outstanding

This amp replaced two 2 channel MTX amps and i'm glad i did it.
The signal to noise is amazing regardless of gain adjustments, no more hiss. The power is pure, clean, and the quality rates with the best. A Pioneer DEH-4900IB and EQ746 feed the PA500-4, and it feeds 3 pairs of Polk coaxials along with Kicker and Streetwires cables. This amp will eliminate any worries of noise or sound qualities after your install vs. other amps that I've wasted time and money on.
I highly recommend the PA500-4.

By Dan on November 17, 2010

3 found this helpful


Awesome amp

I think Polk makes great products anyway, and this amp is no exception. I have used it in several configurations (i.e. powering 2 front speakers, 2 front speakers and a sub, and soon will be hooking it up to my front/rear speakers and have a dedicated mono for my sub). In all modes, this thing cranks! You son't be disappointed with this one, plus it looks col in the trunk!

By dave on August 14, 2010

3 found this helpful


Amazing amp...

I've had this amp for about two weeks now and it is very amazing. It's pushing a pair of db6501 and db691. Very nice, cool, quiet and clean. This gives all of the speakers all the power. This amp is B.I.G.!! (which is good because it distributes the heat well). It makes my honda accord sound superbad!

By Aerovillain on March 1, 2010

3 found this helpful


Great Amp!

The amp has plenty of power. The amp is pushing a Bostin Acoustic 10 inch in the trunk of my 2001 Mustang GT and it sounds great. I have the amp turned down because of the amount of power it pushes, so I am sure it will push a much bigger sub-woofer. The only thing I can say about it that isn't super positive is that the amp is a little long, so make sure you look at the specs. It would not fit under my seat.

By Greg on July 18, 2010
