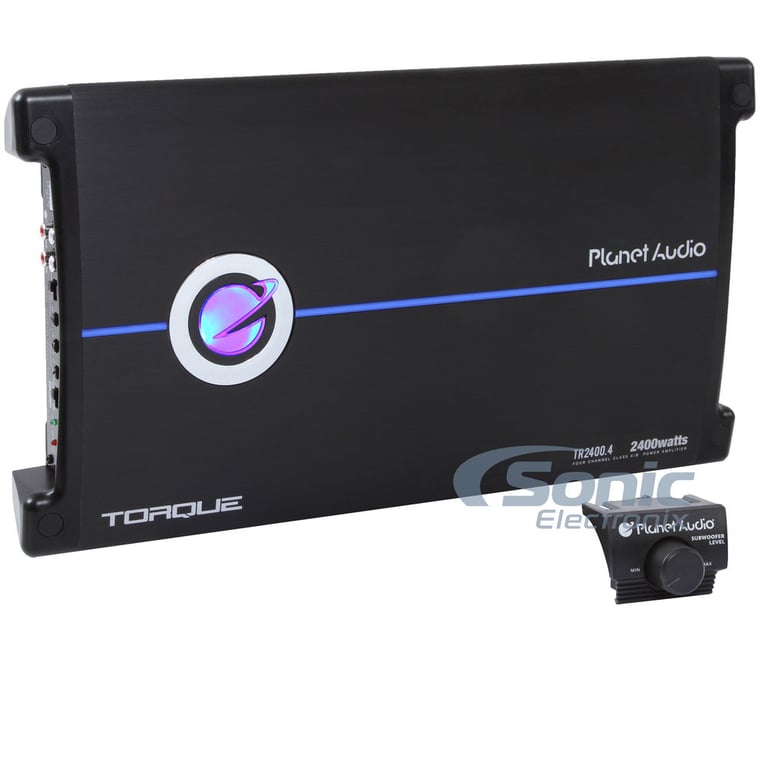

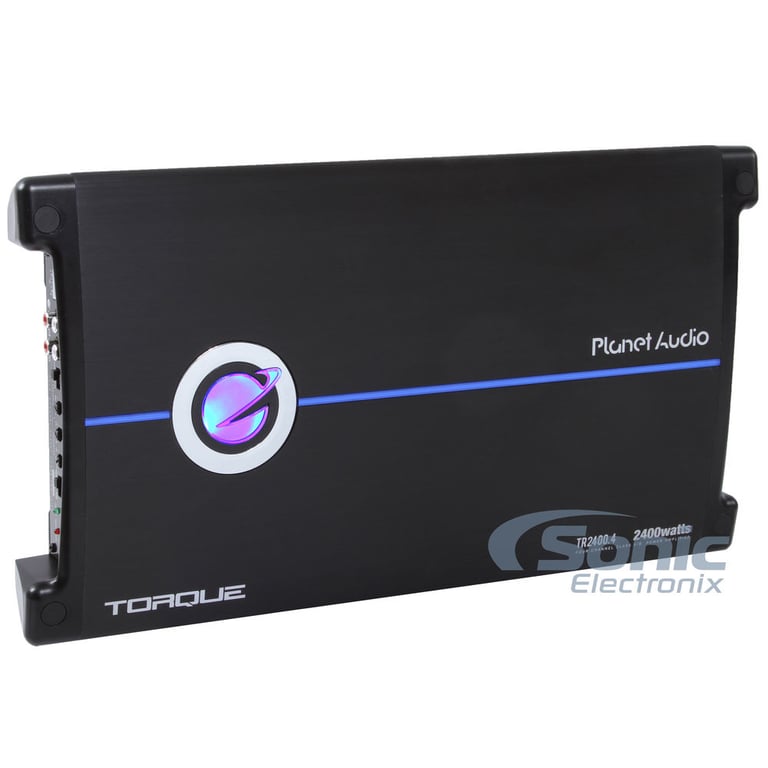

Planet Audio TR2400.4

2400W Max (450 W RMS) Torque Class-A/B 4-Chan. 2 ohm Stable Amp with Remote Level Control Included

Planet Audio
Shop all Planet Audio
highlight-star-icon

• 225W RMS x 4 @ 4 ohm
• 450W RMS x 4 @ 2 ohm
• 900W RMS x 2 @ 4 ohm, Bridged
• Total Peak Power: 2400 Watts
• High and Low Pass Filters
• 0 - 18 dB Bass Boost
• Aluminum Heatsink
• Dimensions: 9.5" W x 15.56" L x 2.125" H

Learn more about the tr24004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Description


Planet Audio brand icon

Authorized dealer

General Features:

  • Planet Audio Torque Series TR2400.4
  • Class-A/B Full Range 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 225 watts x 4 chan.
    • 2 ohm: 450 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 900 watts x 2 chan.
  • Total power output: 2400 watts
  • Pulse Width Modulated MOSFET power supply

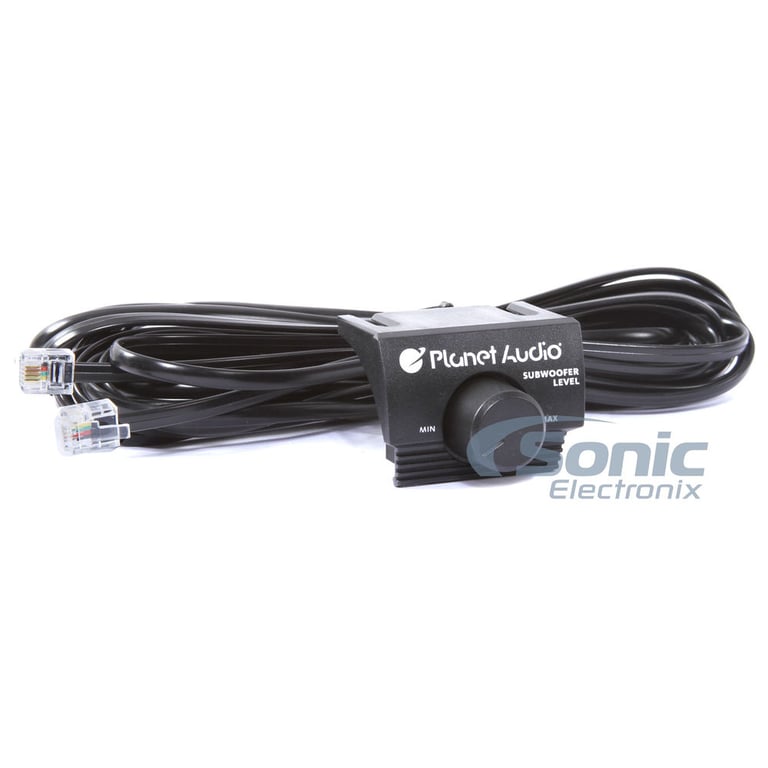

  • Wired remote level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Frequency Response: 20 - 20000 Hz
  • Signal to Noise Ratio: 87 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 30A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.5"W x 15.56"L x 2.125"H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
Check out the TR2400.4 Owner's Manual

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
225 watts x 4 channel
RMS Power @ 2 ohms
450 watts x 4 channel
Bridged RMS Power
900 watts x 4 channel
Power Specifications - Full Range Channels
Peak Power @ 2 ohms
600 watts x 4 channel
Bridged Peak/Max Power
1200 watts x 2 channel
Amplifier Specifications
Series
Torque Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
2400 watts
Total RMS Power Output
450 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
87 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
Brand sticker/decal
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Gain knob wire
Mounting screws (6)
High-level input wiring harness w/ molex connectors (2)
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TR2400.4

Weight:

7.30lbs

Internal SKU:

tr24004

Internal Product ID:

137551
