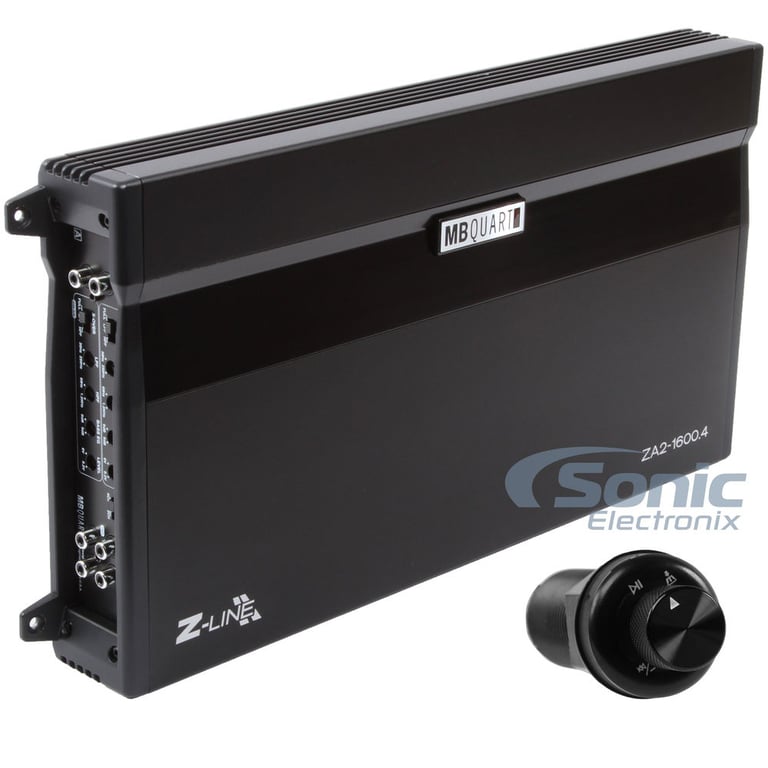

MB Quart ZA2-1600.4 w/ Universal Bluetooth Controller Knob

1600W RMS Z-Line Class-A/B 4-Channel 2-Ohm Stable Amplifier with Universal Bluetooth Receiver Controller

MB Quart
Shop all MB Quart
highlight-star-icon

• 200 Watts RMS x 4 @ 4 ohm
• 400 Watts RMS x 4 @ 2 ohm
• 800 Watts RMS x 2 @ 4 ohm bridged
• Total RMS Power: 1600 Watts
• Built-In Low- and High-Pass Filters
• 0 - +9 Bass Boost
• Heavy Duty Aluminum Heatsink
• NVX XUBT3 Universal Bluetooth Knob for Cars, Trucks, Motorcycles, ATVs & Boats

Learn more about the za216004_xubt3

We apologize

This item has been discontinued


Loading...
40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

99-3012G-LC main

Metra 99-3012G-LC

Single/Double-DIN Dash Installation Kit for select 2012-2016 Sonic

1
-40.68%

$104.99

List price $176.99

HRN-HRR-GM2 main

iDataLink Maestro HRN-HRR-GM2 Wiring Harness

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2010-2020 vehicles from Chevrolet, GMC

-13.04%

$79.99

List price $91.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

CVMPCL6.5 main

Cerwin Vega CVMPCL6.5 (Sold Individually)

200W Peak (100W RMS) 6.5" Stroker Pro Series Full Range 4-ohm Speakers

9
-16.67%

$99.99

List price $119.99

660BRGB main

Boss Elite 660BRGB

Double DIN CD Receiver with Bluetooth (Black)

4

Description


MB Quart brand icon

Authorized dealer

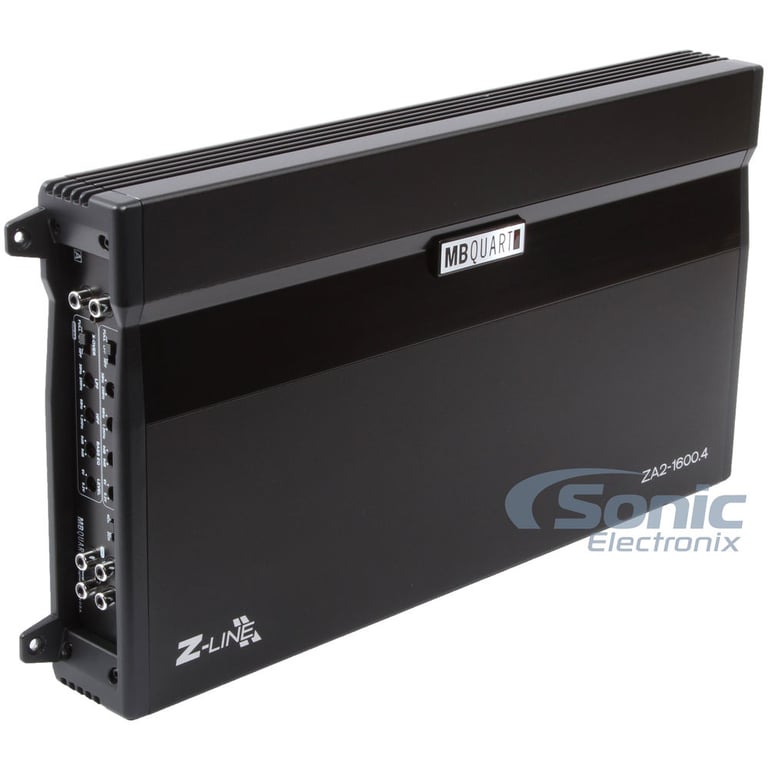

MB Quart ZA2-1600.4 (ZA21600.4) 1600W RMS 4-Channel Amplifier

1600W RMS Z-Line Class-A/B 4-Channel 2-Ohm Stable Amplifier with Remote Level Control/Bass Knob Included
Quantity: 1

General Features:

  • MB Quart Z-Line ZA2-1600.4
  • Class-A/B Full Range 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 4 chan.
    • 2 ohm: 400 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 800 watts x 2 chan.
  • Total power output: 1600 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Frequency Response: 10 - 45000 Hz
  • Total Harmonic Distortion (THD): <.05%
  • Signal to Noise Ration: xx dB

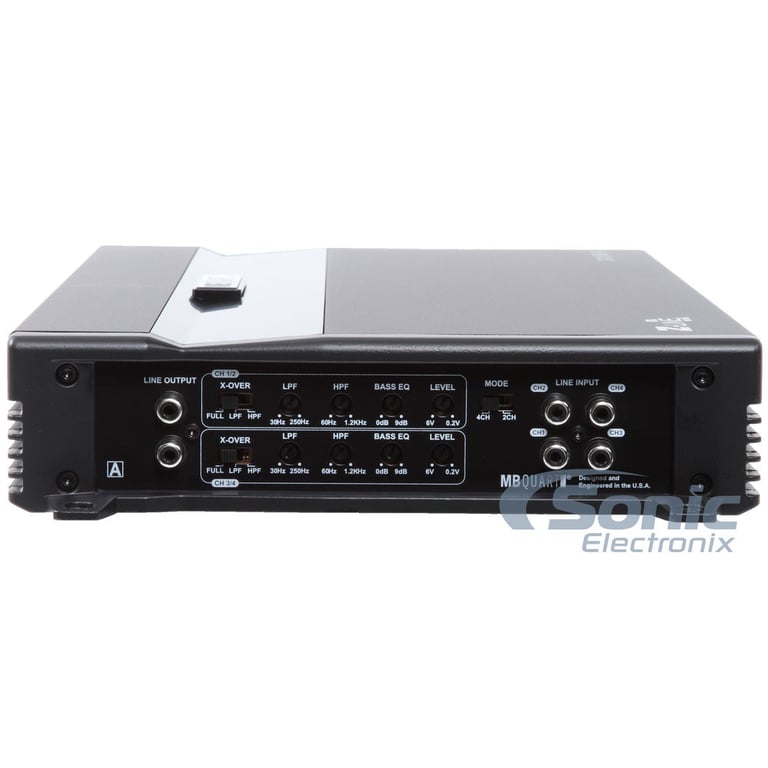

  • Variable high-pass filter: 60 - 1200 Hz, 12 dB/octave
  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 50 Hz

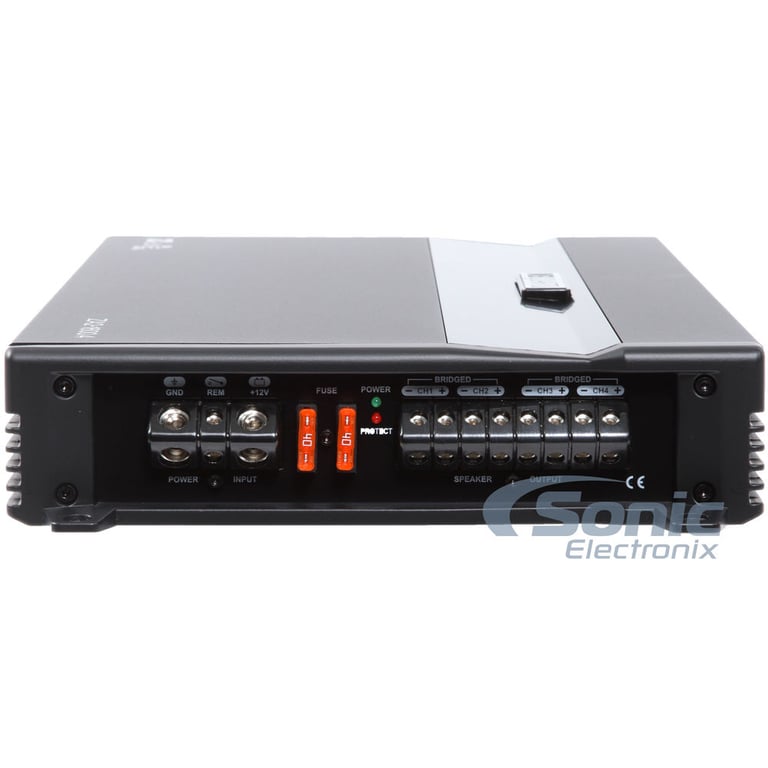

  • Fuse Rating: 40 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 16.63"W x 10.63"L x 3.25"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the ZA2-1600.4 Owner's Manual

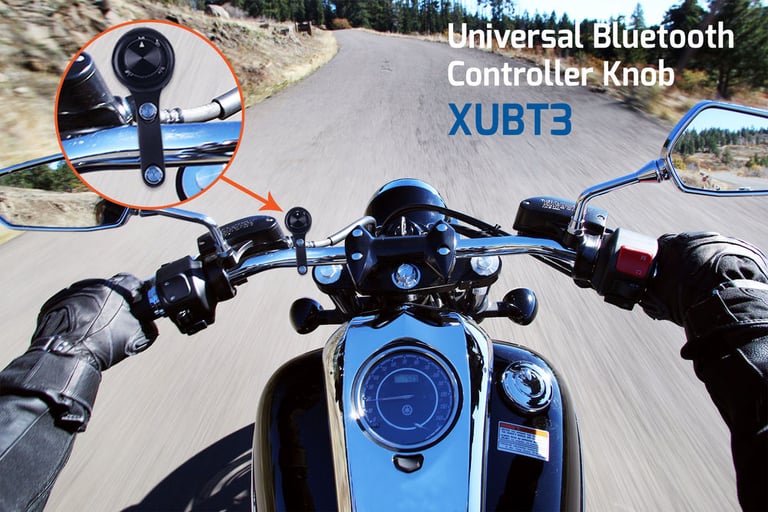

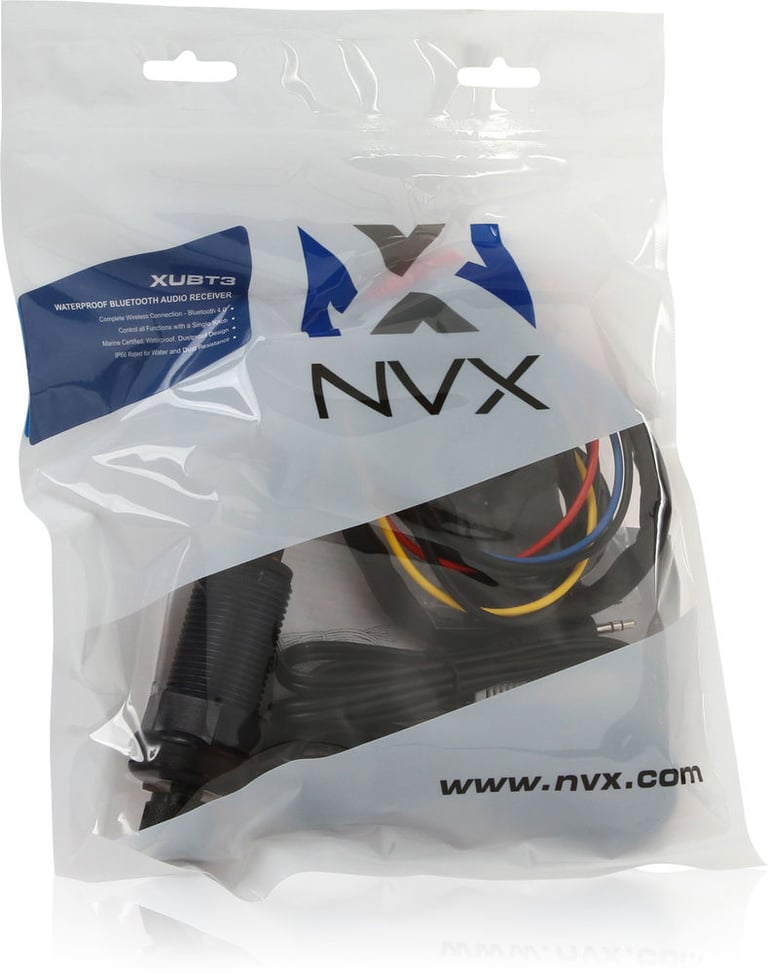

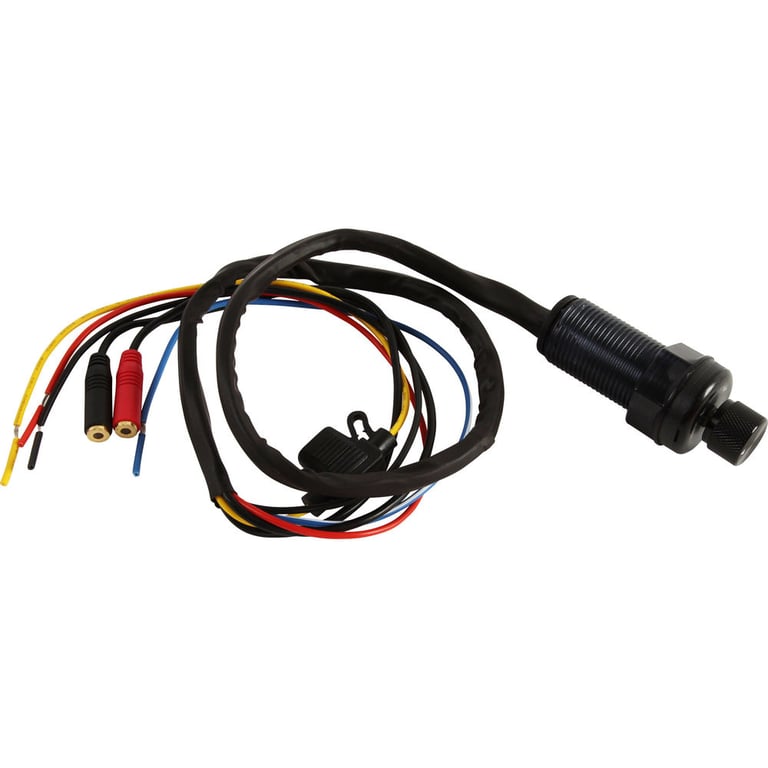

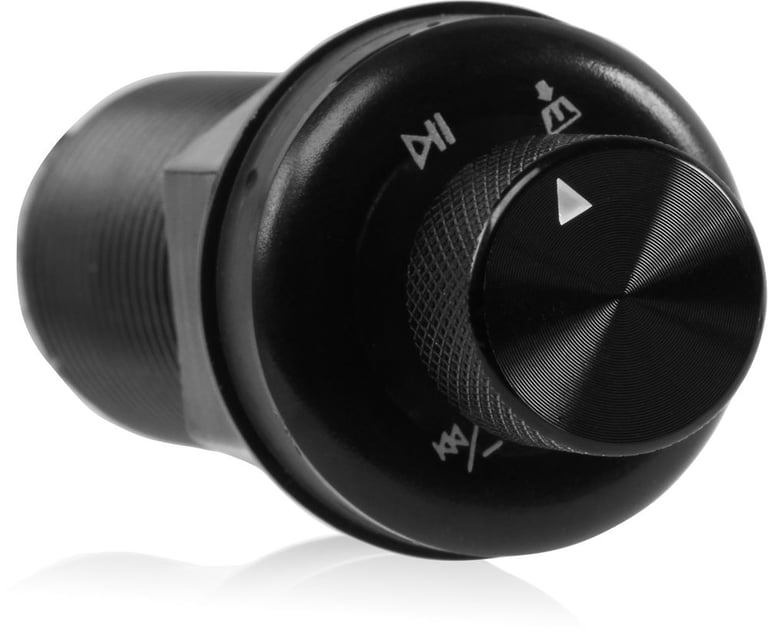

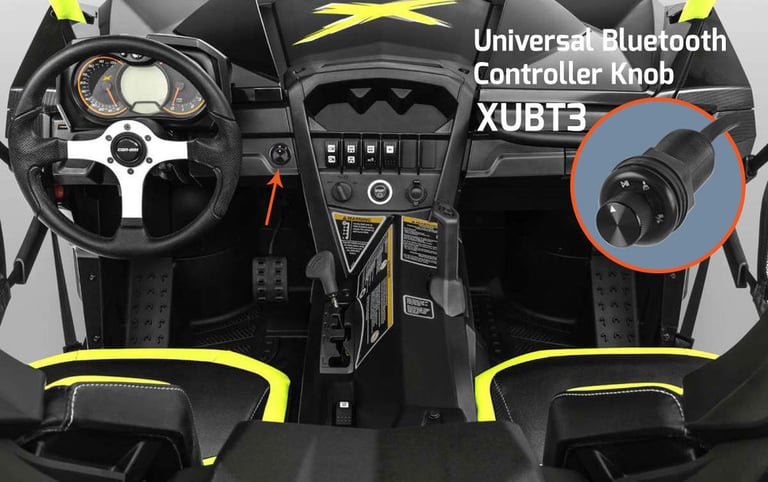

NVX XUBT3 Universal Bluetooth Controller Knob

Universal Bluetooth Audio Receiver & Volume/Playback Controller Knob for Cars, Trucks, Motorcycles, ATVs & Boats (X-Series)
Quantity: 1

Product Details:

  • Universal Bluetooth Audio Receiver & Volume/Playback Controller Knob
  • The perfect add on for the NVX XEQ7
  • iPhone, Android and Bluetooth Device Ready
  • One knob controls it all - track, pause & volume
  • Flush in dash or under dash mounting options

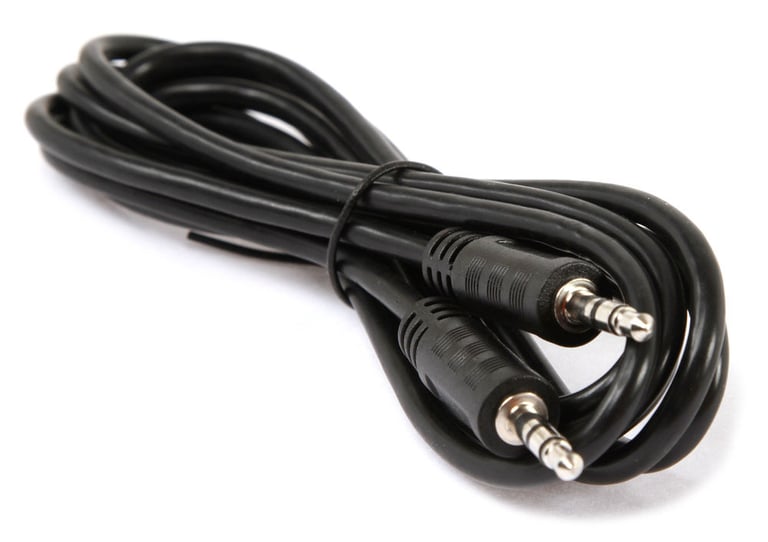

  • 3.5 mm output - Easy Add-on to any radio or device with AUX input
  • 12v Remote Turn on for Amplifiers

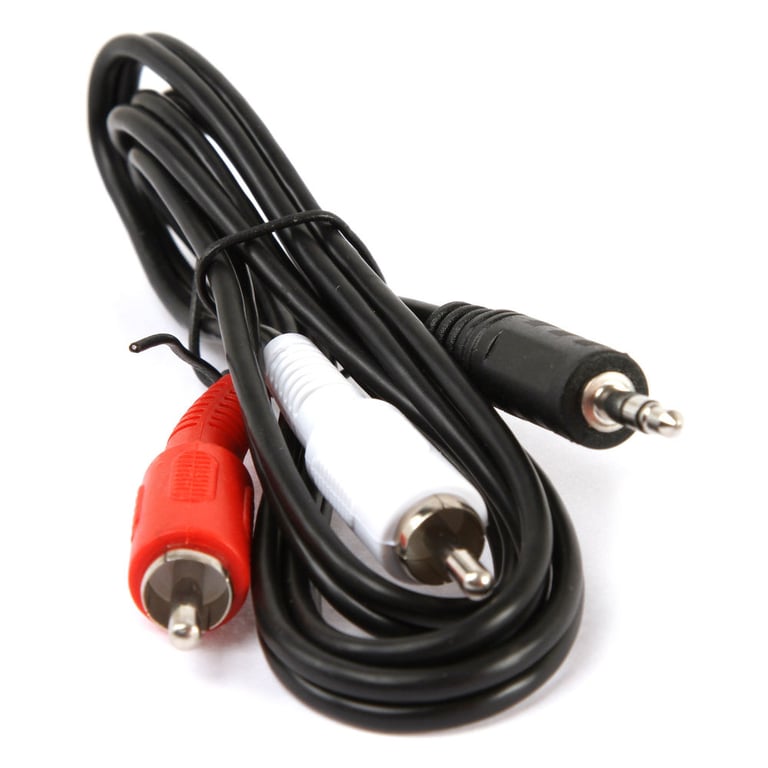

  • Can also be connected via RCAs to Headunits, Amplifiers or any audio device that has RCA inputs
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the NVX XUBT3 Owner's Manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 4 channel
RMS Power @ 2 ohms
400 watts x 4 channel
Bridged RMS Power
800 watts x 2 channel
Amplifier Specifications
Series
Z-Line Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
1600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Sonic Certified Amplifier
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZA2-1600.4_XUBT3

Weight:

8.45lbs

Internal SKU:

za216004_xubt3

Internal Product ID:

137915

Customer Ratings & Reviews


MB Quart ZA2-1600.4 w/ Universal Bluetooth Controller Knob thumbnail image

5 star
76%
4 star
6%
3 star
6%
2 star
12%
1 star
0%



Durability
4.7
Value
4.7
Features
4.7
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

NVX XUBT3 Bluetooth Control

The following review is for XUBT3, which is a part of the bundle you are viewing.

Links instantly and sounds like it is connected thru cables crystal clear very impressed range is impressive also by far best I've tried

By Robert on October 14, 2015

60 found this helpful


Won’t last long on a Harley

The following review is for XUBT3, which is a part of the bundle you are viewing.

Purchased this for my Harley which is not equipped with a fairing or stereo system.
XUBT3 is mounted to a hard saddlebag and connected to an NVX VADM4 amp. Since my bike is an 03, it’s not an M8 engine with the counter balance, which lessens vibration. My XUBT3 has lasted about 1 year and now increases volume on its own, shuts off, on its own and sometimes will not even power up.
My guess, it cannot handle vibration and it’s solder points must be failing.
As for me, I don’t think I’d recommend this for anyone with an HD motorcycle.

By Mr, on January 15, 2022

49 found this helpful


As clean as a cord long range

The following review is for XUBT3, which is a part of the bundle you are viewing.

Installed in Artic Cat sounds great links fast and has long range just wish it was a little smaller on back side bigger and cheaper than Wet Sounds but I can't tell any difference in sound quality or ease of use.

By Robert on January 25, 2016 Checkmark Icon Verified purchase

53 found this helpful


Perfect for my need

The following review is for XUBT3, which is a part of the bundle you are viewing.

This controller was very easy to install and works great. I needed something small and weather proof. This was mounted on a small space on the dashboard of a golf cart. The hole required is only 1" diameter and the full width about 1-3/4". I think it will be durable as it looks like quality powder coat. I prefer this knob unit to the dial on the control of NVX XUBT4, not only for the smaller size, but to the probable durability as compared to the plastic pressure buttons.

Blue tooth has excellent range and very clear sound.

By OldGuyStillTry on December 8, 2016

50 found this helpful


NVX XUBT3 Universal Bluetooth Controller Knob

The following review is for XUBT3, which is a part of the bundle you are viewing.

This item was a lifesaver. Let the customer keep their oem radio and functions saving them a lot on a costly install.

By Anonymous on June 22, 2018 Checkmark Icon Verified purchase

45 found this helpful


Works great!

The following review is for XUBT3, which is a part of the bundle you are viewing.

Item works as described and has held up to rain and washing with a garden hose; both of which were issues for a couple higher priced/supposed "better" brand units I had prior to this one. Only thing I wish were slightly different would be for the track skip vs volume timing; I tend to skip tracks when trying to make a slight volume adjustment. Not a big issue, just something to get used to.

By Jp on February 6, 2018 Checkmark Icon Verified purchase

45 found this helpful


Works as advertised.

The following review is for XUBT3, which is a part of the bundle you are viewing.

Ok device for simple operation. Unfortunately the stereo separation is not that great for the connections,& Bluetooth. I ended up recycling my head unit in place of xubt3. Live, & learn.

By William on September 9, 2017

43 found this helpful


works perfect for my car

The following review is for XUBT3, which is a part of the bundle you are viewing.

works well with using my phone/tablet as the head unit and this as the volume controller. This unit fits perfectly in the location of where the stock cigarette lighter was.

By Tim on March 17, 2016 Checkmark Icon Verified purchase

48 found this helpful


Good value

The following review is for XUBT3, which is a part of the bundle you are viewing.

Simple product, easy install, and fast shipping! I'd recommend it especially for motorcycle or powersports!

By Josh on March 19, 2018

43 found this helpful


Works ok, but NO MIC!!!

The following review is for XUBT3, which is a part of the bundle you are viewing.

Beware - this unit streams music only. There is no mic so you cant make phone calls with it. Parts of the manual does not match the actual product. Its frustrating. Other than that, seems like it works ok.

By anthony on January 2, 2021 Checkmark Icon Verified purchase

40 found this helpful




ATHM70X_GROOVE2 small

Audio Technica ATHM70X + Apogee GROOVE

Professional Monitor Studio Headphones and Portable USB DAC and Headphone Amplifier for Mac / PC

(2)

$485.46

List price $714.00

KFC-C6880IE small

Kenwood KFC-C6880ie

6" x 8" Image Enhancer 2-Way Car Speakers

$49.99

List price $89.99

20-25-CHEVY-SLVRD2500HD-EFS small

NVX E-Series Front Speaker Upgrade Kit (Crew Cab)

Fits select 2020-2025 Silverado 2500 HD ; Includes Speakers Harness and Speaker Wire Adapters

(65)

$93.97

List price $108.97

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Chevrolet Sonic

2001 Dodge Durango

2009 Honda Ridgeline

2012 Dodge Challenger

2003 Subaru Outback

2014 Ford Explorer

2008 Audi A6

2017 Audi Q3

2019 Volkswagen Beetle

2007 MINI Cooper

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
