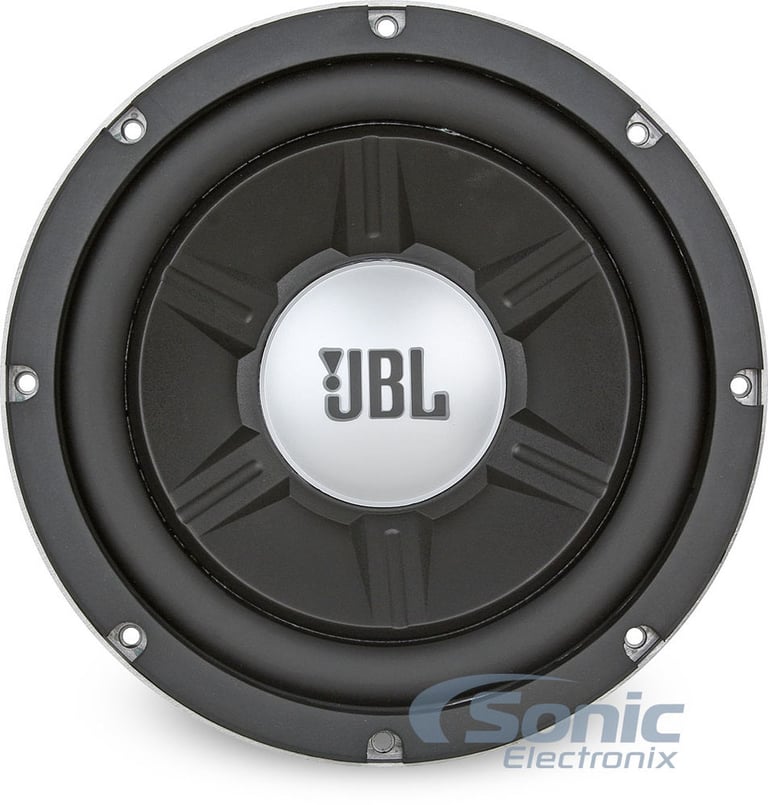

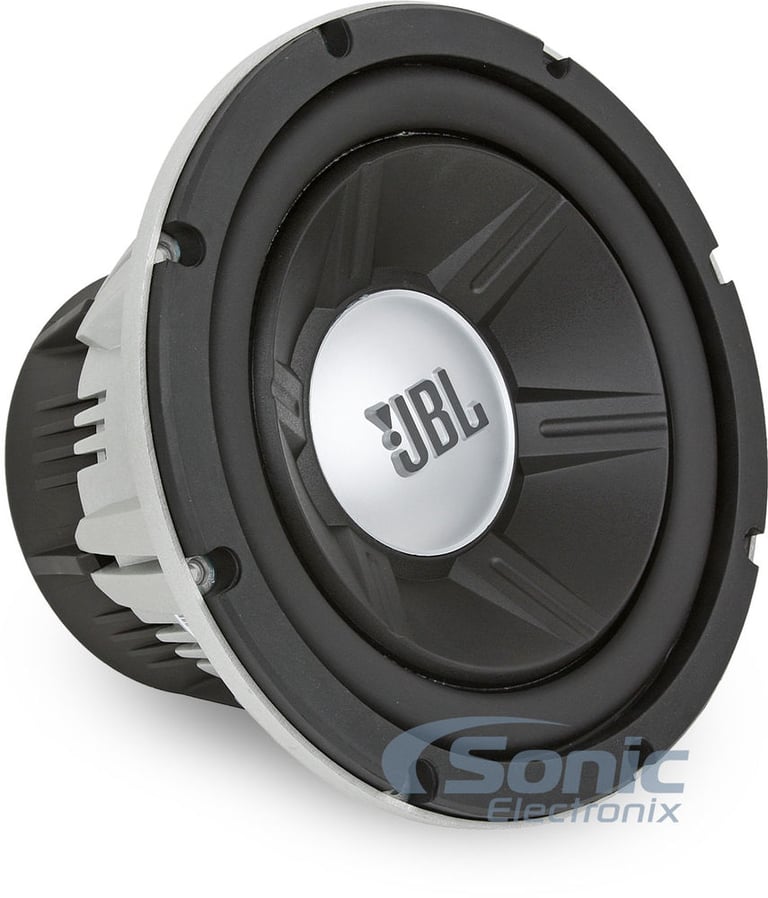

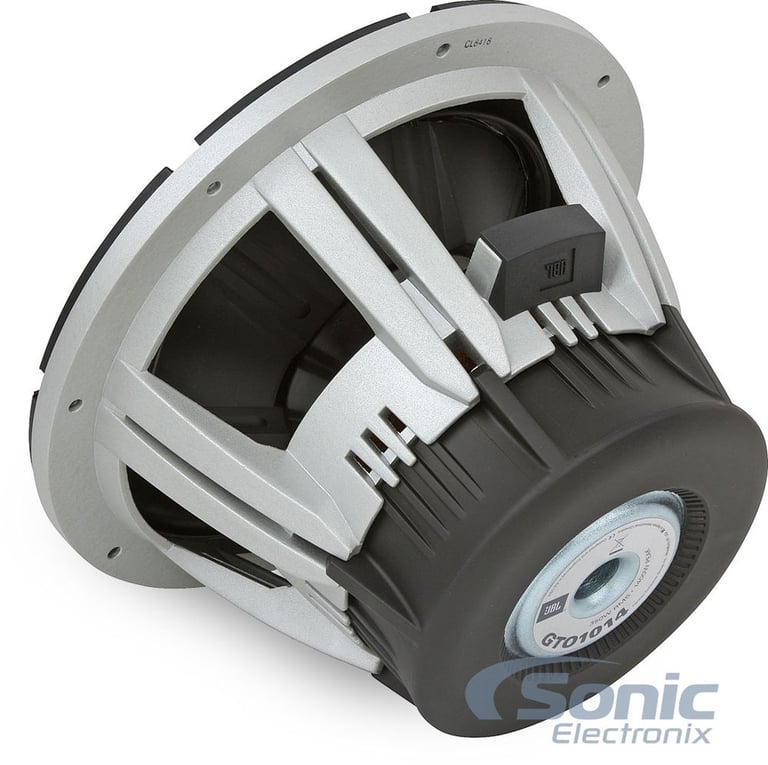

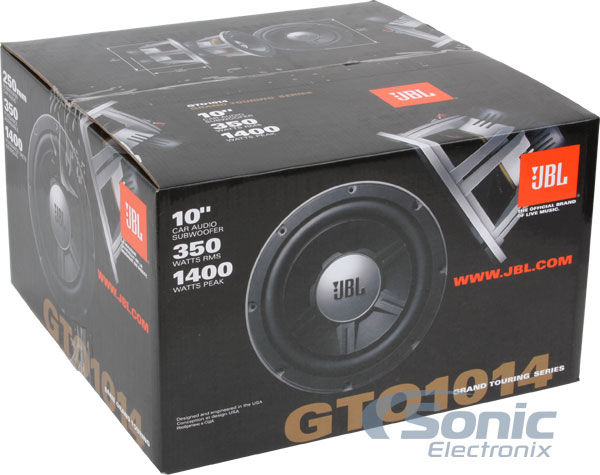

JBL GTO1014

350W 10" GTO Series Single 4 ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• 1400W Peak
• 350W RMS
• Polypropylene cone woofer
• Rubber surround
• Tinsel wire protector
• Die-cast aluminum basket
• 2" Single 4 ohm voice coil

Learn more about the gto1014

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Product Highlights


• 1400W Peak
• 350W RMS
• Polypropylene cone woofer
• Rubber surround
• Tinsel wire protector
• Die-cast aluminum basket
• 2" Single 4 ohm voice coil

Description


JBL brand icon

Authorized dealer



Grand Touring Series

For over 60 years JBL has been delivering products that embody the technology gained through its leadership role in the professional arena: recording studios and movie theaters as well as live-music reinforcement ranging from dance clubs to Woodstock. Our mission continues to be to transform this expertise into products that provide the impact and excitement of a live music performance. JBL is for customers who won’t settle for less than live at home or on the road. JBL’s GTO Series Subwoofers have been engineered to put you in the front row at your next concert. They deliver deep solid, tight bass that can only be delivered by JBL, the leader in concert sound.

Car audio subwoofers take more abuse than any other car audio component, making thundering bass for hours on end. For a car audio enthusiast, there’s nothing worse than a broken sub. At JBL, we thoroughly test our designs before we deliver them. JBL woofers have to pass a 100-hour power test, where the RMS and peak power levels are tested simultaneously. When you see ‘300 watts RMS’ and ‘1200 watts peak’ in our ratings, you can be sure that those numbers are tested and verified. Additionally, to be sure the moving parts are robust; we subject every design to a proprietary mechanical power handling test at up to 17 times the RMS power handling rating. That means these woofers have to survive test signals as high as 6000 watts. We’re fanatics about product quality.

JBL GTO subwoofers include die-cast aluminum baskets, polypropylene cones, rubber surrounds and a unique tinsel wire protector that also strengthens joint between the cone, the voice coil and the spider. That joint is the most critical of all and must withstand more stress than any other point in the moving assembly. Great performance and superior reliability have been JBL’s hallmark for over 60 years and the new JBL GTO subwoofers offer both at affordable prices. The JBL Grand Touring Die-Cast Subwoofers are designed to be used in sealed, vented and bandpass enclosures.



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 10" Single 4 ohm Grand Touring Die-Cast Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 350 watts
  • Impedance: Single 4 ohm
  • Polypropylene cone woofer
  • Rubber surround
  • Tinsel wire protector
  • Die-cast aluminum basket
  • 2" Single 4 ohm voice coil
  • Frequency response: 25-400 Hz
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

JBL GTO1014 thumbnail
(newest, current model)
JBL GTO1002D thumbnail
(previous model, replaced by JBL GTO1014)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL GTO1014 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL GTO1014 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL GTO1014 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL GTO1014 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
GTO Series
Subwoofer Size
10"
Peak Power Handling
1400 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
25 - 400 Hz
Sensitivity
88 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28.70 Hz
Equivalent Compliance (Vas)
29.20 liters
Total Speaker Q Value (Qts)
0.46
Electrical Q Value (Qes)
0.48
Electrical Resistance of Voice Coil (Re)
4.00 ohm
Mechanical Q Value (Qms)
9.10
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GTO1014

Weight:

14.00lbs

Internal SKU:

gto1014

Internal Product ID:

13866
