Name: Visonik V1802A R/B
Brand: Visonik
SKU: LS-v1802a-RB
Price: 89.99 USD
Availability: Discontinued
Rating: 4.6667 (3 reviews)

Shop all Visonik

by Visonik

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

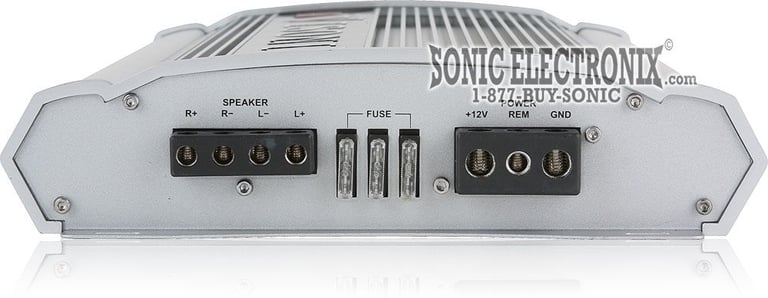

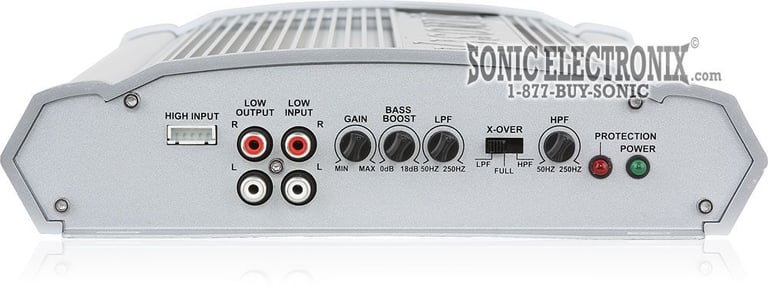

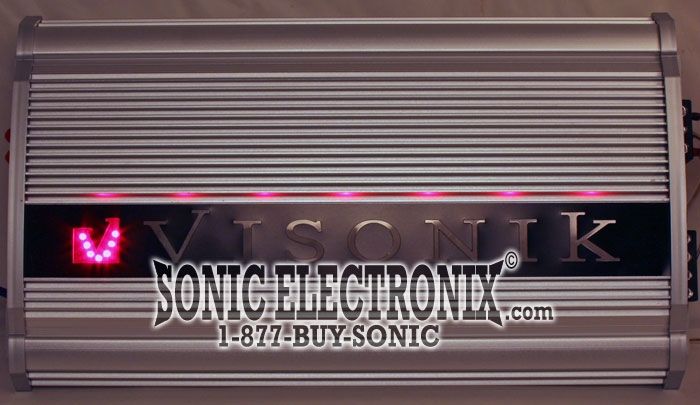

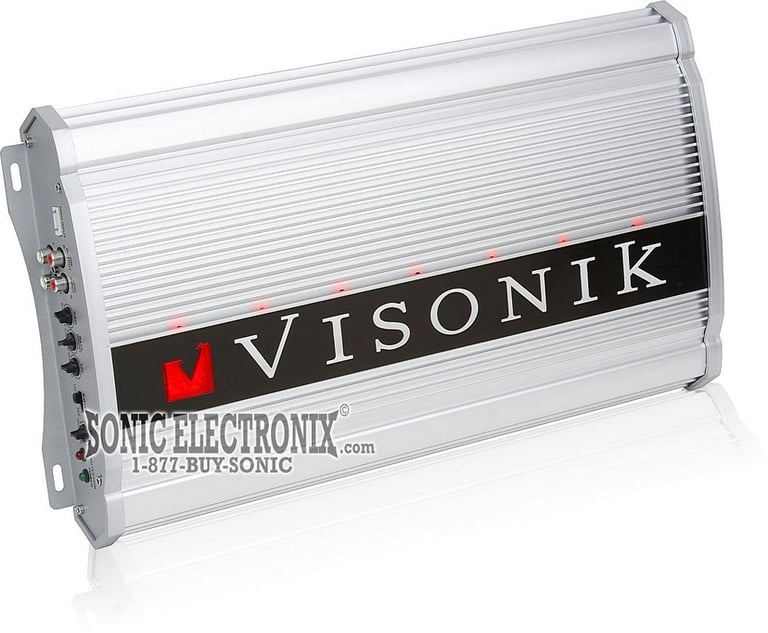

Visonik V1802A R/B Image 1 — Visonik V1802A R/B

Visonik V1802A R/B Image 2 — Visonik V1802A R/B

Visonik V1802A R/B Image 3 — Visonik V1802A R/B

Visonik V1802A R/B Image 4 — Visonik V1802A R/B

Visonik V1802A R/B Image 5 — Visonik V1802A R/B

Product videos

Product highlights

2-Channel Class AB Car Amplifier • 300W x 2 chan. @ 4 ohm • 600W x 2 chan. @ 2 ohm • 1200W x 1 chan. @ 4 ohm • 1800W x 1 chan. Max • MOSFET power supply • Speaker-level inputs • Preamp RCA outputs

Learn more about the LS-v1802a-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

2-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 300 watts x 2 chan.
2 ohm: 600 watts x 2 chan.
Bridged, 4 ohm: 1200 watts x 1 chan.

Max power output: 1800 watts x 1 chan.
MOSFET power supply
LED power and protection indicators
Decorative red LED illumination
Tuned Bass EQ (0-18 dB bass boost @ 45 Hz)
Adjustable input sensitivity
Bridgeable operation
Speaker-level inputs
Preamp RCA outputs
Thermal, short circuit, and overload protection circuitry
Heavy duty aluminum alloy heatsink
Chrome-plated RCA level inputs
Chrome-plated screw terminals
Variable high-pass filter (50-250 Hz, 24 dB/octave)
Variable low-pass filter (50-250 Hz, 24 dB/octave)
Subsonic Filter (24 dB at 15 Hz)
Frequency response: 20-20000 Hz
Dimensions: 17.52"L x 9.53"W x 2.30"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

300 watts x 2 channel

RMS Power @ 2 ohms

600 watts x 2 channel

Bridged RMS Power

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

1800 watts

Total RMS Power Output

1200 watts

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Bass Boost

0 - 18 dB

Remote bass/level controller

Fuse Rating

20A x 3

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		67%
4 star		33%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		4.7
Features		4.7
Design		4.7
Usability		4.7

Customer Reviews

Sort by:

VIsonik

great amplifier. plenty of power. got all the right settings like amp boost. very good

By j beezy on February 9, 2010

4 found this helpful

Report abuse

all around great value

this amp is all you need great power and great value

By kman66 on August 8, 2010

3 found this helpful

Report abuse

Wow amazed

all i can say is i was not expecting this amp to punch the crap out of my kickers the way this does!

By alex on March 3, 2010

2 found this helpful

Report abuse
