See all parts that fit your 1967 Riviera

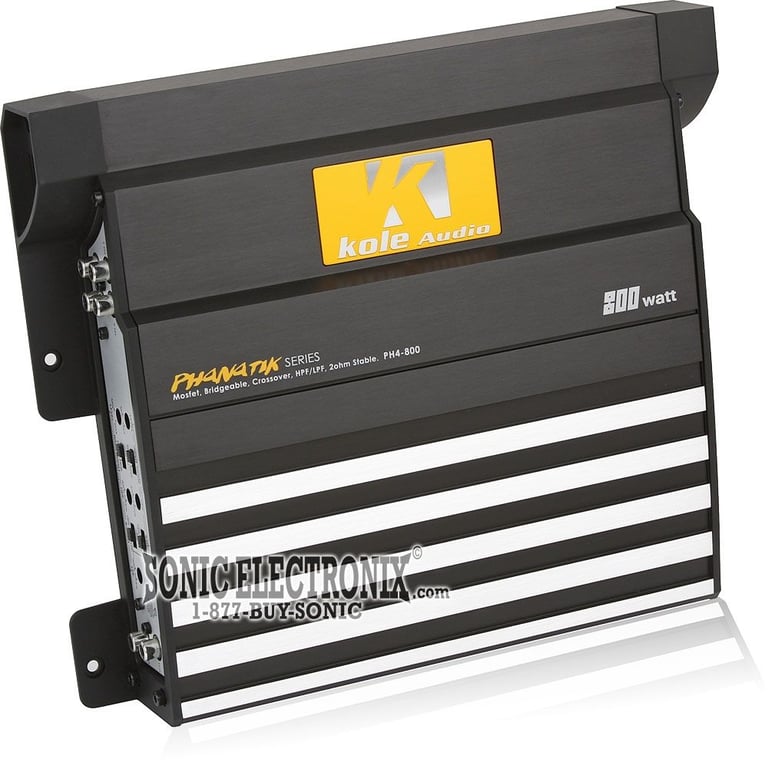

Kole Audio PH4-800

800W Max, 4-Channel Phanatik Series Amplifier

Product videos
highlight-star-icon

Phanatik Series 4-Channel Class AB Car Amplifier • 80W x 4 chan. @ 4 ohm • 95W x 4 chan. @ 2 ohm • 190W x 2 chan. @ 4 ohm • 400W x 2 chan. Max • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs • Preamp RCA outputs

Learn more about the ph4800

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

Product Highlights


Phanatik Series 4-Channel Class AB Car Amplifier • 80W x 4 chan. @ 4 ohm • 95W x 4 chan. @ 2 ohm • 190W x 2 chan. @ 4 ohm • 400W x 2 chan. Max • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs • Preamp RCA outputs

Description


Kole Audio brand icon

Authorized dealer

  • Phanatik Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 chan.
    • 2 ohm: 95 watts x 4 chan.
    • Bridged, 4 ohm: 190 watts x 2 chan.
  • Max power output: 400 watts x 2 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs
  • LED power and protection indicators

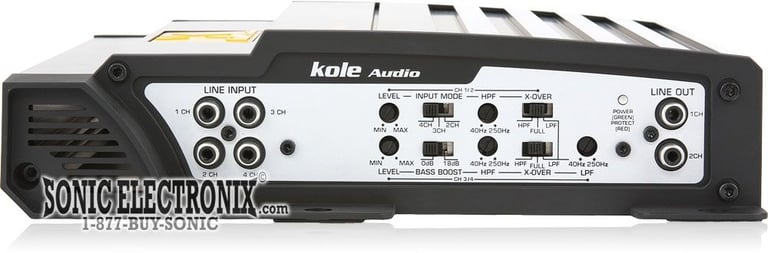

  • Tuned Bass EQ (0-18 dB bass boost)
  • Tri-mode capable
  • Preamp RCA outputs
  • 3-Way protection circuitry
  • System distress indicator
  • Shiny jet black heatsink with diamond cut rubs
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Variable high-pass filter (40-250 Hz, 24 dB/octave)
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Frequency response: 10-30000 Hz
  • Dimensions: 11.5"L x 10.4"W x 2.4"H

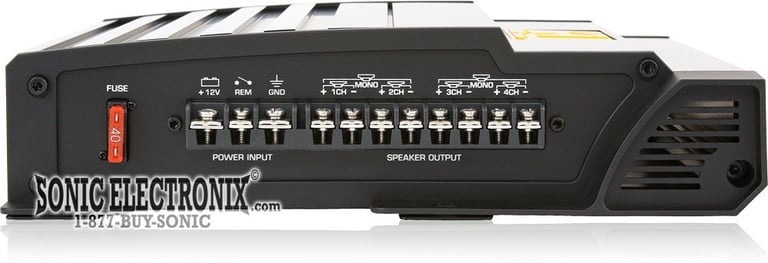

  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
95 watts x 4 channel
Bridged RMS Power
190 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
380 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PH4-800

Weight:

8.00lbs

Internal SKU:

ph4800

Internal Product ID:

14086

Product and How-to Videos


Customer Ratings & Reviews


Kole Audio PH4-800 thumbnail image

5 star
60%
4 star
20%
3 star
0%
2 star
0%
1 star
20%



Durability
3.2
Value
4.2
Features
3.8
Design
4.2
Usability
4.2

Customer Reviews

Sort by:

Loading...

NOT GOOD

The amp was not good i had to get a new one not happy, it lasted only one year.

By JAIME on October 12, 2012


Clean sound

This amp sounds nice, rear chs bridged to a single 5.25 Tang Band sub, with gain about half way, fronts to MTX 6001 components. I would guess the power rating a little optimistic, and switches feel a bit cheap, but hey, good value and only time will tell, only been working for a few weeks, so far very pleased, would like to upgrade to the RE 8 in sub but seems backordered forever.

By Gigs on June 17, 2011


Ph4-800

This amp is awesome! I hooked it up to 2 Kicker KS600's and 2 8" MTX Road Thunder subs. It puts out a super clear sound and is an excellent price for what you get.

By Jacob on February 13, 2011


Kole Audio PH4-800

It's a great amp for the price and never overheats. Have not had any problems. Also have the matching mono 5500 watt amp and it's great also.

By Don1 on September 29, 2010


Great

i blast this thing on a daily basis. I am running all 4 of my door speakers and my 10 inch sub off of this one amp, it just started kicking off on me but lately its been 95+ degrees in my area recently, overall its a great product.
