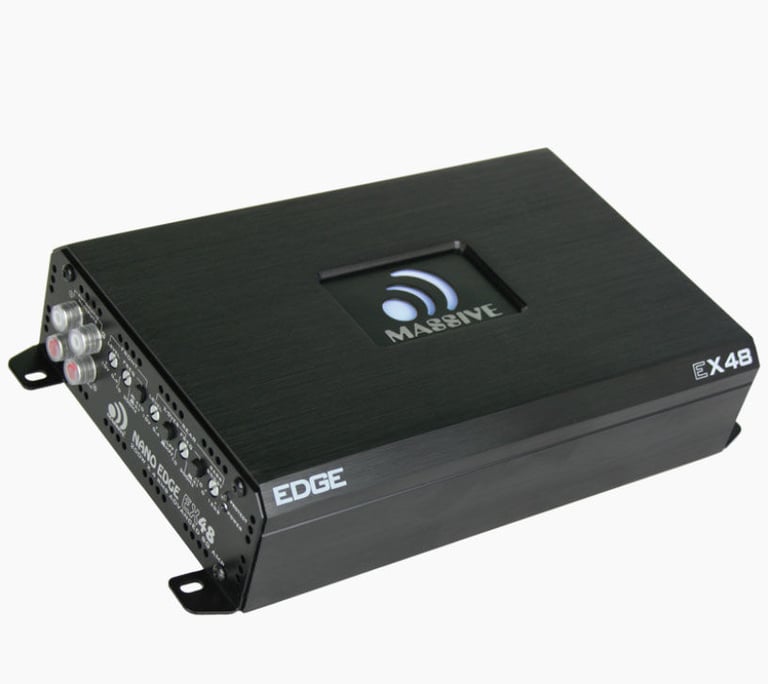

Massive Audio EX48

1600W Max (800W RMS) Nano Edge Series Digital 4-Channel 2 ohm Stable Amplifier

Massive Audio
Shop all Massive Audio
highlight-star-icon

• 200 W RMS x 4 @ 4 ohm
• 200W RMS x 1 @ 2 ohm
• 400 Watts RMS x 2 @ 4 ohm, Bridged
• Total Peak Power: 1600 Watts
• CEA-2006 Compliant
• Small Footprint for Installation Flexibility
• Aluminum Heatsink
• Dimensions: 9.1" W x 5.9" L x 2.1" H

Learn more about the ex48

We apologize

This item has been discontinued


Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
70-2003 main

Metra 70-2003 Wiring Harness

Install a new car stereo in select 1998-2008 vehicles from Chevrolet, GMC, Kia

33
GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

Description


Massive Audio brand icon

Authorized dealer

General Features:

  • Massive Audio Nano Edge Series EX48
  • Digital Full Range 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 4 chan.
    • 2 ohm: 200 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 400 watts x 2 chan.
  • Total power output: 1600 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Illuminated Massive Audio logo
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink

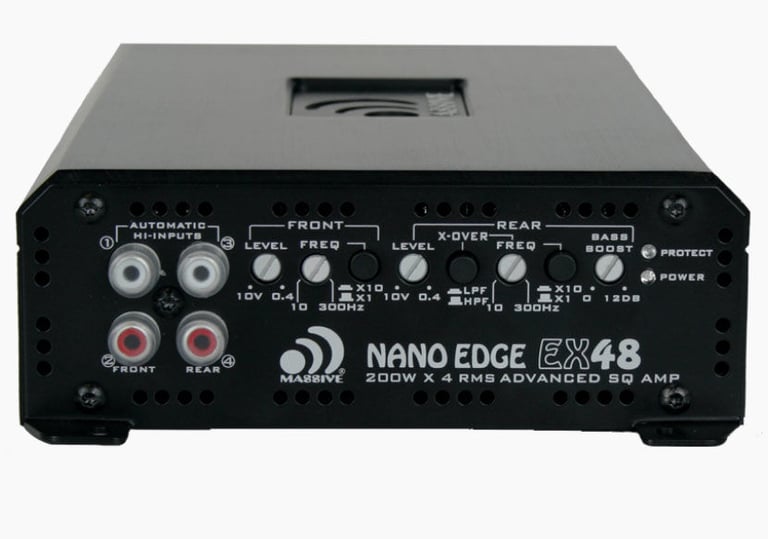

  • Input sensitivity:
    • Low level: .4V-10V
    • High level: .4V-10V
  • Frequency Response: 10 - 25000 Hz
  • Total Harmonic Distortion (THD): .05%
  • Signal to Noise Ratio: >95 dB
  • Variable high-pass filter: 100 - 3000 Hz
  • Variable low-pass filter: 10 - 25Hz
  • Variable Bass Boost: 0 to +12 dB bass boost
  • To even out power, add a Massive Audio Rail Cap X
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Protect against power drops with the Massive Audio RCE capacitor
  • Dimensions: 9.1"W x 5.9"L x 2.1"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the EX48 Owner's Manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

AVH-2550NEX main

Pioneer AVH-2550NEX

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, and Android Auto (SiriusXM Ready)

-13.33%

$650.00

List price $750.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Power Specifications - Full Range Channels
Bridged Peak/Max Power
1600 watts x 2 channel
Amplifier Specifications
Series
Nano Edge Series
Amplifier Class
Digital
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
300 - 1000 Hz
Low-Pass Crossover Frequency
10 - 25 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
Power certification
WITB: Amplifiers
Amplifier
Mounting screws (4)
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EX48

Weight:

7.19lbs

Internal SKU:

ex48

Internal Product ID:

142919
