Alpine R-W10D2 + ZA2-1000.1D + Belva BAK42BK

General Features:

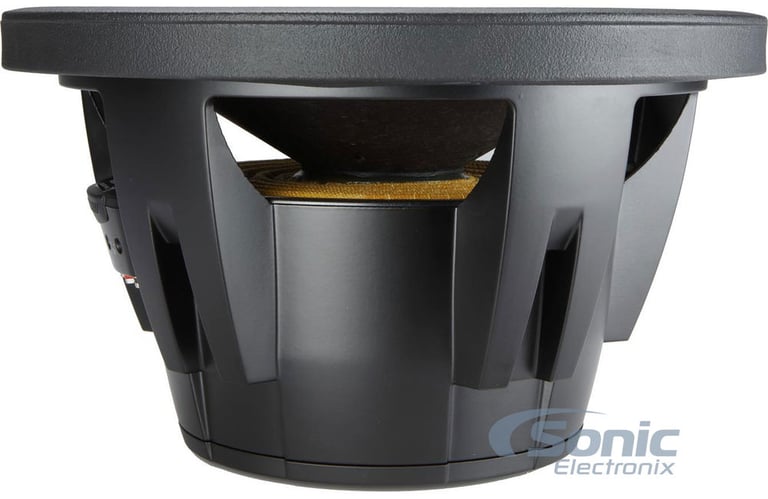

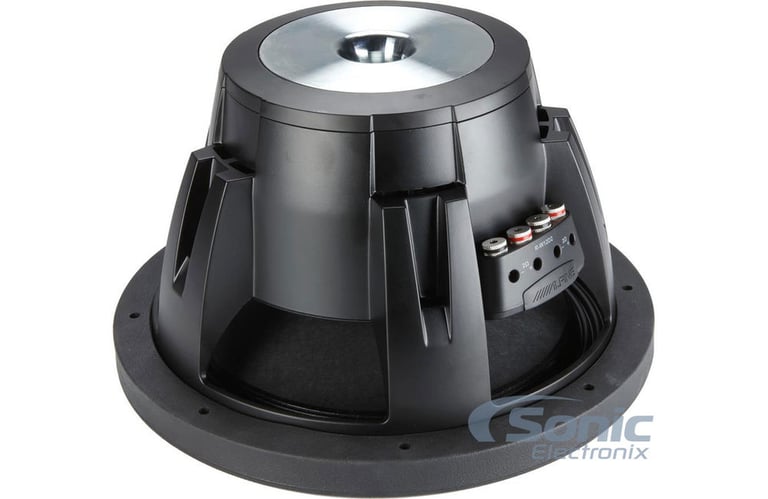

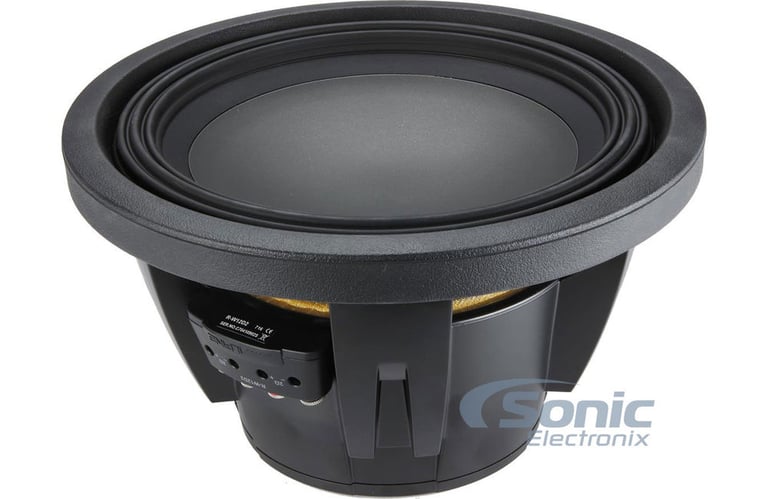

• 10" Dual 2 ohm Type-R Subwoofer
• Power Handling:
• Peak: 2250watts
• RMS: 750 watts
• Recommended power range: 300 - 750W RMS
• CTA-2031 compliant power ratings
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Sealed Enclosure Volume: 0.4 - 0.85 ft.³
• Vented Enclosure Volume: 0.75 - 1.3 ft.³
• Polypropylene, mica and talc dust cap
• Reinforced cone neck and spider joint
• Cast aluminum frame with integral shorting sleeve
• 8AWG push terminals with VC configuration jumpers
• 2.6" High excursion overhung voice coil
• 111 oz. Strontium ferrite segmented magnet
• Top-mount depth: 5-7/8"
• Cutout diameter: 9-1/16"
• Frequency Response: 26 - 200Hz
• Sensitivity: 82.4dB
• Resonance Frequency (Fs): 30Hz
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Priced Individually

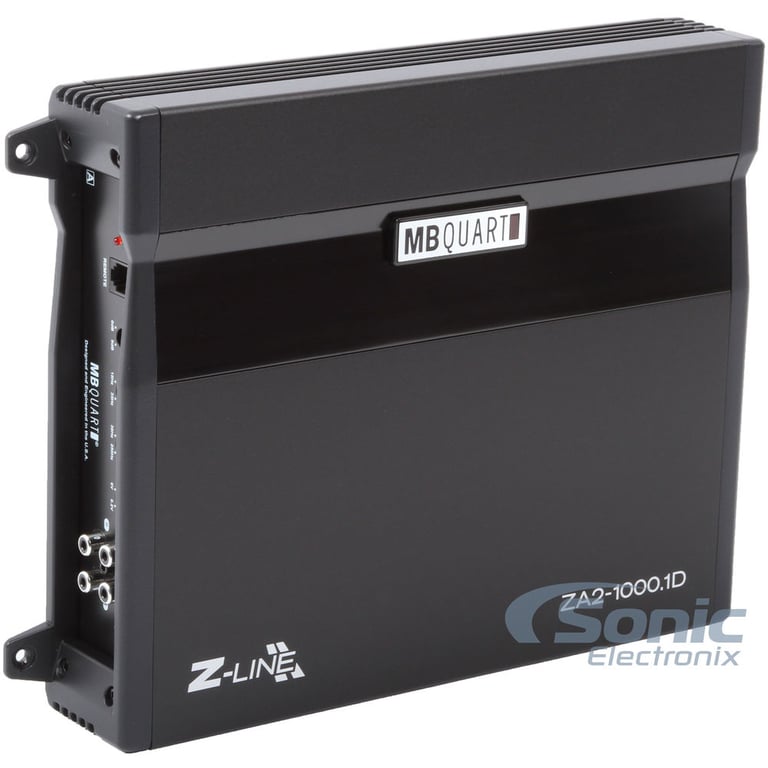

General Features:

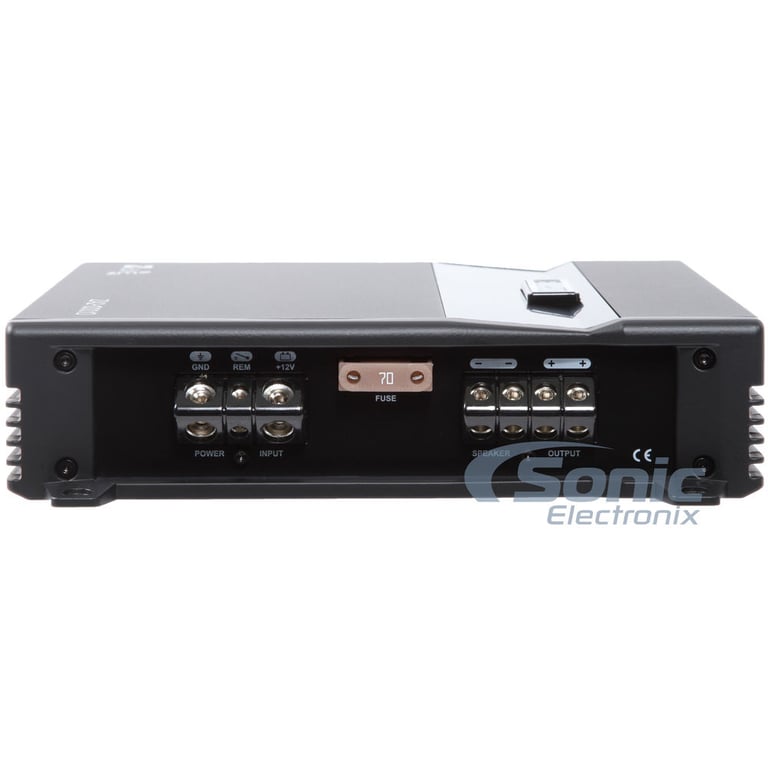

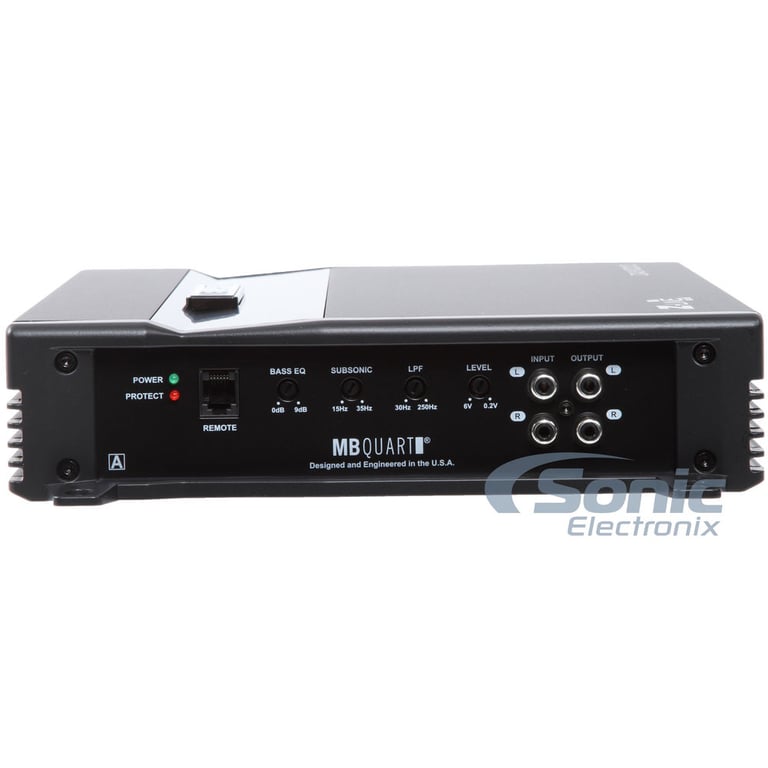

• MBA Quart ZA2-1000.4
• Class-Q1 (D) Full Range 1-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 350 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• 1 ohm: 1,000 watts x 1 chan.
• Total power output: 1,000 watts
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Frequency Response: 10 - 300 Hz
• Total Harmonic Distortion (THD): <.05%
• Signal to Noise Ratio: >90 dB
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Subsonic filter: 10 -40 Hz, 12dB/octave
• Variable Bass Boost: 0 to +9 dB bass boost at 50 Hz
• Fuse Rating: 70 A
• 2-4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 15.75"W x 10.63"L x 3.25"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Check out the ZA2-1000.1D product manual

Product Details:

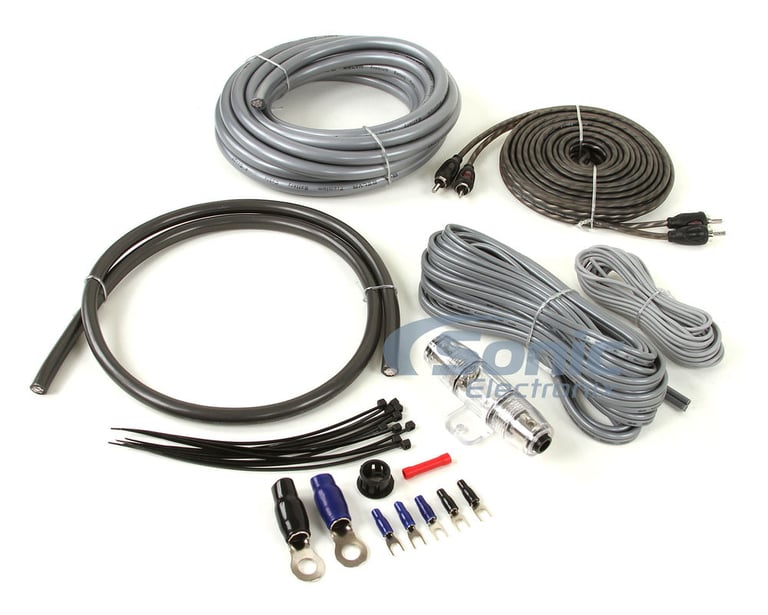

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Gray 4 gauge power wire
2. 3 ft. Black 4 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire

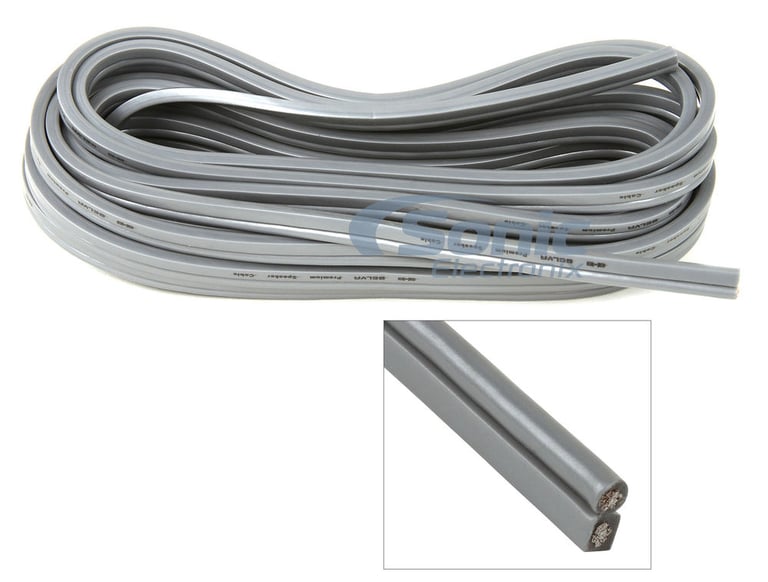

4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

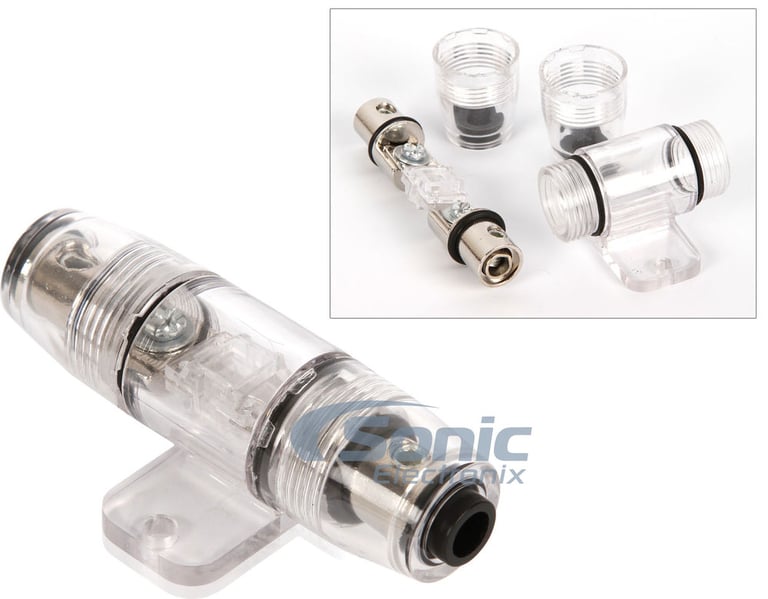

6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties
