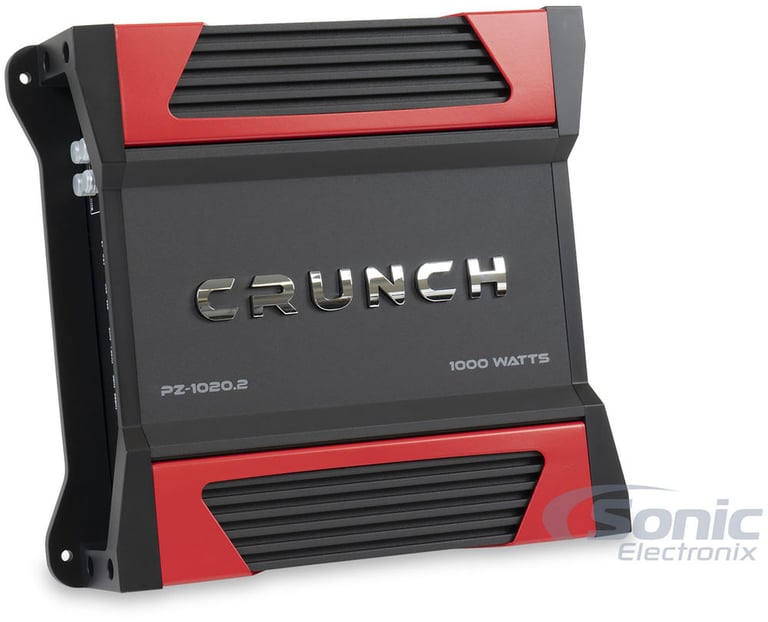

PZ-1020.2 (PZ10202) | Power Zone 2-Channel Amplifier | Crunch

Crunch PZ-1020.2 (PZ10202)

1100W Max Powerzone Series 2-ohm Stable 2-Channel Class-A/B Amplifier

1100W Max Powerzone Series 2-ohm Stable 2-Channel Class-A/B Amplifier

• 275 Watts Max x 2 @ 4 ohms
• 550 Watts Max x 2 @ 2 ohms
• 1100 Watts Max x 1 @ 4 ohms, Bridged
• Total Peak Power: 1100 Watts
• High and Low Pass Filters Built In
• 0-9dB Bass Boost
• Aluminum Heatsink

1.0

(1)
List price $189.99
Save: $130.00

$59.99

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Crunch

Authorized dealer

General Features:

  • Crunch Powerzone Series PZ-1020.2
  • Class-A/B 2 ohm Stable 2-Channel Amplifier
  • Max Power Rating:
    • 4 ohms: 275 watts x 2 chan.
    • 2 ohms: 550 watts x 2 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 1100 watts x 1 chan.
  • Total power output: 1100 watts
  • Pulse Width Modulated MOSFET power supply

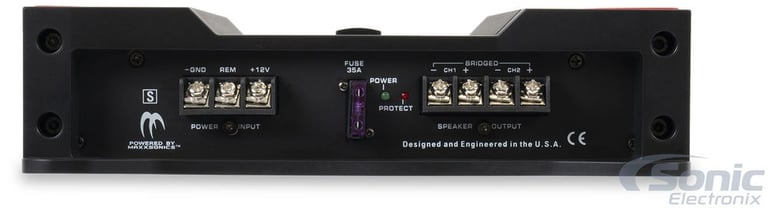

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Frequency Response: 10 - 45000 Hz
  • Total Harmonic Distortion (THD): .05%
  • Signal to Noise Ratio: >90dB

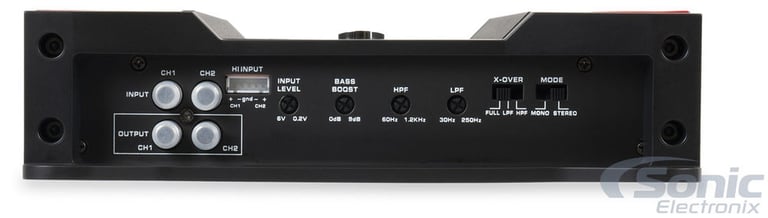

  • Variable high-pass filter: 60 - 1200 Hz
  • Variable low-pass filter: 30 - 250 Hz
  • Variable Bass Boost: 0 to +9 dB bass boost
  • Fuse Rating: 35A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty


Check out the PZ-1020.2 Owner's Manual

FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
275 watts x 2 channels
RMS Power @ 2 ohms
550 watts x 2 channels
Bridged RMS Power
1100 watts x 1 channels
Amplifier Specifications
Amplifier Series
PowerZone (Crunch)
Marine Certified
No
Amplifier Class
AB
Number of Channels
2
Total Peak Power Output
1100 watts
Total RMS Power Output
550 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 9 dB
Bass/Gain Remote
No
Fan Cooled
No
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
REVIEWS
Crunch PZ-1020.2 (PZ10202)

Crunch PZ-1020.2 (PZ10202)

1.0

(1)

Write a review

Overall rating distribution

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
100%

By feature average rating

Durability
1
Value
1
Features
1
Design
1
Usability
1

John

May 27, 2021

Crunch 1100 amp

This is not a good amp for powering any kind of subwoofer whatsoever, it may work somewhat decent for the mid-range level, but I'm not sure about that either. Pushing 115 watts RMS x 1 @ 2 ohm
