Name: JL Audio HD600/4 Open Box
Brand: JL Audio
SKU: LS-hd6004-OB
Price: 799.95 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

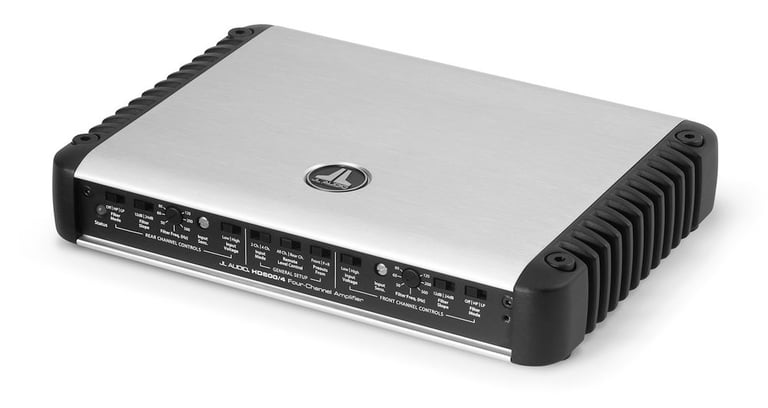

JL Audio HD600/4 Open Box Image 1 — JL Audio HD600/4 Open Box

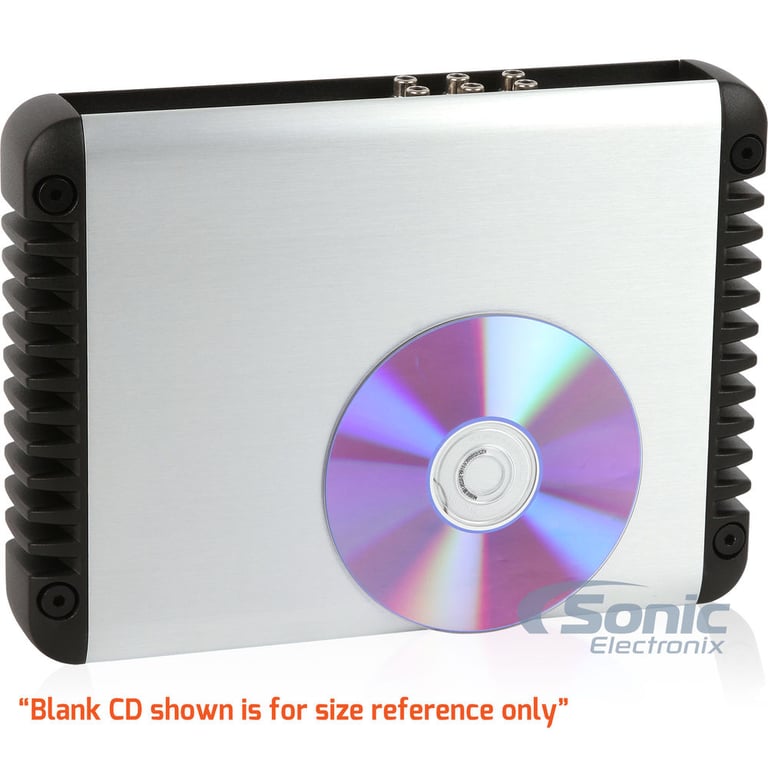

JL Audio HD600/4 Open Box Image 2 — JL Audio HD600/4 Open Box

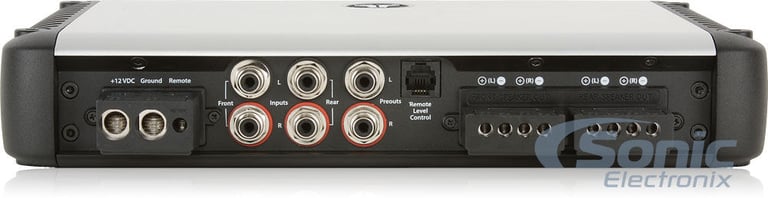

JL Audio HD600/4 Open Box Image 3 — JL Audio HD600/4 Open Box

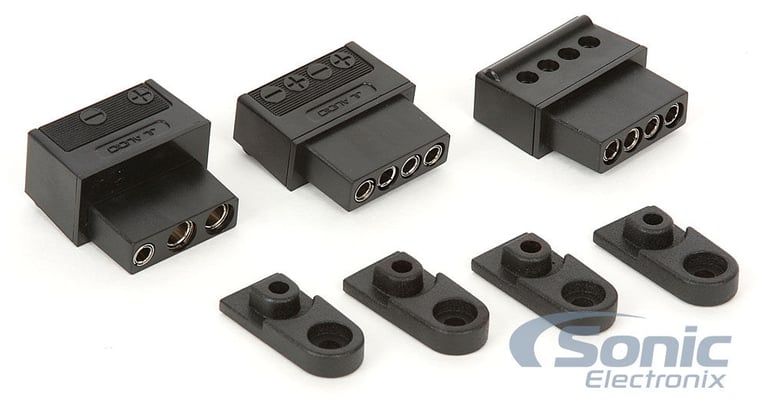

JL Audio HD600/4 Open Box Image 4 — JL Audio HD600/4 Open Box

JL Audio HD600/4 Open Box Image 5 — JL Audio HD600/4 Open Box

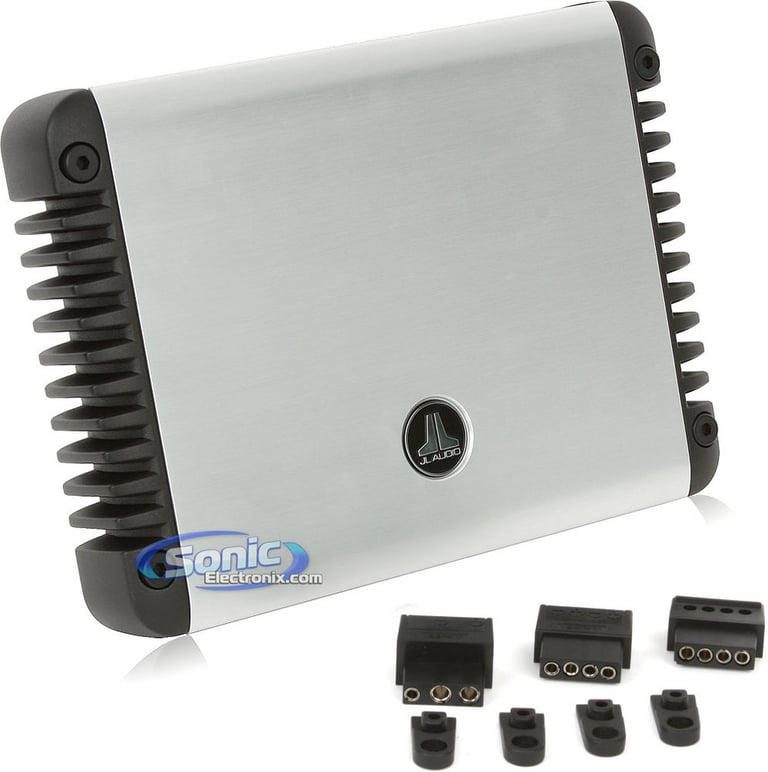

JL Audio HD600/4 Open Box Image 6 — JL Audio HD600/4 Open Box

JL Audio HD600/4 Open Box Image 7 — JL Audio HD600/4 Open Box

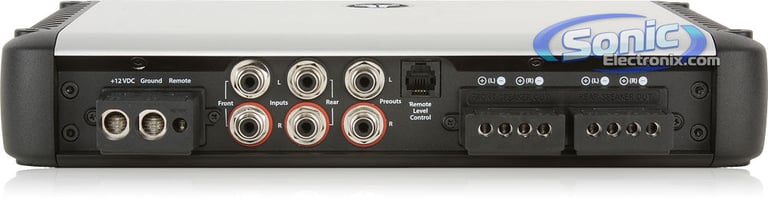

JL Audio HD600/4 Open Box Image 8 — JL Audio HD600/4 Open Box

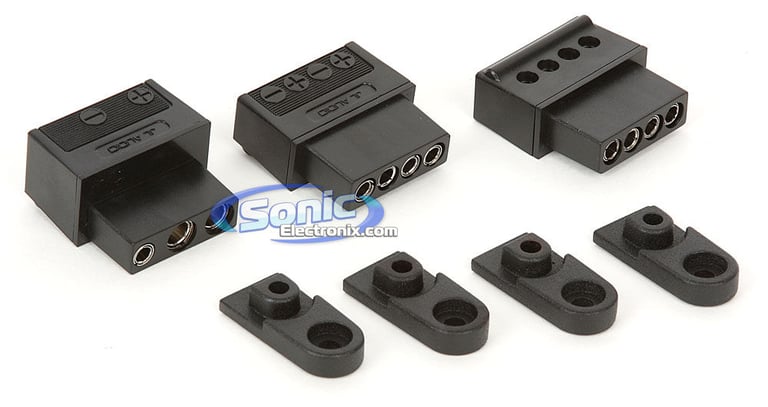

JL Audio HD600/4 Open Box Image 9 — JL Audio HD600/4 Open Box

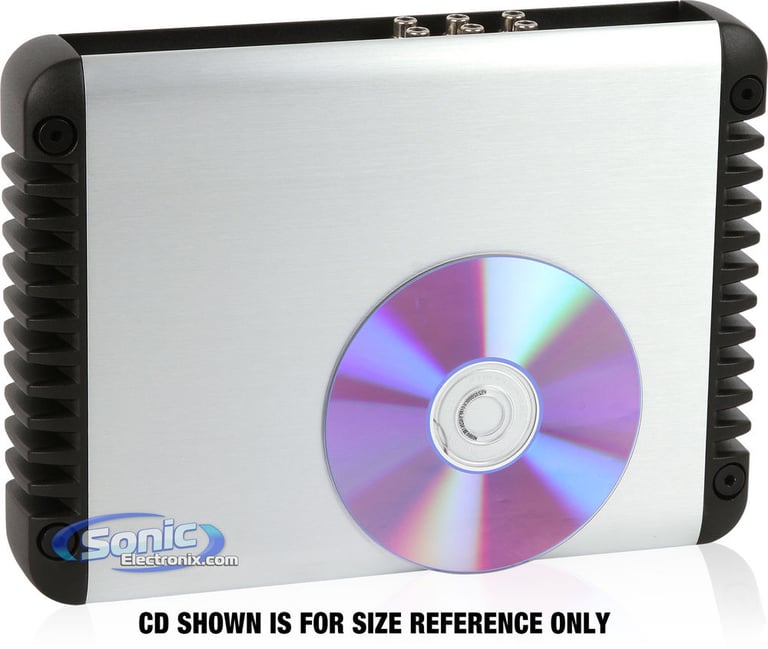

JL Audio HD600/4 Open Box Image 10 — JL Audio HD600/4 Open Box

Product videos

Product highlights

JL Audio HD Series 4-Channel Class D, Small Profile Car Amplifier with R.I.P.S. Technology • 150 watts x 4 chan. @ 1.5-4 ohm • 300 watts x 2 chan. @ 3-8 ohm • Single Cycle Control™ • Preamp RCA outputs • Speaker-level inputs

Learn more about the LS-hd6004-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

More Power from a Smaller Chassis

The 4-channel JL Audio HD600/4 HD series car amplifier delivers unreal power in a very small and convenient size. Often times smaller amplifiers will lack power or even quality, however with the new JL Audio HD amplifiers this will not be the case. The HD amplifiers are equipped with amazing technologies like Single Cycle Control, which tracks audio signal and compares it to the real PWM waveform and then corrects it accordingly each and every cycle. This helps to control distortion causing mechanisms improving the quality of the amplifier tremendously. HD amplifiers also feature the R.I.P.S. System, R.I.P.S. stands for "Regulated, Intelligent Power Supply" and ensures consistent power delivery over a wide range of battery voltages and load impedance's. This means you will received the same power output at 4 ohms all the way down to 1.5 ohms each and every single time. With dual mounting options for added versatility and advanced heatsinks with vertically oriented fins for extreme heat control, the JL Audio HD amplifiers are unmatched by other amplifiers in the same class.

Product Features:

JL Audio HD Series 4-Channel Class D Amplifier
RMS Power Rating (11V-14.5V):

4 ohm: 150 watts x 4 chan.
3 ohm: 150 watts x 4 chan.
2 ohm: 150 watts x 4 chan.
1.5 ohm: 150 watts x 4 chan.

Bridged RMS Power Rating (11V-14.5V):

Bridged, 8 ohm: 300 watts x 2 chan.
Bridged, 6 ohm: 300 watts x 2 chan.
Bridged, 4 ohm: 300 watts x 2 chan.
Bridged, 3 ohm: 300 watts x 2 chan.

MOSFET power supply
Remote bass level input (HD-RLC required and sold separately)
LED power indicators
4/2 channel operation
Speaker-level inputs
Preamp RCA outputs
Single Cycle Control™
Heavy duty aluminum alloy heatsink for heat dissipation
RCA level inputs
Screw terminals
Variable high-pass filter (50-500 Hz, 24 dB/octave)
Variable low-pass filter (50-500 Hz, 24 dB/octave)
Frequency response: 20-20,000 Hz
Optional wired remote level control: JL Audio HD-RLC
Optional stacking equipment for HD amplifiers: JL Audio HD Stack Kit
Dimensions: 10-13/16"L x 8-7/8"W x 1-15/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90-Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

RMS Power @ 1 ohm

150 watts x 4 channels @ 1.5 ohms

Bridged RMS Power

300 watts x 2 channels @ 3-8 ohms

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1.5 ohm

Minimum Impedance Bridged

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 200 Hz

Low-Pass Crossover Frequency

50 - 200 Hz

Signal-to-Noise Ratio

110 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
