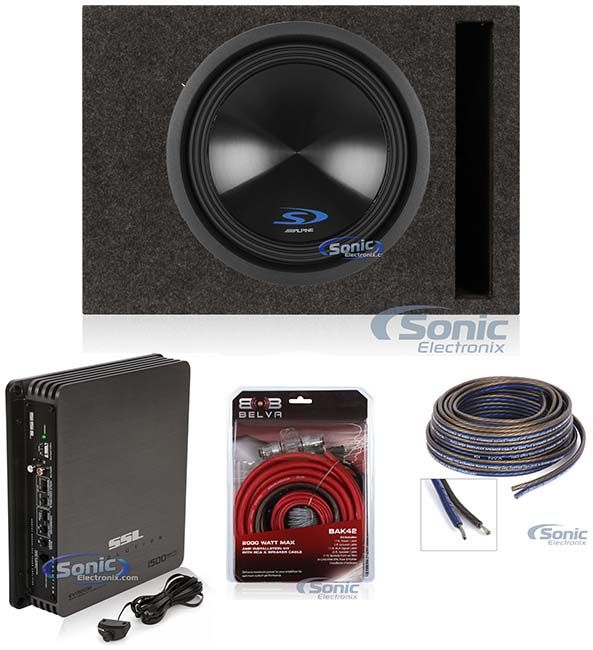

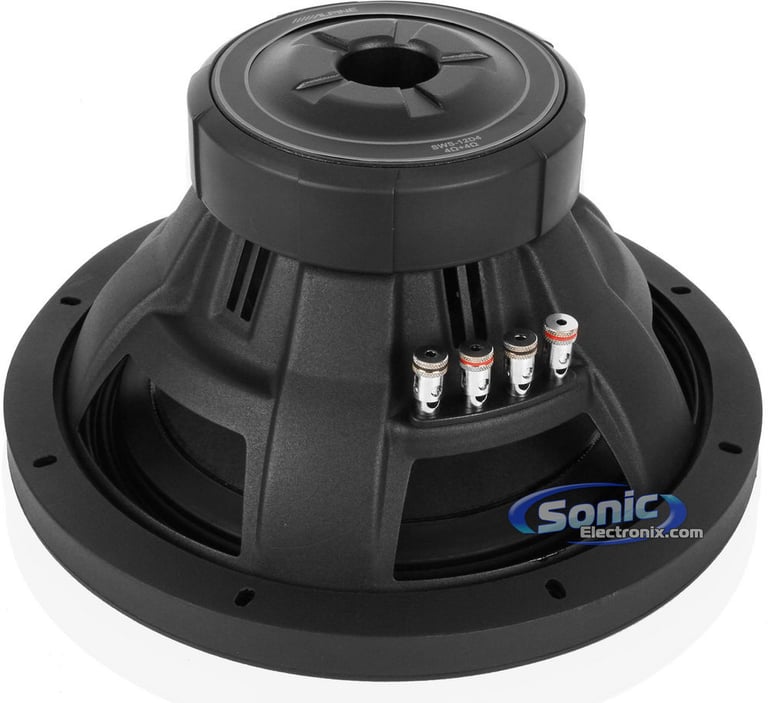

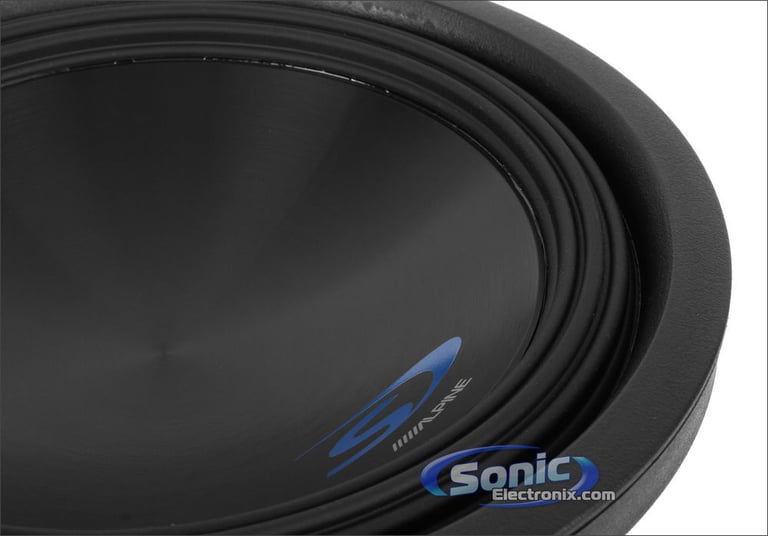

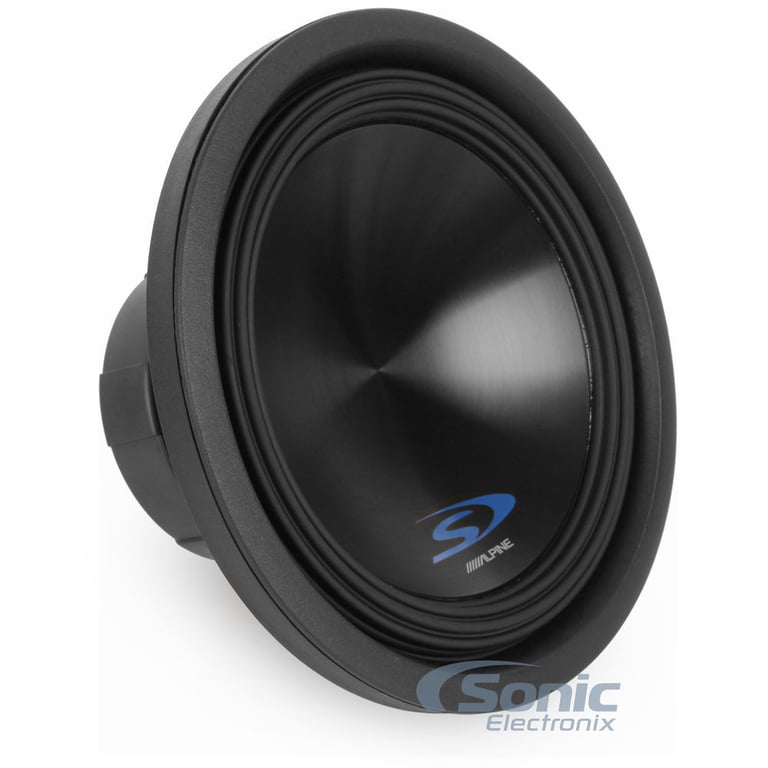

Alpine Type-S SWS-12D4 12" Complete Bass Package

General Features:

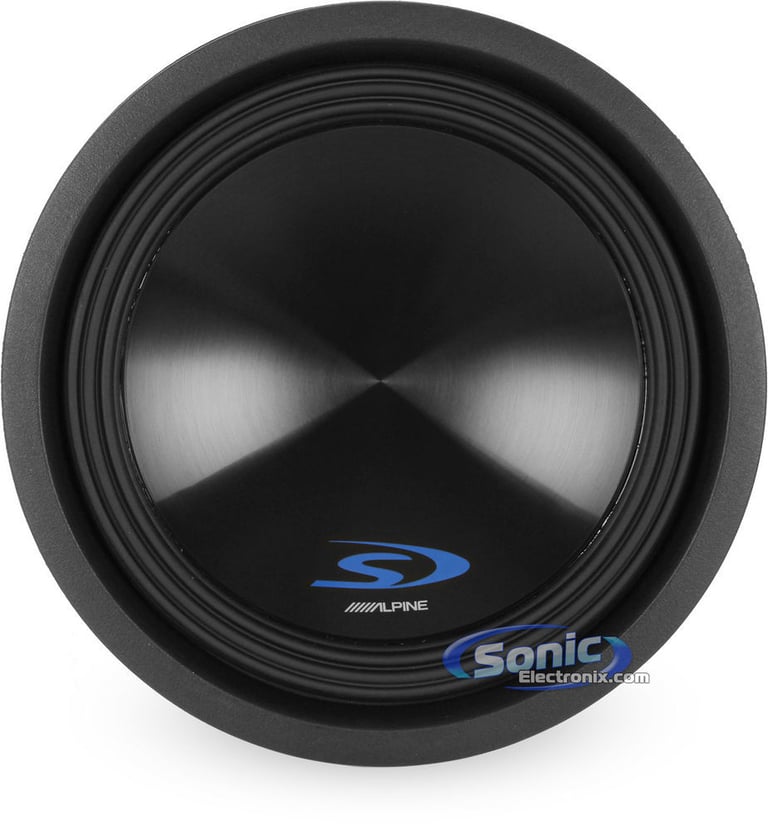

• 12" 4 Ohm Type-S Series Subwoofer
• Power Handling:
• Peak: 1800 watts
• RMS: 600 watts
• Recommended power range: 250- 600W RMS
• Pulp/Kevlar Cone
• High Amplitude Multi-Roll (HAMR) Surround
• Progressive Spider with Reinforced Layer Tinsel Leads
• Airflow Optimized Dual Flare Pole Vent
• High Strength Steel Frame Basket
• 8 AWG Push Terminals with VC Configuration Jumpers
• Dual Voice Coil
• High Grade Strontium Ferrite Magnets
• Top-mount depth: 5-1/16"
• Cutout diameter: 10-9"
• Frequency Response: 26- 200Hz
• Sensitivity: 86.4dB
• Resonance Frequency (Fs): 31 Hz
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Priced Individually

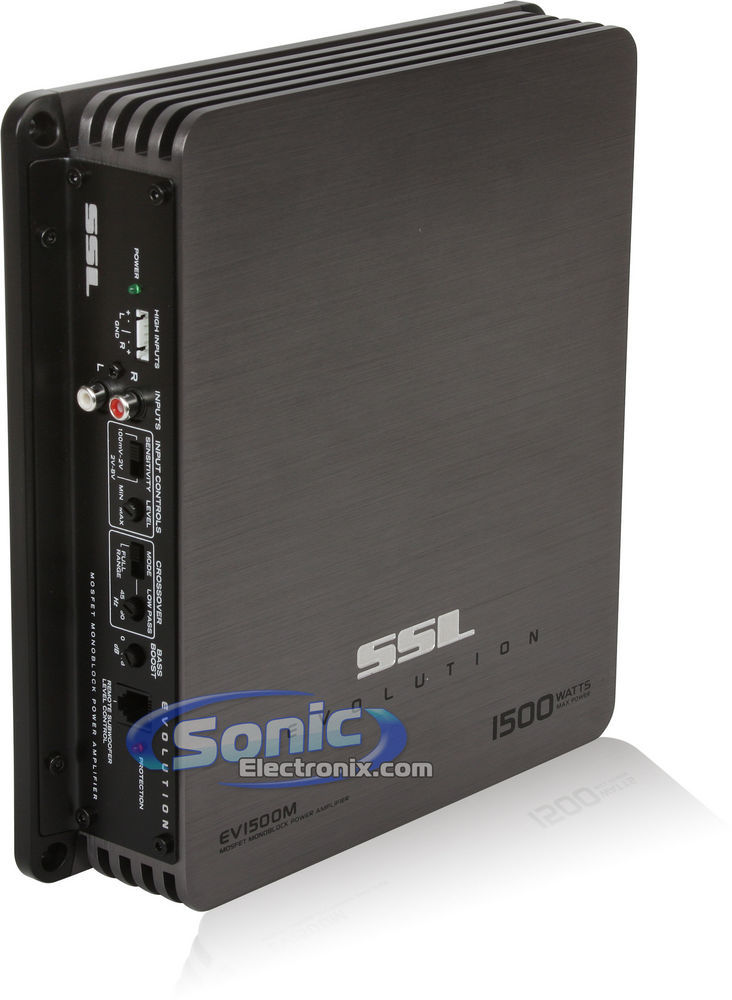

Product Details:

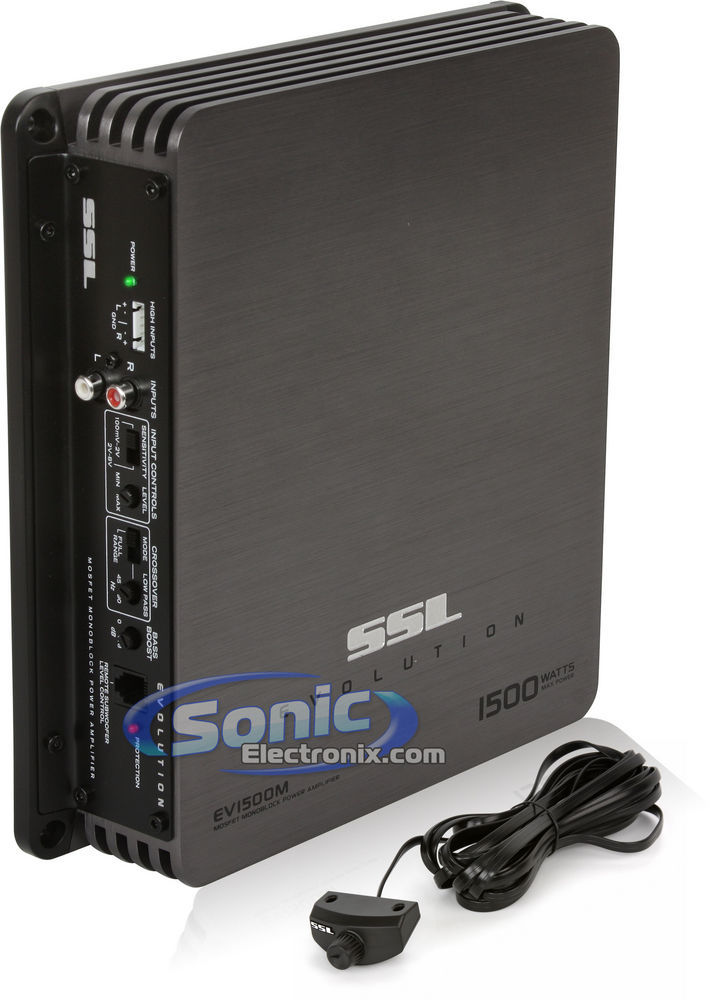

• Evolution Series Class A/B 2 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 563 watts x 1 channel
• 2 ohm: 1125 watts x 1 channel
• Peak Power Rating:
• 4 ohm: 750 watts x 1 channel
• 2 ohm: 1500 watts x 1 channel
• Total RMS power output: 1125 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Speaker-level (high-level) inputs
• Protection circuitry (thermal and speaker short protection)
• MOSFET PWM (Pulse Width Modulated) Power supply
• Soft turn-on circuit
• Protection circuitry (thermal and speaker short protection)
• Nickel plated RCA low level and high level inputs
• Black anodized heatsink
• Input sensitivity:
• Low level: 100mV - 2 volts
• High level: 2V - 8 volts
• Frequency Response: 9 - 50000 Hz
• Total Harmonic Distortion (THD): <0.01%
• Signal to Noise Ratio: 103 dB
• Variable low-pass filter: 50 - 250 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 30A
• 1/0 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 10" L x 10" W x 2.25" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: EV1500M

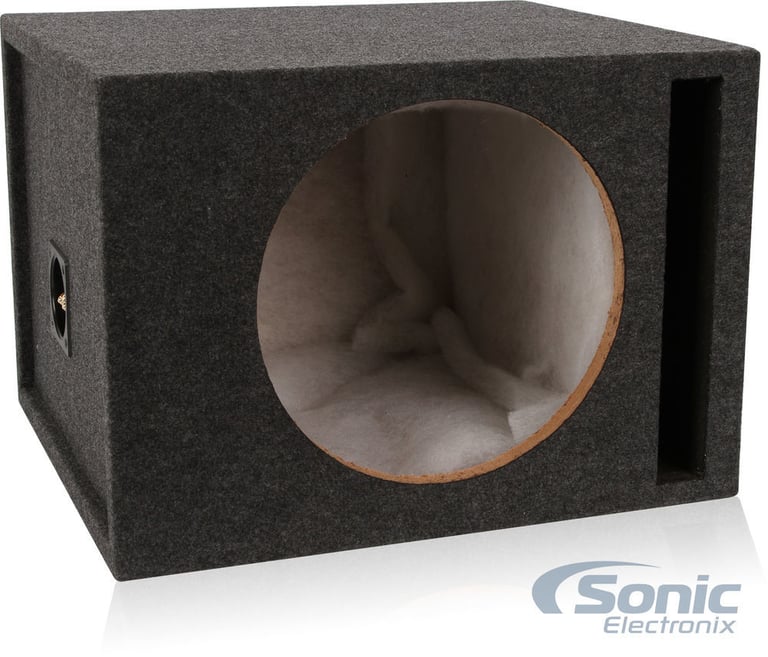

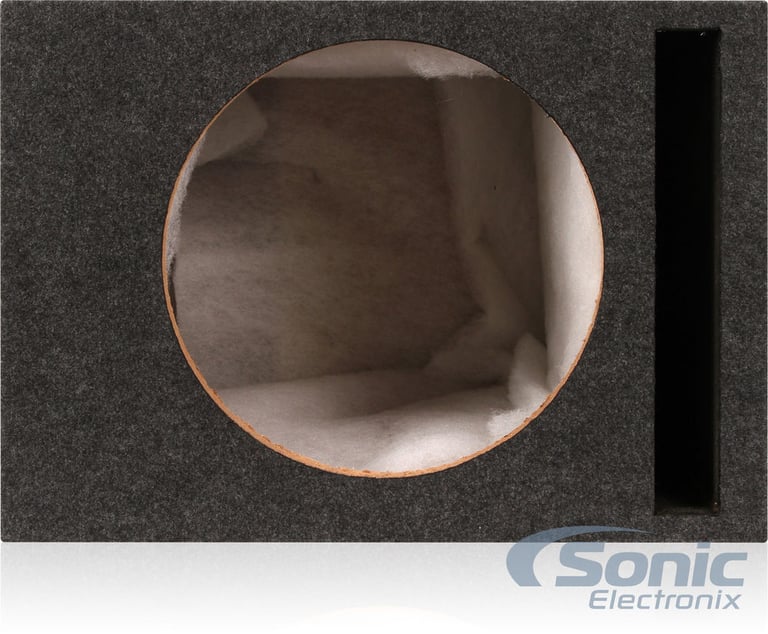

Product Details:

• Single 12" Vented MDF Enclosure
• Holds one 12" subwoofer
• 3/4 MDF (Medium Density Fiberboard) Construction
• Durable gray carpeting
• Gold Terminals
• Tuning Frequency: 36Hz
• Internal Box Volume: 1.8 cubic ft.
• Dimensions: 13-5/8"H x 17"D x 19-1/4"W
• 30 Day return policy

Product Details:

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Gray 4 gauge power wire
2. 3 ft. Black 4 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire
4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties

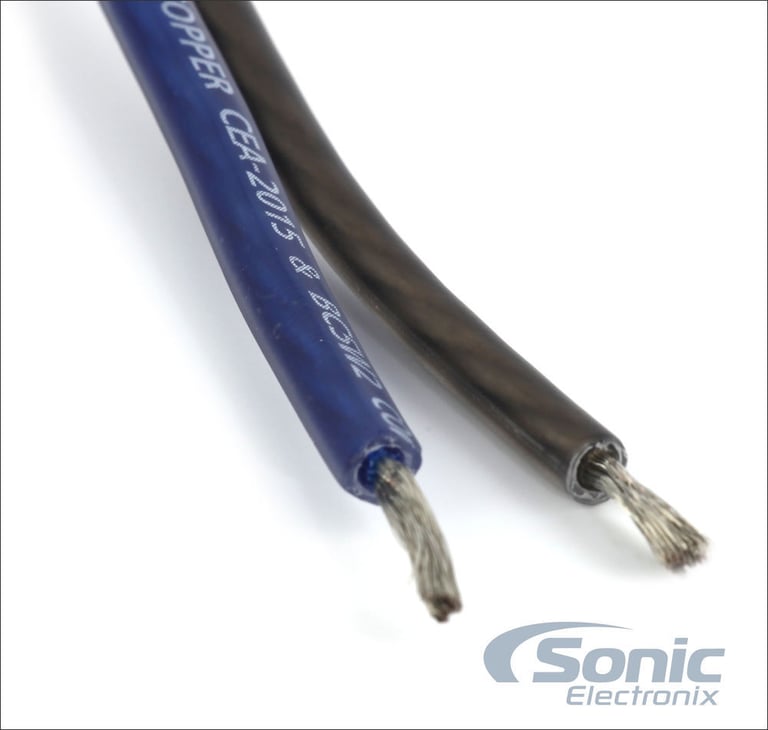

General Features:

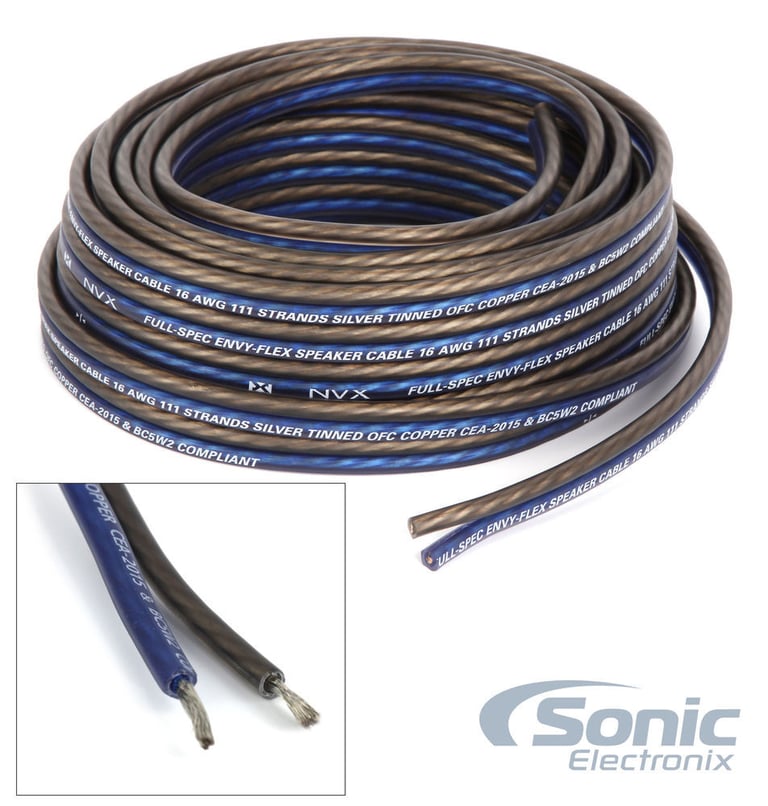

• 16 Gauge Speaker Wire
• High strand count for maximum flexibility
• Ultra-flexible PVC blended jacket for easy installation
• Packed in resealable bag
• Length: 7m (23 Ft)
• Also available in 12 Gauge
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
