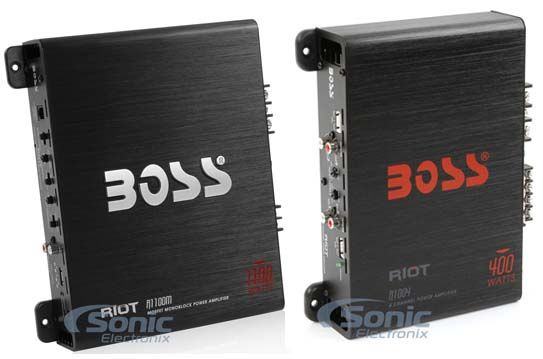

BOSS Audio Mono-block Amplifier + Boss Audio 4-Channel Amplifier

BOSS Audio Mono-block Amplifier + Boss Audio 4-Channel Amplifier-thumbnail

Product highlights

• 550 Watts Peak x 1 @ 4 ohms
• 1100 Watts Peak x 1 @ 2 ohms
• 825 Watts RMS x 1 @ 2 ohms
• Remote Subwoofer Level Control Included
• Pulse Width Modulated MOSFET power supply
• Speaker-level (high-level) inputs
• Signal to Noise Ration: 102 dB
• Frequency Response: 9 - 50,000 Hz

Learn more about the r1100m_r1004

Description

Authorized dealer

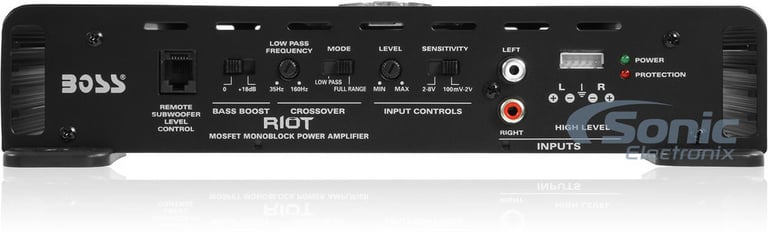

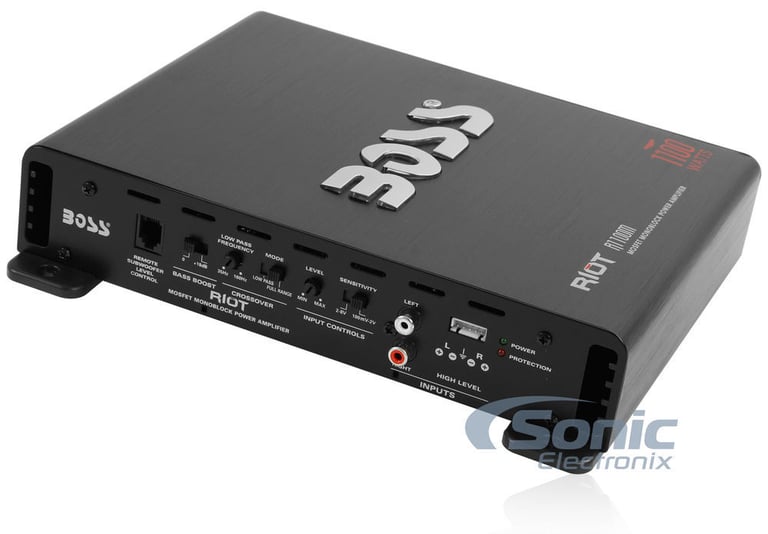

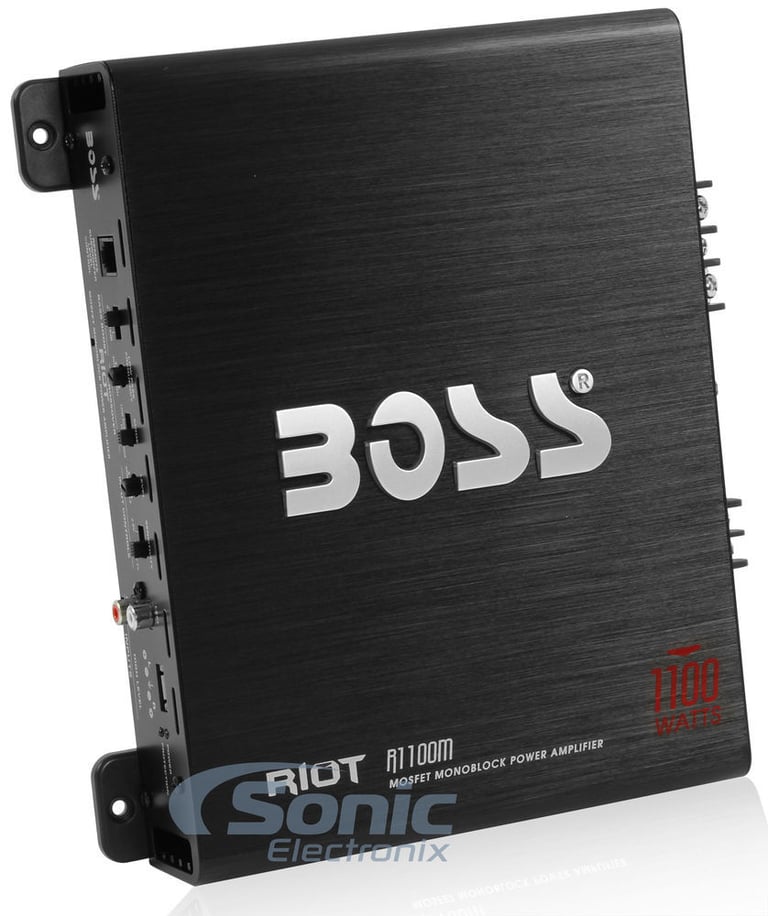

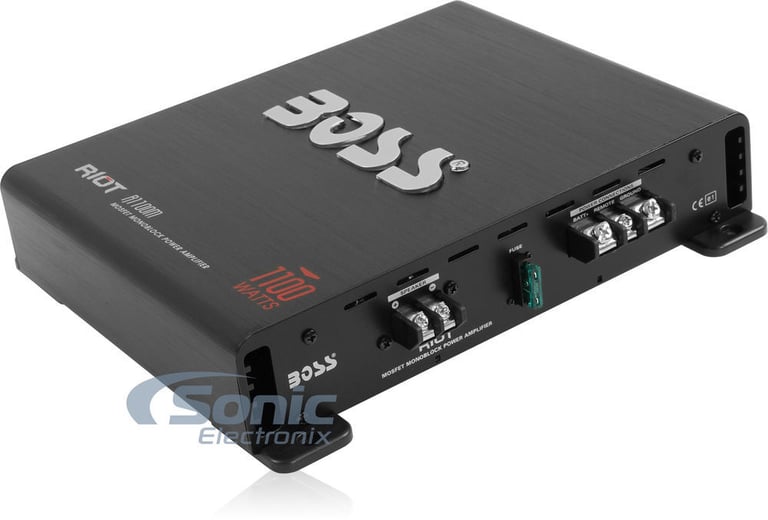

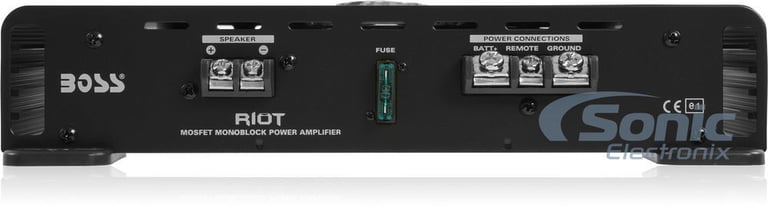

Boss R1100M Amplifier

Riot 1100 Watt, 2/4 Ohm Stable Class A/B, Monoblock with Remote Subwoofer Control
Quantity: 1

General Features:

Boss Riot Series R1100M
Class-AB FullRange 2-Ohm Stable Monoblock Amplifier
MAX Power Rating:

4 ohms: 550 watts x 1 chan.
2 ohms: 1100 watts x 1 chan.

RMS Power Rating:

4 ohms: 413 watts x 1 chan.
2 ohms: 825 watts x 1 chan.

Pulse Width Modulated MOSFET power supply

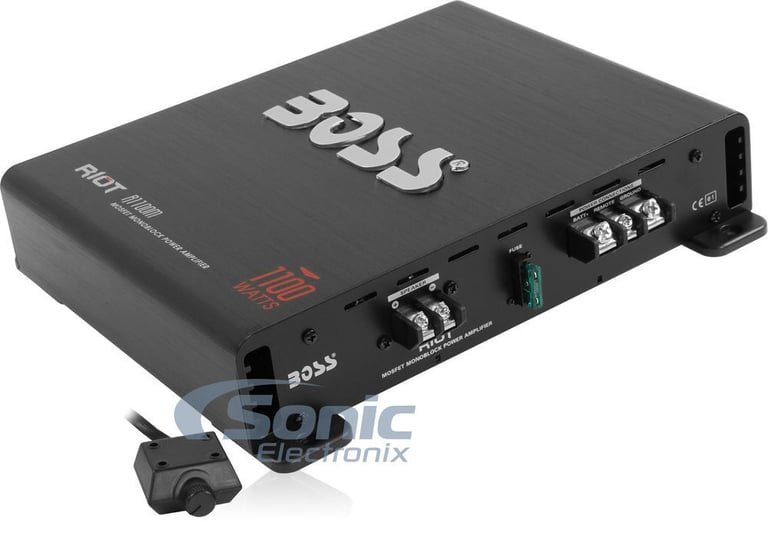

Wired remote bass level control included
LED power (green) and protect (red) indicators
Soft start turn-on
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity:

Low level: 100mV - 2V
High level: 2V - 8V

Frequency Response: 9 - 50,000 Hz
Total Harmonic Distortion (THD): 0.01%
Signal to Noise Ration: 102 dB
Selectable crossover modes: Low Pass / Full Range
Variable low-pass filter: 35 - 160 Hz,/octave
Selectable Bass Boost: 0 to +18 dB
Fuse Rating: 30A x 1
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 9.13"W x 10.44"L x 2.25"H
Authorized Platinum Internet Dealer
1 year Sonic Electronix, and 5 years Manufacturer's warranty

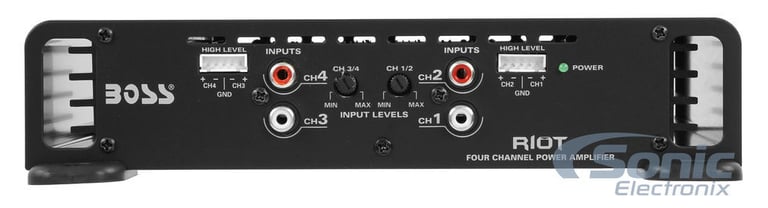

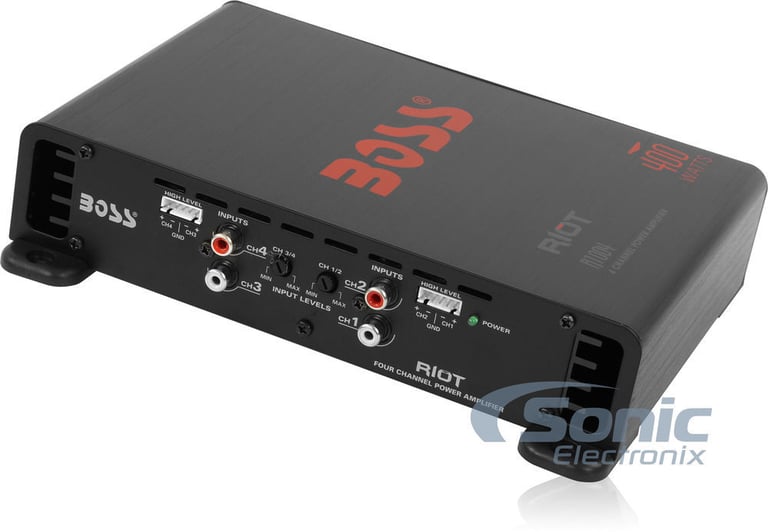

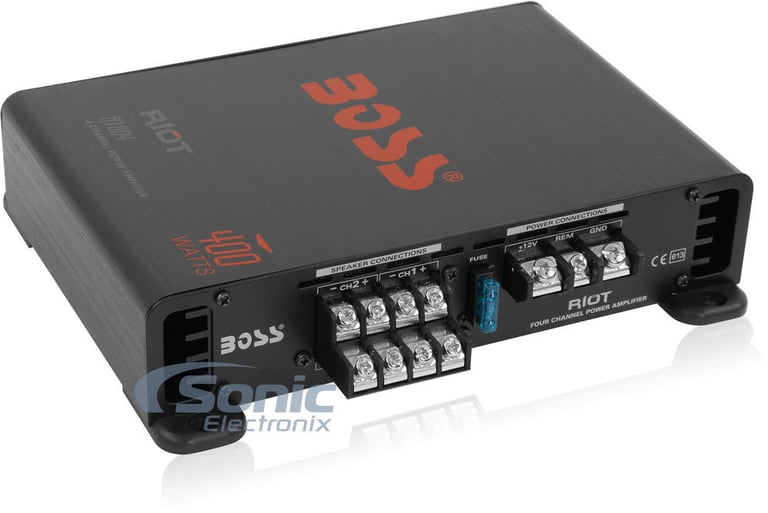

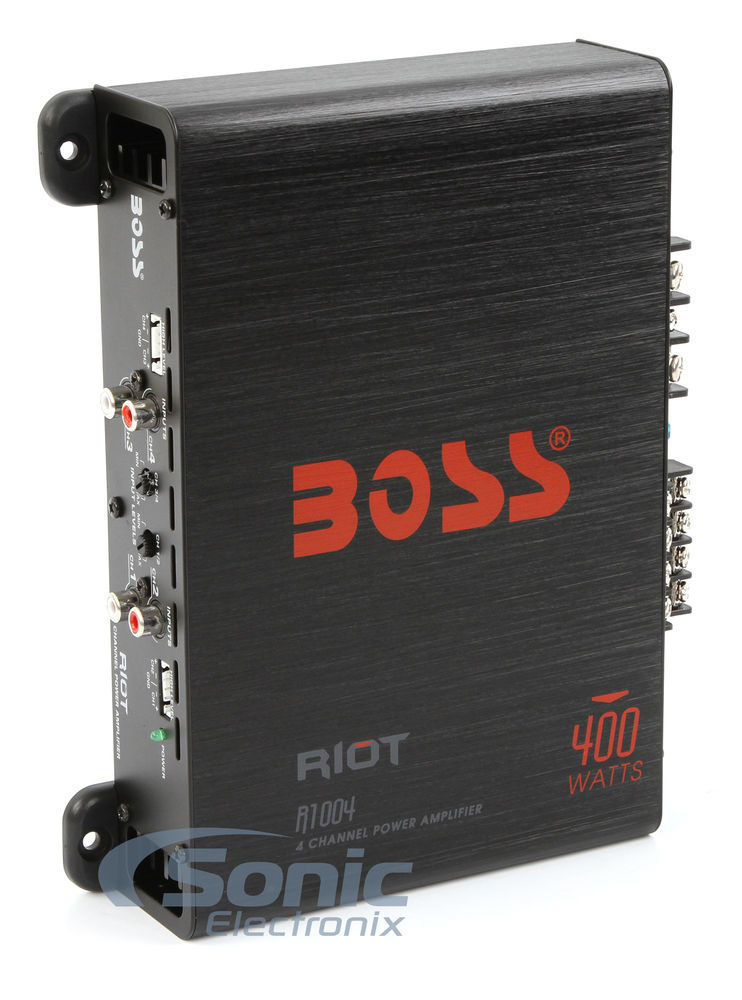

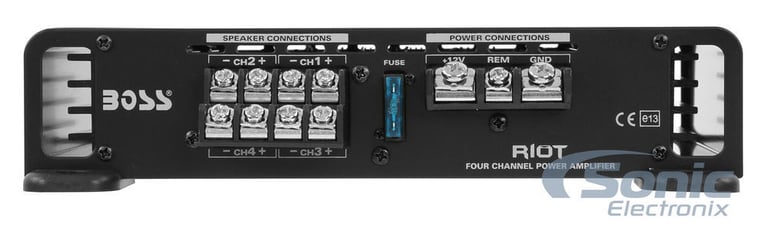

Boss R1004

400W Peak (75W RMS) Riot Series Class-AB 4-Channel Amplifier
Quantity: 1

Product Details:

Riot Series Class A/B 2 ohms Stable 4-Channel Amplifier
RMS Power Rating:

4 ohms: 38 watts x 4 channel
2 ohms: 75 watts x 4 channel

Peak Power Rating:

4 ohms: 50 watts x 4 channel
2 ohms: 100 watts x 4 channel

Total power output: 75 watts
LED Power/Protect Light
Soft turn-on circuit
3-way protection circuitry (thermal, overload, and speaker short protection)
Nickel plated RCA low level and high level inputs
White anodized Aluminum heatsink
Frequency Response: 12 - 22000 Hz
Total Harmonic Distortion (THD): 0.01%
Signal to Noise Ratio: 90 dB
Fuse Rating: 15A
8 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 7.75" L x 9" W x 2" H
Authorized Internet Dealer
6 Year Manufacturer's Warranty
MFR #: R1004

Boss R1004 owner’s manual

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

413 watts x 1 channel

RMS Power @ 2 ohms

825 watts x 1 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

550 watts x 1 channel

Peak Power @ 2 ohms

1100 watts x 1 channel

Amplifier Specifications

Series

Riot Series

Amplifier Class

A/B

Number of Channels

1 - Mono

Total Peak Power Output

1100 watts

Total RMS Power Output

825 watts

Maximum Input Gauge Size

Any Gauge with use of Spade Terminal AWG

Minimum Impedance Unbridged

2 ohms

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.01%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
Full (AP)

Low-Pass Crossover Frequency

35 - 160 Hz

Signal-to-Noise Ratio

102 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

30A x 1

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

6 years

Labor Warranty Duration

6 years

Warranty Provider

Manufacturer
